$243,780 USD
Description
SKU: 29794
Model: D320-3700
Condition: Used
General Specifications:
Bed Length: 3700 mm / 145.67 in.
Tons: 320 ton
Brake Type: Hydraulic
CNC: Yes
Electrical Specifications:
Voltage: 600 volts
Phase: 3-phase
Dimensions: 135.43 (H) x 101.18 (W) x 297.64 (L) inches
Additional Description:
Throat: 510 mm
Daylight: 635 mm
Stroke: 410 mm
Distance between columns: 3200 mm
Features
- Y1, Y2, X, R (4-Axes CNC)
- ESA S 650 CNC Control Unit
- MVD X-Axis Back Gauge, Servo Motorized, Range X = 750 mm, R = 250 mm
- 2x pieces Back Gauge finger, straight, 3 stage, manually movable along the linear guide
- European Style Quick clamp Promecam top tool holder E7

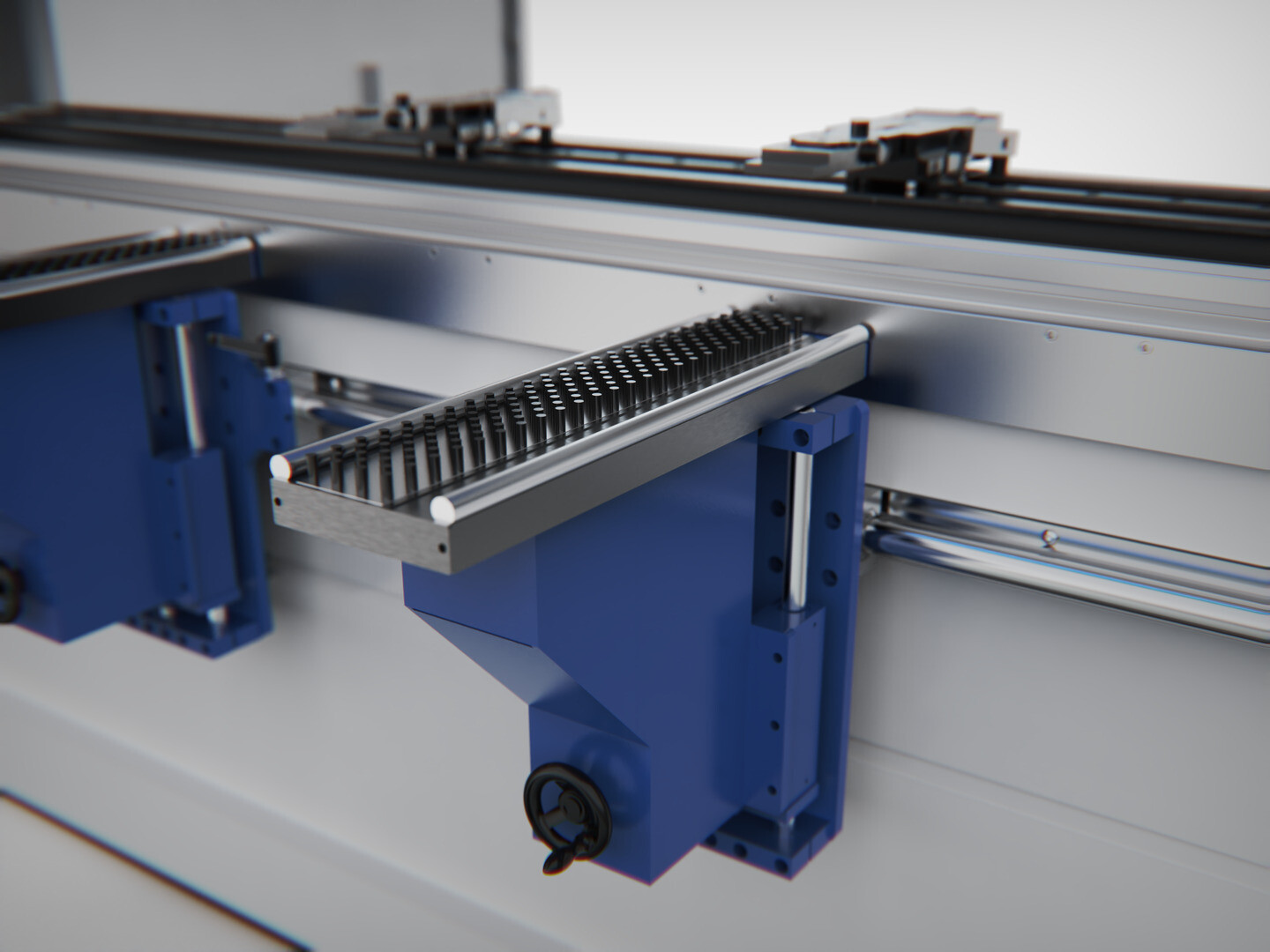

- 2x pieces Stronger sliding front support arms with hand-wheel D-Type horizontal adjustment
- MVD special narrow bottom plate (European Type)
- Standard Punch ES 1260 (H: 67, 85, R: 0.8)
- Standard Die ES 2067 (60x60 mm, 4 channels V = 16-22-35-50 mm, 85, H:60)
- 2019 D-Series full cabin cover with aluminium controller arm
- Double Pedal (Press Up&Down) - P3
- Stronger Type 2 motorized crowning with WILA (Holland) wedges
- Encoder - Linear Scales: GIVI
- LED illumination on RAM
- Electric components: Schneider 575V/ 60 Hz
- Hydraulic: Hoerbiger (HAWE) Blok
- Electric cabin: VDE
- Pump: Eckerle
- Driver: Mitsubishi / LS Electric
- iBend - Back Gauge MVD (X1+X2+R1+R2+Z1+Z2) - SERVO Motorised

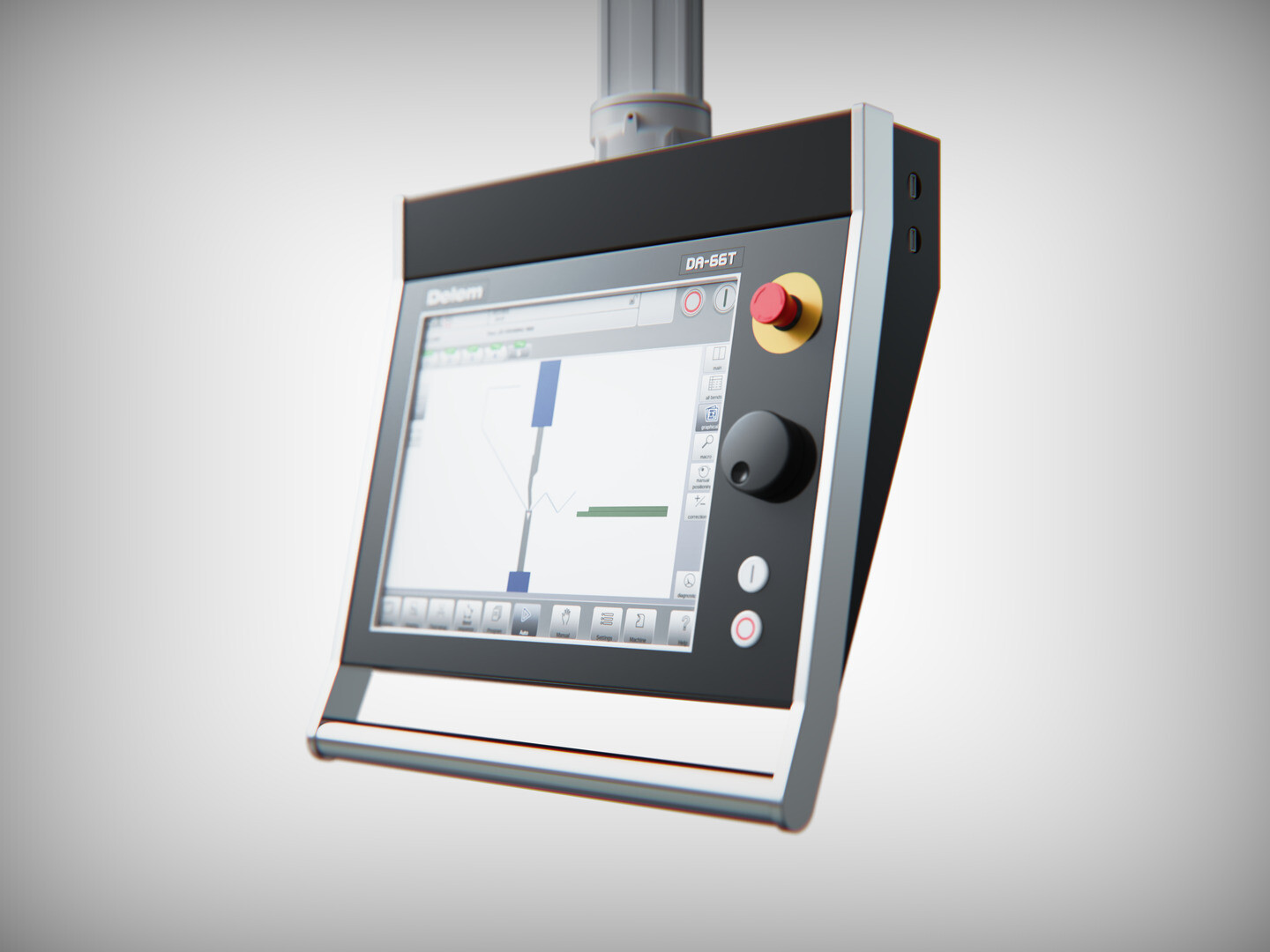

- Delem DA-69T, 17" Touch Screen, 3D Graphical, (3-12 Axes) *.dxf with Profile-T3D Offline programming software 3D
- Wila Hydraulic Punch NSCL-II-HC/UPB - PREMIUM - Max. load 250 t/m
- Wila Hydraulic Die NSCR-II-HC (PREMIUM) *Motorised crowning included*
- MSD or AKAS(FPBS) front safety lasers + rear light beams
Model: D320-3700
Condition: Used
General Specifications:
Bed Length: 3700 mm / 145.67 in.
Tons: 320 ton
Brake Type: Hydraulic
CNC: Yes
Electrical Specifications:
Voltage: 600 volts
Phase: 3-phase
Dimensions: 135.43 (H) x 101.18 (W) x 297.64 (L) inches
Additional Description:
Throat: 510 mm
Daylight: 635 mm
Stroke: 410 mm
Distance between columns: 3200 mm
Features
- Y1, Y2, X, R (4-Axes CNC)
- ESA S 650 CNC Control Unit
- MVD X-Axis Back Gauge, Servo Motorized, Range X = 750 mm, R = 250 mm
- 2x pieces Back Gauge finger, straight, 3 stage, manually movable along the linear guide
- European Style Quick clamp Promecam top tool holder E7
- 2x pieces Stronger sliding front support arms with hand-wheel D-Type horizontal adjustment
- MVD special narrow bottom plate (European Type)
- Standard Punch ES 1260 (H: 67, 85, R: 0.8)
- Standard Die ES 2067 (60x60 mm, 4 channels V = 16-22-35-50 mm, 85, H:60)
- 2019 D-Series full cabin cover with aluminium controller arm
- Double Pedal (Press Up&Down) - P3
- Stronger Type 2 motorized crowning with WILA (Holland) wedges
- Encoder - Linear Scales: GIVI
- LED illumination on RAM
- Electric components: Schneider 575V/ 60 Hz
- Hydraulic: Hoerbiger (HAWE) Blok
- Electric cabin: VDE
- Pump: Eckerle
- Driver: Mitsubishi / LS Electric
- iBend - Back Gauge MVD (X1+X2+R1+R2+Z1+Z2) - SERVO Motorised
- Delem DA-69T, 17" Touch Screen, 3D Graphical, (3-12 Axes) *.dxf with Profile-T3D Offline programming software 3D
- Wila Hydraulic Punch NSCL-II-HC/UPB - PREMIUM - Max. load 250 t/m
- Wila Hydraulic Die NSCR-II-HC (PREMIUM) *Motorised crowning included*
- MSD or AKAS(FPBS) front safety lasers + rear light beams
Inquire Further with Lenmark Industries!
