Manufacturer: Heim
Model: 3.OBI.F
Ton: 32.0
Stroke: 3.00
Shut Height: 10.50
Air Clutch: Yes
Price: $8,500 USD
For Sale by GTH Used Machinery Intl

Surplus Record Dealer Since 2017
Location: Pico Rivera, CA
Contact Jairo Gutierrez
Phone Number: 562...> Show Phone Number 562-692-8095
Let the seller know you found their listing on Surplus Record!
$8,500 USD
Description

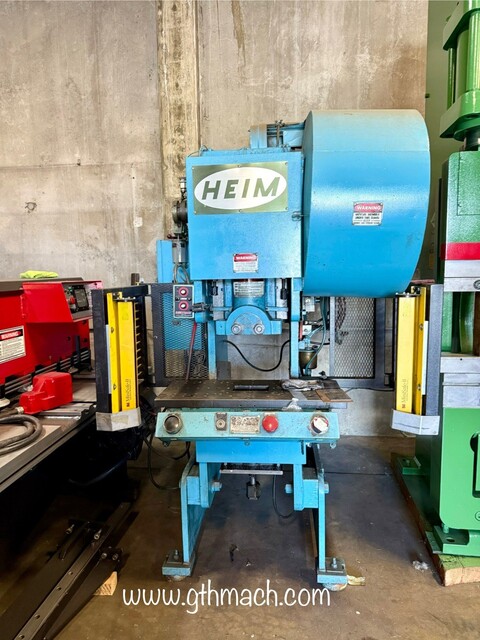

Heim OBI Punch Press 32 Tons
Specifications:
Stroke ........................ 3"
Shut height (SDAU) over bed ... 10-1/2"
Adjustment .................... 2-1/2"
Speed ......................... 140 SPM
Bed area ...................... 24" LR X 15" FB
Ram area ...................... 12" LR X 9" FB
Bolster plate ................. 24" X 15" X 1 1/2" Thick
Throat ........................ 9"
Opening in back ............... 16"
Floor to bed distance ......... 34"
Motor ......................... 3 hp / 220/440V
Approximate overall dimensions 62 FB x 51 LR x 90 H
Approximate weight 4,000 lbs.
Machine is equipped with:
- Air clutch & brake
- Dual palm buttons w/ E-stop on remote T-stand
- Dual Ross air valve
- Lube system
- Inch, single & continuous operation mode selector
- Safety Light Curtains
Specifications:
Stroke ........................ 3"
Shut height (SDAU) over bed ... 10-1/2"
Adjustment .................... 2-1/2"
Speed ......................... 140 SPM
Bed area ...................... 24" LR X 15" FB
Ram area ...................... 12" LR X 9" FB
Bolster plate ................. 24" X 15" X 1 1/2" Thick
Throat ........................ 9"
Opening in back ............... 16"
Floor to bed distance ......... 34"
Motor ......................... 3 hp / 220/440V
Approximate overall dimensions 62 FB x 51 LR x 90 H
Approximate weight 4,000 lbs.
Machine is equipped with:
- Air clutch & brake
- Dual palm buttons w/ E-stop on remote T-stand
- Dual Ross air valve
- Lube system
- Inch, single & continuous operation mode selector
- Safety Light Curtains
Inquire Further with GTH Used Machinery Intl!
