Manufacturer: Apv
Year: 1992
sq.ft.: 32
Description: plate heat exchanger
Pounds per Square Inch: 150
Stock # 712-47-EX
1 / 5
Click to zoom in
1 / 5
For Sale by Perry Videx LLC
Surplus Record Dealer Since 2021
Location: Hainesport, NJ
Contact Kathy Kelly
Phone Number: 609...> Show Phone Number 609-267-1600
Let the seller know you found their listing on Surplus Record!
Description

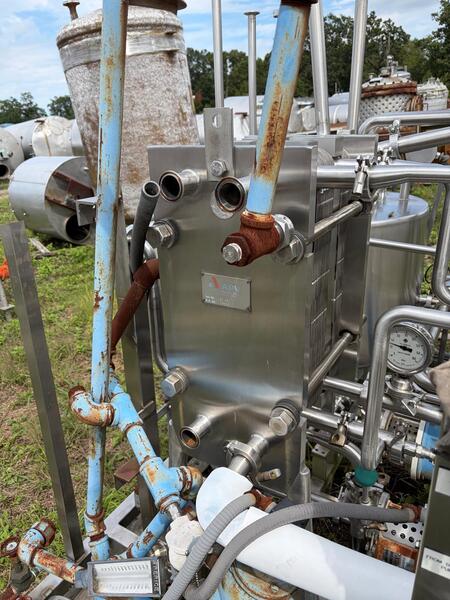

Used APV Crepaco model SR15S-L sanitary multi-section plate heat exchanger. Originally designed as the heating, regenerative heat-recovery, and cooling section of an HTST ice-cream mix pasteurization system. Rated for approximately 150 litres/hour product flow.
Approximately 32 sq. ft. effective heat-transfer area.

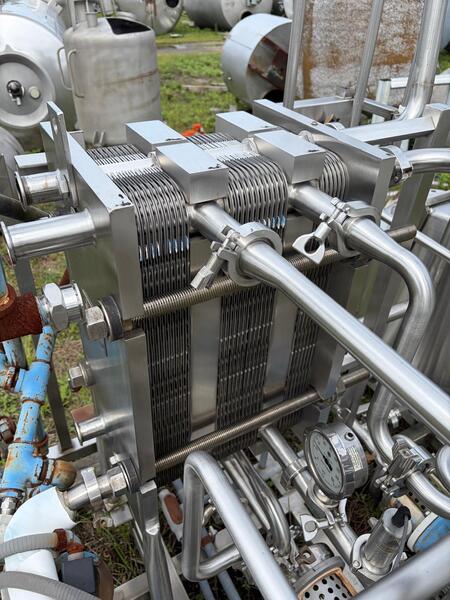

Originally was equipped with approximately 41 APV type SR1 plates. Plates are 0.6 mm thick 316 stainless steel with EPDM gaskets. Original process duty heats ice-cream mix from 100F to 185F, followed by regenerative cooling and final glycol cooling to 38F. Designed for 4 GPM hot-water circulation and 12 GPM of 30% glycol.

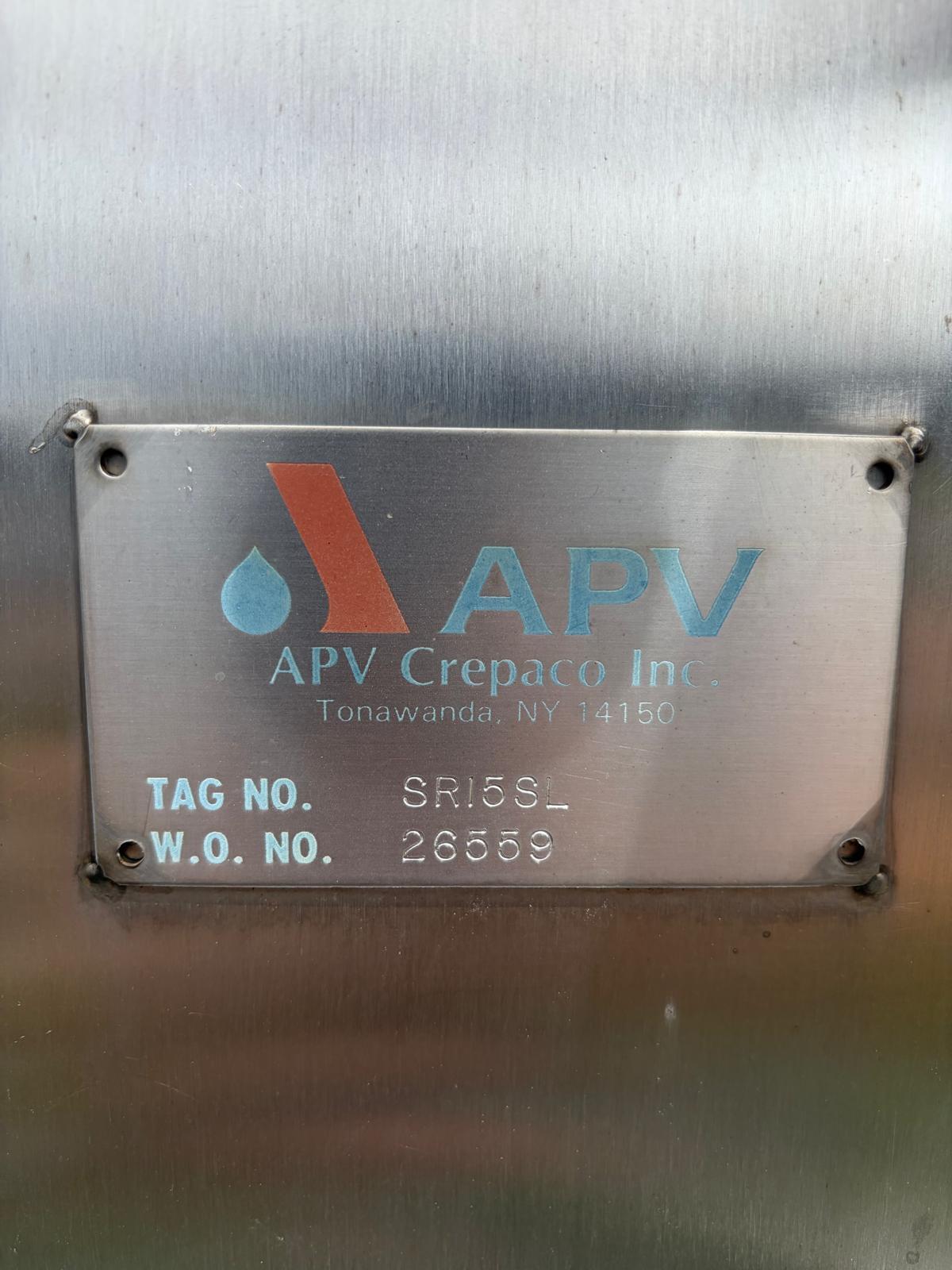

Maximum operating pressure: 150 psi. Product hold-up approximately 1.9 gallons. Fitted with 1.5" 316 stainless steel sanitary Tri-Clamp connections. Approximate overall dimensions: 24-11/16" long × 16" wide × 42" high. Dry weight approximately 455 lb. Manufactured approximately 1992. APV work order No. 26559.
APV SR15S-L
SPECIFICATIONS:
Surface Area............... 32 sq. ft.
Material Of Construction... 316 stainless steel
Number Of Plates........... 41
Approximately 32 sq. ft. effective heat-transfer area.
Originally was equipped with approximately 41 APV type SR1 plates. Plates are 0.6 mm thick 316 stainless steel with EPDM gaskets. Original process duty heats ice-cream mix from 100F to 185F, followed by regenerative cooling and final glycol cooling to 38F. Designed for 4 GPM hot-water circulation and 12 GPM of 30% glycol.
Maximum operating pressure: 150 psi. Product hold-up approximately 1.9 gallons. Fitted with 1.5" 316 stainless steel sanitary Tri-Clamp connections. Approximate overall dimensions: 24-11/16" long × 16" wide × 42" high. Dry weight approximately 455 lb. Manufactured approximately 1992. APV work order No. 26559.
APV SR15S-L
SPECIFICATIONS:
Surface Area............... 32 sq. ft.
Material Of Construction... 316 stainless steel
Number Of Plates........... 41
Get Your Price from Perry Videx LLC!
