For Sale by Mohawk Machinery Inc
Surplus Record Dealer Since 1956
Location: Cincinnati, OH
Contact Mr. Secord
Phone Number: 513...> Show Phone Number 513-771-1952
Let the seller know you found their listing on Surplus Record!
$9,950 USD
Description

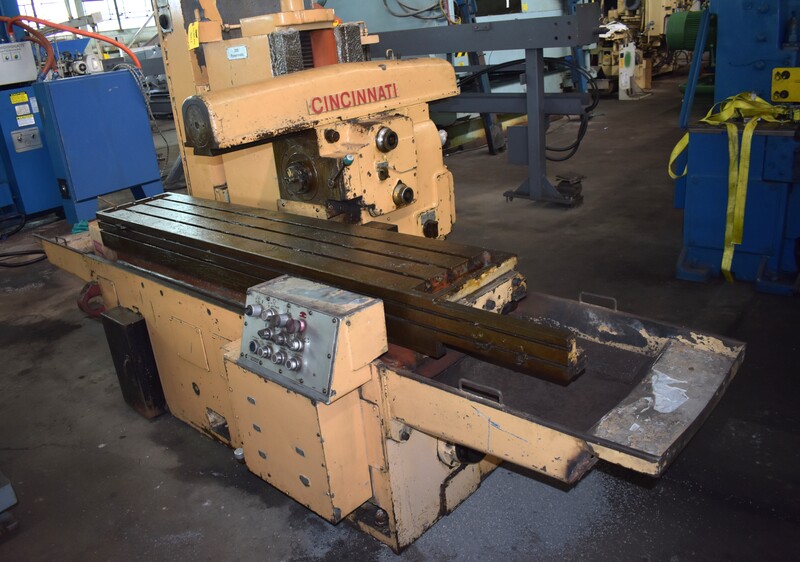

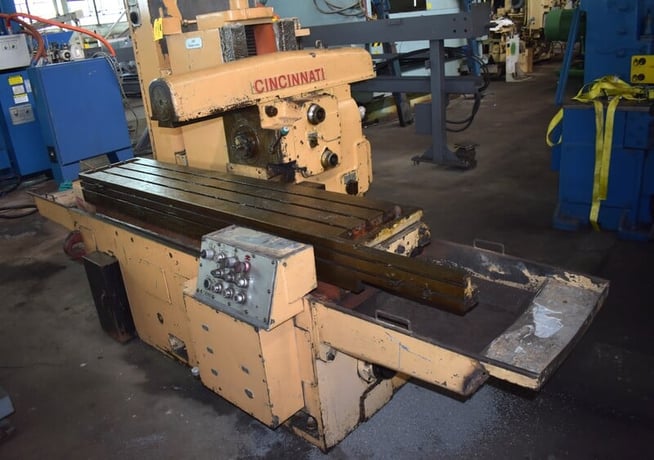

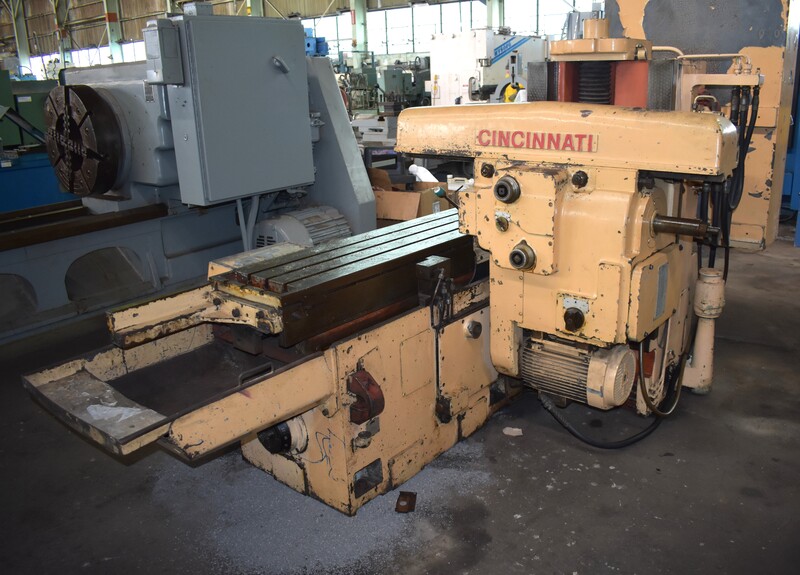

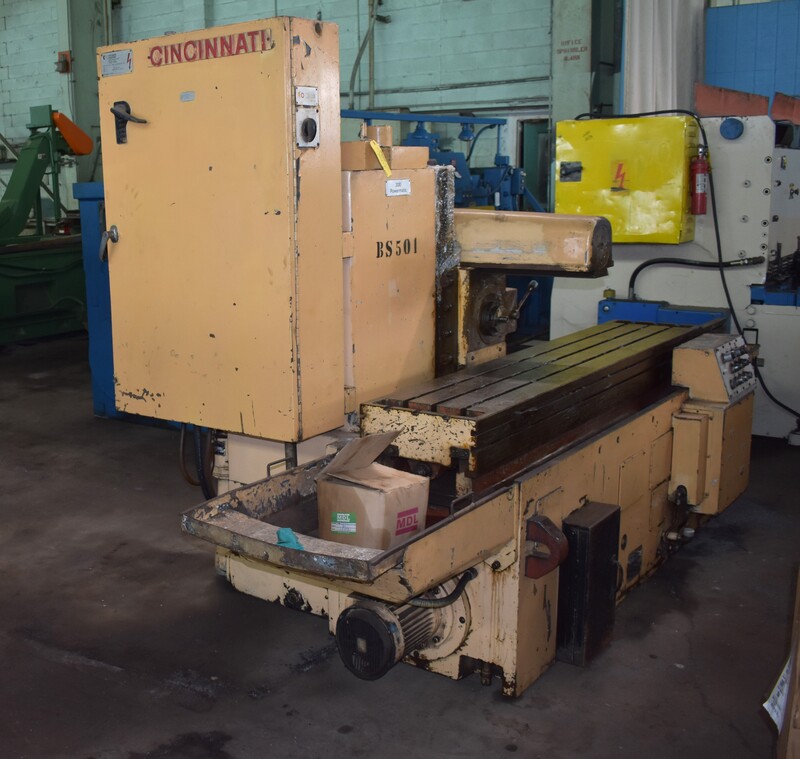

310-154 CINCINNATI-MILACRON "POWERMATIC"
HORIZONTAL-SPINDLE PRODUCTION MILL
Serial No 12B3P1AAE/35, Model 310-154,
Series "POWERMATIC"
310-154 CINCINNATI-MILACRON "POWERMATIC"
HORIZONTAL-SPINDLE PRODUCTION MILL
Serial No 12B3P1AAE/35, Model 310-154,
Series "POWERMATIC"
EQUIPPED WITH:
Auto Quill Retraction
Coolant System (Built-In)
CATALOG SPECIFICATIONS:
Table Dimensions (Overall) W x L .......... 15" x 78"
Table Working Surface, W x L .......... 15" x 70.5"
Table Longitudinal Travel (X-Axis) .......... 48"
Spindle-Head Vertical Travel (Y-Axis) .......... 14"
Quill Cross Adjustment (Z-Axis) .......... 4"
Table-Center to Spindle-Carrier Face .......... 10.5"
Table-Center to Spindle-Face, Minimum .......... 5.5"
Table-Center to Spindle-Face, Maximum .......... 9.5"
Quill Diameter .......... 7.5"
Spindle Nose Diameter .......... 5.06"
Spindle Taper .......... #50 NSTD
(16) Spindle Speeds, Range .......... 30 to 1200 RPM
Longitudinal Table Feeds, Range .......... 1/2 to 60 IPM
Power Rapid Table Traverse .......... 300 IPM
Spindle Motor, Horsepower .......... 10 HP/1775 RPM
Feed Drive Motor, Horsepower .......... 3 HP
Overall Dimensions, L x W 129" x 81"
Overall Height .......... 75"
Weight, Approximately .......... 12320 LBS
F.O.B. OUR WAREHOUSE
HORIZONTAL-SPINDLE PRODUCTION MILL
Serial No 12B3P1AAE/35, Model 310-154,
Series "POWERMATIC"
310-154 CINCINNATI-MILACRON "POWERMATIC"
HORIZONTAL-SPINDLE PRODUCTION MILL
Serial No 12B3P1AAE/35, Model 310-154,
Series "POWERMATIC"
EQUIPPED WITH:
Auto Quill Retraction
Coolant System (Built-In)
CATALOG SPECIFICATIONS:
Table Dimensions (Overall) W x L .......... 15" x 78"
Table Working Surface, W x L .......... 15" x 70.5"
Table Longitudinal Travel (X-Axis) .......... 48"
Spindle-Head Vertical Travel (Y-Axis) .......... 14"
Quill Cross Adjustment (Z-Axis) .......... 4"
Table-Center to Spindle-Carrier Face .......... 10.5"
Table-Center to Spindle-Face, Minimum .......... 5.5"
Table-Center to Spindle-Face, Maximum .......... 9.5"
Quill Diameter .......... 7.5"
Spindle Nose Diameter .......... 5.06"
Spindle Taper .......... #50 NSTD
(16) Spindle Speeds, Range .......... 30 to 1200 RPM
Longitudinal Table Feeds, Range .......... 1/2 to 60 IPM
Power Rapid Table Traverse .......... 300 IPM
Spindle Motor, Horsepower .......... 10 HP/1775 RPM
Feed Drive Motor, Horsepower .......... 3 HP
Overall Dimensions, L x W 129" x 81"
Overall Height .......... 75"
Weight, Approximately .......... 12320 LBS
F.O.B. OUR WAREHOUSE
Inquire Further with Mohawk Machinery Inc!
