Manufacturer: Ph Hydraulics
Model: 4C-300-P
Year: 1994
Ton: 300.0
Stroke: 24.0
Daylight: 36.0
Stock # 7612391
For Sale by Machinery Resources Intl
Surplus Record Dealer Since 1996
Location: Simi Valley, CA
Contact Sales Dept.
Phone Number: 818...> Show Phone Number 818-514-1254
Let the seller know you found their listing on Surplus Record!

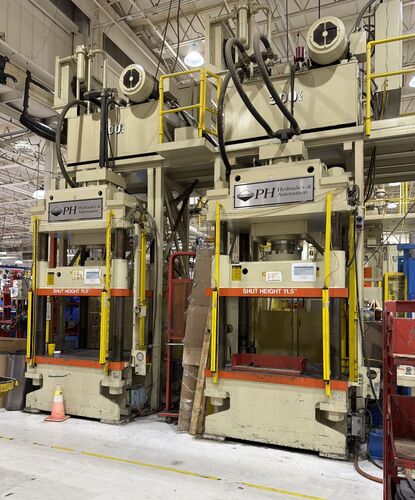

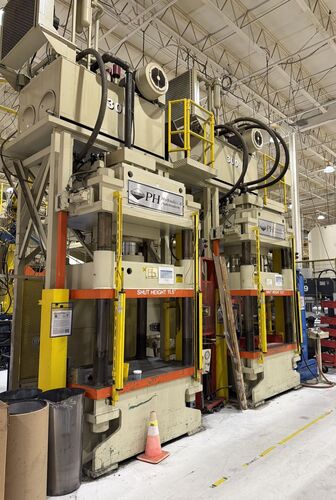

Description
Description:
2 MACHINES AVAILABLE
300 TON
DOWNACTNG
Specifications:
STROKE LENGTH: 24"
DAYLIGHT OPENING: 36"
BED AREA: 65"(LR) X 48"(FB)
DISTANCE BETWEEN POSTS: 48"(LR) X 31"(FB)
SPEEDS:
- ADVANCE: 280 IPM
- PRESS: 60 IPM
- RETURN: 360 IPM
400 GALLON RESERVOIR
MAX PRESSURE RATING: 2,984 PSI
MOTOR: 100 HP
MAIN CYLINDER: 16" BORE / 12" ROD / 24" STROKE
