Ton: 30.0
Stroke: 8.0
Daylight: 15.7
Stock # 99
1 / 5
Click to zoom in
1 / 5
For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Location: Grand Rapids, MI
Contact Tom,Pete,Bob
Phone Number: 616...> Show Phone Number 616-229-2957
Let the seller know you found their listing on Surplus Record!
Description

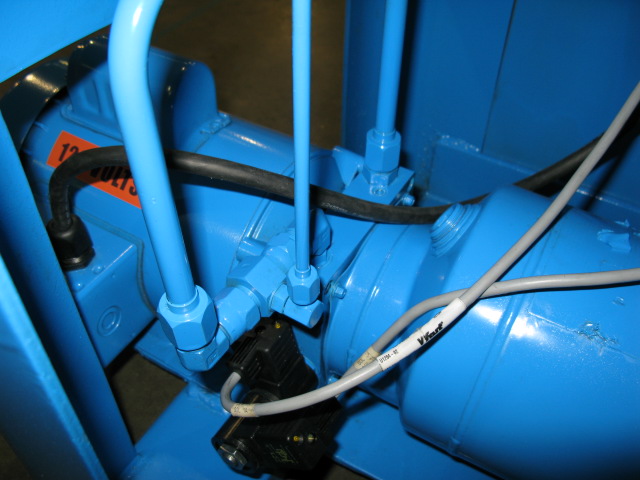

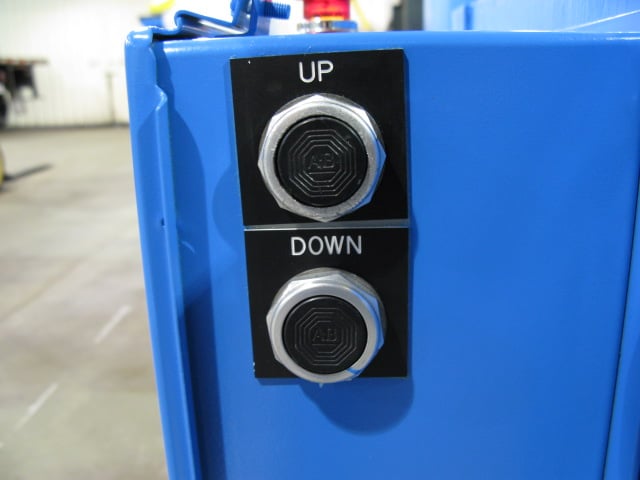

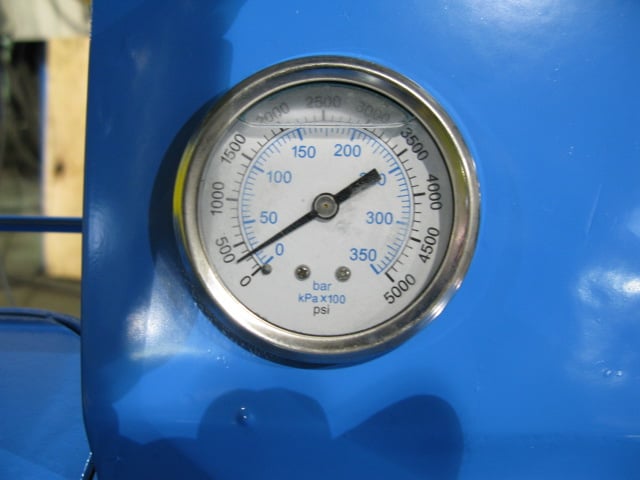

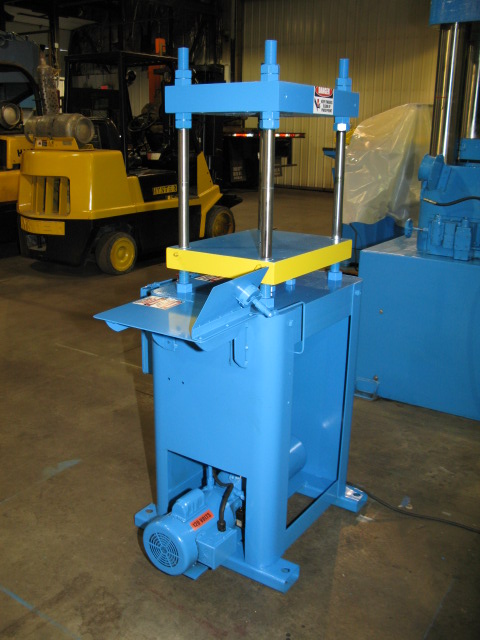

PLATEN L TO R OVERALL IS 20" AND F TO B BETWEEN POSTS IS 10.25". NOMINAL BED SIZE IS 16.25" X 15". CLAMP CYLINDER IS 5" BORE WITH A 2" DIAMETER ROD AND 8" MAX STROKE AND RATED TO 3000 PSI. CYLINDER HAS BEEN REBUILT AND HAS NEW SEALS. DAYLIGHT IS ADJUSTABLE FROM APPROX 15.75" TO 18.25". FULLY GUIDED ON 1.25" DIA POSTS WITH 2.5" BUSHINGS. OPERATOR HEIGHT IS APPROX 39.5". NEW HYDRAULIC SYSTEM WITH CONTROLS: 2 HP (3450 RPM; SINGLE PHASE; 120/240 VOLTS). POWER UNIT WITH A HI/LOW CIRCUIT; CURRENTLY SET UP AT 120V; LOW PRESSURE PUMP RATED AT 1.3 GPM TO 300 PSI; HIGH PRESSURE PUMP RATED AT .58 GPM TO 3000 PSI; PILOT CHECK VALVE LOCKS PRESS IN CLAMPED POSITION AT ANY PRESSURE SET-POINT; LIQUID FILLED PRESSURE GAUGE; APPROX SPEEDS OF 22 IPM FAST CLOSE; 6 IPM PRESSING AND 25 IPM FAST OPEN. TWO BUTTON CONTROL FOR CLOSE AND OPEN; E-STOP. APPROX 35" X 30" X 63" TALL. APPROX 1,250 POUNDS. SOME PAPERWORK. ITEM #99.
Get Your Price from Icon Industries, Inc!
