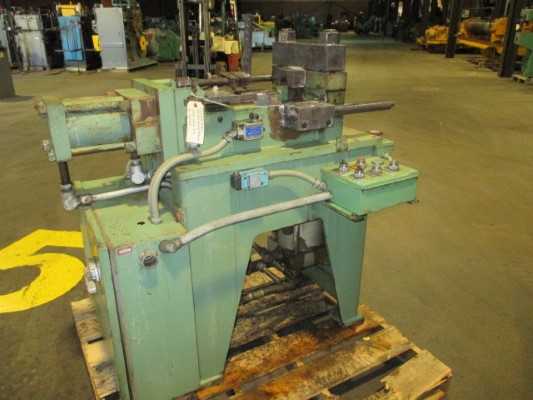

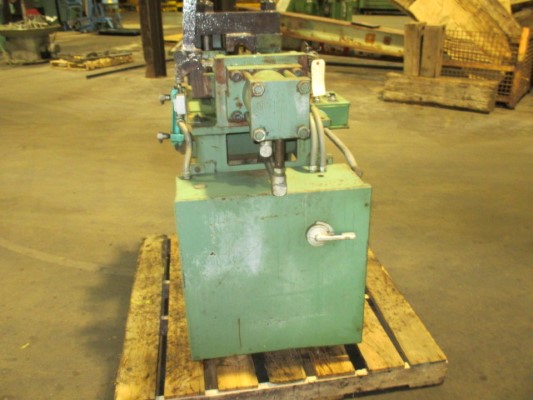

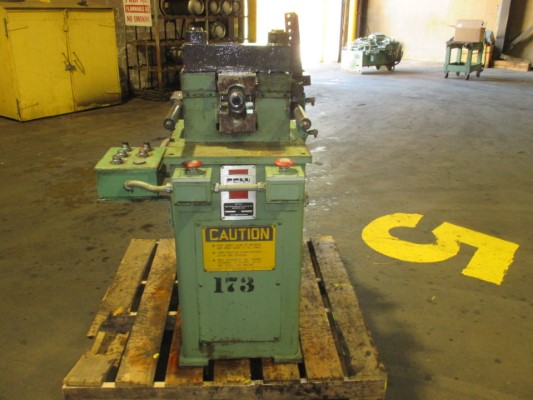

3" Fenn #30-3, Hydraulic Tube End Forming Machine, 4" stroke, 1500 PSI working pressure

One Station Performs Two Jobs
Clamp Pressure ....................... 57,000#
Thrust (Ram) Presssure ............... 30,000#
Work Stroke .......................... 0" - 4"
Idle Pressure ........................ 200 PSI
Working Pressure ..................... 1500 PSI
Maximum Capacities:
Aluminum: Reduce & Expand ............ 3" O.D. x .134"
Bead ................................. 3" O.D. x .095"
Flare ................................ 3" O.D. x .145"
Low Carbon Steel: Reduce & Expand .... 2-1/2" O.D. x .072"
Bead ................................. 2-1/4" O.D. x .058"
Flare ................................ 2-1/2" O.D. x .083"
Stainless Steel: Reduce & Expand ..... 2" O.D. x .065"
Bead ................................. 2" O.D. x .019"
Flare ................................ 2" O.D. x .072"

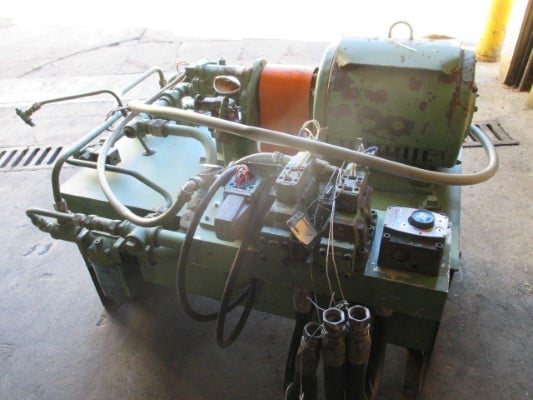

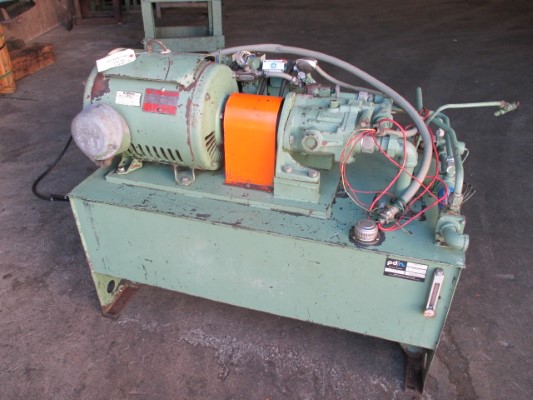

Equipped with: 25 HP 230/460 volt 3/60 1750 RPM mOTOR.
