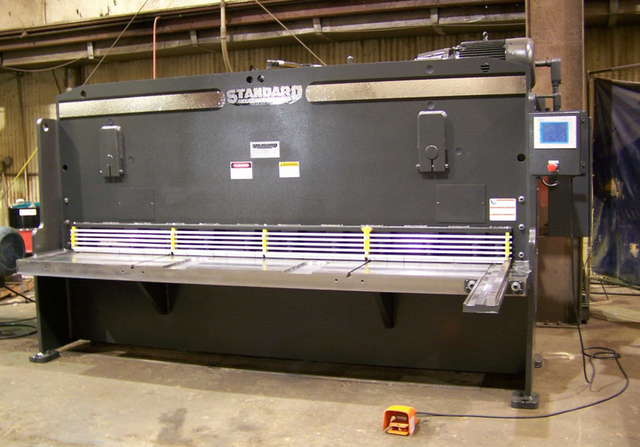

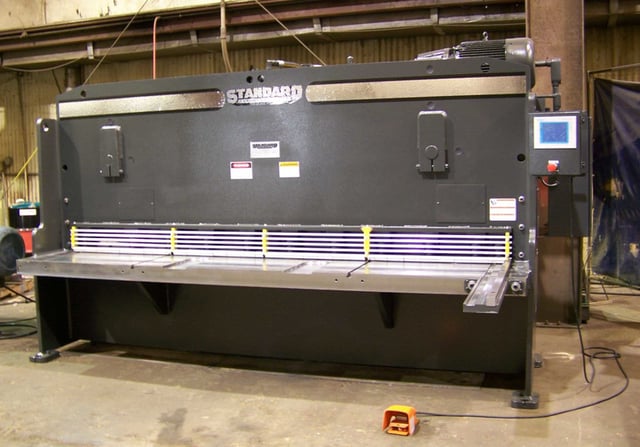

3/8" x 10' Standard #AS375-10, Hydraulic Power Squaring Shear, 12 SPM, NEW

Features:
« 100% Owned, 100% Operated & 100% Manufactured in U.S.A.
« Off the shelf, non-proprietary parts from your local suppliers in N. America
« Complete parts manual listing all original manufacturer’s name and part numbers so you will never have trouble locating parts
« Precision Guillotine drive providing the best shearing system available
« Highly visible, LED shadow lights for shearing line
« Backgauge includes manual swing-away backstop ((Upgradeable to power), + programmable X-retract + up to 200 programmable jobs via PLC control
« (8) manuals plus manuals on thumb drive
« Manual, side adjustable, quick-change blade gap adjustment (Upgradeable to power)
« Continuous shearing tonnage full length of table due to hydra-mechanical drive system providing 80,000 PSI/44,000 Yield Capacity
« Super heavy duty, 36" travel, precision ball screw backgauge with 400 IPM travel speed with +,- .005” repeatability.
« Off the shelf Cybelec shear control with 200 job programmability
« UL508A compliant
« 5 Year Parts Warranty + 2 Year PLC + 5 Year Limited Onsite Labor Warranty
« 8’ squaring arm with scale (6’ off table)
« Oil cooler for hydraulic system
« (2) Hand slots + (2) T-slots in table + (2) 24” t-slot support arms
« Automatic lubrication system w/warning light & auto shut-off
« OSHA approved physical awareness barrier for operator protection
« T-slot across front edge of brake bed
« Impact pads on hold-downs for sensitive material plus extra set of pads
Delivery:
Approx. 10-12 Weeks
