For Sale by Adams Machinery
Surplus Record Dealer Since 1924
Location: Lake Bluff, IL
Contact Mark Sonneborn
Phone Number: 847...> Show Phone Number 847-673-0556
Let the seller know you found their listing on Surplus Record!

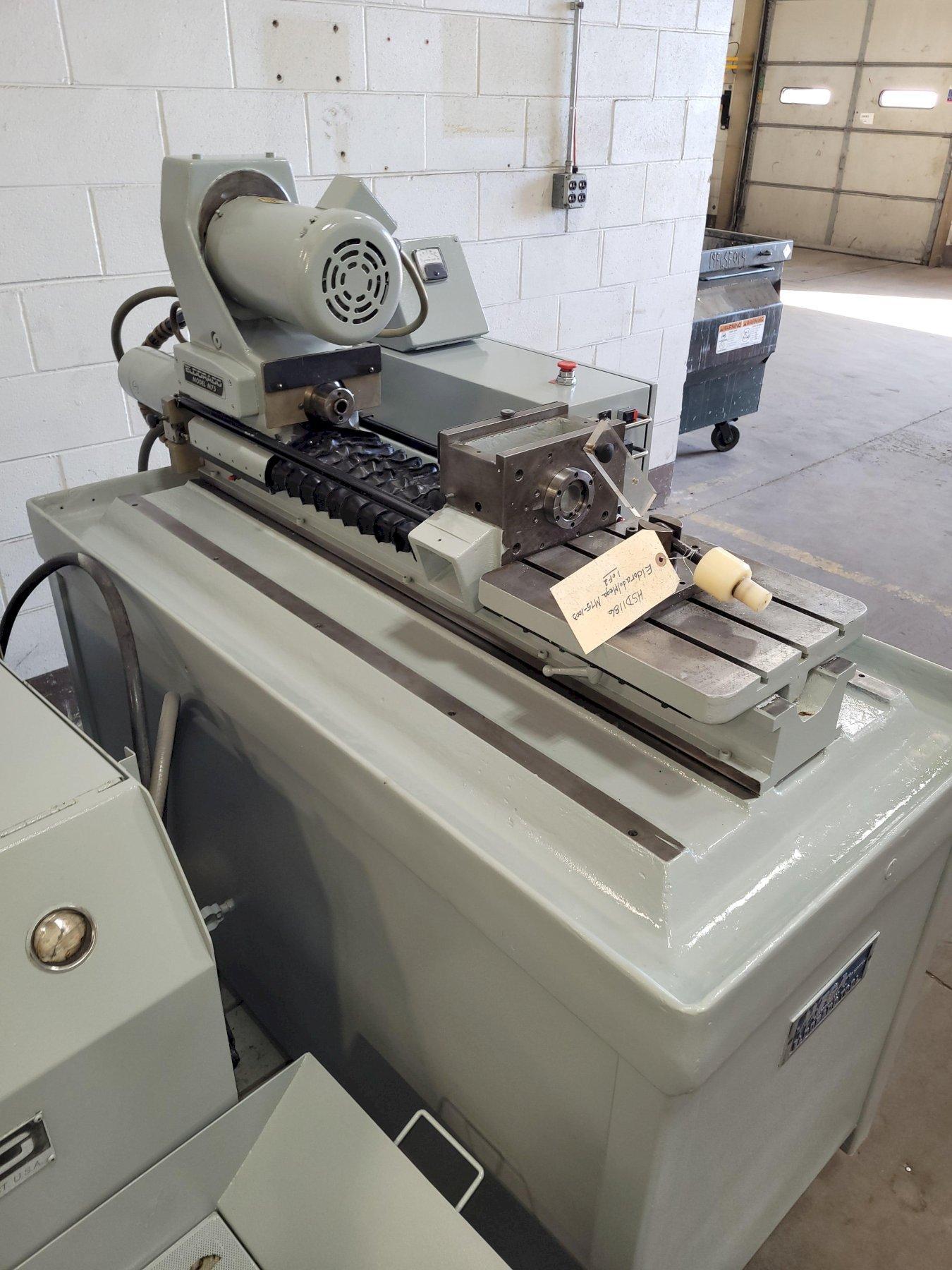

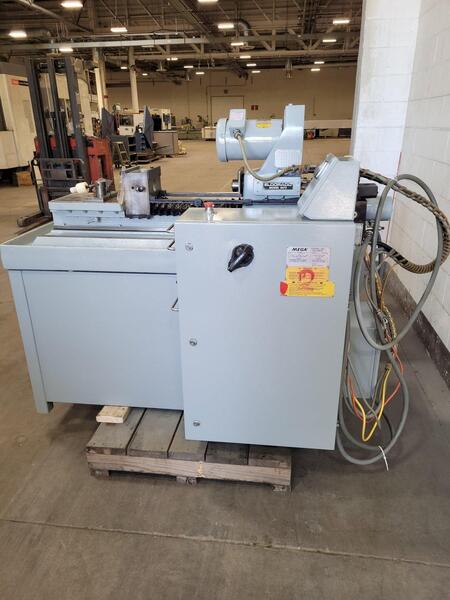

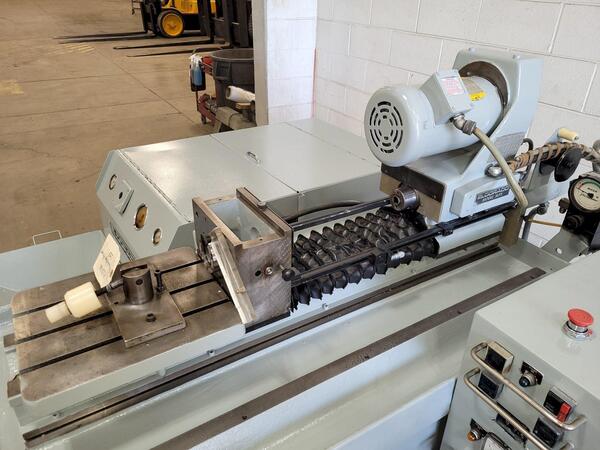

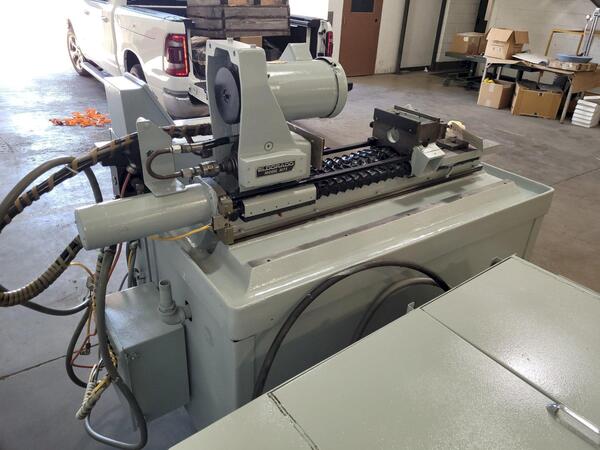

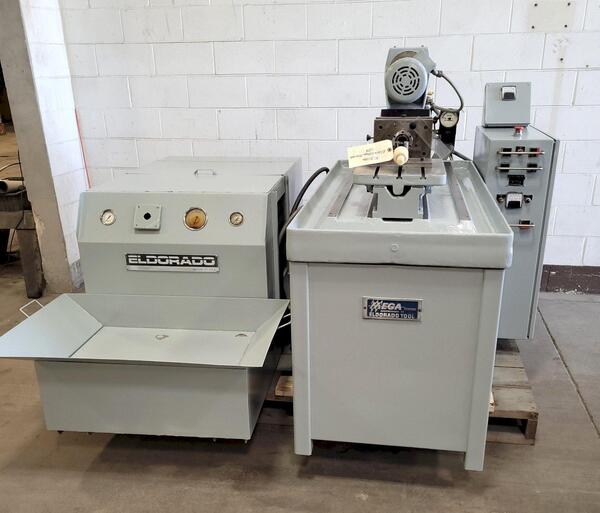

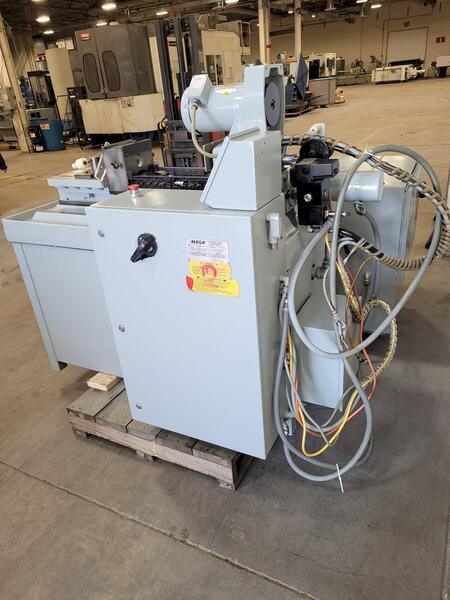

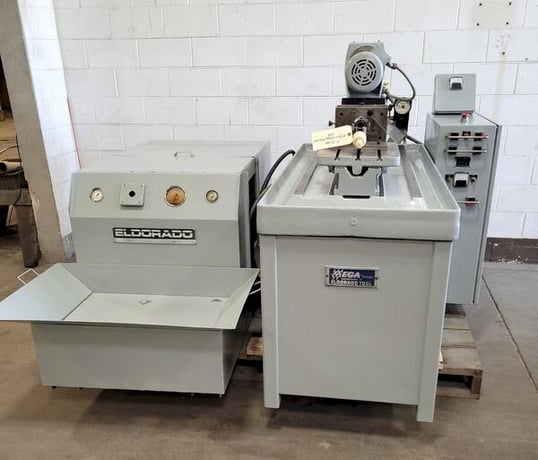

Description
SPECIFICATIONS: | |
Drilling Diameter Maximum | .75” |
Drilling Diameter Minimum | .055” |
Maximum Drilling Depth | 15” |
Spindle Speeds | 725-5860 RPM |
Drilling Feed Rate | .1-99.9 IPM |
Rapid Feed Rate | 200 IPM |
Work Table (T-Slotted) | 12” x 14” |
Height of Spindle Centerline | 2-1/2” |
Coolant Pressure, Maximum | 1900 PSI |
Reservoir Capacity | 90 Gallon |
Coolant Flow (Gal/Min.) | 17.5 GPM |
Filtration | 5 Micron |
Machine Dimensions | 42” x 72” |
Coolant Dimensions | 42” x 78” |
Approximate Weight | 5,000 lbs. |

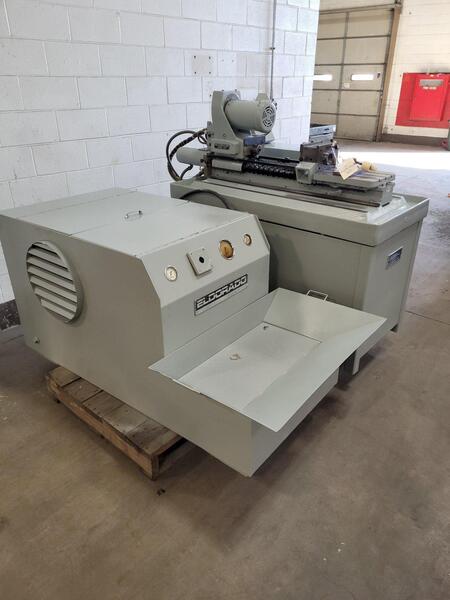

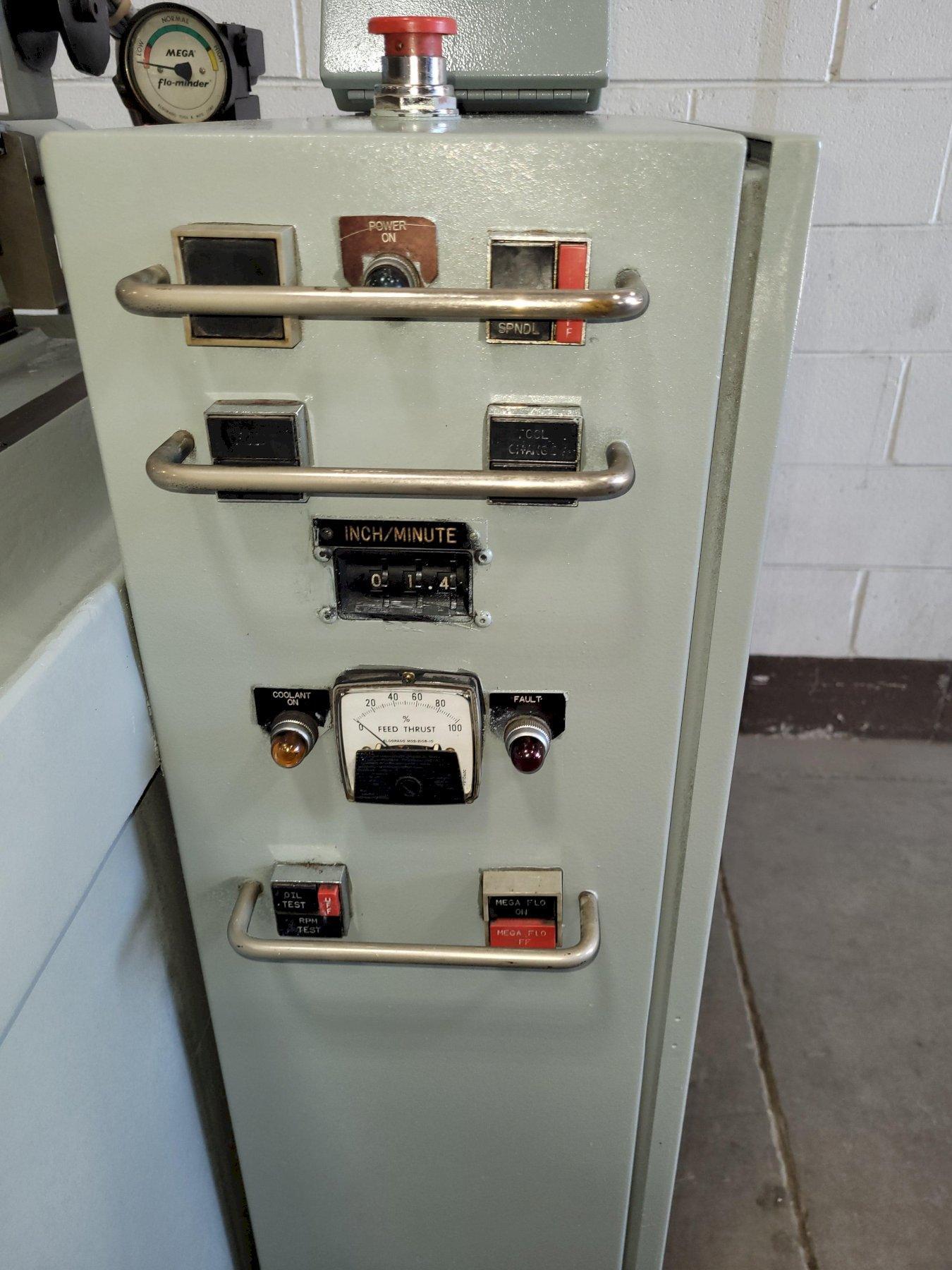

EQUIPPED WITH: Motor Driven with 2HP, 3 Phase, 60 Cycle, 460 Volt 1725 RPM Spindle Drive. 7.5 HP, 3 Phase, 60 Cycle Coolant System. Complete Electrical Controls. 1 HP DC Servo Feed Motor. Ball Screw Driven Drill Feed. 12” x 14”” Work Table. Eldorado F18 “Mega Flow” High Pressure Coolant System with Filtration and Heat Exchanger. Thumb Wheel Feed Rate. Feed Thrust Load Meter. Spindle Load Meter. Chip Box. Automatic Slideway Lubrication. Miscellaneous Drills.
