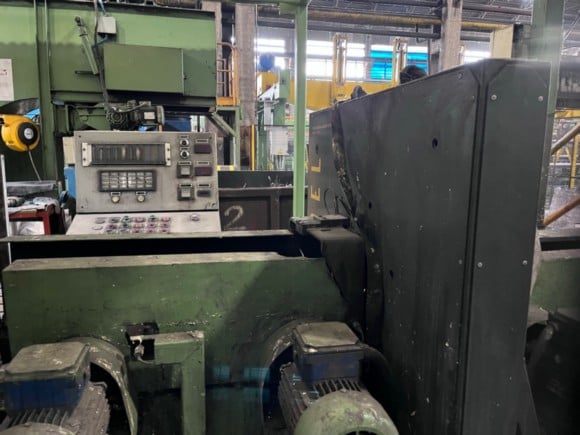

3-1/2" x .08" -.250" Mannesmann Demag tube mill, mandrel type double uncoiler

SPECIFICATIONS
Tube Diameter........1" - 3-1/2" (26.7mm - 88.9mm)
Wall Thickness....................0.080" - .250" (2.0mm - 6.3mm)
Mill Speed...........400 ft/min (120 m/min), Max
Tube Length..........5' - 46' (1.5M - 14M)
LINE CONFIGURATION

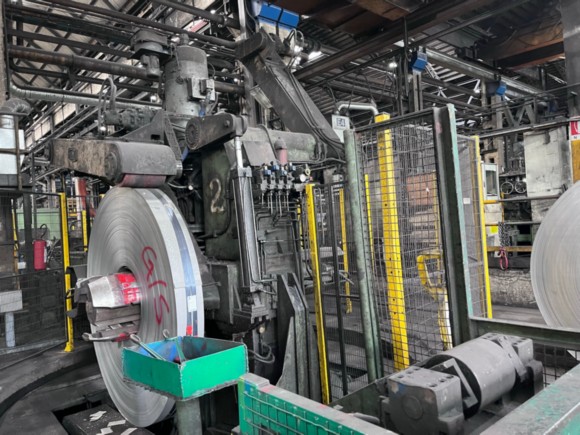

DOUBLE UNCOILER, MANDREL TYPE
Coil ID .........24" (610mm)
Strip Width......3" - 11" (75mm - 280mm)
Snub Roll, Peeler Table, Crop Shear
ENTRY STRAIGHTENER
Mfg.............FIMI, 7 Roll with Pinch Roll
SHEAR END WELDER.......OTO MILL manual
HORIZONTAL ACCUMULATOR, Outside Wrap, Inside Feed
Mfg............Voest Alpine, 1991
Strip Width........3" - 12" (80mm - 300mm)
Capacity..........0.040" - 0.275" (1mm - 7mm)
Loading Speed......1300 ft/min (400 m/min) (max)
Pinch Roll Motor.... 59 Kw, 1250 - 2000 rpm
Main Drive Motor.....70 Kw, 1600 - 2000 rpm

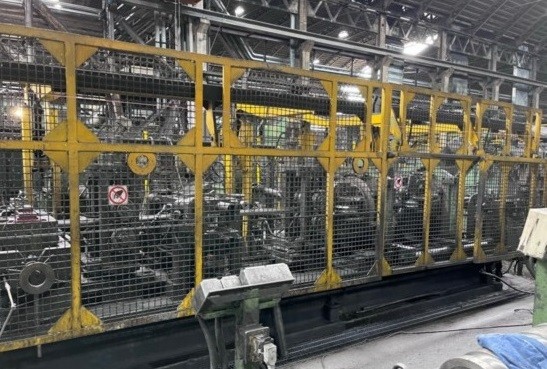

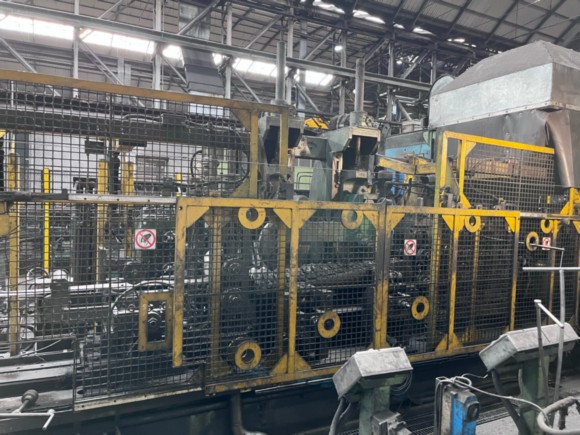

FORMING SECTION, OTO MILL STANDS
ALL STANDS MOTORIZED ADJUSTMENT
Entry Guide
-Preforming Stand, Driven......Motor 41Kw, DC Volt
Shaft Diameter......3" (76mm)
LINEAR FORMING SECTION, 2 STANDS
FIN SECTON, OTO MILL STANDS
-ALL STANDS MOTORIZED ADJUSTMENT
-3 Fin Pass Stands,
-Shaft Diameter...........3" (76mm)
(3) Motors.............. 41 Kw, DC Volt (ea)
WELDING SECTION
600 Kw Thermatool, 1988
Weld Box..........4 Roll
ID & OD SCARFING
COOLING TUNNEL
Mfg...........Mannesman Demag, 1988
Length.........17-1/2' (5400mm)

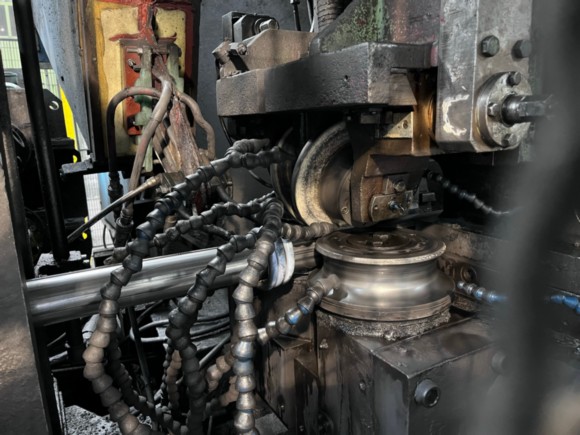

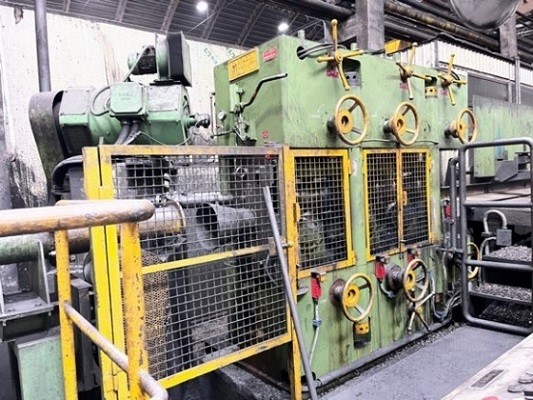

SIZING SECTION, OTO MILL STANDS
ALL STANDS MOTORIZED ADJUSTMENT
(1) Side Roll, Idler, Hand Adjust
(1) Vertical Stand, Driven........41Kw DC Volt
(1) Horizontal Stand, Driven......41Kw,DC Volt
(1) Vertical Stand, Driven........41Kw,DC Volt.
Diameter of shaft.......3" (76mm)
(2) TURKSHEADS, SINGLE SIDE

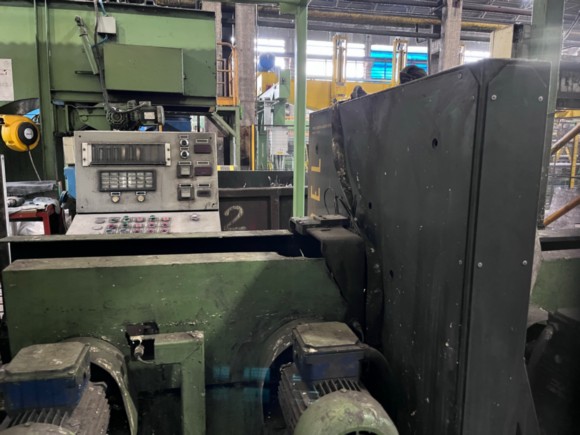

CUTOFF SECTION
THERMATOOL ALPHA MODEL HWFR-4004-49-45
DOUBLE CUT CUTOFF DIE
(2) Motors............95Kw ??
Cutoff Length.........5' - 46' (1.5M - 14M)
ROLLER CONVEYOR RUNOUT

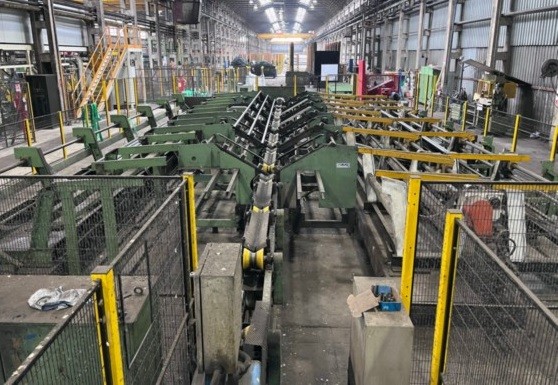

FINISHING LINE

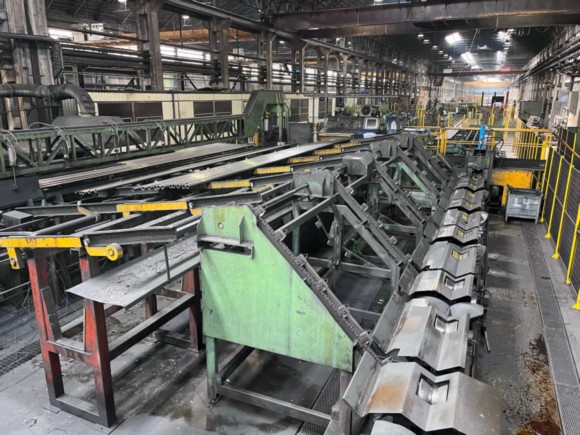

TRANSFER TABLE
SCARFED BEAD AIR BLAST BLOW OUT STATION
SCARFED BEAD WATER BLAST CLEAN OUT STATION
LINDEMAN SCRAP CHOPPER OF SCARFED BEAD
ROLLER FEED TABLE, SHROUDED
CATRACCI 6 ROLL STRAIGHTENER
RUNOUT CONVEYOR
TRANSFER TABLES
RESTELLINI CHAMFERING MACHINE
Double Head, Double End
Length.................20' - 40' (6 - 12 M)
IN LINE TESTING
Eddy Current.................Foerster Defectomat, CND
Profile Test.........Precision Laser Systems, Aeroel Laser Gauge, 150, 2 Axis
Demagnatizer
RUNOUT .................14 M ?
MAIR PACKAGING LINE
1 Bundle............Strapping
2 Bundles.............for Further Transfer

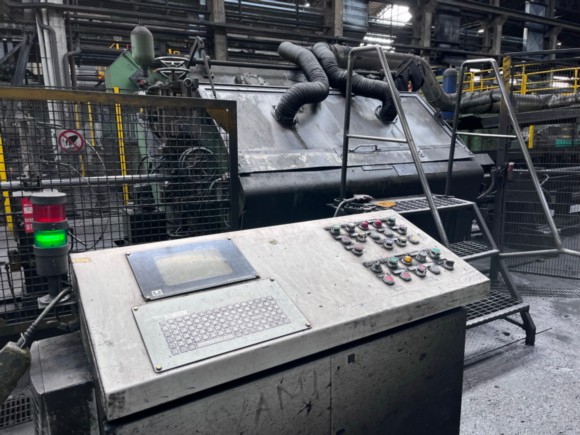

OPERATOR CONTROL PANELS
MOTOR AND CONTROLS, SIEMENS S7
TOOLING
List of available tooling, to be provided
EXTREMELY WELL TOOLED
All Spares, motors, fixtures, tools, dies, rolls included for complete
operation, including:
(2) Spare Cutoff Double Cut Dies
(5) Spare Turksheads
(1) Spare Weld Box
PRESENTLY UNDER AND MAY BE INSPECTED DURING OPERATION
