For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!

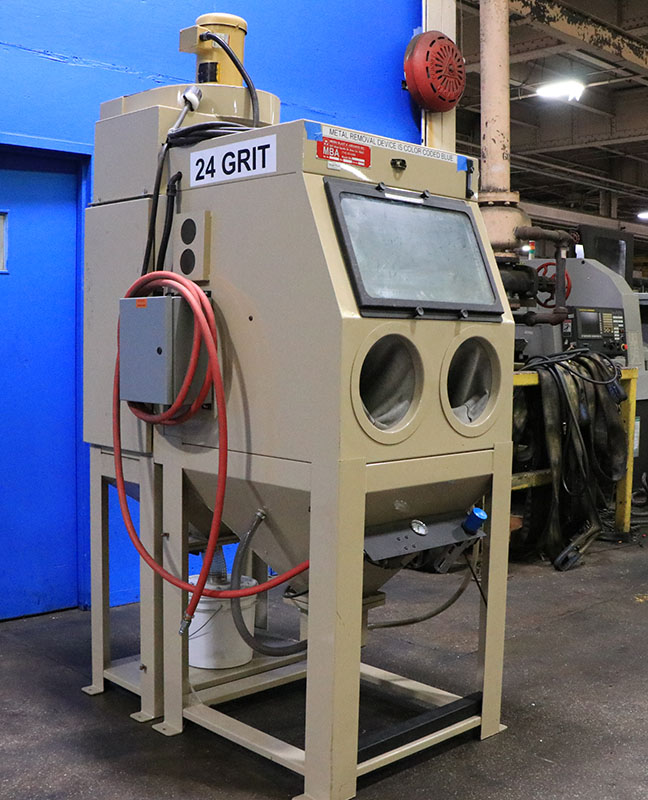

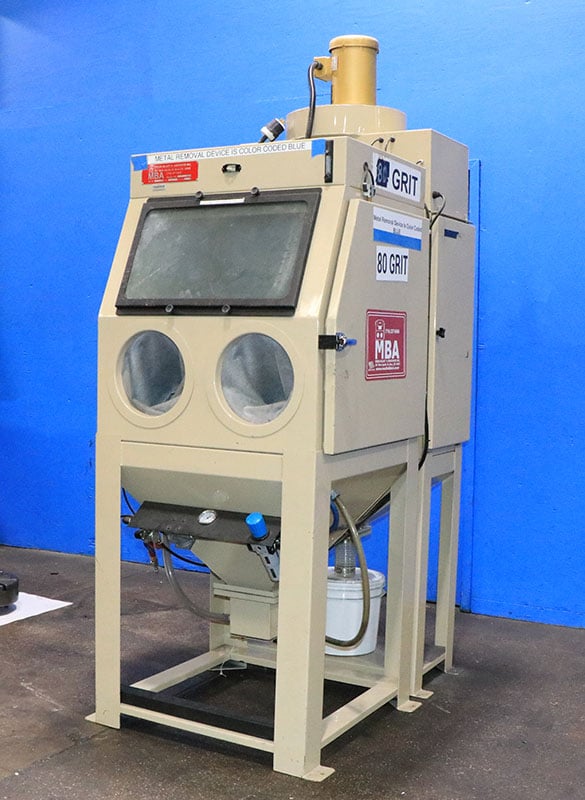

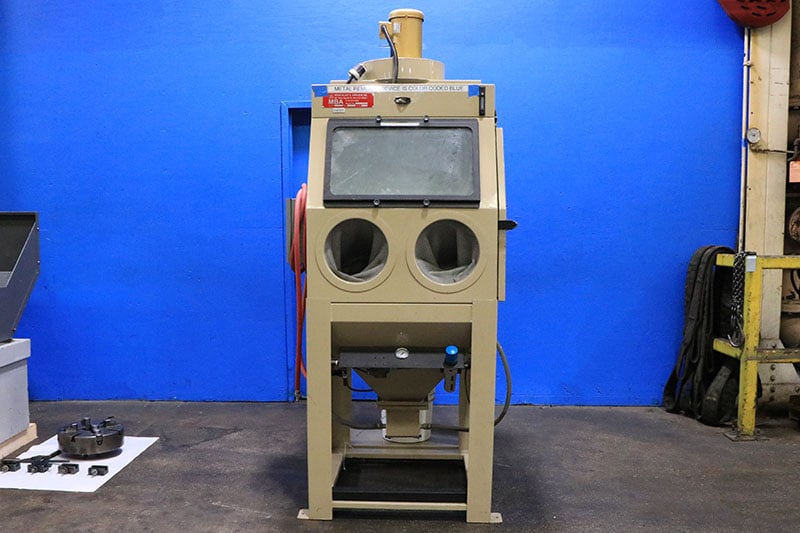

Description
MediaBlast
USA Made
Model N-200″030
"Pressure Blast"
Abrasive Blast Cabinet
S/N: 7628919… New: 2020
The N-200 Cyclone dry, siphon blasting
cabinet has the lowest abrasive usage
of any machine design and is one of the
most effective pieces of sandblasting
equipment at controlling and recycling
fine abrasive blasting media
(180 to″25 mesh). Fine abrasive can
cause visibility problems, mixing valve
feed problems and high abrasive usage
rates. The N200 Cyclone uses a pneumatic
conveyor to help keep the
fine media dry and flowing, and a high
efficiency cyclone separator reclaimer
used to remove the abrasive from inside
the cabinet without loss of abrasive.
The cyclone is the most efficient
mechanical separator reclaimer used
and Media Blast has the most efficient
cyclone on the market today. Media Blast
also offers the standard efficiency barrel
cyclone separator, seen below, used for
larger abrasive sizes. This standard
efficiency barrel cyclone will handle
150 mesh but remember 150 mesh will soon
become 220 and 220 will soon become″20.
Getting the right cyclone type is about
talking about the application, call for
details. Standard is the High Efficiency
N-200 Cyclone. It can operate with almost
any abrasive type and size, but it's the
only machine designed to use fine and
ultra-fine abrasives. When using standard
or large abrasive sizes, 150 mesh and
larger, look to the N-200 model with the
internal cyclone separator reclaimer and
internal abrasive storage for a more
economical machine with fewer maintenance
parts, both models are needed for use in
today's markets. The N-200 Cyclone has
more standard cabinet sizes than any
other Media Blast machine model. See below
for some of the most popular sizes. Look
at the HEPA after filter in available
options for machine cell operation
and ultra fine abrasives.
"N-200 Cyclone Siphon uses a pneumatic conveyor
to keep the fine media dry… flowing, and a cyclone
separator reclaimer to remove the abrasive."
"The N-200 Cyclone Siphon sand blasting cabinet
is made from 100% welded 12- and 14-gauge CRS.
It was designed for applications requiring fine and
ultra-fine abrasive, but it can also operate with
most standard abrasive 60-325 mesh. Look at
the HEPA after filter in available options for machine
cell operation using 220 mesh and finer."
• Door dims: 22" x 25" H
• Work dims:″6" x 28"… 30" H
• Electrical: 120V / 60Hz / 1PH
• Overall dims: 44" x 43" x 84" H
• 1/2 hp 700 cfm class III pressure blower
• Recommended abrasive size:
60 - 150 mesh
• Compressed air usage: 25 - 90 CFM
@ 80 PSI• Standard gun size:″/8"
using 46 CFM @ 80 PSI
• Expanded metal work grates,
3/4" - #9 flattened
• 10" diameter work ports with two-piece
glove and gauntlet
• 220 sq.ft. certified cartridge filter with
pneumatic cleaning
• Dust collector: 220 sq. ft. cartridge,
700 CFm blower C-III, internal seperator
Description
"If you're in need of a blaster for constant
operation, consider the MediaBlast N-200
USA Made Abrasive Sand Blast Cabinet!
This dry siphon production machine uses
a negative pressure dust collector to ensure
a longer duty cycle, a cleaner work area,
and a longer blower service life. It also
utilizes a patented internal seperator
reclaimer to help filter out both rust and
dust to greatly enhance visibility.
Its unique features include a″-Y blast gun
with… a″/8" tungsten carbide nozzle, a
replaceable bolt-on machine hopper,
a 220 sq. ft. certified cartridge filter with
pneumatic cleaning, and much more that
other competitors don't offer. Some
common features include a long wear
hose, a replaceable adjustable abrasive
flow-control mixing valve, and a double
panel door construction."
KEY BENEFITS
• American Made
•…"Catalyst paint• Long wear hose• Safety
door interlock• Lockable refrigerator door
handle• Glass window protector, low static•
Dry siphon production machine type•
Bolt-on machine hopper, replaceable•
Bolt-in cabinet hopper scalper screen•
Double panel door construction, no spills•
LED outside cabinet lighting on standard
top• LED spot lighting on expanded height
models• 100% welded 14-gauge CRS
cabinet construction• Foot operated blast
control valve with treadle pedal•

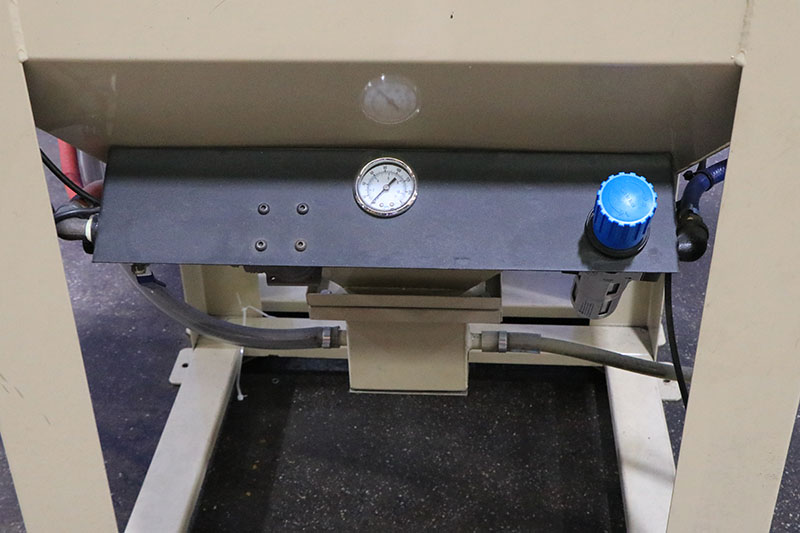

Precision air-regulator, air filter/water trap
with gauge•″-Y blast gun with″/8"
tungsten carbide nozzle standard•
Hopper dust storage and maintenance
access service door• Adjustable abrasive
flow-control mixing valve, replaceable•
Safety glass view window with positive
sealing window seal• Separator reclaimer,
pneumatic centrifuge (Patented) internal•
Smaller and larger gun sizes are available
for applications with larger and smaller
air compressors."
https://mediablast.com/wp-content/uploads/2020/05/4-c-N-200-Cyclone-03.04.21.pdf
Equipped With:
2 H.P. 1,100 CFM Class III
Pressure Blower
"MBA" Gun No.″Y6BC,″/8" Boron Nozzle
Auto Reverse Pulse Option

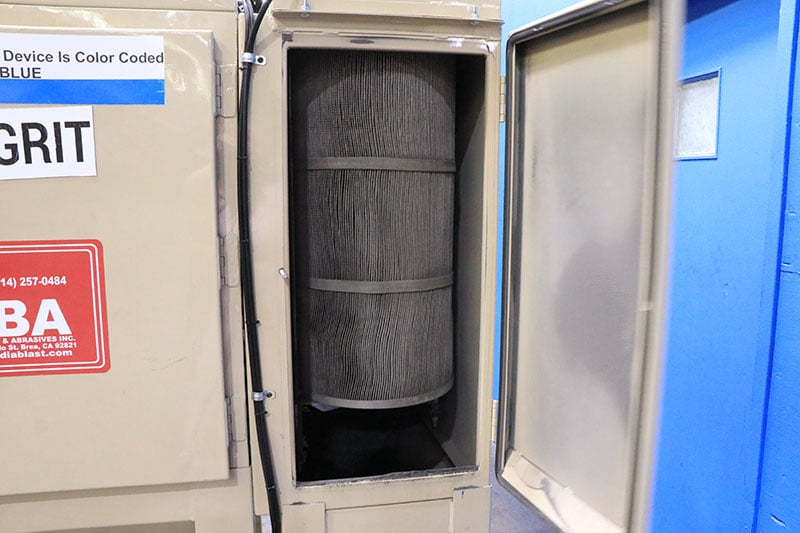

Dual Cartridge Dust Collector
30 Watt LED Flood Light

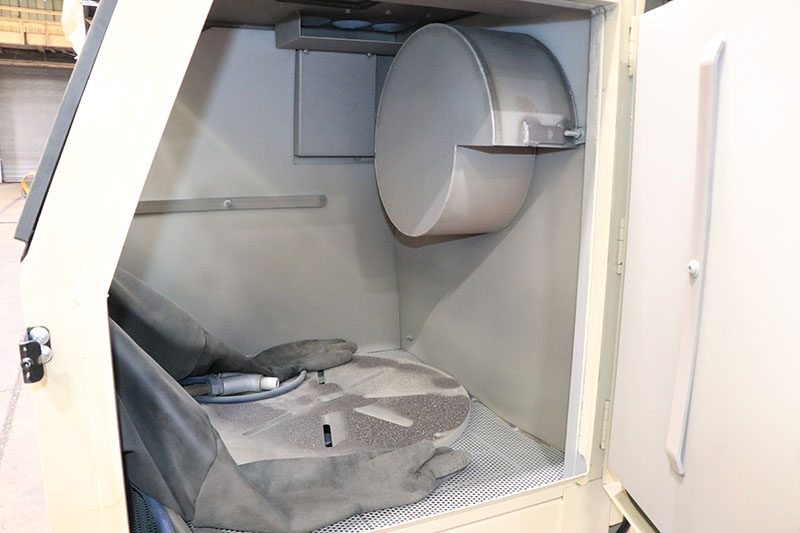

22" Fixed Turntable
Wired Presently for″/60/230 Volts
Like New Condition… Appearance **
In Stock, Ships from our Harrison, NJ Warehouse **
Get Your Price from Machinery Values Inc!
Buyers Who Viewed This Listing Also Viewed:
27" x 48" x 24" Bolton #48, Sand Blaster
Seller: Wheeler Machinery Sales
Location: Pomona, CA
Model: 48
Bolton 27" x 48" x 24" Sand Blaster #8152 #1, Inside Dimensions: 27" F-B x 48" L-R x 24" Ht., Power Requirement - 110V lights, Air for Gun, (2) Door Openings - Left and Right, 24" Long Gloves, Spray Gun.
36" width x 36" L x 29" H All Source #41200, Sand Blaster, 2-Head, 110 psi, 2-15 HP, 300 hours, 2018
Seller: Machine Tool Bids
Location: Chicago, IL
Mfr: All Source
Model: 41200
Year: 2018
MACHINE, Number of Heads: 2, Hours: 300, PSI: 110, Internal Dimensions: 36" W x 36" L x 29" H, Overall Height: 6 feet on top of stand, Variable Horsepower:: Range 2-15 HP.
Featured
36" width x 26" D x 420" H Empire #2636 Pro-Finish, Blast Cabinet
Seller: Fintec
Location: Anderson, SC
Mfr: Empire
Model: 2636
Empire Pro-Finish Blast Cabinet [NO COLLECTOR INCLUDED], Model #: 2636, Serial #: M-21508, Cabinet dimensions:, 36W x 26D x 35H, Overall Height: 80", Overall Depth: 45", Price: $4,200.
JUST ADDED!

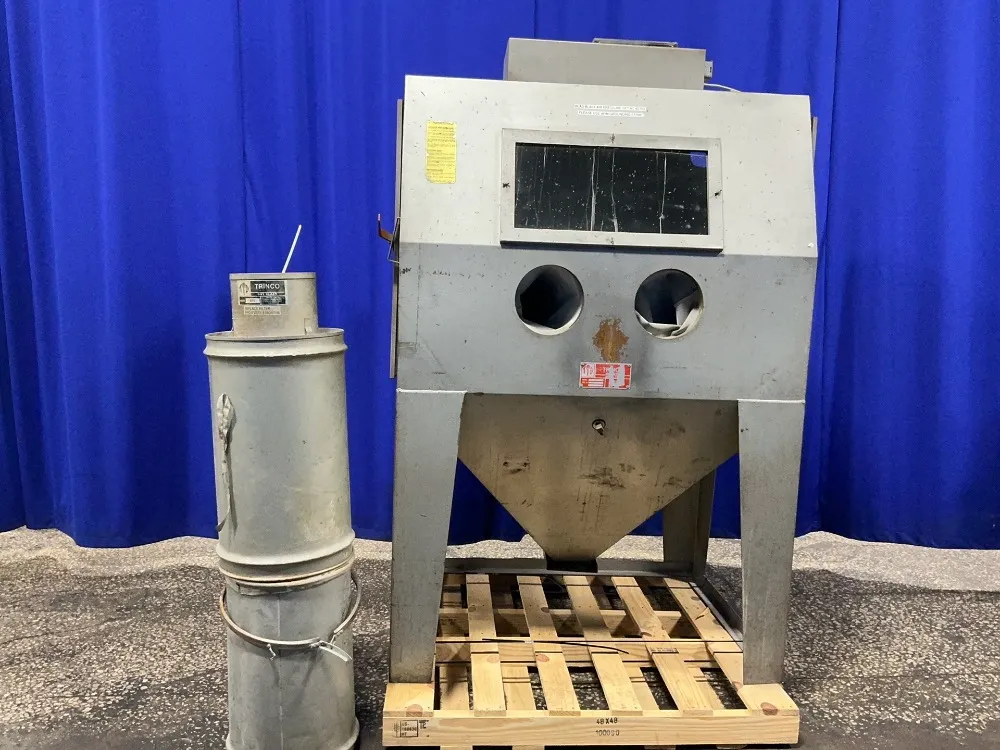

Trinco #36/BP2, sand blast cabinet, 36" x 24" x 24" cabinet
