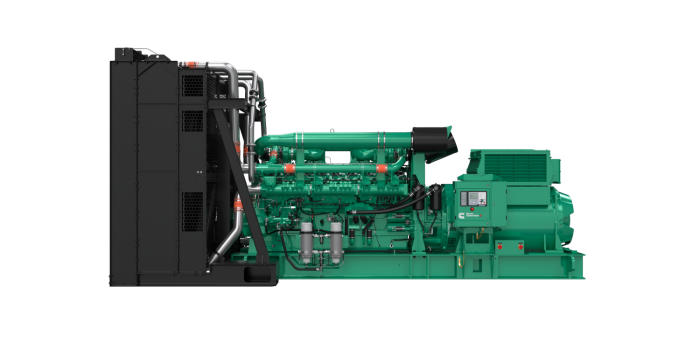

2750 KW Cummins C2750D6EB, diesel generator set, Tier 2 Centum, Cummins QSK78 engine, 480 Volts, 60 Hz

Introducing Cummins Centum™ Series generator sets: a new and evolving line designed to deliver a complete spectrum of power to meet global demands for more efficiency and sustainability. With next-generation performance, flexibility and sustainability, you get exactly the generator you want — without compromise.

Applications

Standby Power

Data Centers

Mission Critical

Healthcare

Water Treatment

Commercial Industrial Generators

Agriculture

DESCRIPTION

Cummins commercial generator sets are fully integrated power generation systems for stationary standby power and data center applications.

The Centum™ Series meets the demand for efficient and sustainable power with performance, flexibility, and commitment – for the next generation of power.

FEATURES

Cummins Heavy-Duty Engine: Rugged, four-cycle industrial diesel delivers reliable power, low emissions and fast response to load changes.

Alternator: Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings, low waveform distortion with non-linear loads, fault clearing short-circuit capability and class H insulation.

ISO 8528-5 G3 Capable: Consult factory for site and configuration specific transient performance information.

HVO Fuel Compatible: Approved for use with paraffinic fuels (EN15940), including Hydrotreated Vegetable Oil (HVO), which has a very low life cycle carbon emission.

Data Center Continuous (DCC): Applicable for supplying power continuously to a constant or varying electrical load for unlimited hours in a data center application.

Uptime compliant: Meets the requirement of a Tier III and IV data center site by being rated to run for unlimited hours of operation when loaded to 'N' demand for the engine generator set.

Permanent Magnet Generator (PMG): Offers enhanced motor starting and fault clearing short circuit capability.

Control System: The Power Command® digital control is standard equipment and provides total genset system integration including automatic remote starting/stopping, precise frequency and voltage regulation, alarm, and status message display, AmpSentry™ protective relay, output metering, auto-shutdown at fault detection and NFPA 110 Level 1 compliance.

Cooling System: High ambient (40 °C) and enhanced high ambient (50 °C), integral set-mounted radiator systems, designed and tested for rated ambient temperatures, simplifies facility design requirements for rejected heat.

NFPA: Capable of meeting NFPA 110 Type 10 for Level 1 Emergency or Standby Power Supply Systems (EPSSs) when installed and operated per Cummins and NFPA guidelines.

Warranty and Service: Backed by a standard three-year warranty and worldwide distributor network
