270 HP Cummins #ISB, 5.9 L long block engine for Dodge Ram 2003-2007

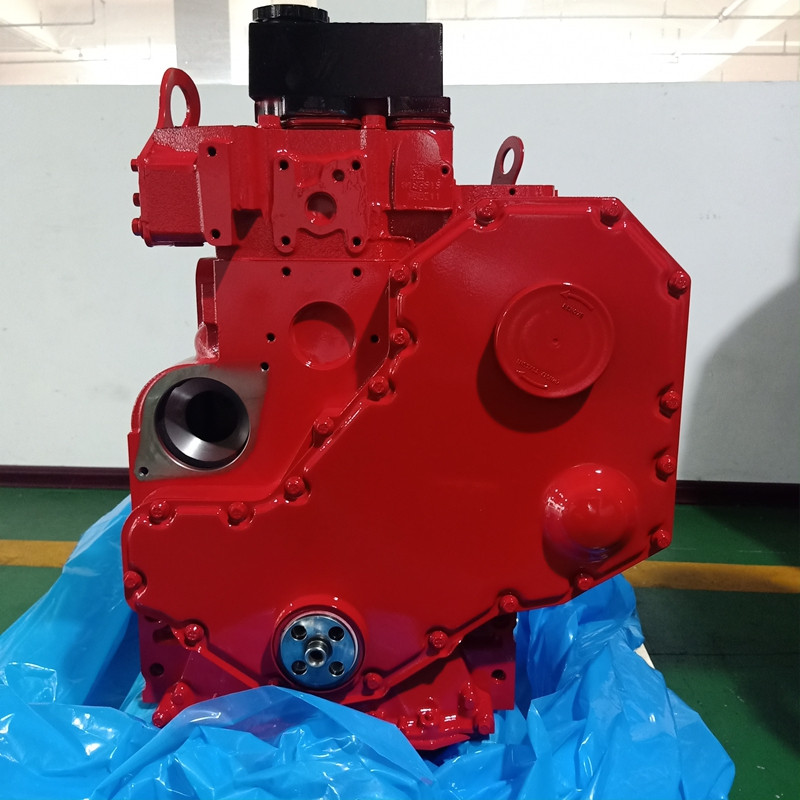

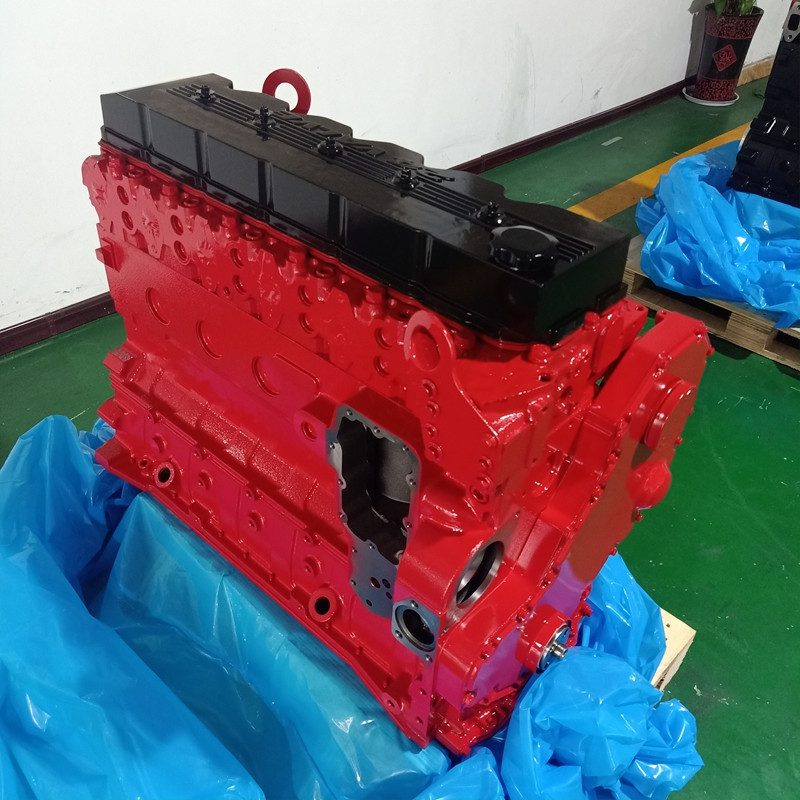

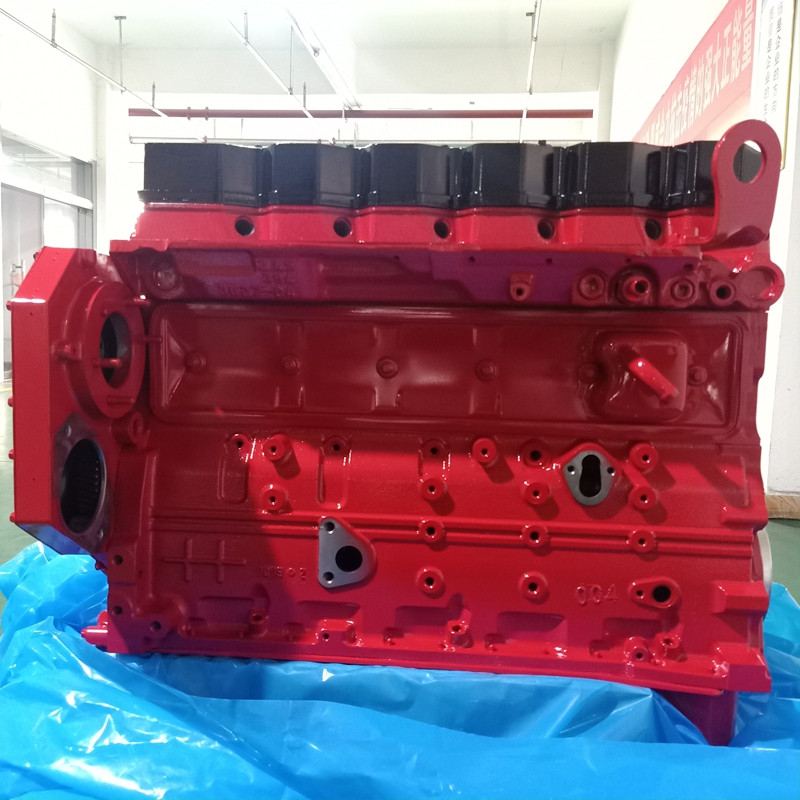

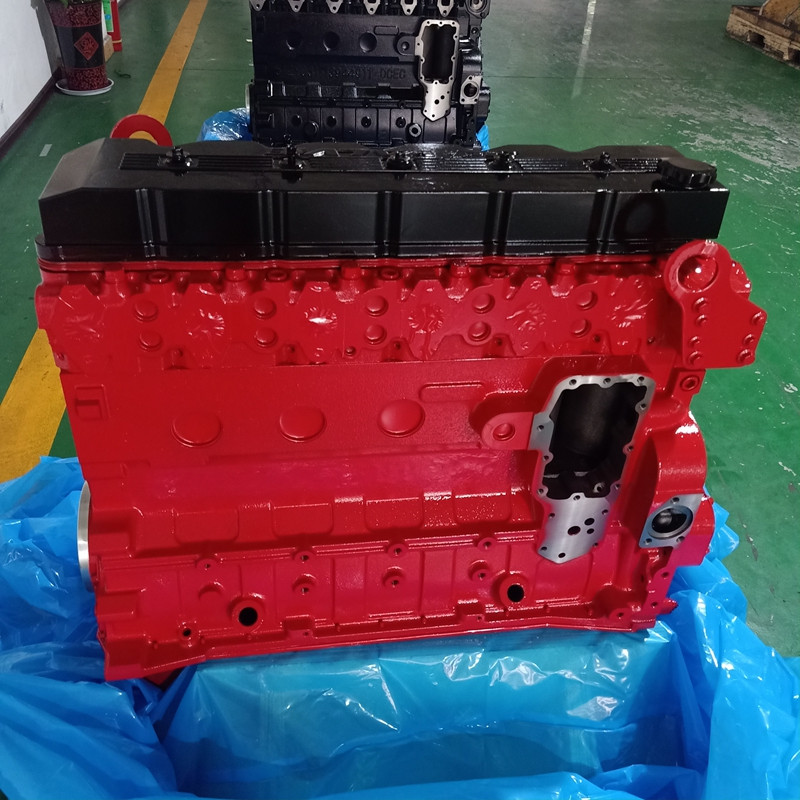

Cummins ISB 5.9 L (24 Valve) Long Block Diesel Engine - 270 HP Front Gear Train

Our ISB 5.9 L 24 Valve Replacement Long Block Engines are true component built unit. These long blocks are roughly assembled with 90% OEM and 10% Aftermarket parts built back to original specs. A component built reman engine vs. a true reman unit uses more brand new parts (block, head, camshaft etc...). Our 24 Valve ISB 5.9 L long blocks are a great replacement assembly for someone with an existing 5.9 L ISB in a Dodge Ram that uses the earlier electronic fuel system but is not compatible with the new generation common rail setup.It is best to check with a sales representative to determine if our long blocks are a good match for your engine. This particular long block is Front Gear Train and is rated for 270 HP stock pistons.

Our ISB 24 Valve 5.9 L long blocks fits CM550 and work best with the following CPLs:

- CPL 2683
- CPL 8164
- CPL 2684
- CPL 2685
- CPL 2617
- CPL 2686

ISB 24 Valve 5.9 L Long Block Assemblies Include:

- Cylinder Block
- Cylinder Head
- Camshaft
- Camshaft Gear
- Followers/Lifters
- Pistons
- Gaskets and Bearings
- Rings
- Bearings
- Plugs and Bolts
- Push Rods
- Connecting Rods
- Front Cover
- Timed Front Gear Train Group
- Crankshaft
- Oil Pump
- Oil Cooler
- Freeze Plugs and Block Plugs
- Front Rear and Main Seal
- Valve Cover
- Oil pickup tube
- Oil Pan
- Standard 1 Year Parts Replacement Warranty
- Extended 1 and 2 Year Parts and Labor Warranties Available

Specs:

Configuration: Inline 6 Cylinder
Displacement: 359 cubic inches, 5.9 liters
Bore x Stroke: 4.02” x 4.72”
Cylinder Head Material: Cast Iron
Engine Block Material: Cast Iron
Firing Order: 1-5-3-6-2-4
Compression Ratio: 16.3:1, 17.2:1 for High Output Models
Aspiration: Single turbocharger, air-to-air intercooler
Valvetrain: OHV, 4 valves per cylinder, solid lifter camshaft
Weight Approximately 1,150 lbs (Complete Unit)
Oil Capacity: 12 Quarts
Governor Speed: 3,200 rpm
Horsepower: 235-325HP@ 2,900 rpm
Torque: 460-610 lb-ft @ 1,600 rpm
Engine Dimensions: 40” L x 24.9” W x 37.9” H
