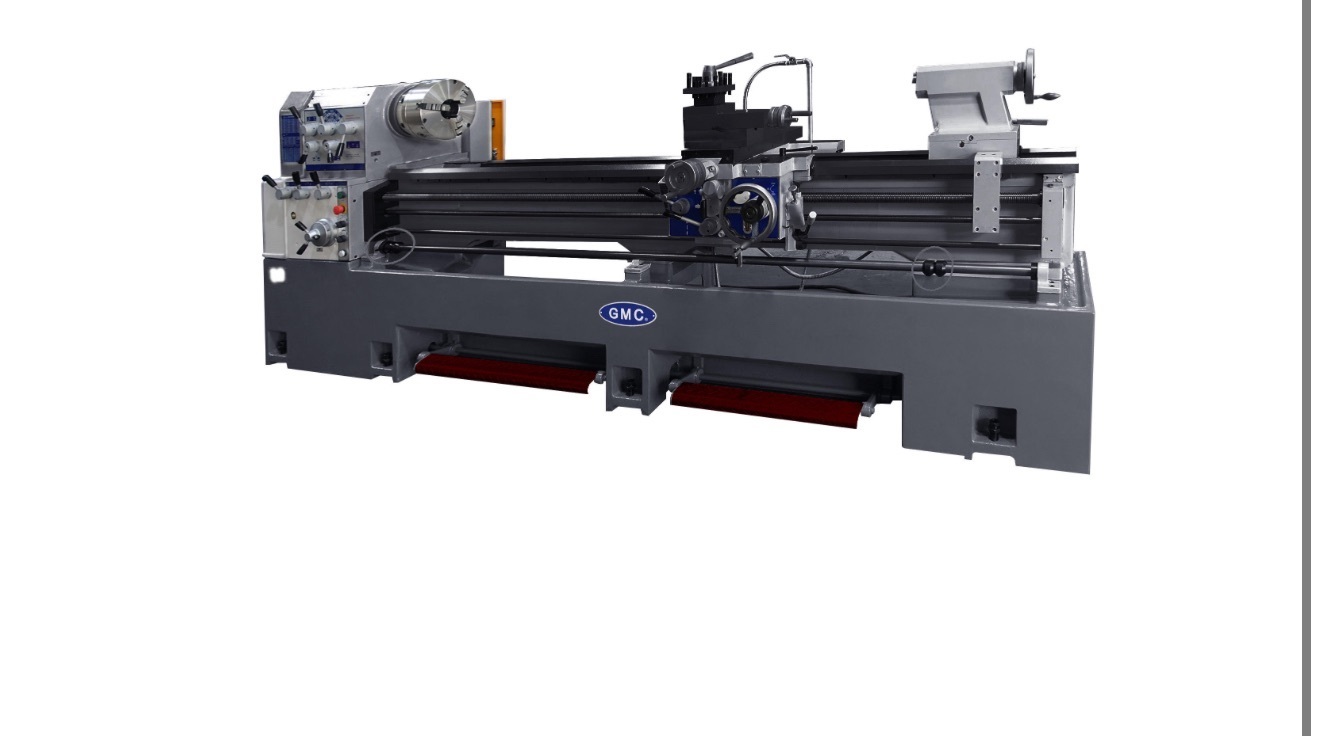

Specifications GML-26160T #7724 Max. swing over bed 26 Max. length of workpiece 160 Max. swing over cross slide 17-1/4 Max. Swing in gap 35 Width of Bed 15-3/4 Effective length in gap to spindle 9 Effective length in gap to chuck jaws 4-1/2 Spindle bore 4-3/4 (120mm), D1-11 Taper of spindle center MT# 7/MT5 with reducing sleeve Spindle speeds 10-1,000 rpm / 12 steps Longitudinal feeds 0.002-0.032 IPR, 35 kinds Cross feeds 0.001-0.0094IPR, 35kinds Inch threads 2-56 TPI, 44kinds Metric threads 0.5-14mm , 24 kinds Max. travel of top slide 8 Max. travel of cross slide 13-1/2 Leadscrew length X TPI 1-1/2 x 4 TPI Diameter of tailstock quill 3-1/2 Max. travel of tailstock quill 7-1/2 Taper of tailstock quill center M.T. # 5 Main motor Amperage draw 15HP, 220V or 440V, 3 phase 55Amp on 220V / 30Amp on 440V Rapid traverse motor 1HP, 220V or 440V, 3 phase Coolant pump motor 1/8 HP, 220V, or 440V, 3 phase, 3 Gal coolant fluid Machine Oil #30 weight machine oil, 8 Gallons Machine weight, approx. LBS 10,810 LBS Overall dimensions, LxWxH, inch Shipping dimensions, LxWxH, inch 186x50x73 232x44x77 Machine Standard Features and Equipment: Made in Taiwan Meehanite casting high performance cast iron ISO 9001 certified Large spindle bore 4-3/4 (120mm) Heavy Duty spindle D1-11 Heavy Duty main motor 15HP 16 spindle speeds from 25-1,600 rpm, 16 speeds 2-speed tailstock 54 kinds of inch threads, and 54 kinds of metric threads Threading and feeding rate change without changing gears Spindle is balanced, hardened and precision ground Spindle is supported at 3-point by high precision bearings All gears and shafts are hardened and precision ground Guideways induction hardened and precision ground Automatic lubrication system in headstock and feed box One year industrial warranty for parts Standard Equipment (free) for # GML-2680T & GML-26120T & GML-26160T: Free CARMAR DRO, installed Rapid traverse on carriage on Longitudinal way Automatic kick-out longitudinal carriage stop system 2-speed tailstock 12 3-jaw chuck with top reversible jaws, direct mount 20 Face plate 12 steady rest with roller jaws 5 follow rest with roller jaws Removeable gap 4-way tools post Foot brake Halogen Work light and coolant system Splash guard on carriage Dead center Thread chasing dial Reducing sleeve MT7/MT5 for spindle Tool box and leveling pads

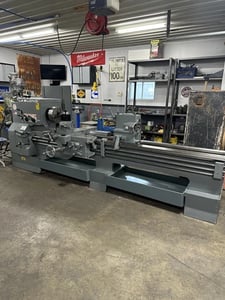

1973 LEBLOND Regal Engine Lathe, model 24", s a 26" swing and 144" bed length. Ideal for various turning operations; this used piece exemplifies quality craftsmanship from a trusted manufacturer. Perfect for enhancing your machining capabilities., 1973 LEBLOND 24" REGAL.
Inventory No. 1125-099-0005 Manufacturer Leblond Name Lathe Arrival Date 12-02-2025 Dimensions L x W x H (inches) 222 x 58 x 59 Capacity 26" X 147" Weight (lb.) 8010 Category Machine Tools Condition Used Available Quantity 1 Serial No. 3H 1206 Item W/compound Rest, Tail Stock, 2" Bore, 15" 4 Jaw Chuck.
