Description

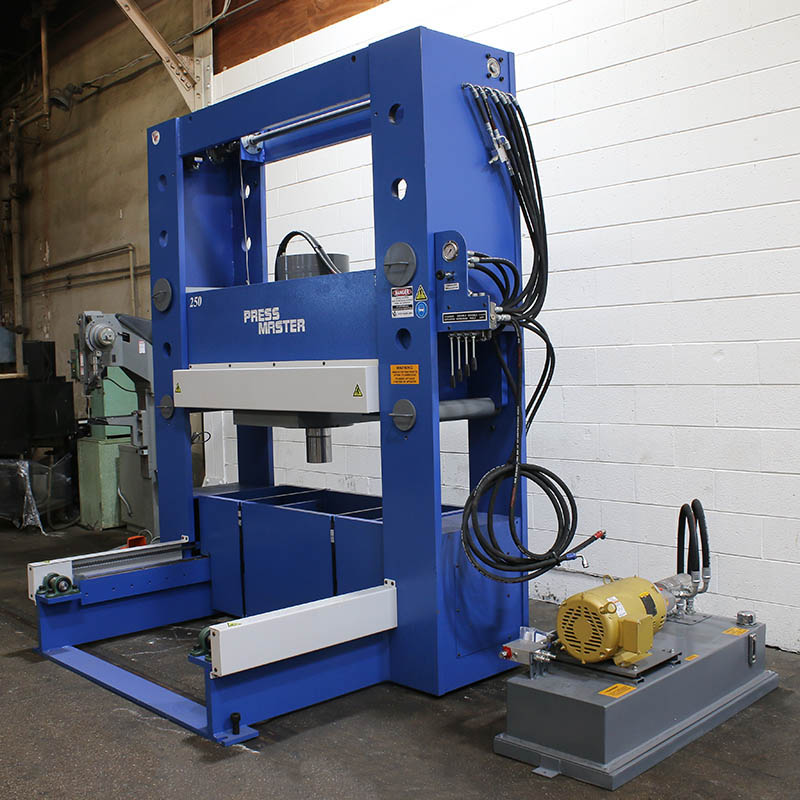

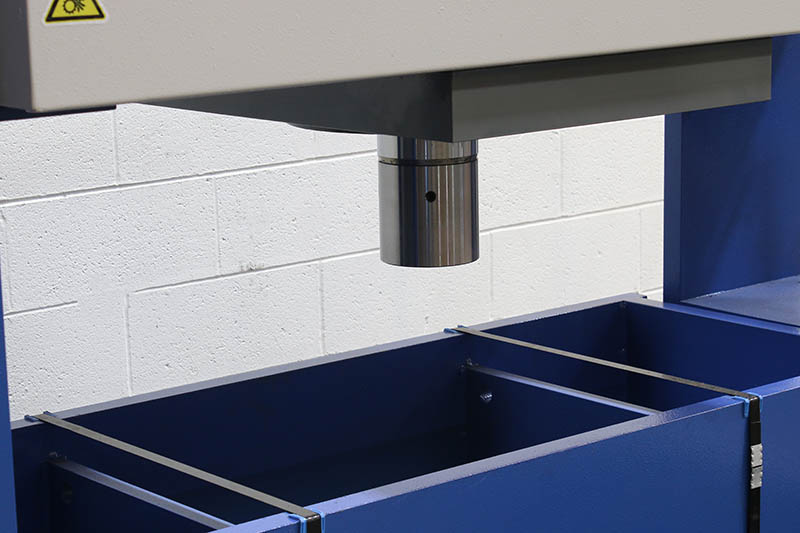

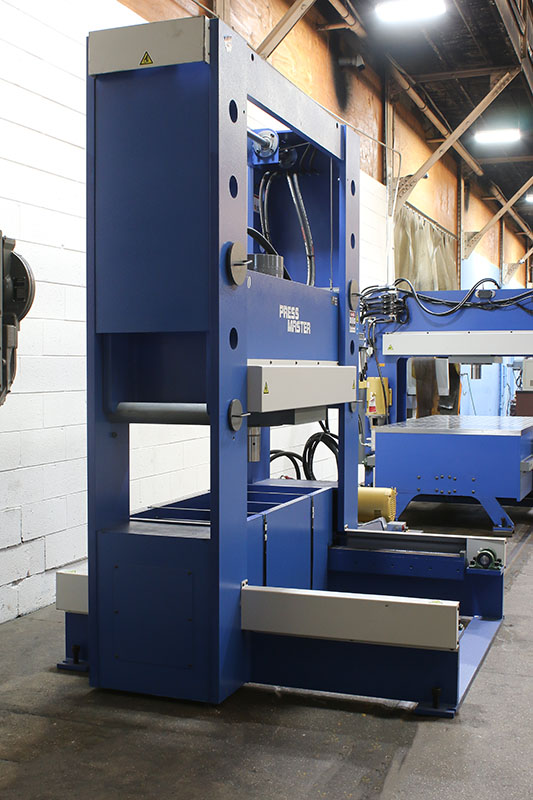

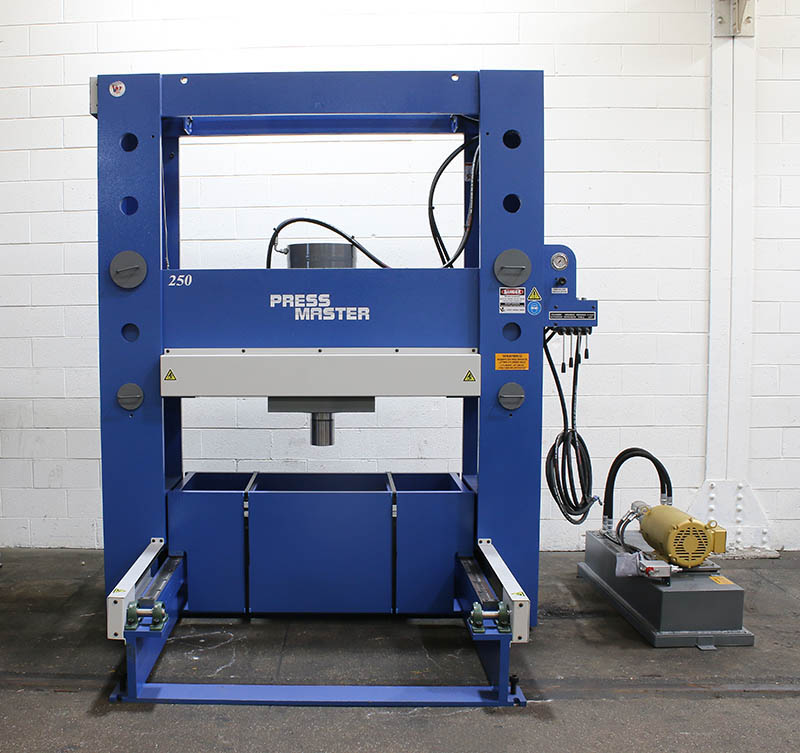

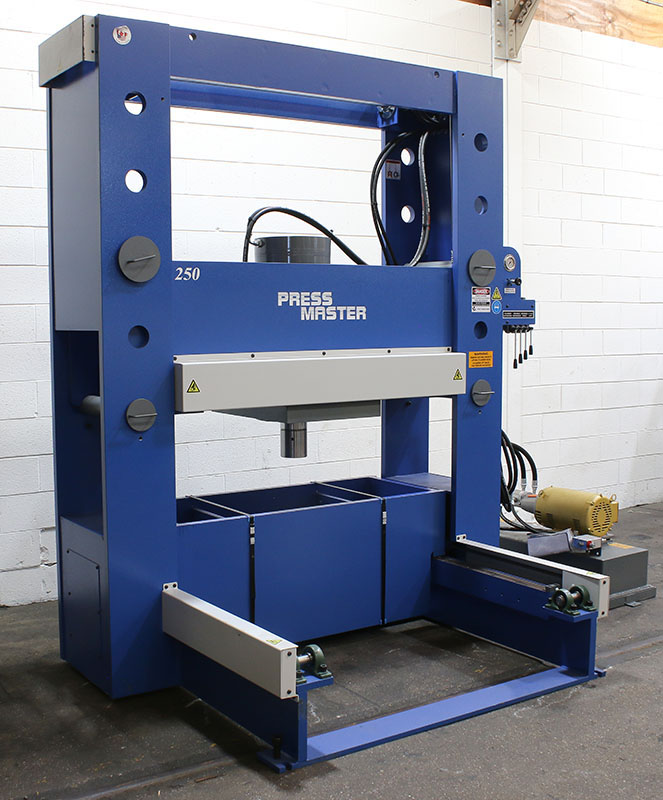

250 TON PRESSMASTER ROLL-IN TABLE
FULL 4 AXIS POWERED STRAIGHTENING PRESS
RATED CAPACITY .............................. 250 TONS
WIDTH BETWEEN UPRIGHTS ...................... 60"
DEPTH BETWEEN POSTS ........ ................ 23-1/4"
MAXIMUM RAM TO TABLE ........................″2"
STROKE ...................................... 20"
TABLE TRAVEL ................................ 28-1/4"
FLOOR TO TABLE TOP .......................... 26-3/4"
CYLINDER BORE SIZE .......................... 12"
PRESSING SPEED .............................. 4 INCH/MIN
ADVANCE SPEED ............................... 22 INCH/MIN
RETURN SPEED ................................ 27 INCH/MIN
WEIGHT ...................................... 10,000#
DIMENSIONS
LENGTH ..................................... 80"
WIDTH ...................................... 100"
HEIGHT ..................................... 111"
MOTOR SPECS: 10 HP, 230/460 VOLT, THREE PHASE
(OTHER VOLTAGES AVAILABLE)
STANDARD FEATURES:

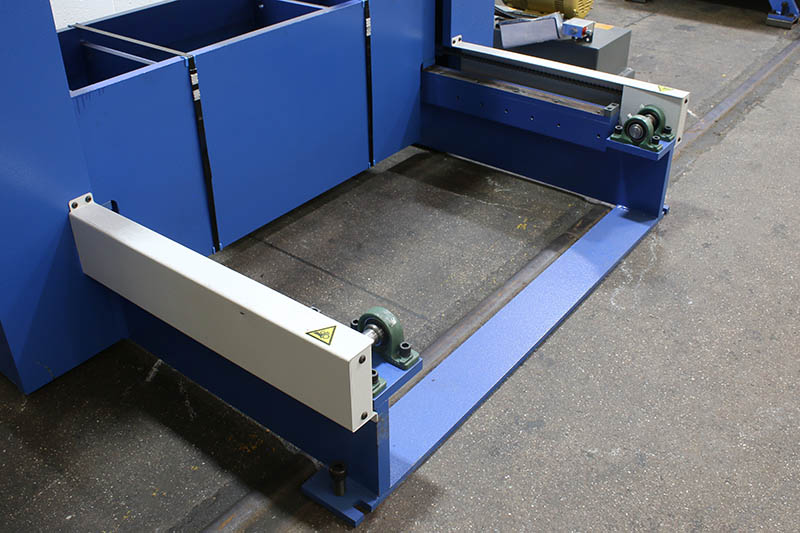

POWERED MOVABLE TABLE FOR EASE OF LOADING… POSITIONING WORKPIECE UNDER CYLINDER
POWERED MOVABLE WORKHEAD FOR OFF-CENTER WORK ALLOWS OPERATOR TO POSITION THE CYLINDER
FROM LEFT TO RIGHT WITH THE TOUCH OF A LEVER
HYDRAULIC POWER-LIFT FOR VERTICAL DISPLACEMENT OF HEAD ASSEMBLY
CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER IS ENGAGED THE MORE
THE RAM MOVEMENT IS ACCELERATED, ALLOWING THE OPERATOR TO CONTROL THE PROPER SPEED FOR
THE TASK
PRESSURE REGULATOR TO LIMIT THE RAM PRESSURE
AVAILABLE OPTIONS:
- SET OF V-BLOCKS ............................ $1,700
- STOP / START… EMERGENCY STOP .............. $1,000
- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000
- SIDE SAFETY GUARD ..............(PER SIDE).. $… 750
- FOOT PEDAL ................................. $4,500
- PRESS PLATE ................................ $4,600
- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND
LEXAN GUARDING ............................... $9,500
- HANDHELD REMOTE CONTROL .................... $9,500
