250 Ton, Press Master #HFBP-250/20MWH, 16" stroke, 20 ton broach & moveable workhead, #150539

Manufacturer: Press Master
Ton: 250
Stroke: 16.00
Stock # 150539

For Sale by Machinery Values Inc

Gold Level Dealer
Surplus Record Dealer Since 2011

Description

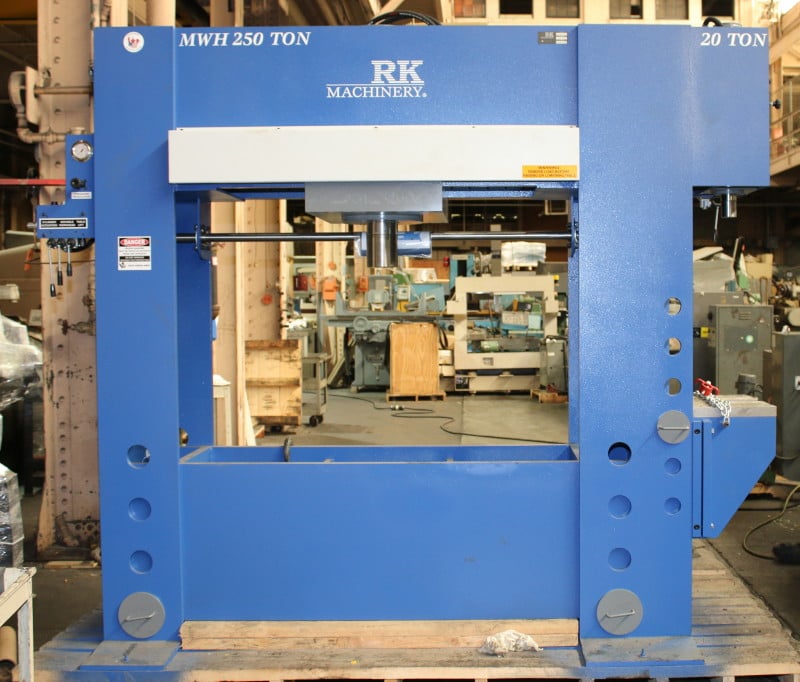

250 TON PRESSMASTER H-FRAME PRESS
MODEL HFP-250/20MWH
SPECIFICATIONS:
RATED CAPACITY, TONNAGE....................... 250
STROKE........................................ 16"
BORE.......................................... 12"
RAM SPEED (Inches/Minute) ADVANCE ............ 17
RAM SPEED (Inches/Minute) PRESSING ........... 4
RAM SPEED (Inches/Minute) RETURN ............. 21
DISTANCE BETWEEN POSTS (RIGHT TO LEFT) ....... 60"
DISTANCE BETWEEN POSTS (FRONT TO BACK) ....... 20"
MAXIMUM DISTANCE FROM BED TO RAM .............″1"

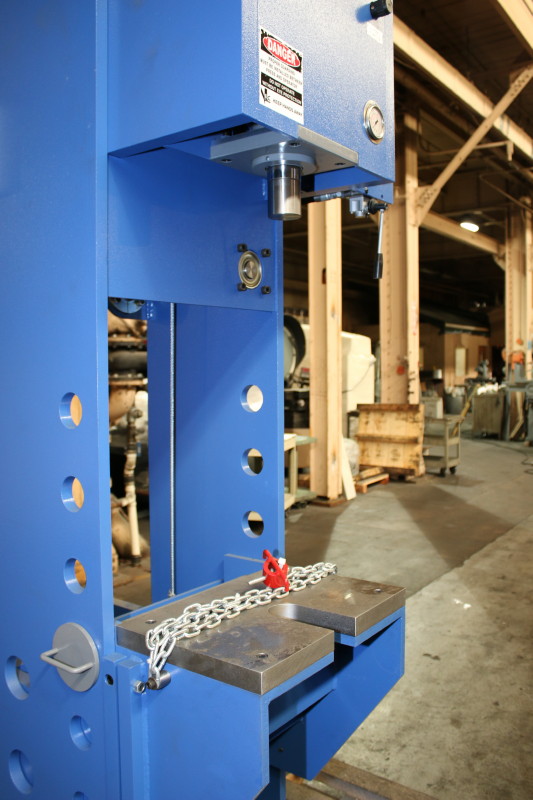

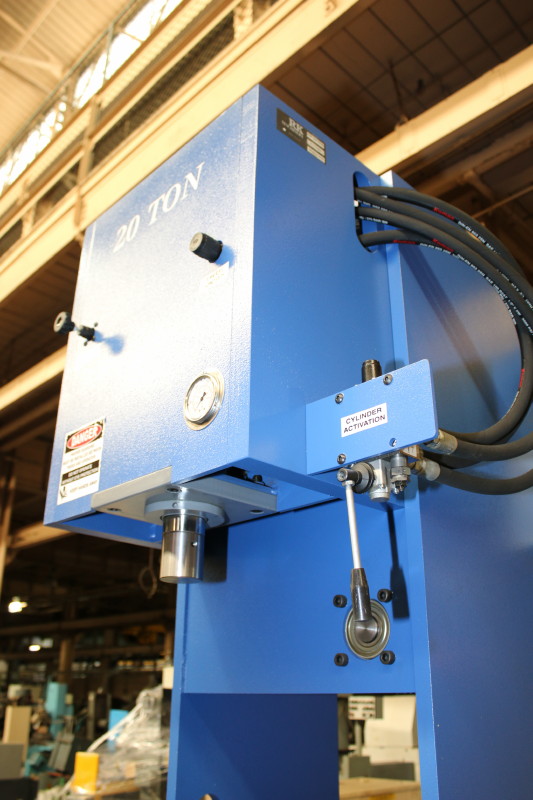

BROACHING C-FRAME SPECS:
CAPACITY ..................................... 20 TONS
STROKE ....................................... 20"
BORE ......................................... 4"
DAYLITE ......................................″6.5" MAX.
THROAT ....................................... 8"
TABLE ........................................ 20" X 13"
SPEEDS (Approach) ............................ 150 IPM
SPEEDS (Pressing) ............................″3 IPM
SPEEDS (Return) .............................. 250 IPM
OVERALL HEIGHT ................................... 120"
OVERALL WIDTH .................................... 116"
OVERALL DEPTH .................................... 60"
WEIGHT ........................................... 7,500#
MADE IN CANADA - NOT A CHEAP IMPORT
EQUIPPED WITH:
- MOVABLE WORKHEAD FOR OFF-CENTER WORK. ALLOWS THE OPERATOR TO POSITION
THE CYLINDER FROM LEFT TO RIGHT WITH THE TOUCH OF A LEVER.

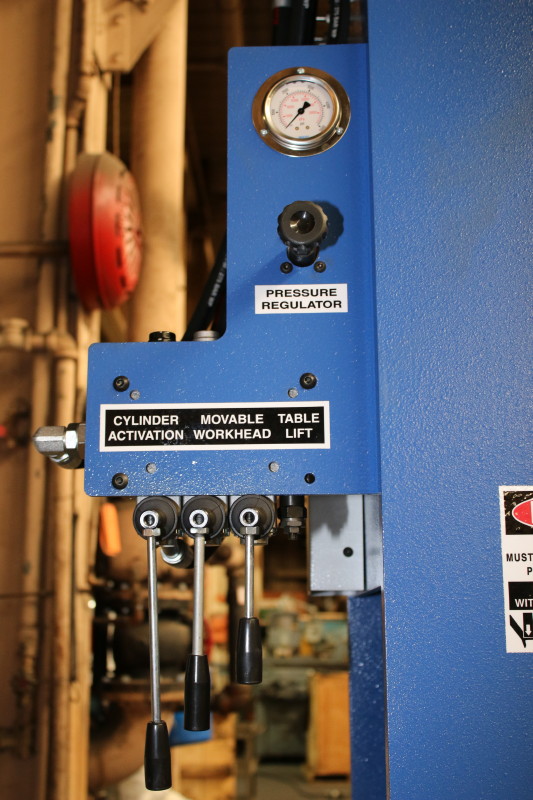

- 2 SEPARATE PRESSURE REGULATORS FOR C-FRAME AND H-FRAME
- BOTH CYLINDER ACTIVATIONS ARE FINGER TIP CONTROLLED, THE MORE THE HAND
LEVER IS ENGAGED THE MORE THE RAM MOVEMENT INCREASES, ALLOWING THE
OPERATOR TO USE THE PROPER SPEED FOR THE TASK.
- 2 SEPERATE PRESSURE GAUGES.
- DOUBLE-ACTION PERMITS PULLING AS WELL AS PRESSING RAM ACTION
- HYDRAULIC POWER LIFT TABLE - FOR EASY VERTICAL MOVEMENT OF TABLE.
- HEAVY DUTY STEEL STRUCTURE - ALL COMPONENTS ARE QUALITY U.S. OR CANADIAN PARTS
- TIE RODS WITH SELF LOCKING TABLE - ELIMINATES LATERAL MOVEMENT
- OPEN SIDES - FACILITATES WORK ON LONGER PIECES

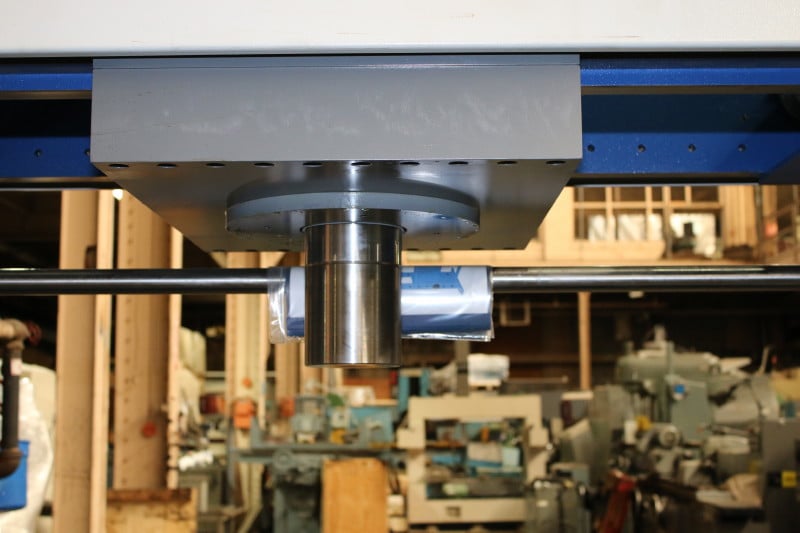

- FLAT RAM NOSE - ALLOWS THE USER TO ADAPT THE PRESS TO A SPECIFIC JOB.
- ELECTRIC/HYDRAULIC OPERATION - PROVIDING SMOOTH AND CONSISTENT PRESSING ACTION

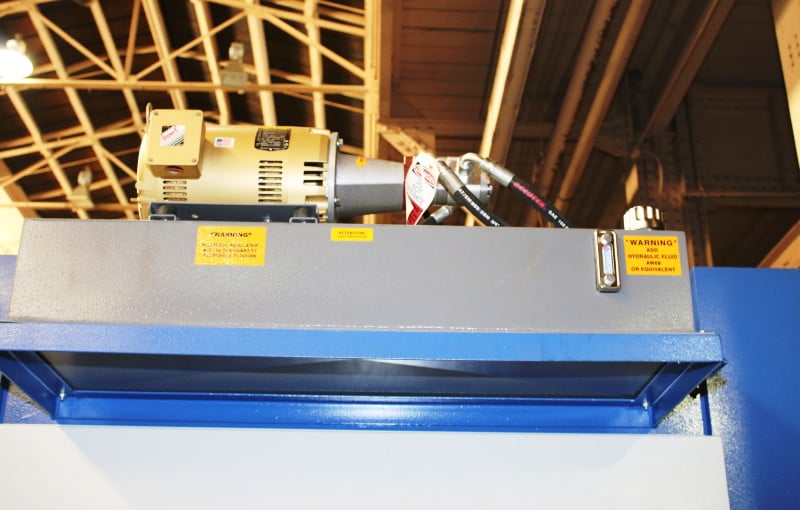

- BALDOR 10 HP,″ PHASE, 208/230/460 VOLT LOW SPEED MOTOR
- LOW SPEED PUMP - PROVIDES QUIET AND DEPENDABLE OPERATION
- 20 GALLON OIL RESERVOIR.
- LOW PRESSURE HYDRAULIC SYSTEM - MAINTAINS LOWER OIL TEMPERATURE, RESULTING IN HIGHER EFFICIENCY AND SAFER OPERATION.
- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY AND READILY AVAIABLE THROUGH OUT NORTH AMERICA.
- FULL ONE YEAR WARRANTY.
AVAILABLE OPTIONS:
- V-BLOCKS ................................... $1,250 SET
- STOP / START…amp; EMERGENCY STOP .............. $900
- FRONT OR BACK SAFETY GUARD ................. $900 EA
- SIDE SAFETY GUARD ..............(PER SIDE).. $600
- FOOT PEDAL ................................. $3,400
- ADJ. STROKE CONTROL C/W FOOT PEDAL ......... $5,000
- 24 STROKE CYLINDER ........................ $1,400
- PRESS PLATE ................................ $3,500
- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND
LEXAN GUARDING ............................... $7,600
