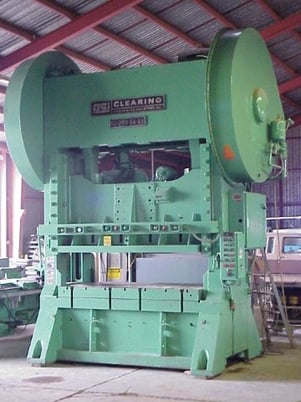

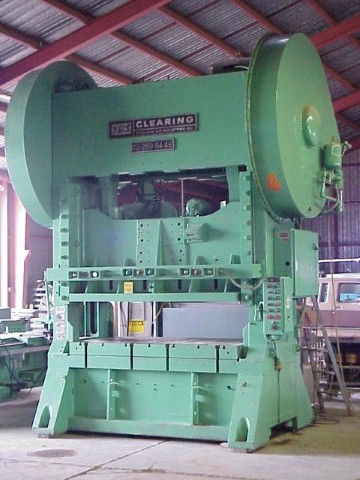

250 Ton, Clearing #S2-250-84-48, 12" stroke, 32" Shut Height, 30 SPM, 92" between housing, air clutch, s/n 51-1339

(1) Used 250 Ton Clearing Model S2-250-84-48 Straight Side Press;Double-Crank; Single Back Geared; S/N 51-1339
Specifications:
Capacity.............................250 Ton
Bed Area.............................84" L-R x 48" F-B
Bed Openings (2).....................33" L-R x 32 3/4" F-B
Slide Area...........................84" L-R x 48" F-B
Distance Between Housings............92"
Window Opening.......................18" L-R x 18" T-B
Stroke...............................12"
Shut Height Over Bed (SDAU)..........32"
Distance Bed to Floor................33 5/8"
Power Ram Adjustment.................11"
Speed................................30 S.P.M.
Electrical Characteristics...........220/440 VAC / 3 Phase / 60 Cycle
Equipped With:
Complete Electrical Controls
Air Friction Clutch and Brake with Selector Controls
Arranged for (4) Knockouts F-B
Enclosed Gears Running in Oil
Flush Floor Design
(2) Air Counterbalance Cylinders to Slide
T-Slotted Bolster (6" Thick)
T-Slotted 10" Ram Adaptor
Automatic Lubrication System
Air Cushion
Overall Dimensions...................132" L-R x 108" F-B x 184" High (est.)
Floor Space Required.................117" L-R x 81" F-B
Weight...............................84,000 lbs.
F.O.B................................Casa Grande, AZ
