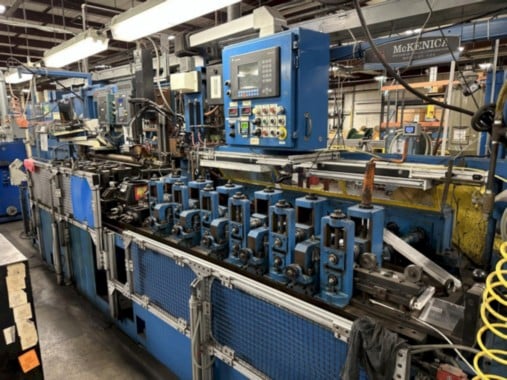

.250" Mill Masters, precision small diameter tube mill, L to R, 1-1/4" shaft diameter, 12-14 FPM, 2004

Manufacturer: Mill Masters
Type: Tig Mill
Manufactured: 2004
Mill Speed: 12 to 14 FPM
Mother Tube Forming : .300"
Finish Tube: .250"
Material: 316 Stainless / 825 Incoloy
Wall Thickness: .028" to .035" (Tooling for .049")
Shaft Diameter: 1 1/4"
Direction: Left to Right
Application:
Copper & plastic cable is intertwined with Stainless or Incoloy strip and
formed directly in tube mill making finished traverse wound encased cable
tubing.
Complete Mill with the Following Components:
2500# x 60 OD x 18" W Double End COE Industries Uncoiler
Mdl. CPR-DE-PO-2518
Kent Shear and End Welder
Kent Mdl. Mdl. 10065PMAHSC
Lincoln Electric Square Wave Tig 175 Pro Welder
Free Band Accumulator w/ Entry Power Pinch Roll
Hall Industries Core Capstan Payoff for Insulated Copper Cables
Wire Dancer, Feeder and 2-Plane Straightener Feeding directly into Forming
Section of Mill
Strip/Cable Combine Station (Intersection Flat Strip with Insulated Cable)
Forming Mill
3 Forming Stands
3 Fin Stands
5 Idle Side Roll Passers
20 HP, 1760 RPM SEW-Eurodrive AC Motor Drive
230/460 Volt
Universally Driven

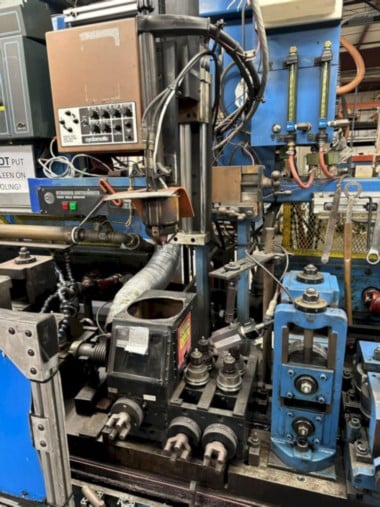

Welding Section

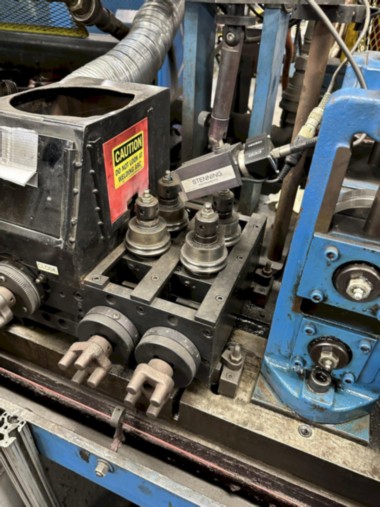

4 Roll Cluster
2 Roll Weld Rolls
Jet Line TIG Welding System with Miller Welding Supply & Miller Coolmate 4
water coolant unit
Welder Camera System
Cyclomatic 90A Arc Pattern Control
Jetline Series 9500 Controller
5 Sizing Reduction Stands
5 Idle Side Rolls
20HP, 1760 RPM SEW-Eurodrive AC Motor Drive
230/406 Volt
Universally Driven
Pruftechnik AG Eddy Current Eddychek S Tester
Mdl. Lab 3952UM 9
Roller Weld Bead Planisher / Conditioner
(2) Beta Lasermike Measuring Unit
Camam Tube Polisher W/ Tiger Vac Collection System
MGS / Hall Industries Traversing Spooler
50" x 32" x 32"
50,000 Feet Capacity
Includes Controls, Hydraulics, Electrics - Allen Bradley Powerflex 700 Drives
Allen Bradley Panelview 1000 Mill Controls Display
Installed
