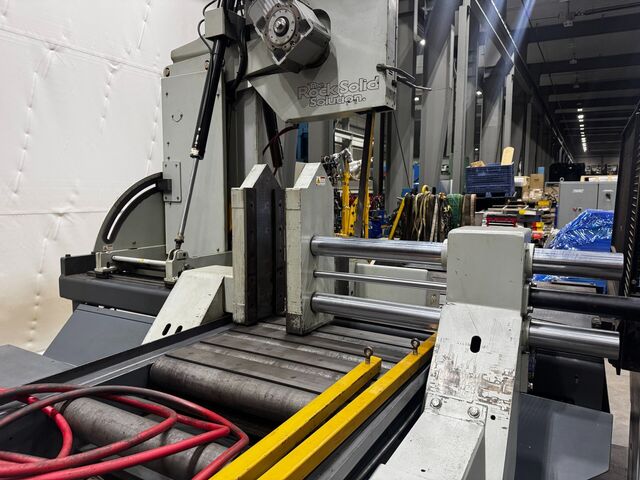

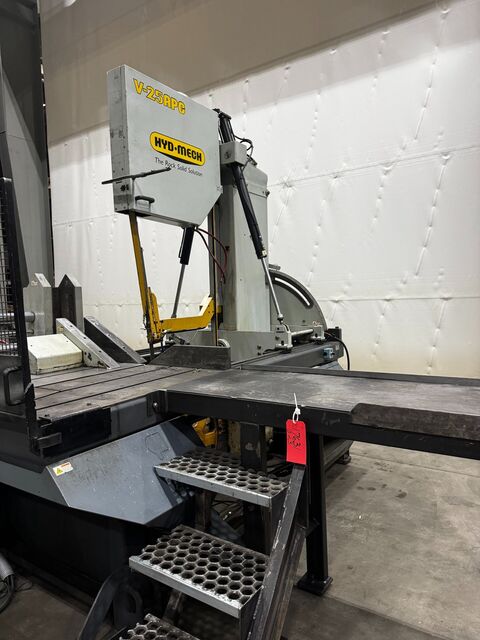

Description LOCATION: GRAND RAPIDS, MI Specifications: Capacity at 90 Degrees 25 x 30.5 Capacity at 45 Degrees 21 x 25 Capacity at 30 Degrees Right 14.5 x 25 Capacity at 30 Degrees Left 13.5 x 25 Bundling Clamp is Full Capacity at 90 Degrees Cant Angle 5.6 Degrees Blade Dimensions 1 1/5 x .050 x 21 1/2 Blade Speed 75-350 sf/min Blade Guide Carbide Pads, Spring Loaded, Zero Clearance, with Positively Maintained Parallelism, Integrally Mounted Entry Rollers Blade Drive Wheel Diameter 32 Blade Idler Wheel Diameter 24 Blade Drive 10 HP Hydraulic System, 3 HP, 1000 PSI, 7 Gallon Tank Coolant System Tank Capacity 38 US Gallons Coolant System Usable Capacity 28 US Gallons Hydraulic Vise Full Stroke Vise Adjustable Force 1000 3300 lbs. Table Height 44 Maximum Workload 10,000 lbs. Machine Weight 9,500 lbs, Barfeed Weight 4,500 lbs. Preliminary Specifications Subject to Verification Spec Sheet HYD-MECH V-25APC SPECIFICATIONS: Throat........ 25" Work Height... 44" Power......... 10 hp Blade Width... 1.5" FPM........... 75-350 Weight........ 15000
, 6° canted head, 60” bar feed, left side, Shuttle s automatic multi-indexing up to 60” (120” optional) in a single stroke w/automatic kerf, compensation. Powered by a rack and pinion servo drive., Automatic programmable mitering w/”go to” angle functionality from 60° left to ...more

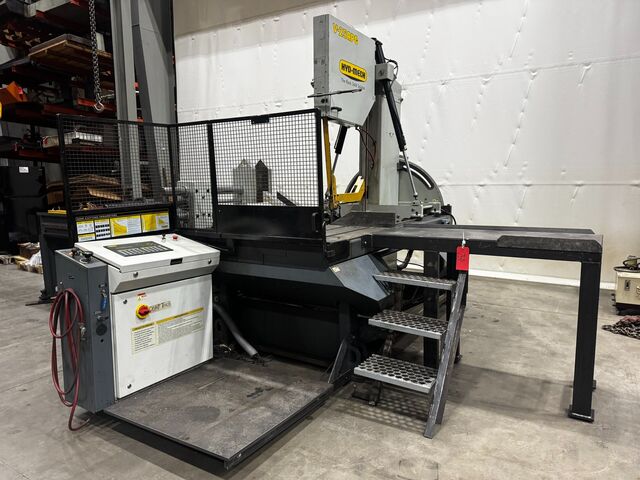

2011 Hyd-Mech Automatic Vertical Band Saw Model V-25APC, Capacity @ 90 degrees: 30” x 25”, Dual direction Auto mitering up to 30 degrees both ways, Overhead bundling, Extended 10’ shuttle infeed, Chip bucket with pump, Outfeed vise, Mist lubrication, Electrics: 480 Volt 3 phase.
