For Sale by Toolquip Inc
Surplus Record Dealer Since 2025
Location: Lebanon, OH
Contact Daniela Weaver
Phone Number: 513...> Show Phone Number 513-450-6223
Let the seller know you found their listing on Surplus Record!
Description

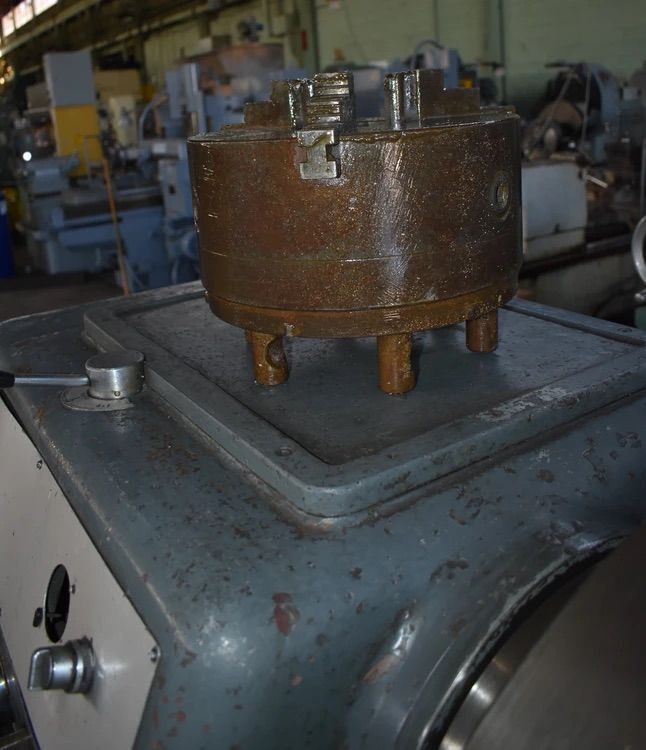

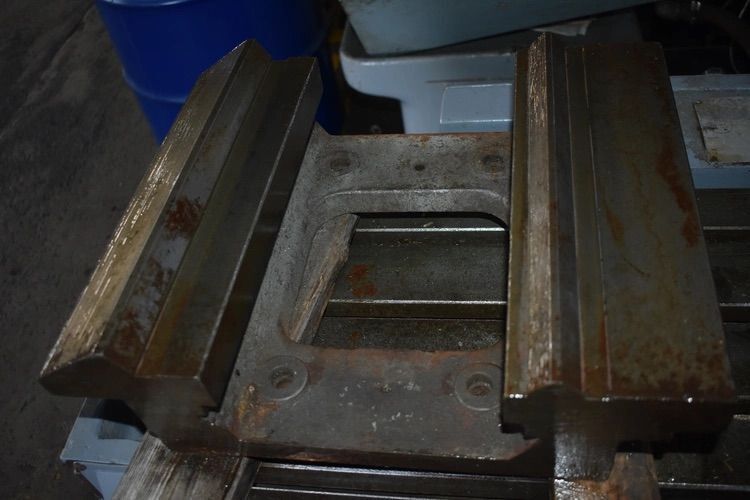

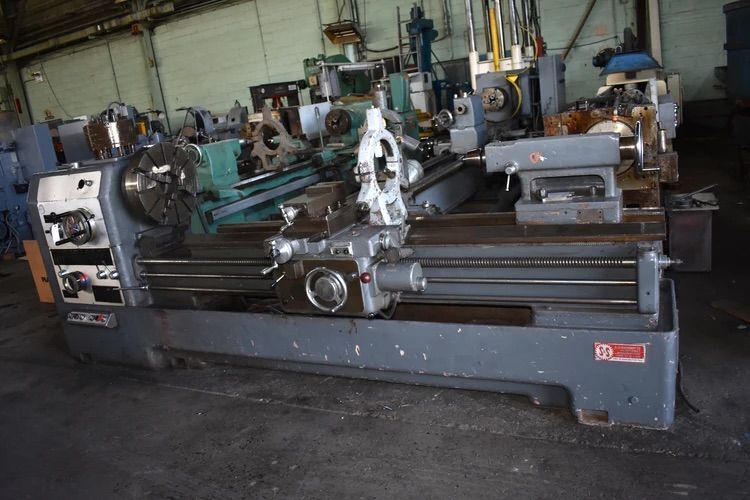

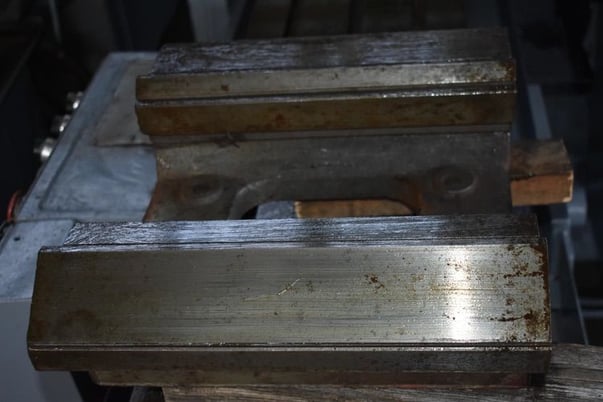

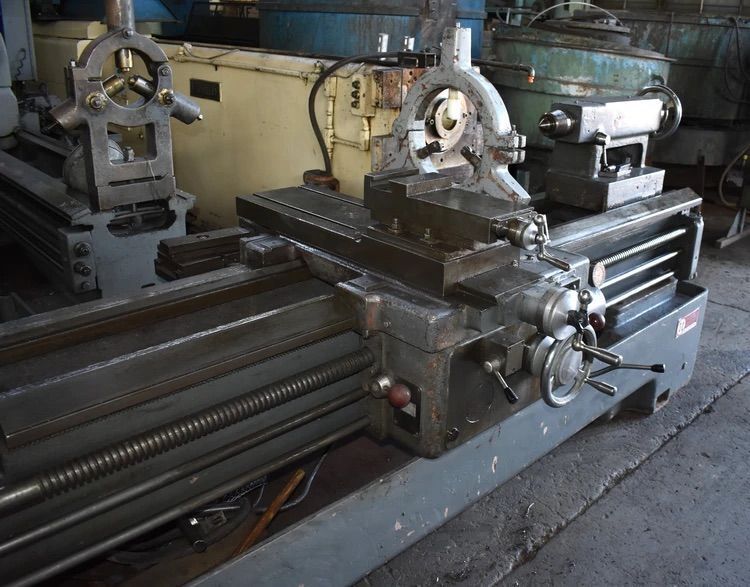

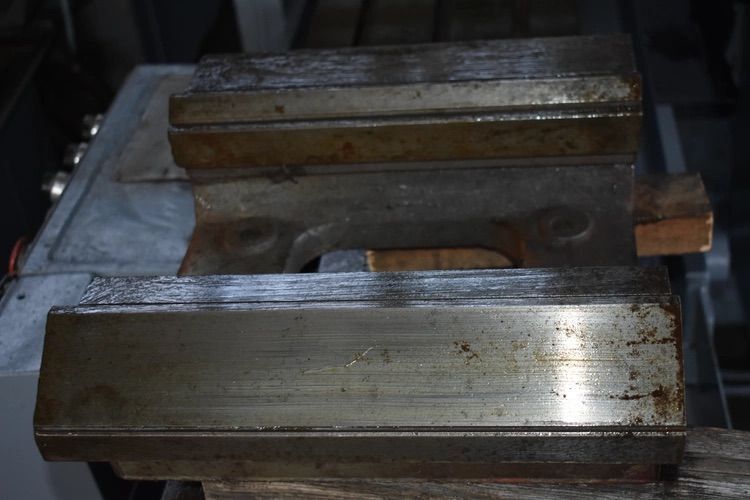

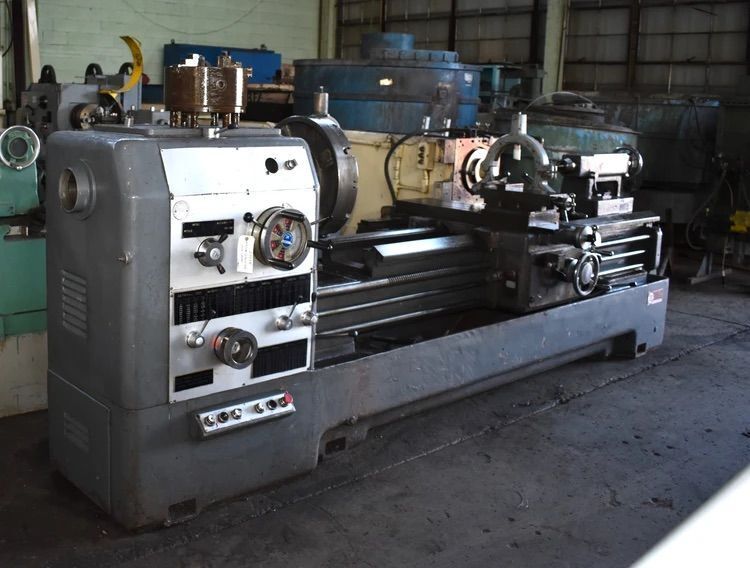

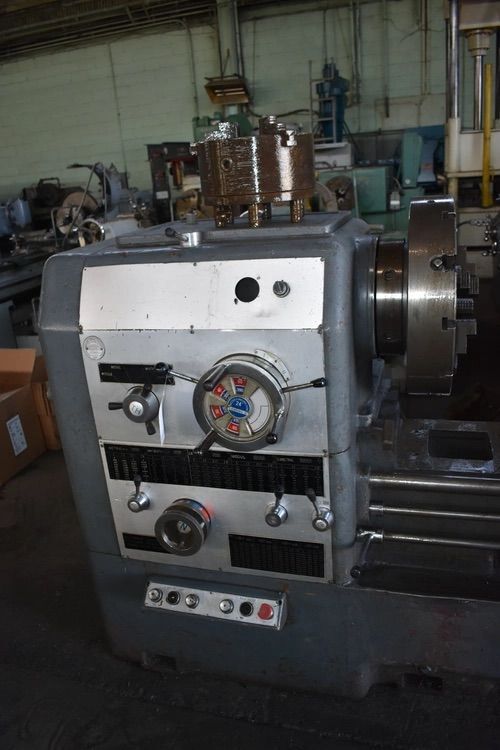

LANSING 24G Engine Lathe: 4.125" spindle hole, 20 HP motor, 24" swing over bed, 80" between centers. Equipped with taper attachment, 4-jaw chuck, 3-jaw chuck,
Hole Thru Spindle 4.125"
Swing Over Bed Ways, Rated 24"
Swing thru Gap 35"
Swing Over Cross-Slide 14.5"
Distance Between Centers 80"

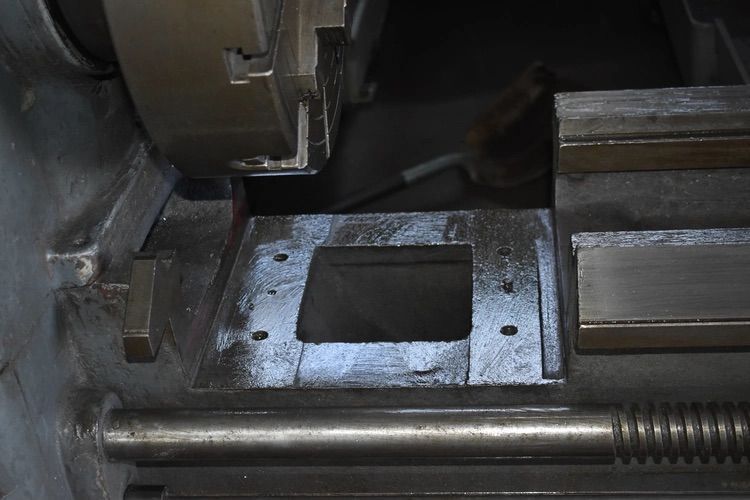

Gap Length 12.5"
Tailstock Spindle Taper #5 MT
(16) Spindle Speeds, Range
Carriage Longitudinal Feeds .0054 to .3264 IPR
Cross-Slide Cross Feeds .0023 to .1378 IPR
Whitworth Thread Changes, Range .25 to 60 TPI
Metric Thread Changes, Range .5 to 7.5 MM
Module Thread Changes, Range .25 to 3.75
Diametral Thread Changes, Range 8 to 120 DP
Main Motor, Horsepower 20 HP
Electrical System 220-440/3/60
Hole Thru Spindle 4.125"
Swing Over Bed Ways, Rated 24"
Swing thru Gap 35"
Swing Over Cross-Slide 14.5"
Distance Between Centers 80"
Gap Length 12.5"
Tailstock Spindle Taper #5 MT
(16) Spindle Speeds, Range
Carriage Longitudinal Feeds .0054 to .3264 IPR
Cross-Slide Cross Feeds .0023 to .1378 IPR
Whitworth Thread Changes, Range .25 to 60 TPI
Metric Thread Changes, Range .5 to 7.5 MM
Module Thread Changes, Range .25 to 3.75
Diametral Thread Changes, Range 8 to 120 DP
Main Motor, Horsepower 20 HP
Electrical System 220-440/3/60
Get Your Price from Toolquip Inc!
