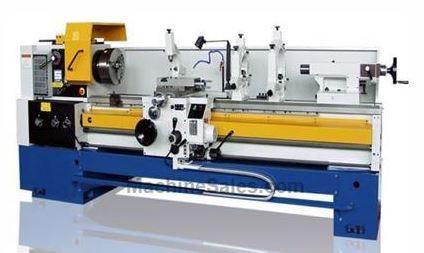

24-4" x 80" Summit #24-4X80B, Precision Engine Lathe, inch/metric thread, removable gap, NEW

SPECIFICATIONS
Capacities:
Swing over bed 25”
Swing over cross slide 17”
Workpiece Weights:
At the headstock 400 lbs.
Between chuck and tailstock 2,000 lbs.
Between chuck and tailstock w/steady rest 4,000 lbs.

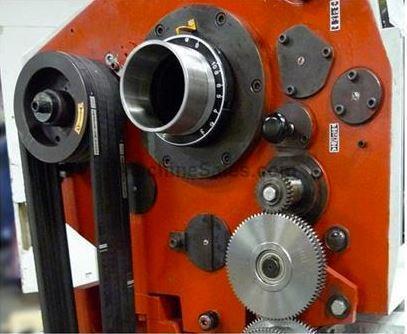

Headstock:
Spindle speeds RPM 20-1,250
Hole through spindle 4 1/8”
Spindle nose D1-8 Camlock
Headstock Center #6 MT

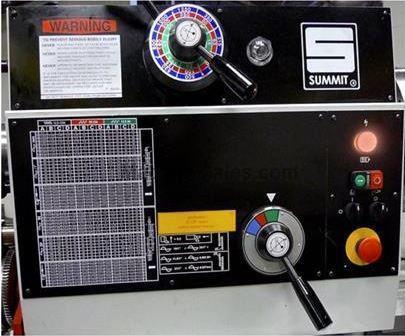

Quick Change Gearbox:
Threads per inch (no.) range (64) 1/4 - 60
Metric threads (no.) range (64) 1/2 - 120
Module threads (no.) range (64) 1/8 - 30
Diametral Pitch (no.) range (64) 1 - 240
Longitudinal feeds (no.) range (124) .00145 - .44474
Cross feeds (no.) range (56) .0007 - .22237
Leadscrew (Dia) range (2”) 2 TPI
Feed rod diameter 1”

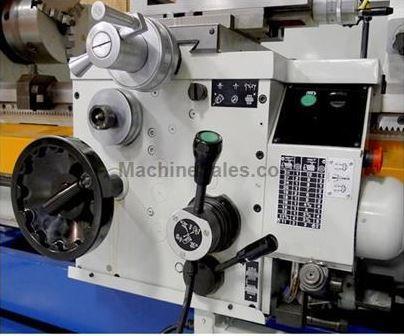

Carriage & Apron:
Cross Slide Travel 12 1/2”
Compound rest travel 5 3/8”
Graduation of apron handwheel .020
Graduation of cross slide handwheel .002 (Dir read)
Tailstock:
Travel of spindle barrel 9 1/2”
Diameter of spindle barrel 3 1/2”
Taper of center #5 MT
Two Speed 1:1, 4:1
Bed:
Width of bed 15 3/4”
Depth of bed 16 7/8”
Hardness of bed (Rockwell C) 42-48
Taper Attachment:
Degrees of taper +/- 10°
Maximum turning length per setting 15 3/4”
Motors:
Main Drive 15 HP
Coolant pump 1/4 HP
Steady and Follow Rest:
Standard Steady Rest 1/2” - 6 1/8”
Extra Capacity Steady Rest 5 1/2” - 13 1/2”
Follow rest 1/2” - 7 7/8”
Shipping Data:
Overall width 48”
Overall height 62”
Overall length 156”
Weight 8,100 lbs
Electrics:
220/440/3/60
FEATURES:
* Big 4 1/8” thru hole
* Inch/metric threads w/single switch lever
* Cuts most inch/metric threads without change gears
* Hardened & ground bedways
* Force lubrication to the headstock, carriage and bedways
* Mechanical disc clutch
* Removable gap
* Precision (3) bearing spindle
* Crossfeed and threading safety interlock
* Feed reversing at the apron
* 4-way rapid traverse
* Single lever control for feeds and rapids
* Two Speed Tailstock
EQUIPPED WITH:
* Standard Steady Rest
* Extra Capacity Steady Rest w/Rollers
* Follow Rest
* Thread Dial
* Coolant System
* Taper Attachment
* 12” 3 Jaw Chuck w/2 Piece Jaws
* Carriage Stop
* Work Light
* Full Length Splash Guard
* Service Wrenches & Spanners
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
12” Steel Body Precision Chuck w/2 Piece Jaws in Lieu of Standard Chuck: $2,600.00
20” Semi-steel 4 Jaw Chuck: $6,000.00
20” Steel Body 4 Jaw Chuck w/2 Piece Reversible Jaws: $7,000.00
Aloris Quick Change Tool Post w/Holders (2#1, 2#2): $1,600.00
Newall 2 Axis Digital Readout Installed: $5,000.00
20 HP Main Motor in Lieu of 15 HP: $5,000.00
**Installation Assistance: TBD
DELIVERY:
SUBJECT TO STOCK
