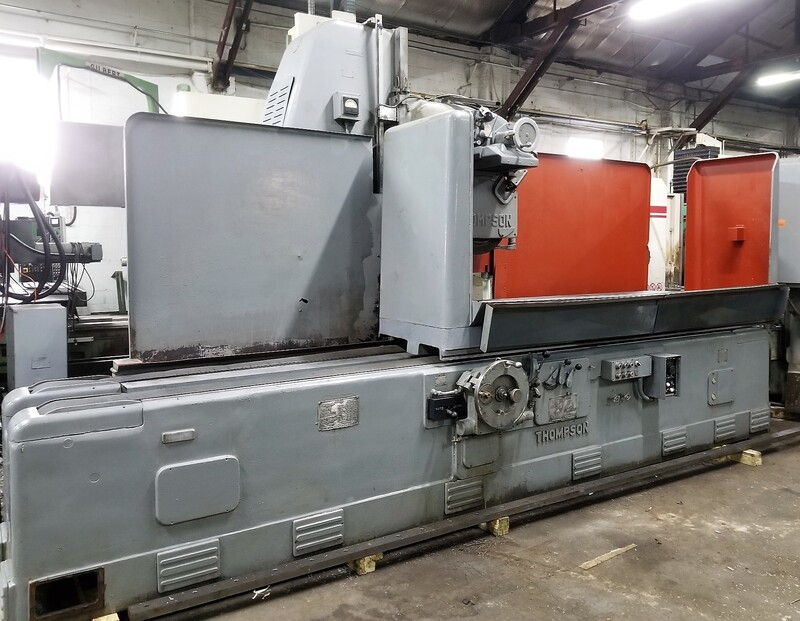

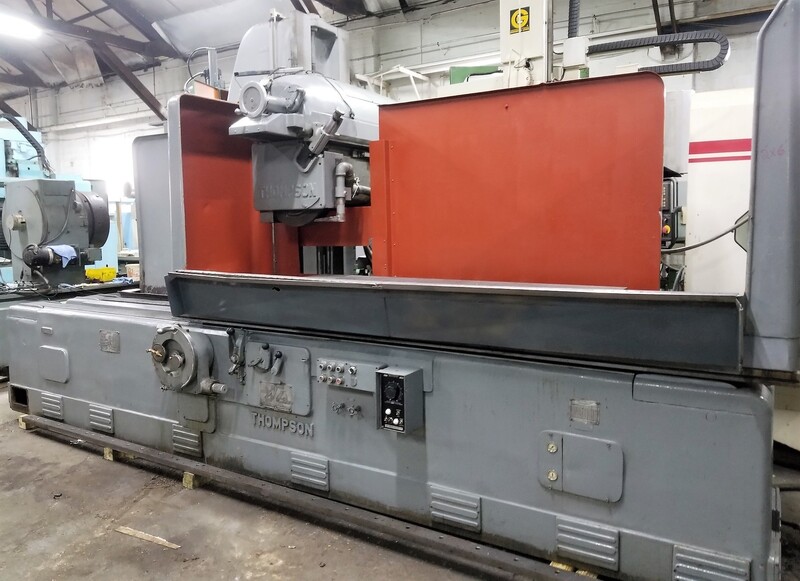

24" x 72" Thompson #C, horizontal surface grinder, 30" under wheel, 20" x4" wheel, electromagnetic chuck, automatic cross feed, power elevation, coolant system

THOMPSON C
SPECIFICATIONS:
Table-W............... 24"
Table-L............... 72"
Horz/Vert............. Horz
Power................. 7.5 hp
Grinding Wheel Dia.... 20"
EQUIPPED WITH:
MODEL ................................. TYPE C
GRINDER WORK CAPACITY ................. 72" X 24"
*** HIGH COLUMN CAP. APPROX. 30" UNDER WHEEL
WHEEL SIZE ............................ 20" X 4"

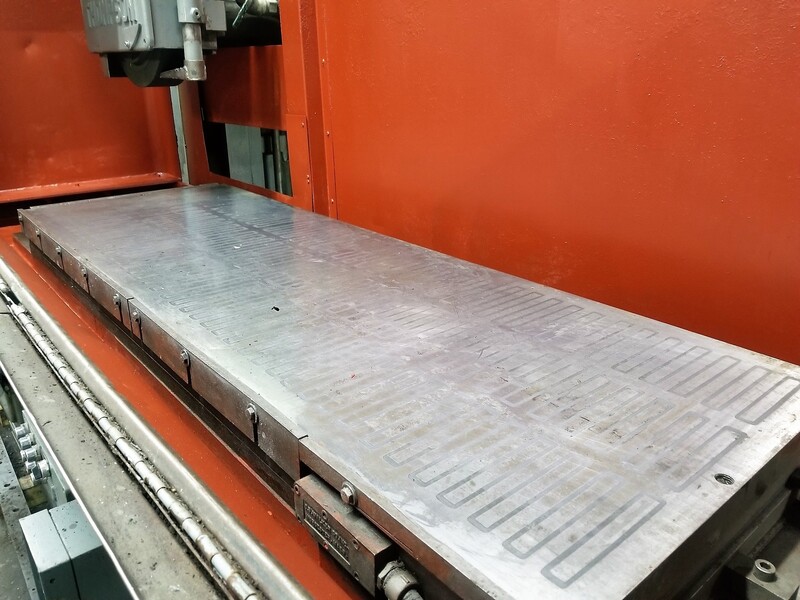

CHUCK SIZE ............................72" X 24" ELECTRO MAGNETIC CHUCK
WITH NEUTROFIER CHUCK CONTROL
SPINDLE SPEED ......................... 1140 RPM
TABLE FEEDS ........................... 10 TO 100 FPM
INCREMENTAL DOWNFEED .................. .0002 TO .004 IPR
AUTOMATIC CROSS FEED
POWER ELEVATION
OVER THE WHEEL DRESSER

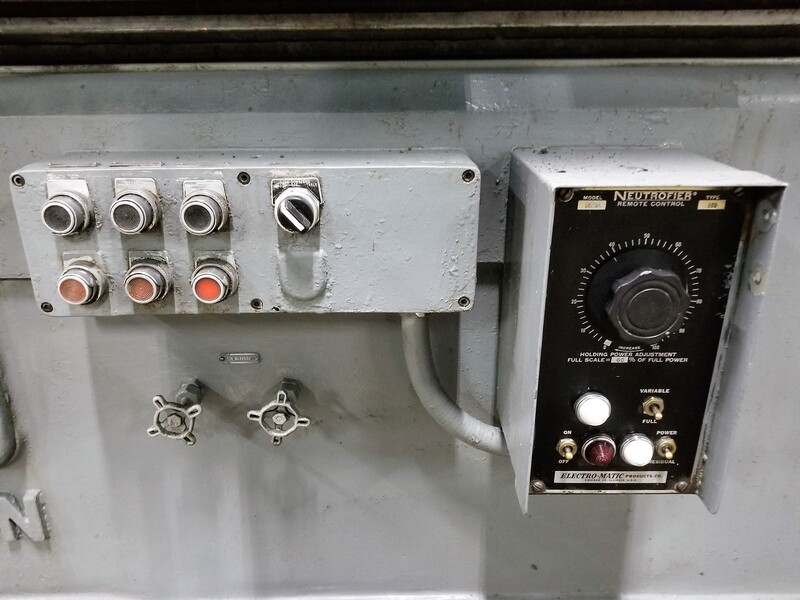

CHUCK CONTROLS WITH NEUTROFIER
COOLANT SYSTEM
TABLE BED WAY COVERS
HYDRAULIC MOTOR ....................... 7.5 HP
SPINDLE MOTOR ......................... 30 HP
SONY 2 AXIS DIGITAL READOUT DISPLAY
DEEP BED PAPER FILTER SYSTEM 32" WIDE WITH LARGE COOLANT TANK
AND 1/2 HP GUSHER PUMP 42" X 80 X 17"
MACHINE SIZE 7'6" X 17' X 10' 2" ON 4X4's Weight aprox 36,100 LB
