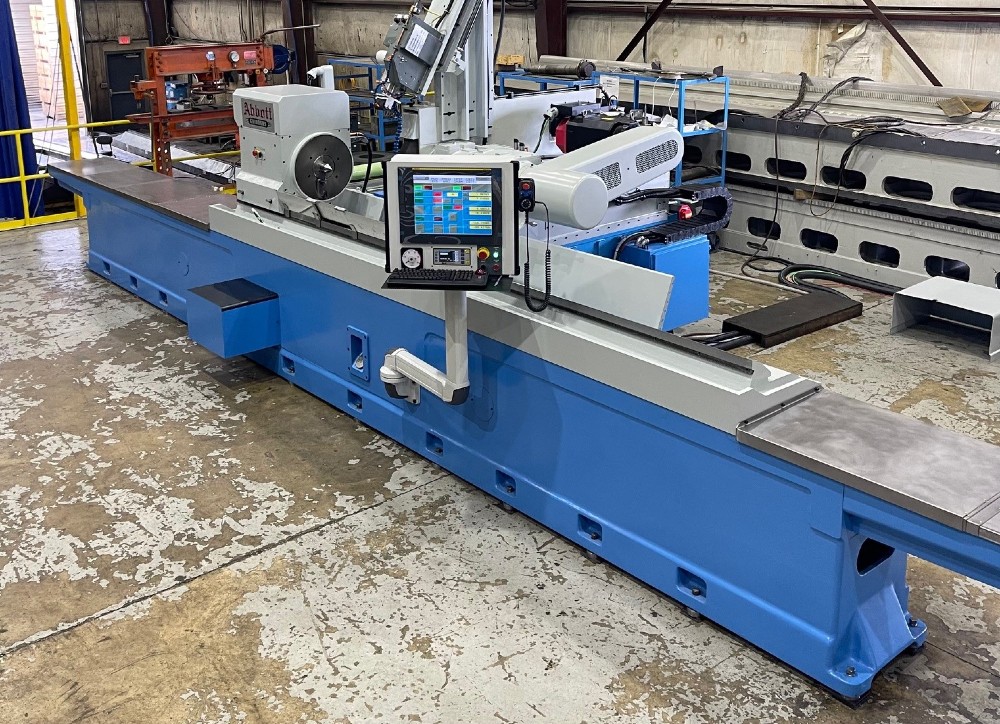

28" x 120" Abbott #A24120, plain grinder, 30" x 2"-4" x 12" grinding wheel, infeed ballscrew, 2024

_{24” X 120” ABBOTT PLAIN GRINDER}

_{Stock #: A-5000 YEAR BUILT: 2024}

_{SPECIFICATIONS}

_{Max. Swing Over Table: 28”}

_{Nominal Distance between Centers 120”}

_{Max Part Weight between Centers 10,000lbs.}

_WHEELHEAD

_{Max. Crossfeed 16”}

_{Grinding Wheel Size 30” x 2”- 4” x 12”}

_{Grinding Wheel Speeds, Variable 0 – 1200 rpm}

_{Infeed Ballscrew}

_{Spindle Hydrostatic}

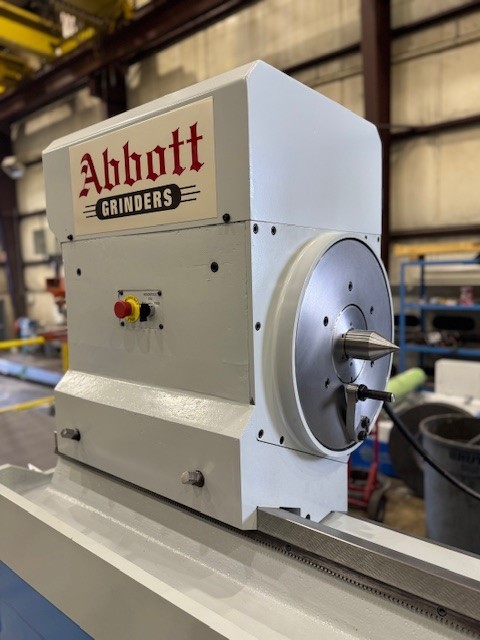

_HEADSTOCK

_{Taper in Workhead #15 B&S}

_{Workhead Speeds, Variable 0 – 150 rpm}

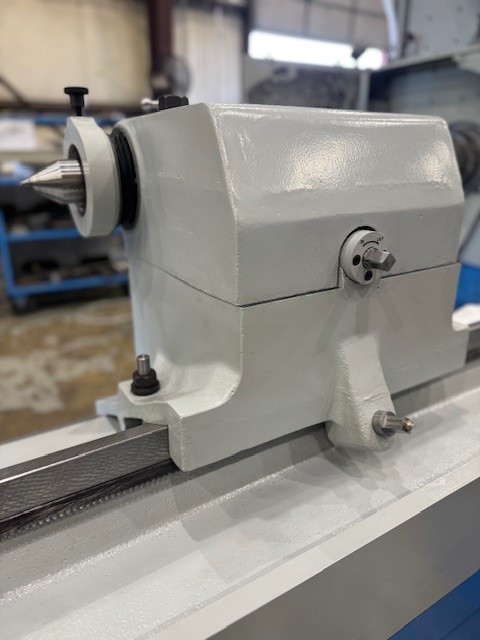

_FOOTSTOCK

_{Taper in Footstock #15 B&S}

_{Tailstock Type 2 piece}

_{Quill Movement 8”}

_{Movement Rack & Pinion}

_TABLE

_{Table Speeds, Variable 0 – 120 IPM}

_{Table Type 1 piece}

_{Table Traverse Rack and Pinion}

_{CROSS TRAVERSE & SIZING}

_{Wheelhead movement per rev. of handwheel 1/16”}

_{Min. Infeed increment on Diameter .0001”}

_{Max. Auto. Pickfeed at Table Reversal .0012”}

_{Min. Auto. Pickfeed at Table Reversal .0002”}

_{Power Cross Traverse Rate 16 IPM}

_{Wheelhead (spindle) Motor Fanuc 30kw}

_{Headstock Motor Fanuc 40nm}

_{Table Drive / Infeed Motor Fanuc 30nm}

_{Power Requirements:}

_{Base machine as described herein 480/3/60, approx. 125amp.}

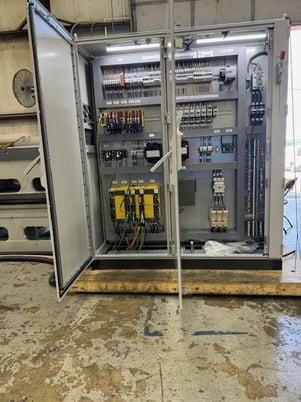

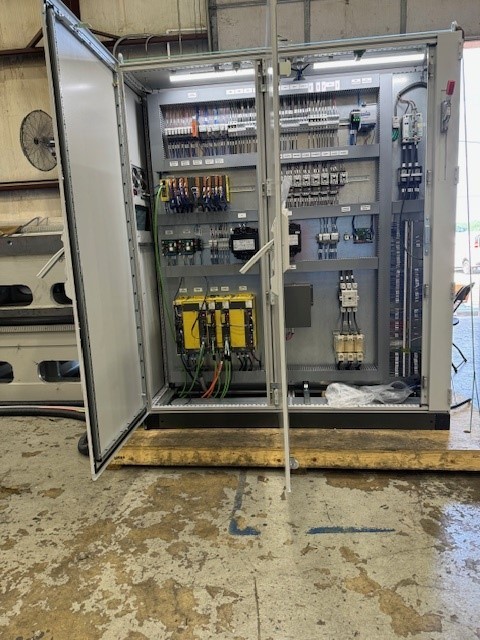

_{Control Specifications: AGQ3000 Touch Screen Conversational Control}

_{20” Fanuc PLC Control Screen}

_{Least Input Increment of 0.00010”}

_{Manual Pulse Generator}

_{Programmable feeds and speed}

_Crowning

_{Continuous infeed}

_{Taper compensation}

_{End infeed, either end or both ends}

_{End Dwell (Tarry) Programmable}

_{RPM Readout of Wheel and Work Speeds}

_{IPM display of table traverse.}

_{Spindle percentage load meter}

_{STANDARD EQUIPMENT}

_{Heavy Duty Headstock}

_{Footstock with Diamond Holder}

_{Wheel Mount}

_{Wheel Lifter}

_{Telescoping Table Way Covers}

_{Splash Guards}

_{Tachometers for work and wheel RPM}

_{Spindle Load Meter}

_{Mirror Attachment}

_{2 Dead Centers}

_{WEIGHT & DIMENSION}

_{Approximate net weight 45,300 lbs.}

_{Approximate Floor Space 32’ X 12’ X 6’}

_OPTIONS

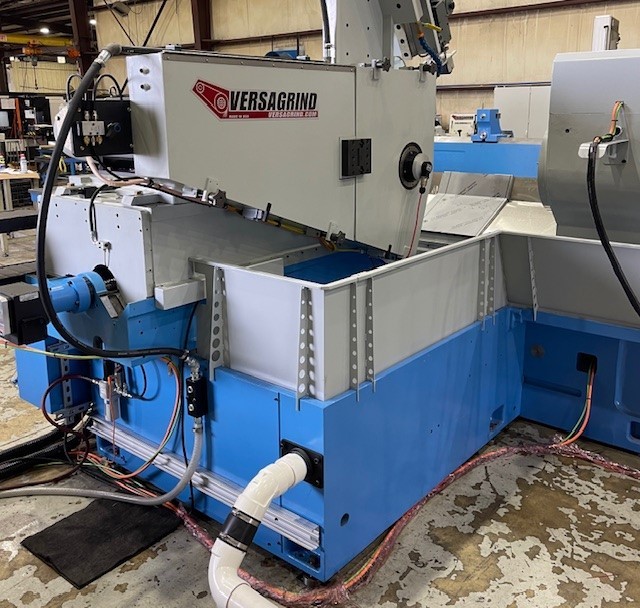

_{Abbott Versagrind}

_{Abbott GEM Super Finisher}

_{Coolant Filtration System}

_{SBS Automatic Wheel Balance}

_{Mist Collector}

_{Steady Rest}

_{Journal Rest}

_{Equalizer Drive}

_{Extra Wheel Mounts}

_{Live Centers}
