For Sale by Action Machinery Co Inc
Surplus Record Dealer Since 1996
Kim Khoury
610-69...> Show Seller's Phone Number 610-691-6677 Let the seller know you found their listing on Surplus Record!
Description

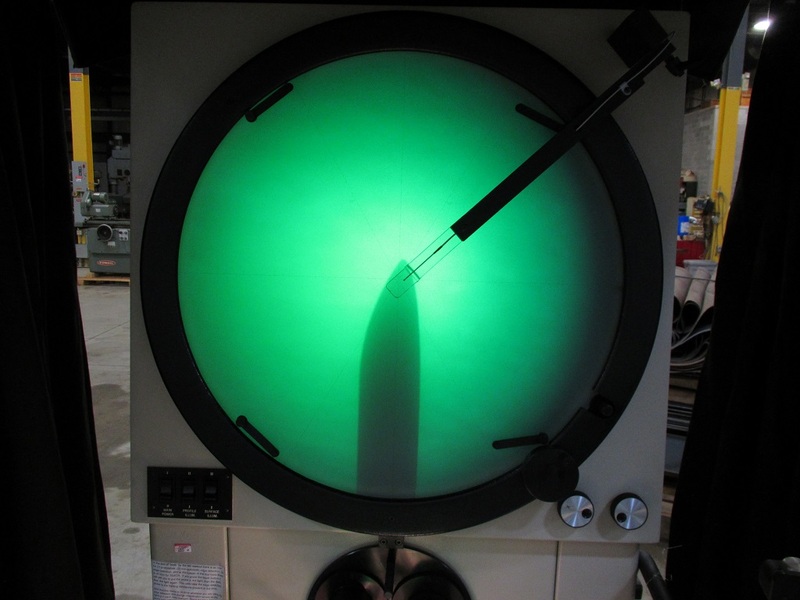

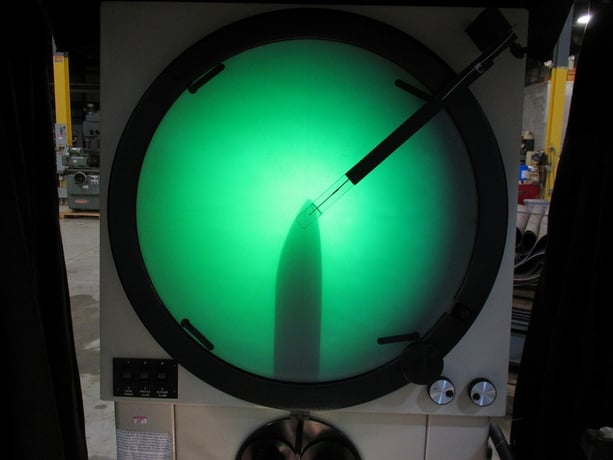

SCREEN DIAMETER: 24"
PROFILE ILLUMINATION: HORIZONTAL
IMAGE: ERECT
WORK STAGE
MEASURING TABLE: 5" X 24"
X-AXIS: 12"
Y-AXIS: 8"
WORKLOAD CAPACITY: 200 LBS
HELIX ADJUSTMENT: +/- 15°
FEATURES

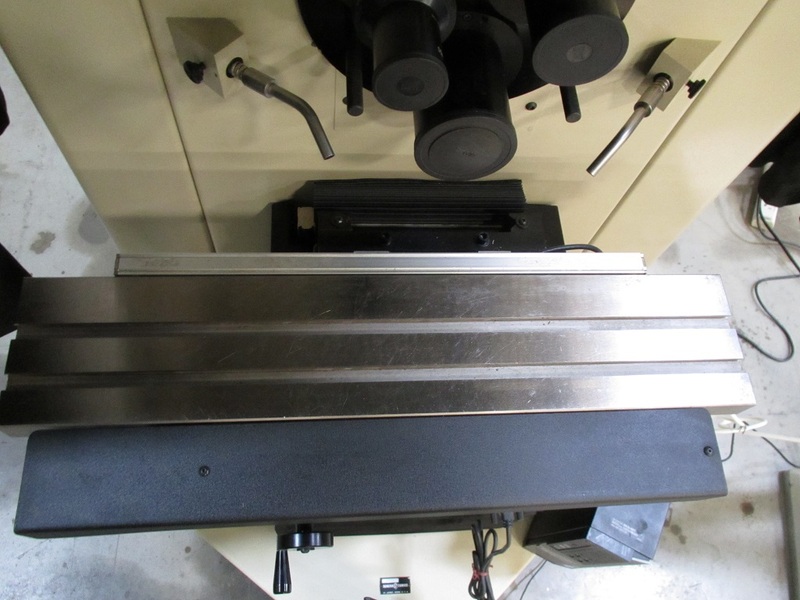

• HARDENED STEEL, NICKEL-PLATED WORKSTAGE

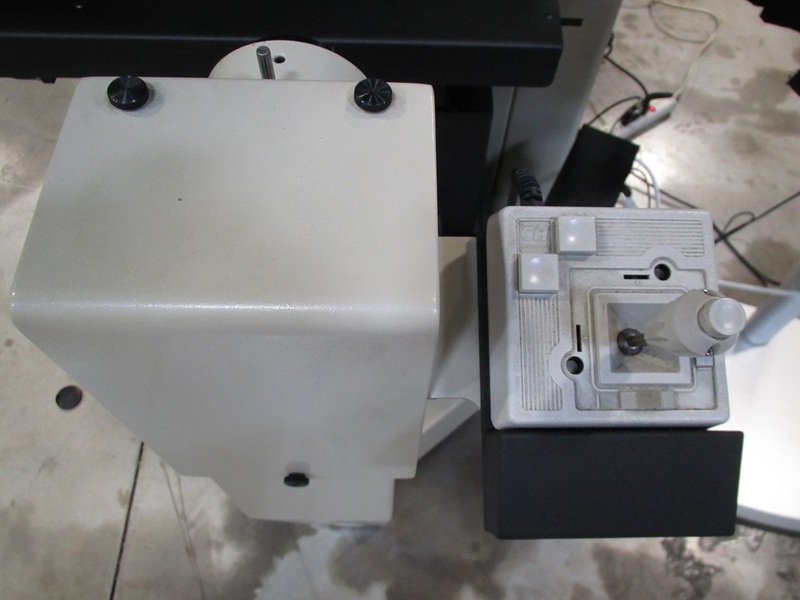

• MOTORIZED X & Y-AXIS WITH JOYSTICK CONTROLS& X-Y FINE ADJUST JOG WHEELS
• DIGITAL SCREEN PROTRACTOR TO 1’ OR .01°

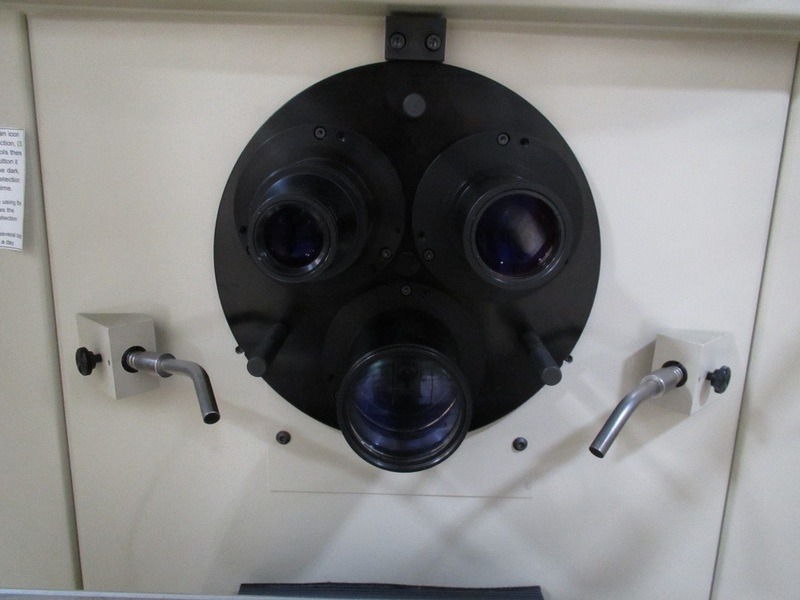

• 3-POSITION LENS TURRET
• DUPLEX FIBER OPTIC SURFACE ILLUMINATION
• +/- 15° HELIX ON STAGE
• SWING AWAY LAMP
• THREE 4" DIAMETER WHEELS FOR PORTABILITY
• ERECT IMAGE
• EXCLUSIVE GOTHIC ARCH BEARING WAYS ON STAGE
• HOOD WITH CURTAINS
GENERAL
FLOOR SPACE: 31" LR X 64" FB
WEIGHT: 1,100 LBS
ELECTRICAL REQUIREMENTS: 110 VOLTS
EQUIPPED WITH

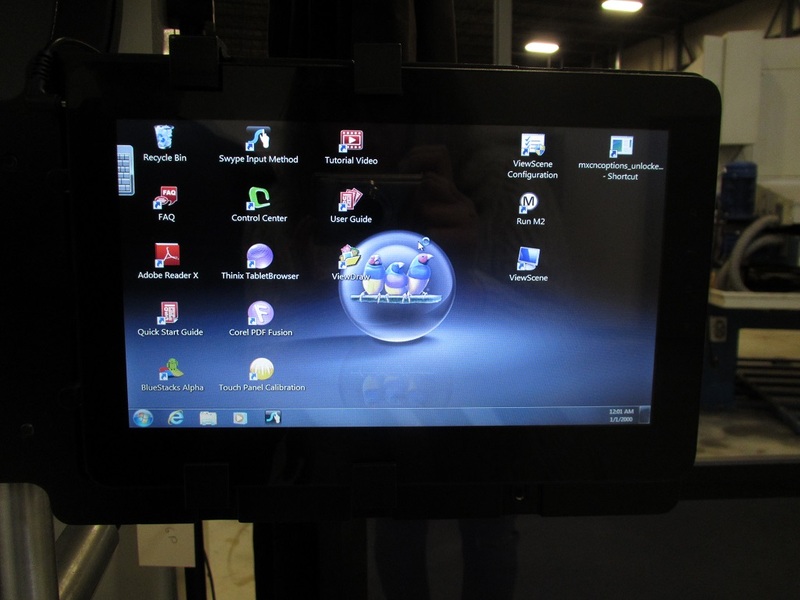

M2E TOUCH SCREEN TABLET BASED MICROPROCESSOR
FIBER OPTIC EDGE DETECTION

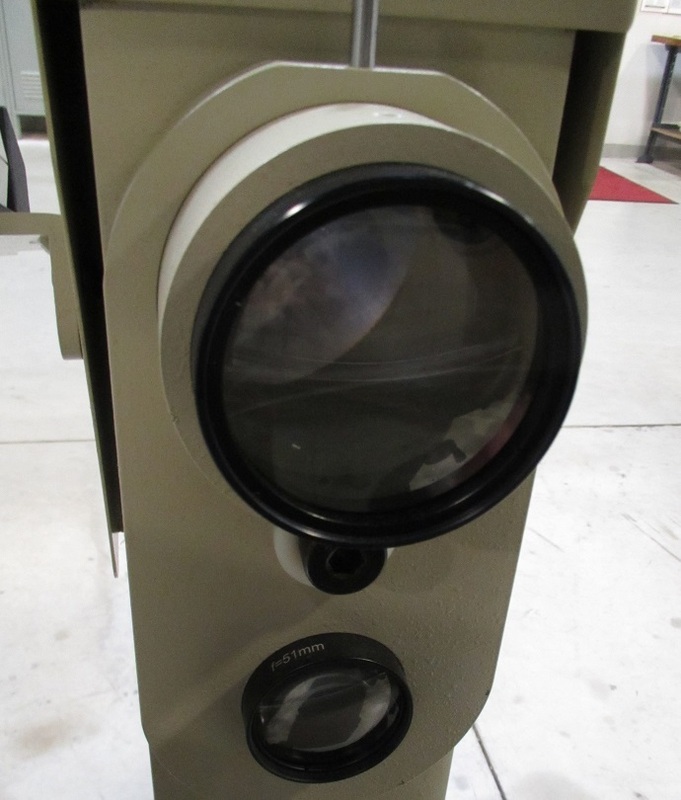

HALOGEN PROFILE ILLUMINATION
DUPLEX SURFACE ILLUMINATION
10X, 20X & 50X LENSES
ROTARY VISE FIXTURE
V-BLOCK KIT
Get Your Price from Action Machinery Co Inc!
