For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

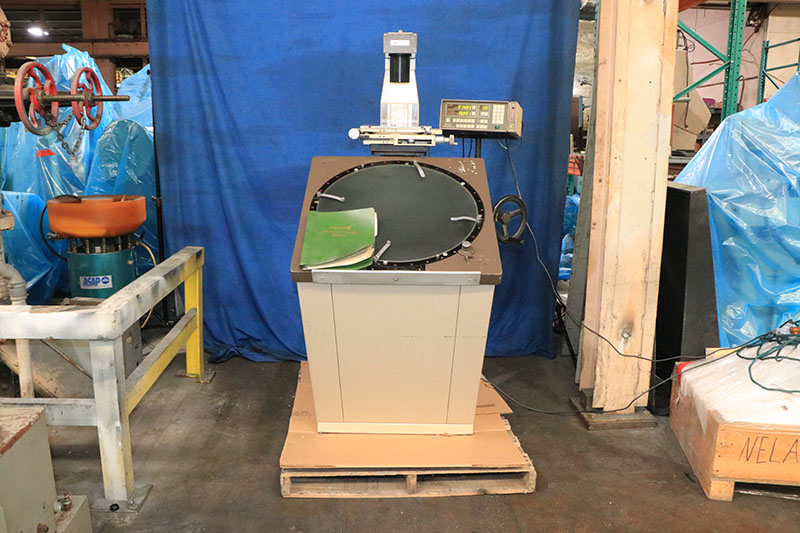

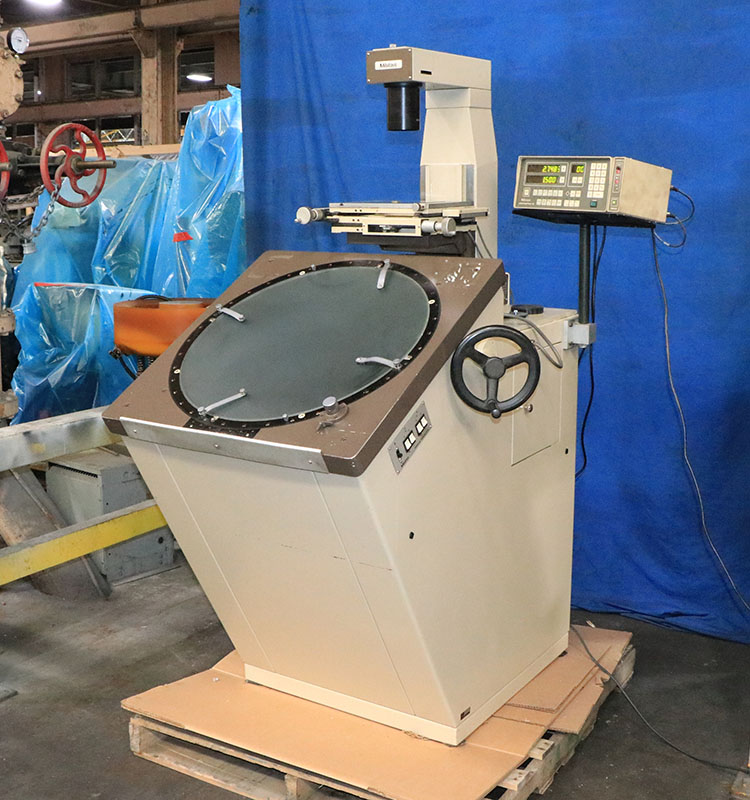

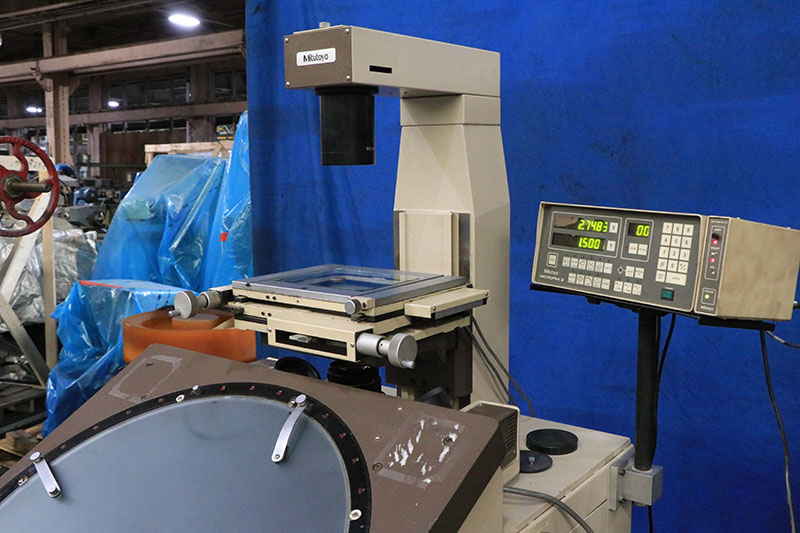

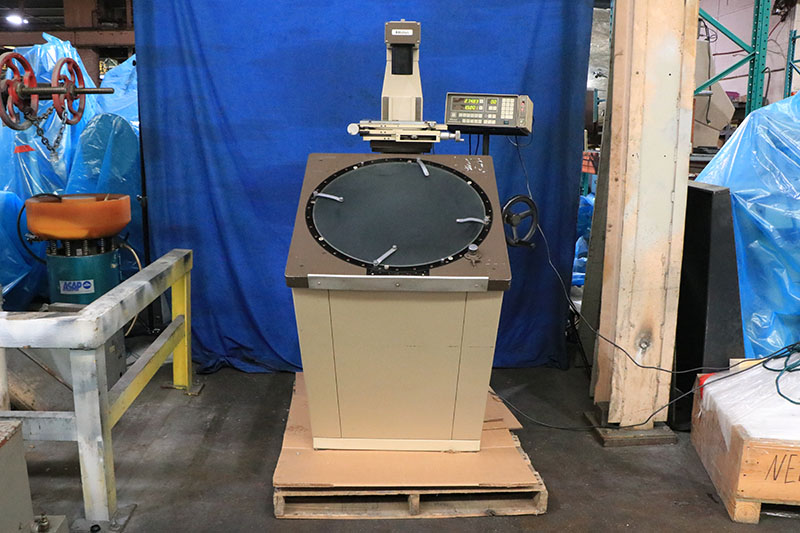

24" MITUTOYO (MADE IN JAPAN)
VERTICAL PROJECTION FLOOR TYPE
OPTICAL COMPARATOR
MITUTOYO…"MICROPAK 2" TWO-AXIS DRO,
WITH PROGRAMMABLE GEOMETRIC FUNCTIONS,
AND…"OPTOEYE E" EDGE DETECTION
"PERFECT MACHINE FOR COMPARATIVE
MEASUREMENTS WITH ENLARGED
DRAWINGS AND TRACING OF
PROJECTED IMAGES"
MODEL: PV-600… S/N: 000126… NEW: 1995
SPECIFICATIONS:
Screen Diameter ................... 24"
Angle Measure .....................″60°
Stage Size ........................ 12" x 9.45"
Stage Glass Size .................. 7.5" x 6.3"
Load Capacity ..................... 22 Lbs.
Measuring Capacity
- Longitudinal Stage Travel ...... 4"
Cross Stage travel ............. 2"
APPROX. WEIGHT .................... 550 LBS.
approx. Dimensions ................ 40" x 43.4" x 68.5"H
...
MACHINE DESIGN/FEATURES:
FORWARD-TILTED SCREEN
24" SCREEN, WITH COMPACT FLOOR SPACE
FLOOR MODEL THAT USES A DOWNWARD ILLUMINATION SYSTEM
OBLIQUE SURFACE ILLUMINATION SYSTEM PROVIDES
CLEAR… BRIGHT IMAGES
TELECENTRIC SYSTEM WITH CONDENSOR LENS
HALOGEN LAMP, 150W, TWO STAGE BRIGHTNESS SELECTOR
FOR CONTOUR ILLUMINATION
HALOGEN LAMP, 150W, TWO STAGE BRIGHTNESS SELECTOR
FOR SURFACE ILLUMINATION
Equipped With:

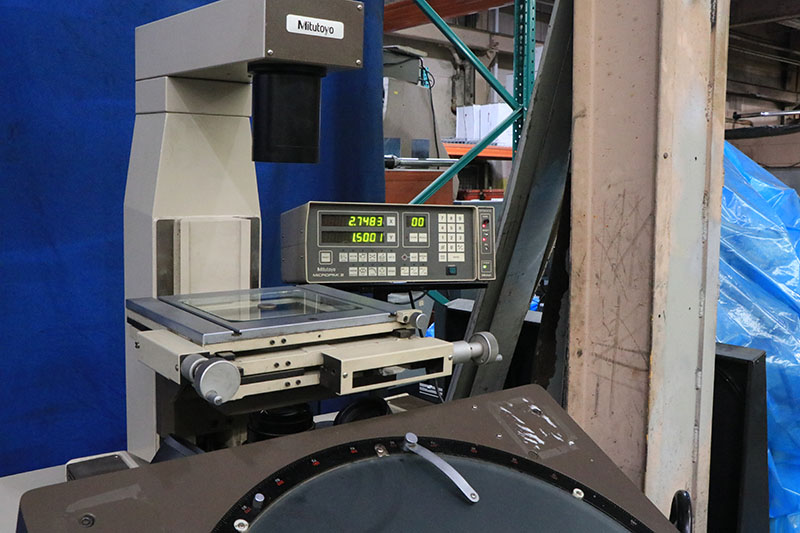

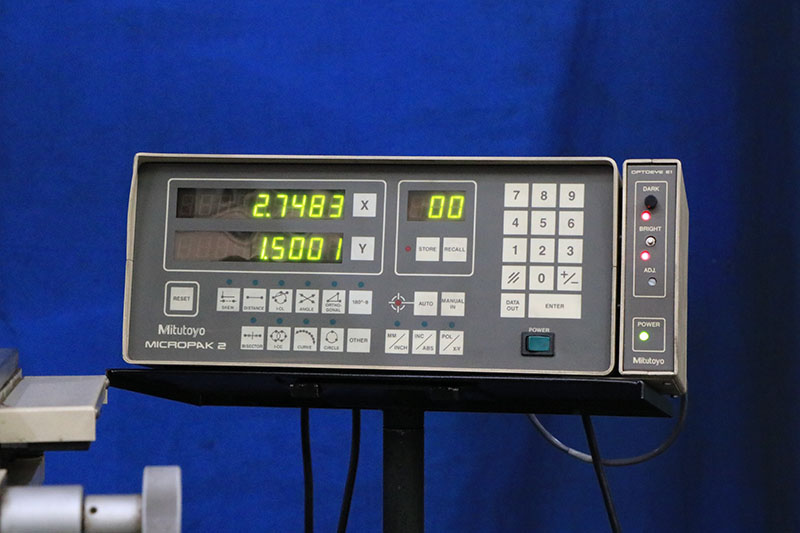

MITUTOYO…"MICROPAK 2" 2-AXIS DRO, WITH PROGRAMMABLE
GEOMETRIC FUNCTIONS
MITUTOYO…"OPTOEYE E" EDGE DETECTION
10X Lens
Electrical- 1/60/110-120 Volts
Link to video: https://youtu.be/aBs6IZ6DmH4?si=OeKllNwlcGO36nME
** EXCELLENT CONDITION… APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
Get Your Price from Machinery Values Inc!
