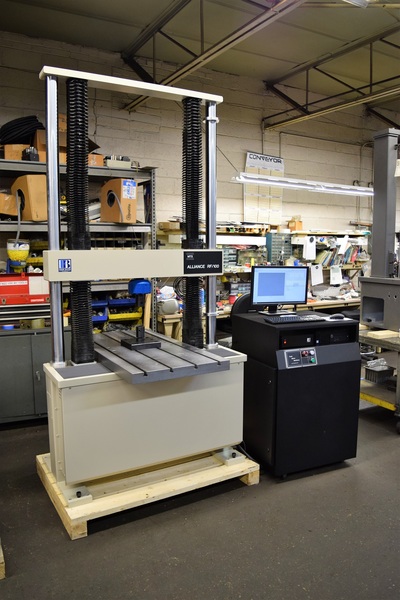

22500 lbf (100kN) MTS #Alliance-RF/100, tensile & compression testing system, reconditioned / retrofitted, warranty

SPECIFICATIONS:
Tension Testing Opening (Less Tooling & L/C): 48"
Compression Testing Opening (Less Tooling & L/C): 48"
Distance Between Columns/Screws: 26.5"
Testing Stroke: 48"
Table Size (WxD): 6" x26.5"
Testing Speed (IPM): 0.0002-20
Crosshead Adjusting Speed (IPM): 20
Approximate Overall Dimensions:
Load Frame (WxDxH): 49" x 17" x 98"
Approximate Weight (Lbs): 2200
Electrical Requirements (V,Hz,PH): 230, 60, 3

EQUIPPED WITH:

-New MTGENIUS Controller with PC & Full Feature Materials Testing Software
-New AC Servo Motor and Drive System for Precision Control (Load, Position or Strain Rate)
-100kN Tension & Compression Load Cell
-Upper and Lower Quick Release Hubs

Note: Pictured T-Slotted Table is an Optional Add On

FOB Warren, MI

Reconditioned/Retrofitted & Certified

1 Year Parts and Labor Warranty
