2250 lbf. (10kN) Instron #4502, Research Grade Electro-Mechanical Unispace Tension and Compression Testing

Reconditioned 2,250 lbf (10 kN) Capacity Instron, Model 4502, Research Grade Electro-Mechanical
Unispace Tension and Compression Testing Machine with New AC Servo Motor & Drive and 2,250 lbf
Load Cell.
Instron Model 4502

SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 52"
Compression Testing Opening (Less Tooling): 52"
Distance Between Columns/Screws: 16"
Testing Stroke: 52"
Table Size (W x D): 16" x 8.5"
Testing Speed (IPM): .00004 to 40
Crosshead Adjusting Speed (IPM): 40
Approximate Overall Dimensions:
New Tabletop Control Console (W x D x H): 16" x 19.5" x 11.5
Load Frame (W x D x H): 29" x 30" x 71"
Approximate Weight (lbs.): 490
Electrical Requirements (V,Hz,PH): 120/230, 50-60, 1

EQUIPPED WITH:
• Computer with Keyboard & Mouse.
• 24" LED-Backlit LCD Color Monitor
• Microsoft Windows 10 Professional, Workstation
• MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis
and Computer Controlled Testing with Manual.
• MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB
Cable.
• Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and
Crosshead Jog Controller.
• New AC Servo Motor with Incremental Encoder and Solid State Drive Controller for Precision
Control of Testing Rates (Load, Position & Strain).
• 10kN Tension & Compression Load Cell

FOB Warren, MI

Reconditioned/Retrofitted & Certified

1 Year Parts and Labor Warranty

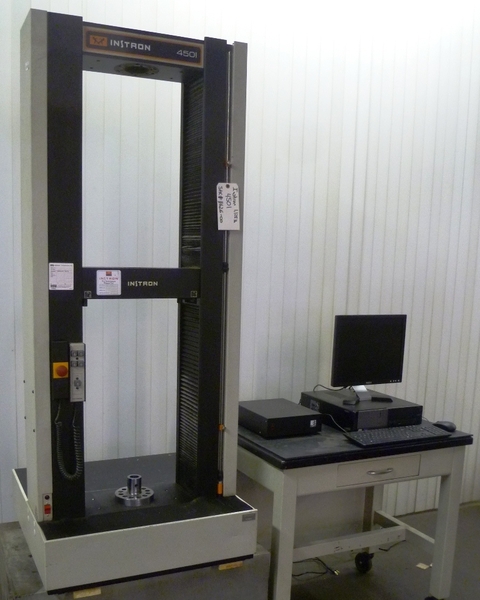

*Representative Images
