Description

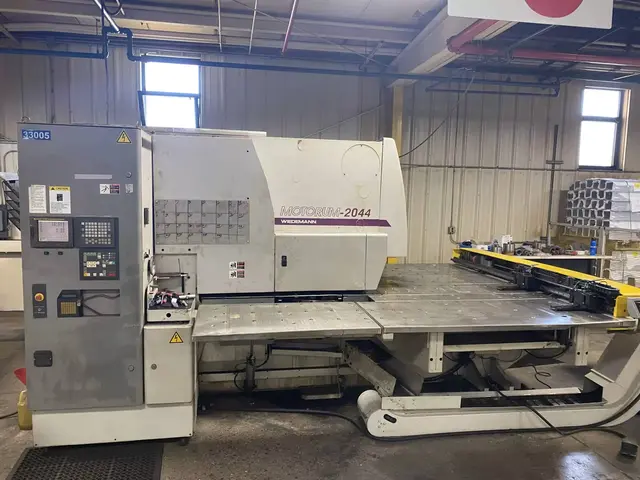

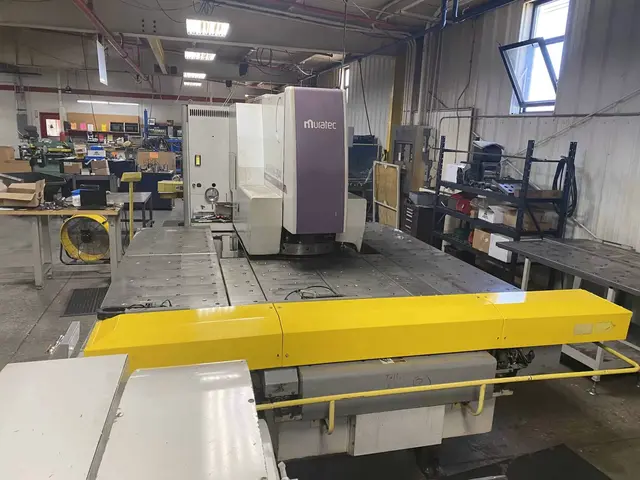

Used Murata Motorum-2044 (2002) Turret Punch for Sale. This 22 ton CNC turret punch is controlled by a Fanuc 18i-PB and carries 22 turret stations using 114 style tooling. Throat depth is 51.18″, with a maximum sheet size of 49.21″ x 49.21″ without repositioning and a sheet capacity of 49″ x 49″. Maximum sheet thickness is 1/4″, maximum sheet weight 231 lbs, and maximum hole diameter 3.5″. Hit rates are 220 HPM at .984″ pitch and 600 HPM at .39″ pitch, with X-axis speed of 2,953 IPM and Y-axis speed of 3,543 IPM. Equipped with (2) A/I stations and automatic sheet repositioning. Approximate machine weight is 21,000 lbs. Available for inspection under power. See more used turret punches, then
| Capacity | 22 Ton |
|---|---|
| Sheet Width | 49" |
| Sheet Length | 49" |
| Turret Stations | 22 |
| Throat Depth | 51.18" |
| Tooling Style | 114 |
| Control | Fanuc 18i-PB |
| Max Sheet Size (Without Repositioning) | 49.21" x 49.21" |
| Max Sheet Thickness | 1/4" |
| Max Sheet Weight | 231 Lbs |
| Hits Rate @ .984" Pitch | 220 HPM |
| Hits Rate @ .39" Pitch | 600 HPM |
| Max Hole Diameter | 3.5" |
| X-Axis Speed | 2,953 IPM |
| Y-Axis Speed | 3,543 IPM |
| Approx. Machine Weight | 21,000 Lbs |
