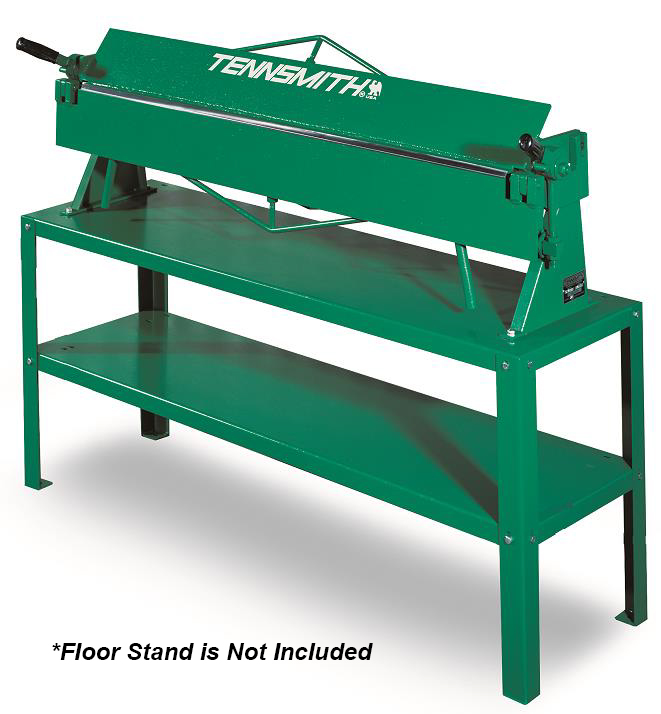

Tennsmith 48″ x 22 Gauge Straight Bending Hand Brake, S48-22
Inventory # 4611
Model: S48-22
Made in USA
Description:
Tennsmith’s model S48-22 is a lighter capacity version of their 4′ bench brakes for economical alternatives in working 22-gauge and lighter materials
The bench-mounted hand brakes are rugged, dependable, USA-made tools that won’t break your budget. Model S48-22 is suitable for box and pan or straight bending in up to 22-gauge mild steel
The brake features a removable apron angle and apron inset permitting 1/4″ reverse bends in lighter materials. The upper leaf and nose bar have a wide range of adjustment for radius bending
Specifications:
Capacity:
Mild Steel: 22 Gauge
Stainless Steel: 26 Gauge
Max. Sheet Length: 48 1/4″
Max. Lift of Beam: 1/4″
Front-to-Rear Adjustment: 1/4″
Min. Reverse Bend: 1″
Min. Flange in Capacity Material: 2″, 3″, and 4″
Mechanical Specifications:
Shipping Weight: approx. 260 lbs.
FOB Factory
Optional Accessories:
Bolt-Together Floor Stand (Shipping Weight: approx. 100 lbs.)
