Description

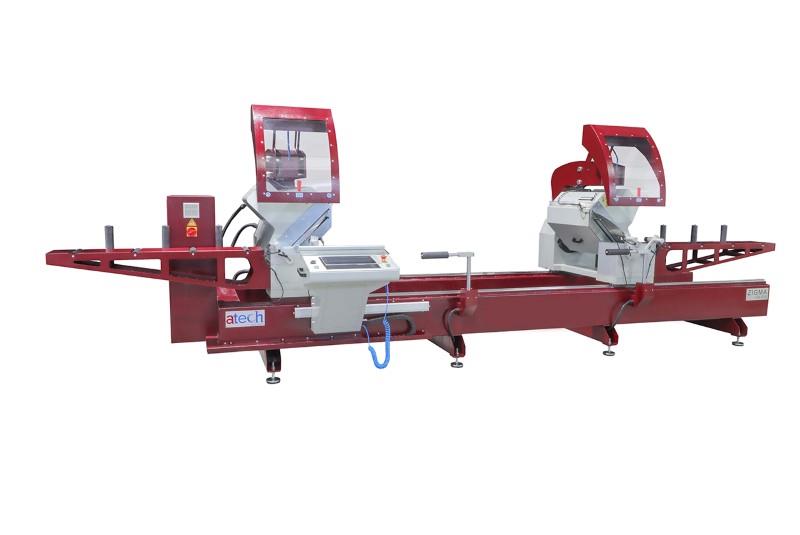

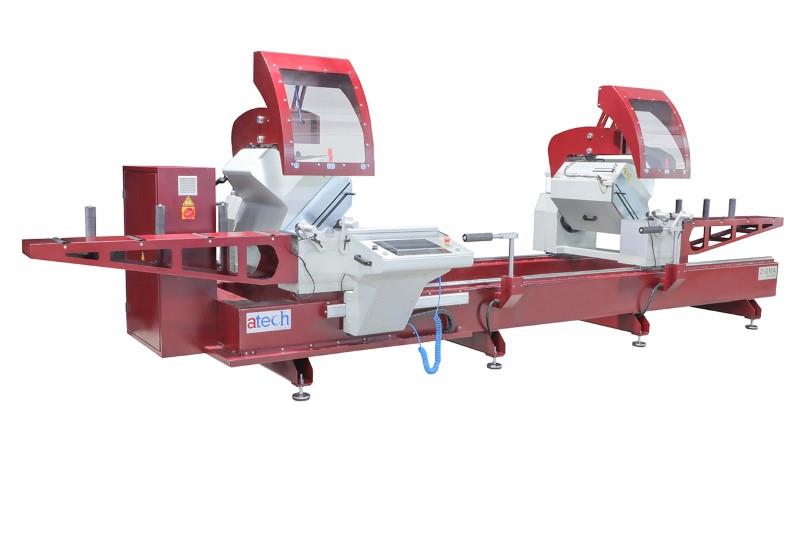

ATECH ZIGMA-06 FA CNC Double Miter Saw
Heavy Duty full automatic double head CNC miter saw equipped with 22″ (550 mm) carbide tipped saw blade, and designed for straight and miter cut of aluminum, vinyl profiles and wood.
Specifications:

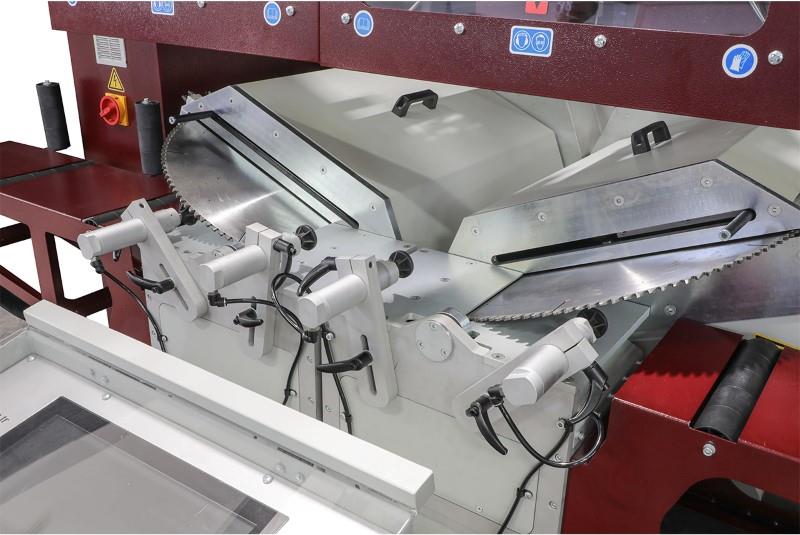

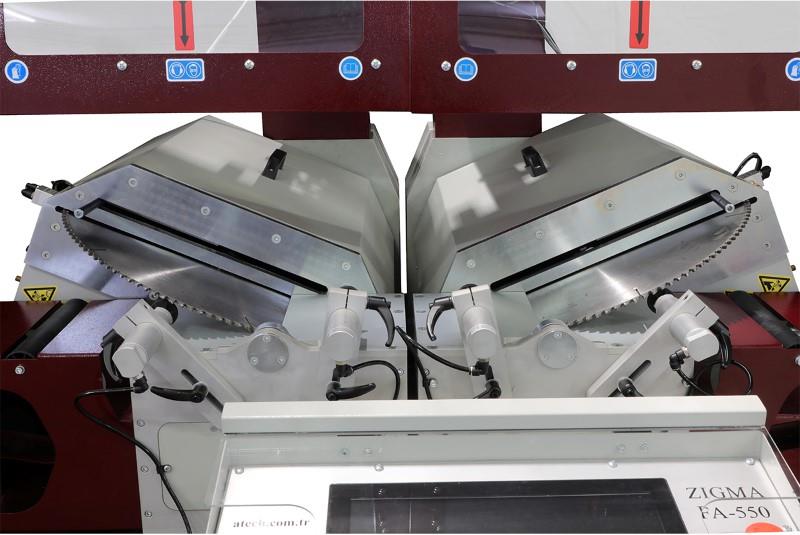

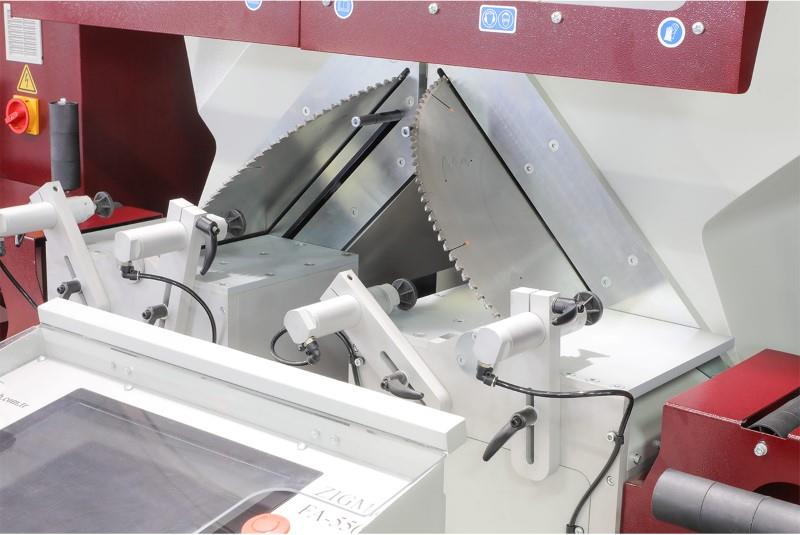

(2) 22" Circular saws designed for flat or angled cutting of vinyl, aluminum and wood; -22.5 to + 45 is fully automatic by servo motors; you can use this machine using only one head or both as needed.
Cutting motion precisely controlled by hydro-pneumatic cylinders; saw blade stroke is adjustable from the top, enabling limiting hos far the blades come out.
Equipped with:
(2) 4 HP saw motors with 32 mm arbors; forward movement of the saw is hydro-pneumatic, and its speed can be adjusted accurately for the frame material.
Features:

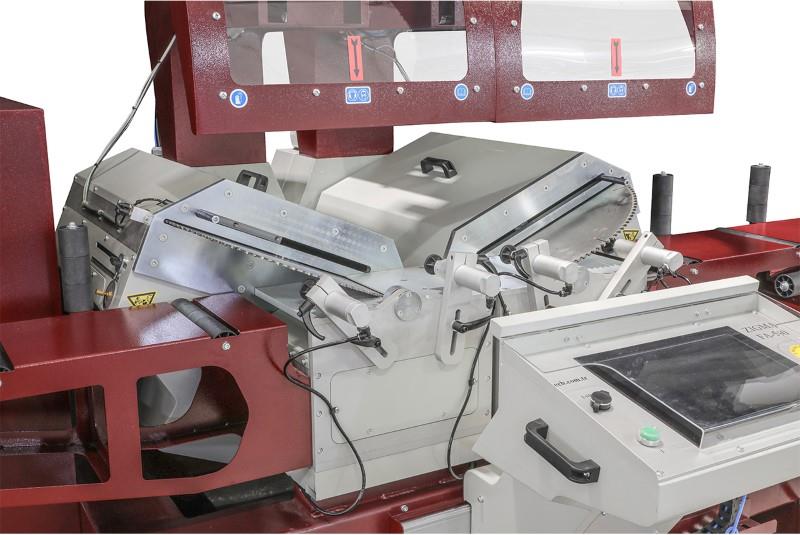

Computer control with 15" touch screen; can be uploaded from the main office or the information can be entered manually. CSV to MDB button, which enables you to immediately convert the cut lists to MDB format even if you prepared the cut lists manually, then save them in a different format; modem for remote access; optimized cut list can be uploaded into the machine via USB flash memory or directly from your office network.
Complete with:
Safety break so the machine will not run while the head release is open; the distance between heads can be set accurately by the computer; all angles are accurate and easy to achieve, making any angle possible.
Solid, heavily constructed Cast Iron table top.
Heavy steel frame for vibration-free performance.
Variable speed saw travel gives you the ability to cut a variety of materials.
