Description

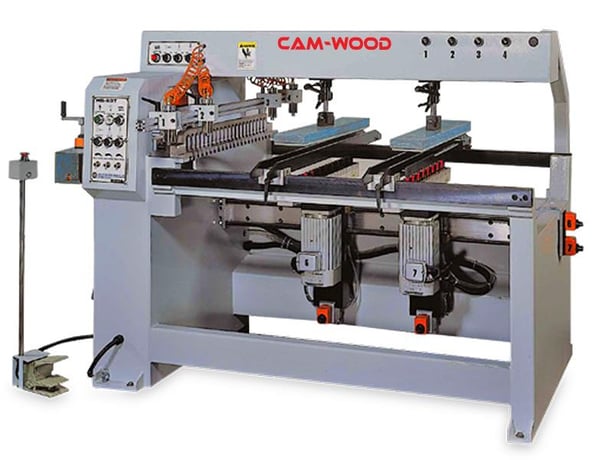

CAM-WOOD BR-OO42BX DOUBLE ROW LINE BORER
Heavy Double Head Line Borer with (2) 21-spindle heads; 32 mm spindle spacing.
Specifications:
Drilling from the bottom up and with 5-1/2" - 23-1/2" distance between rows.
Drilling vertically from the bottom allows the chips to drop down falling out of the holes.
Drilling depth of up to 3" max., takes only seconds to set.
(2) 2 HP - 3,400 RPM motors; spindles with steel gears & high quality bearings.
Easy repetition by (2) air index pins for continuous line drilling, left and right roller track supports extend up to 400 mm (15-3/4") for larger panels.
Features and Includes:
120" Back fence with (4) repeat "flip" stops; includes 27-3/4" (704 mm) fence for quick positioning of flip stops.
(6) Pneumatic holddowns to automatically actuate when the drill cycle begins.
(42) "Quick Change" chucks for easy tool change.
Magnetic motor controls and 1/4" air regulator with filter and oiler; 100 PSI required air pressure.
