Description

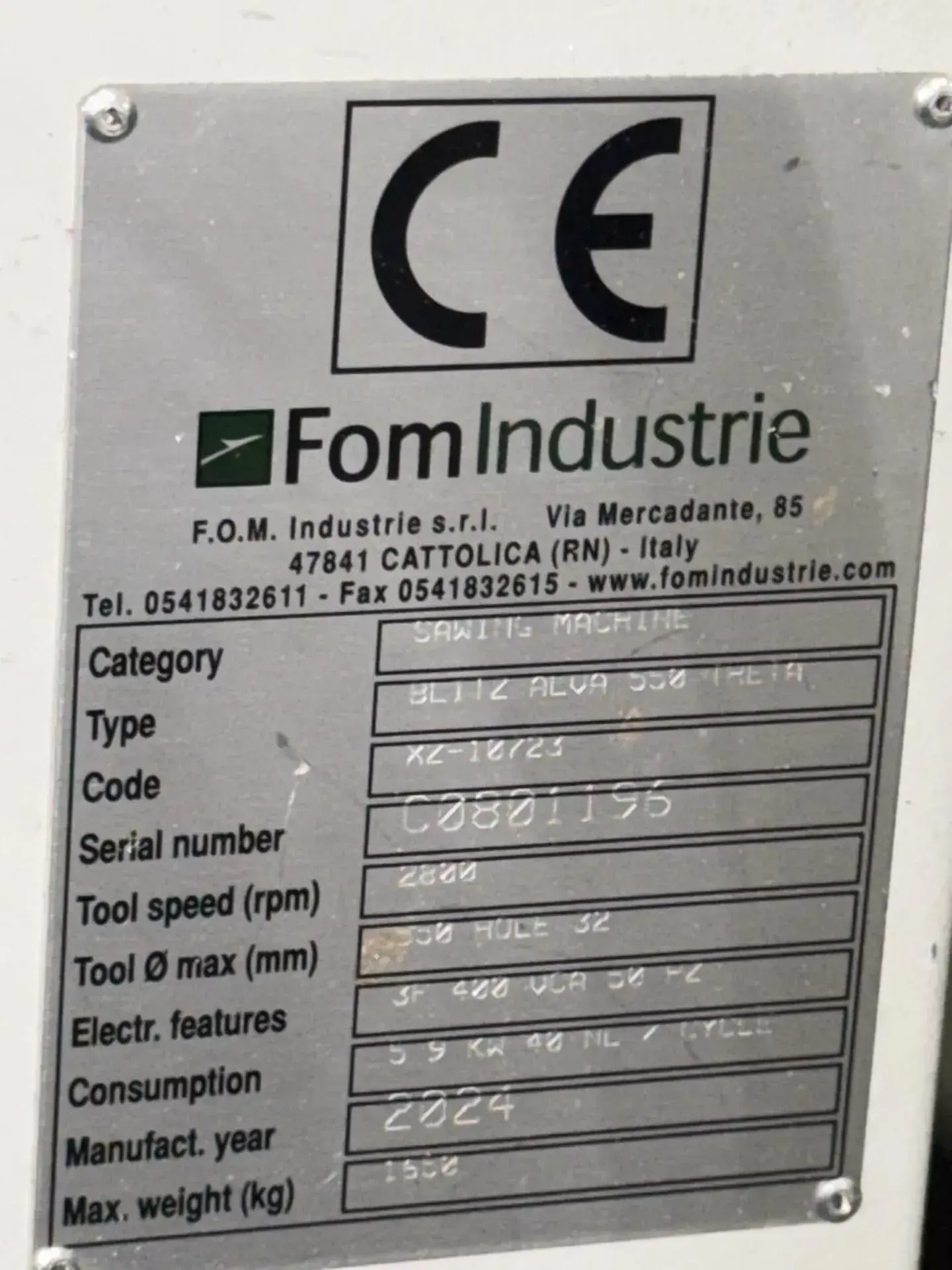

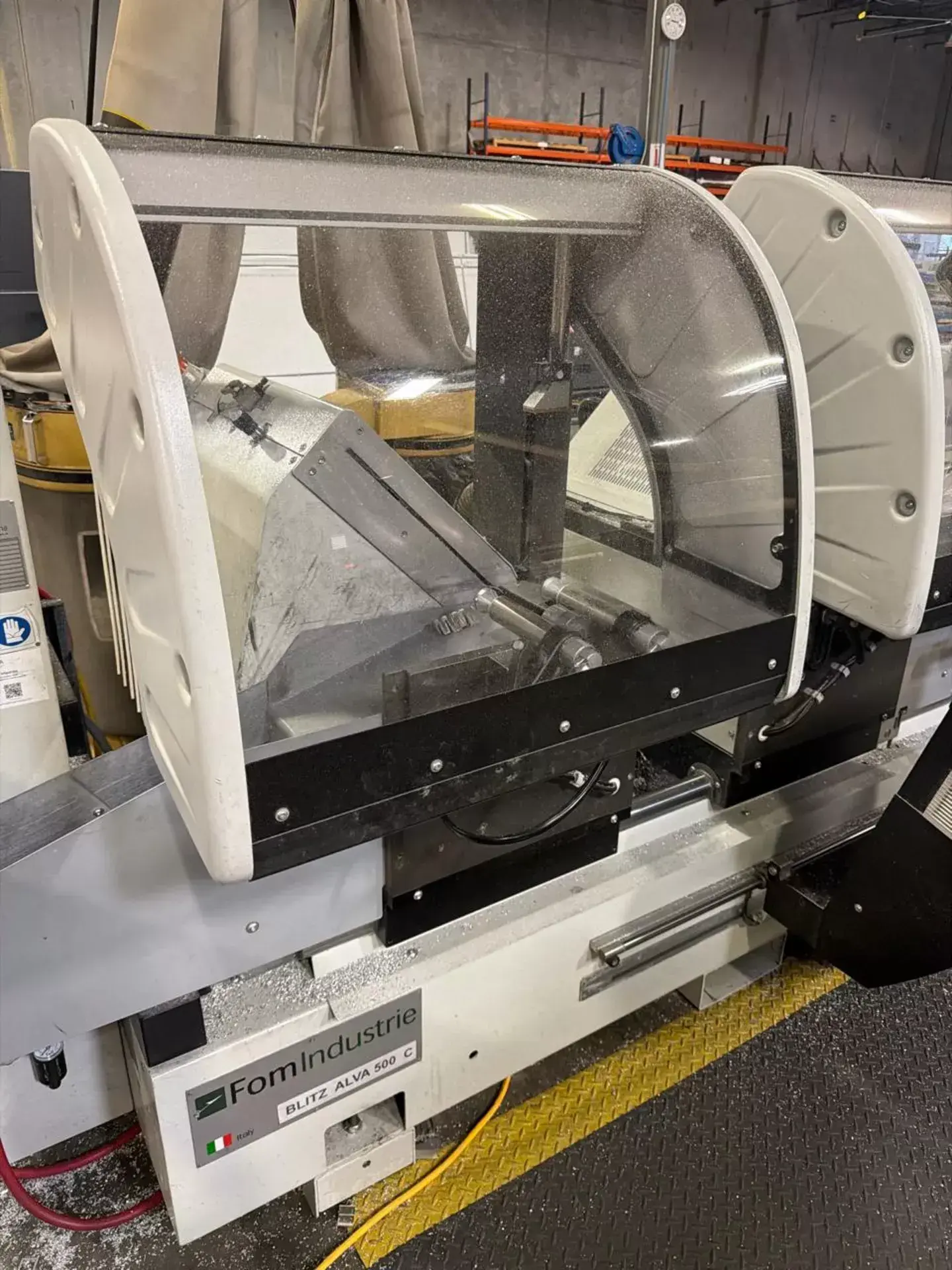

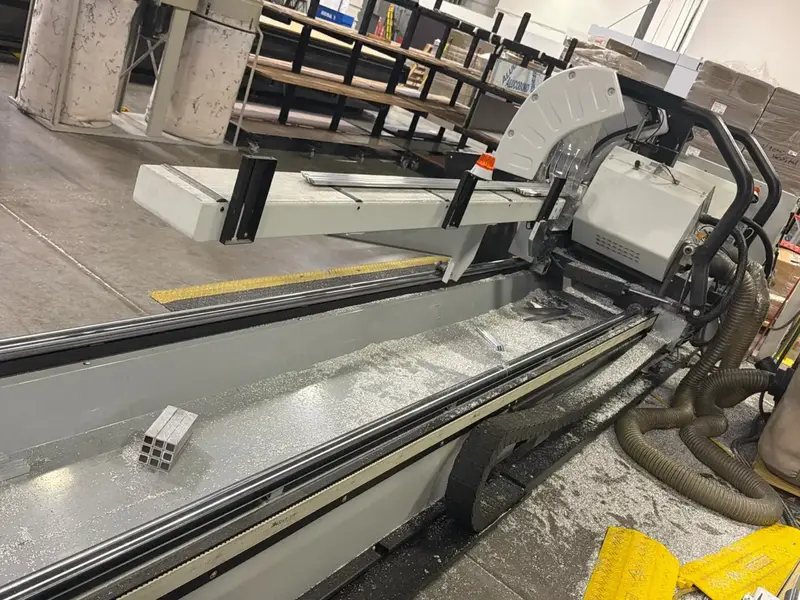

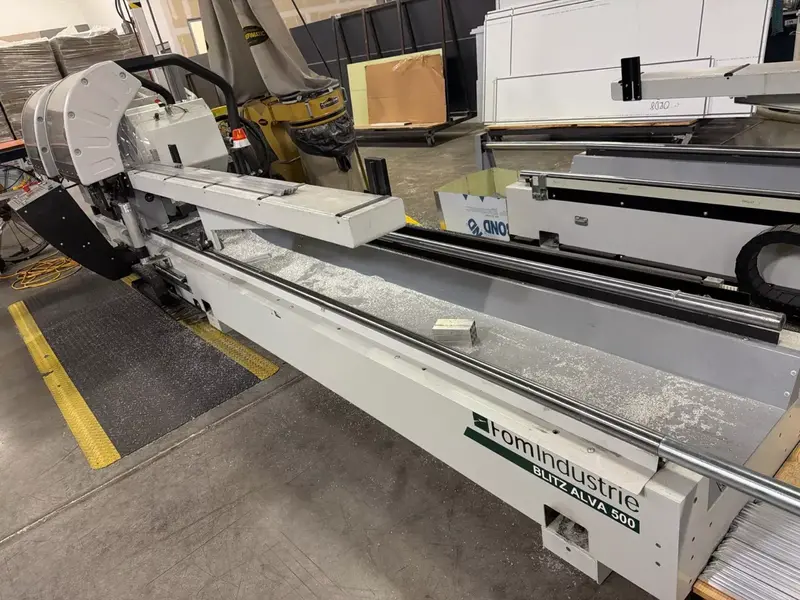

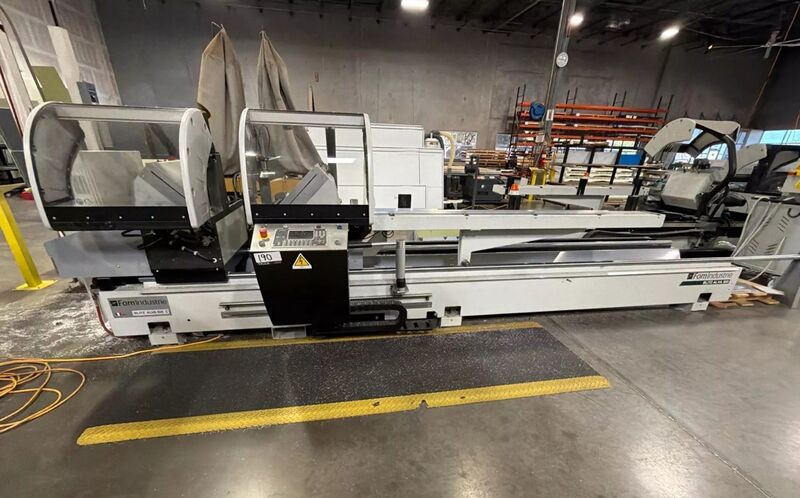

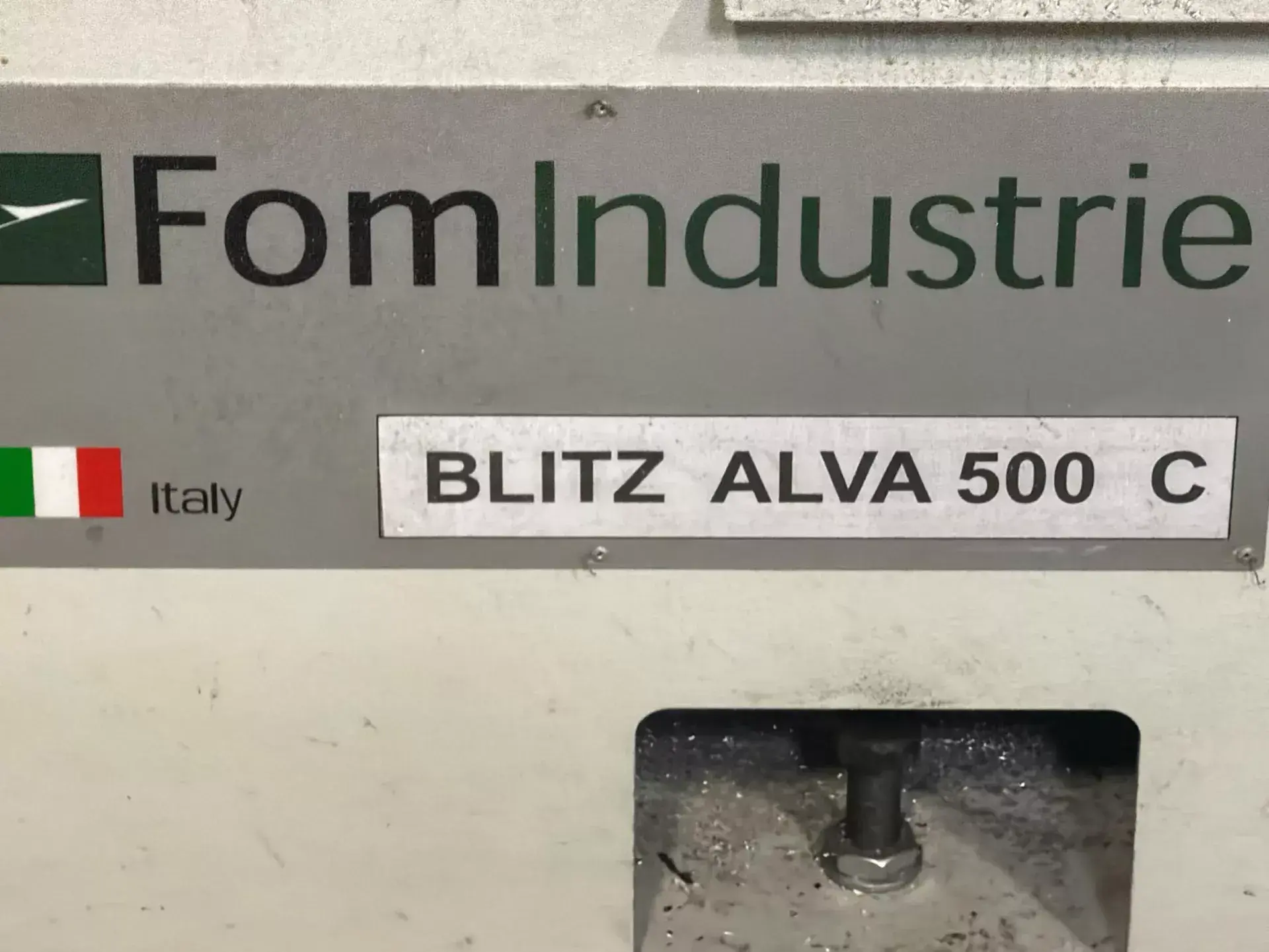

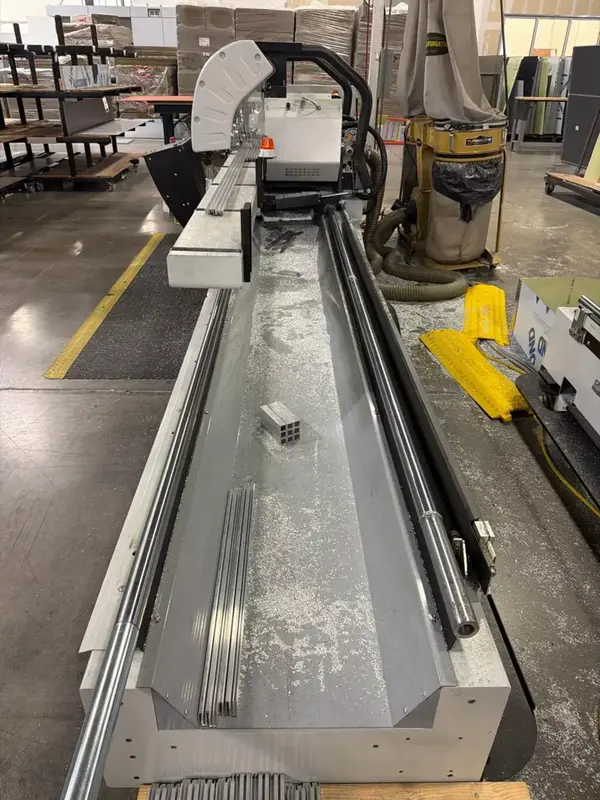

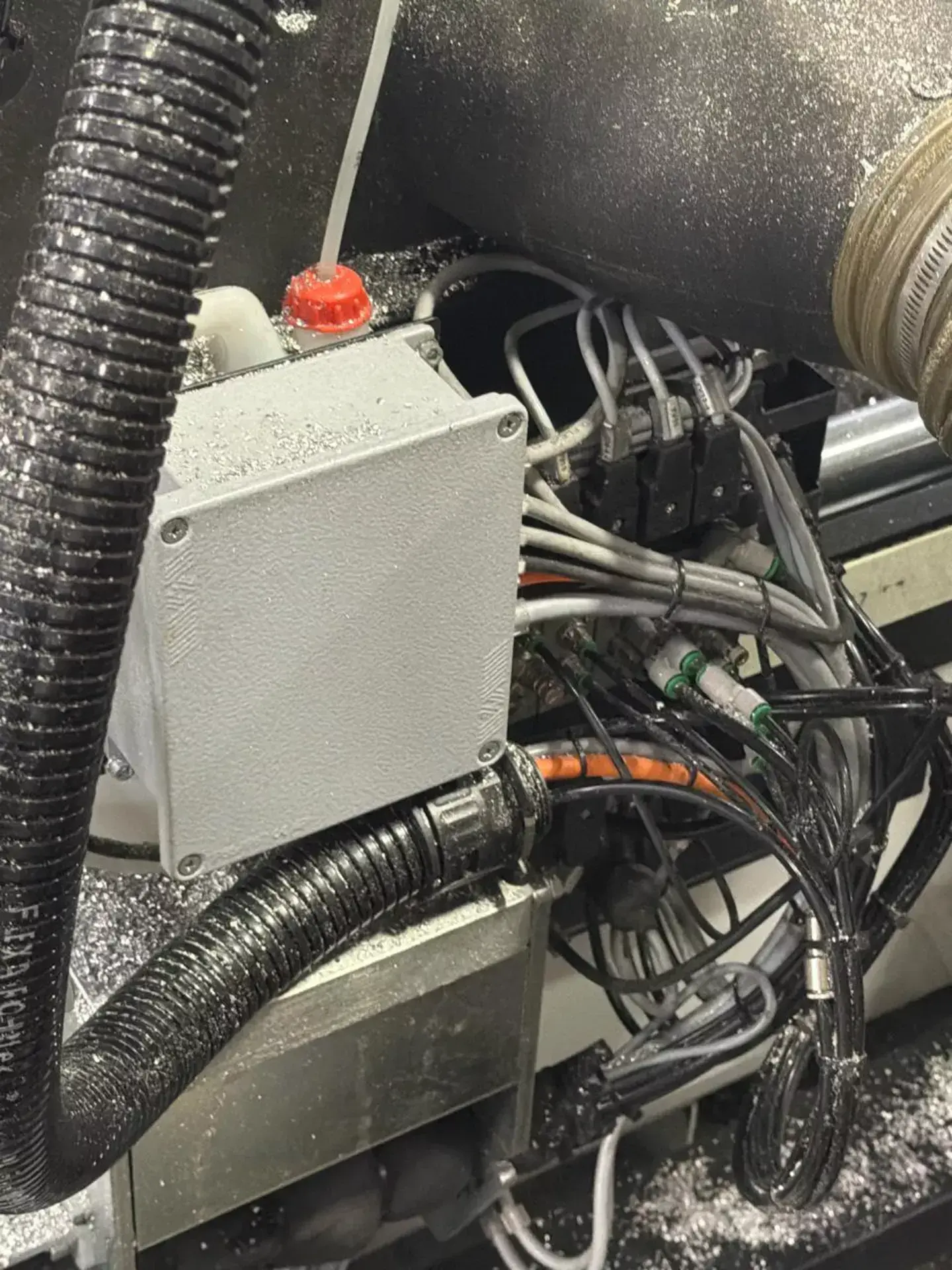

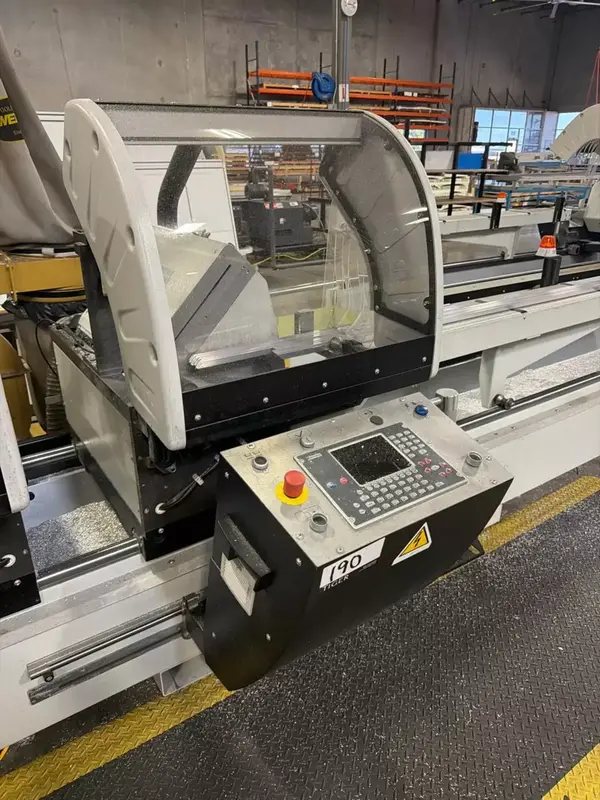

550MM (21.6) x 4M (157.5) FOM INDUSTRIES BLITZ ALVA 550 THETA CNC DOUBLE HEAD MITER SAW - New 2024 - 550MM (21.6) x 4M (157.5) FOM INDUSTRIES DOUBLE-END MITER SAW New 2024, Serial No C0801196, Code XZ-10723 Model BLITZ ALVA 500C, Type BLITZ ALVA 550 THETA EQUIPPED WITH; 15 TEX Touchscreen Monitor Control Fixed 3 HP (2.2 kW) First Saw Blade Head - Movable 3 HP (2.2 kW) Second Saw Blade Head w/Automatic Positioning Electronically Controlled Axis Head Tilting Hydraulic Tungsten Carbide Blade Feed (Adjustable Blade Exit Feed - Quick Return) (3) Pneumatic Horizontal Vises - (2) Pneumatic Vertical Vises 98.5 (2.4M) Movable Head Roller Table CATALOG SPECIFICATIONS: Tungsten Carbide Blades, Diameter 21.6 550MM Tungsten Carbide Blades, Hole Diameter 1.25 32MM Working Length Capacity, Maximum 157.5 4M Working Length Capacity, Minimum 14.5 370MM Tilting Of Heads Around Horizontal Axis, Range 22.5 to 90-DEGREES Blade Speed 2800 RPM Air Consumption Per Work Cycle 40NC/CYCLE Working Pressure 7 BAR (2) Saw Blade Motors, Horsepower 3 HP 2.2 kW (EACH) Overall Length 225 5700MM Overall Width 78.75 2000MM Overall Height 79.1 2010MM Weight, Approximately 3700 LBS 1680 KGS NOTE: Saw Is Primarily Designed For High Precision Angular And Length Cutting Of Industrial, Window, Door, And Facade Aluminum or PVC Profiles. Complex Angles Is Handled By Performing Cuts From 90-Degrees Down to 22.5 Degrees Outward (And Intermediate Angles) With Computerized Precision Via Numerical Control. Automated Production By Importing Cut List Via USB Or Network Interface For Optimization In Manufacturing Environments. F.O.B. ON WAY IN
