For Sale by Machine Tool Technologies
Surplus Record Dealer Since 2011
Location: Milwaukee, WI
Contact Joe Ryan
Phone Number: 414...> Show Phone Number 414-486-9700
Let the seller know you found their listing on Surplus Record!
Description
Spec
TECHNICAL SPECIFICATIONS
US Tonnage 203.93 Usable Bending Length 161.42 in
Working Length 157.48 in Cylinder Stroke 11.81 in
Daylight 19.69 in Throat 19.69 in
Approach Speed 437.01 IPM Working Speed 0-28.35 IPM
Return Speed 377.95 IPM Servo Motor Power 25 kW
X-Axis Stroke 31.50 in R-Axis Stroke 7.87 in
X-Axis Velocity 1,417.32 IPM R-Axis Velocity 590.55 IPM
Z-Axis Velocity 1,889.76 IPM Machine Dimensions 204.72 x 112.20 x 145.67 in
Total Weight 37,479 lbs Electrical 480V / 3PH / 60Hz• DELEM 69S CNC controller
Description

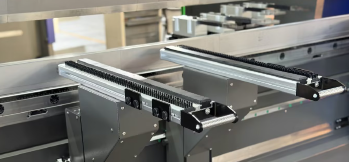

• 6-Axis Backgauge X1-X2-R1-R2-Z1-Z2
• HAWE Hybrid Control System
•Real-Time Frame Monitoring
•Real-Time Smart Hydraulic System
•Hydraulic Top & Bottom Clamping (WT Style)
• Sheet Follower F1, 397lbs - 2 sets
• DSP AP+MCS with auto-height adjustment
• Integrated Safety System
• Standard Tool Package: Punch R1-28°, Die V24-30°
Get Your Price from Machine Tool Technologies!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!

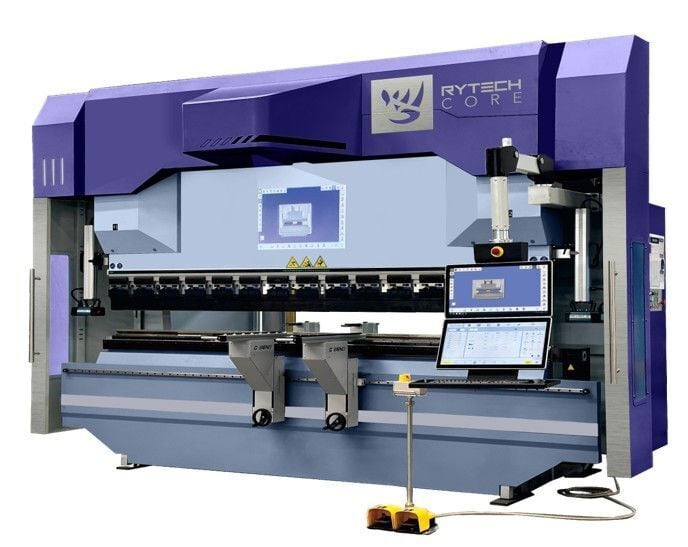

198 Ton, Rytech #Core-180-4000, CNC Hydraulic Press Brake, 13.4' overall, 157.5" working length, 9.84" cylinder stroke, 18.5" dl, 18.11" throat, 20 HP, 480 Volt, 3PH, 2026
