Description
Fully Automated Lights-Out Fabrication Cell

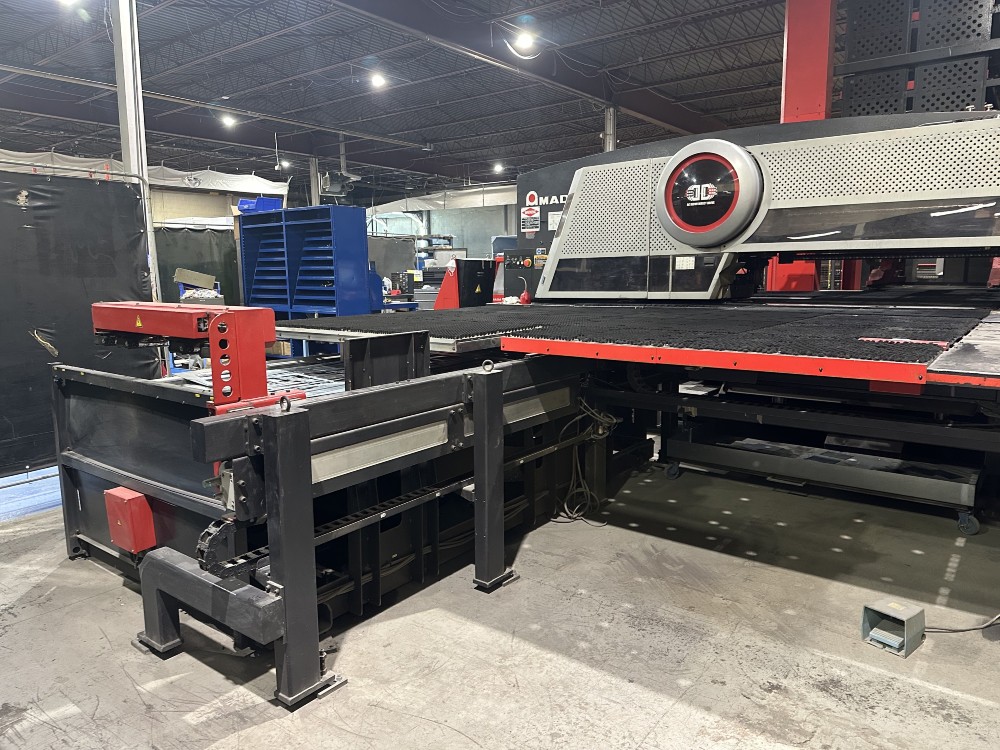

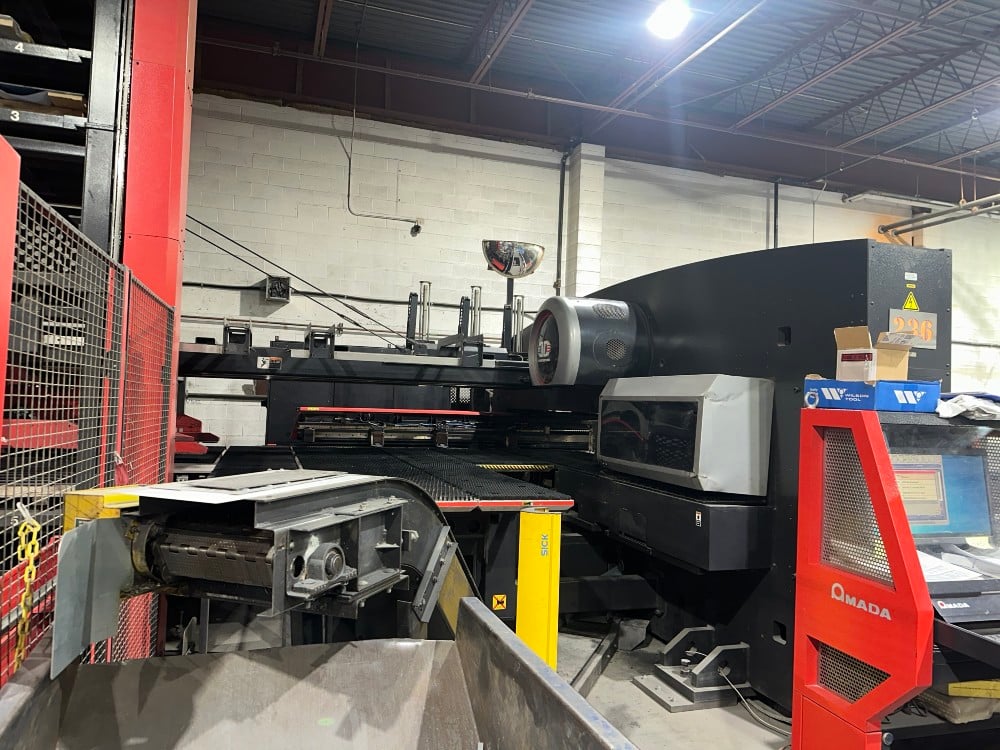

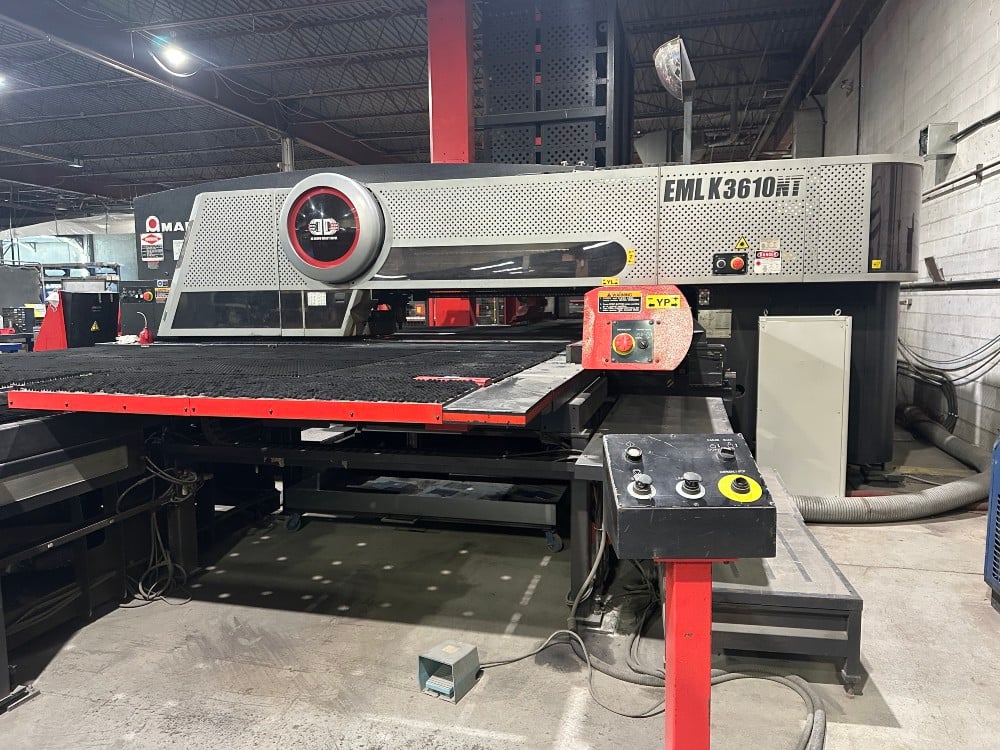

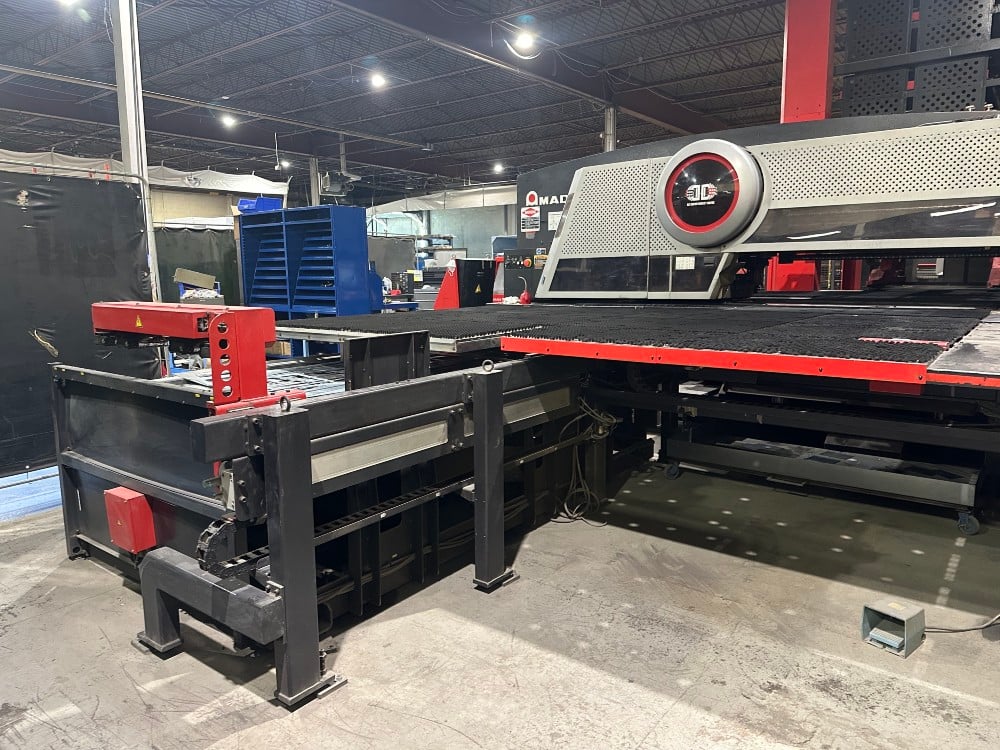

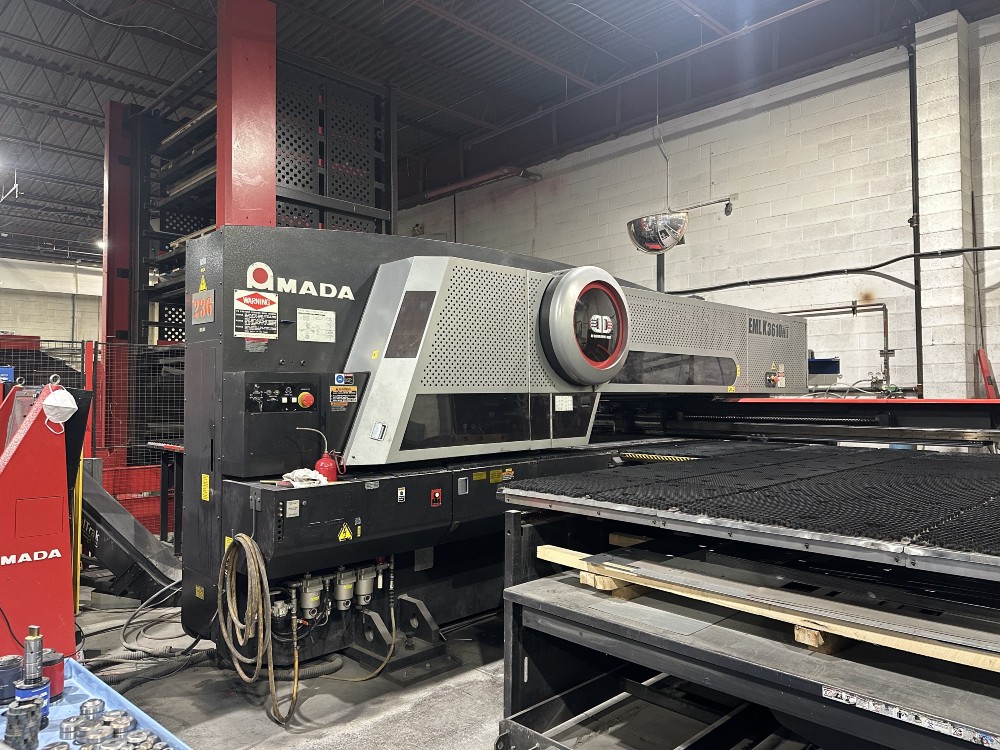

Up for sale is a premier 2011 Amada EMLK3610NT combination machine. This system utilizes Amada’s Electric Motor (EM) Twin-Servo Drive for punching, providing world-class hit rates and precision forming without the maintenance or energy costs of hydraulic systems.
Integrated into the frame is a 4,000W Fanuc CO2 Laser, allowing for high-speed cutting of complex geometries that punching alone cannot achieve. The system is paired with a 2014 ASR 3015NTK 10-Shelf Automation Tower featuring TK (Part Picker) functionality. This allows the machine to run 24/7—automatically loading raw sheets, punching/cutting parts, and then stacking finished parts individually using vacuum suction.
Year of Mfg: 2011 (Machine) / 2014 (Automation Tower)

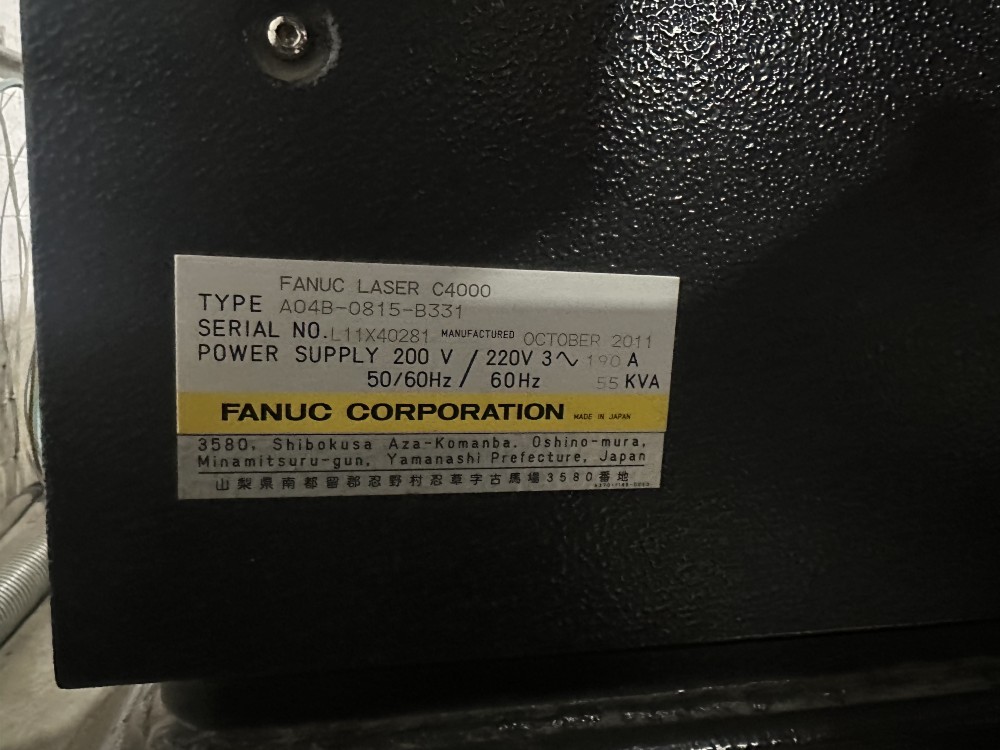

Laser Power: 4,000 Watts (Fanuc C4000 / AF-4000 Resonator)

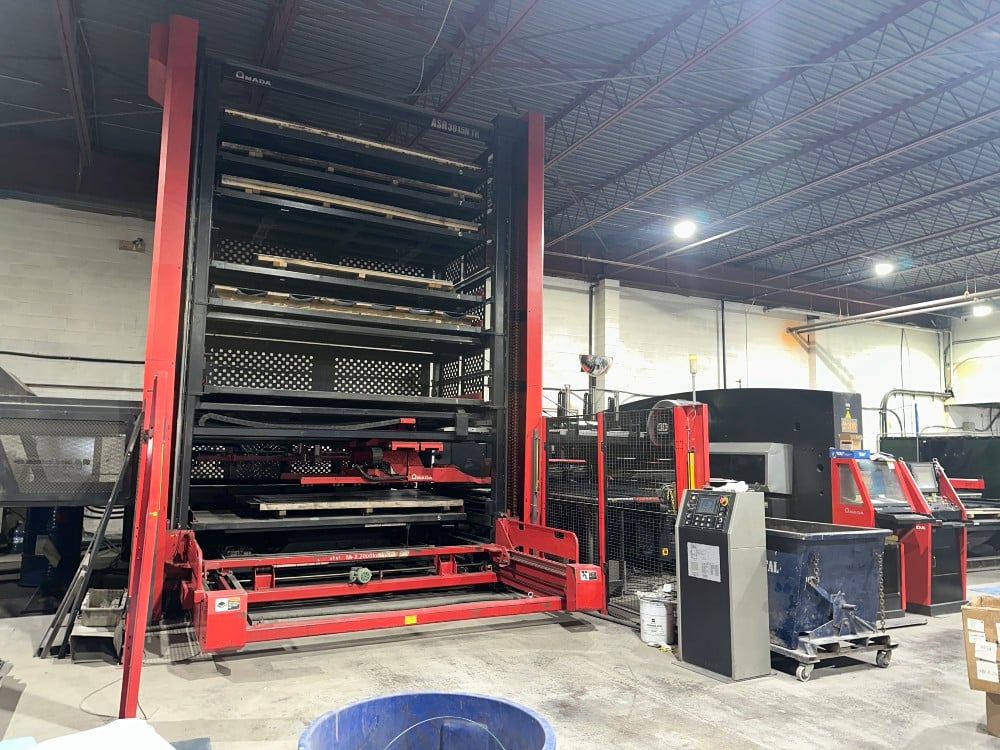

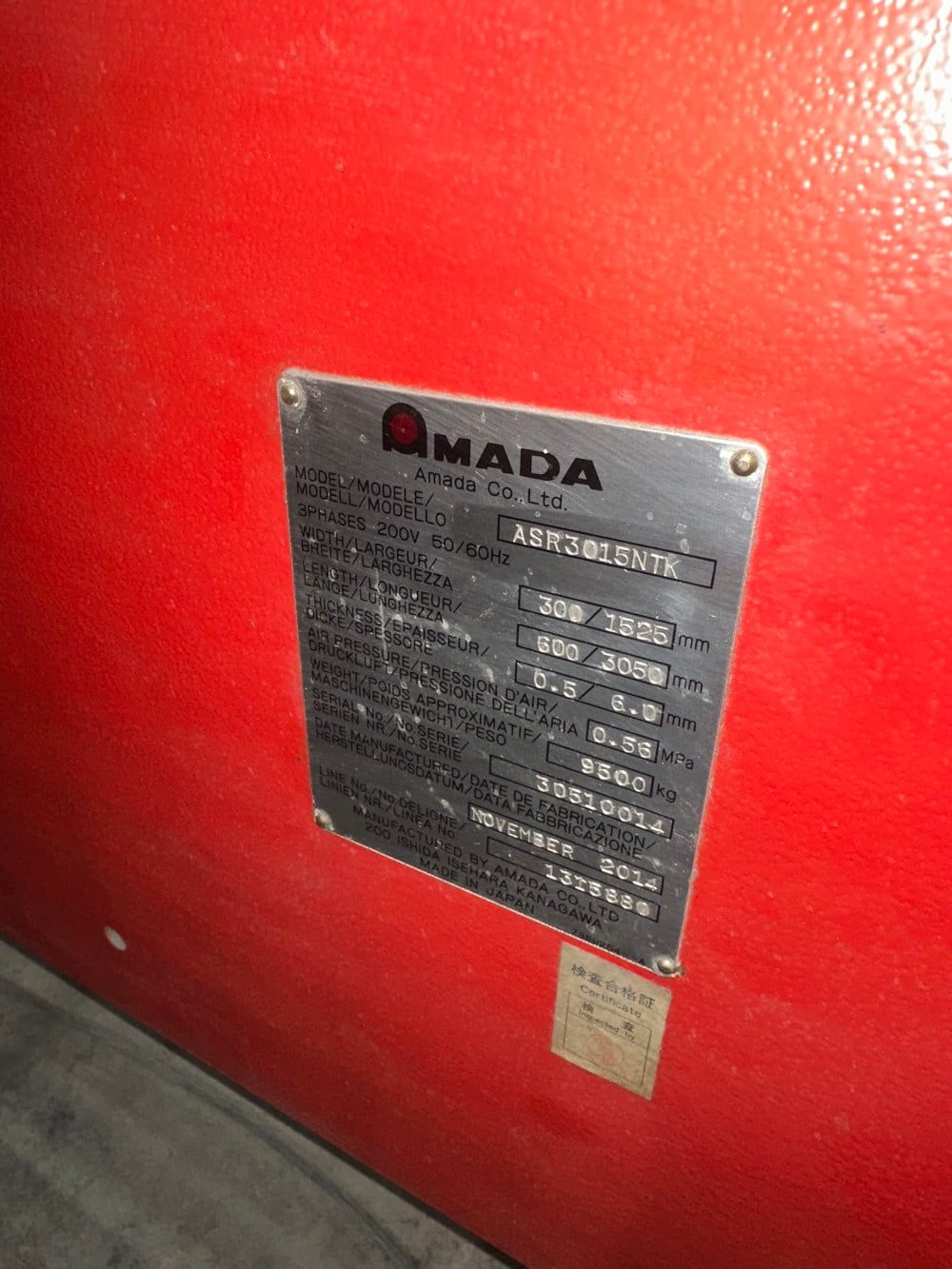

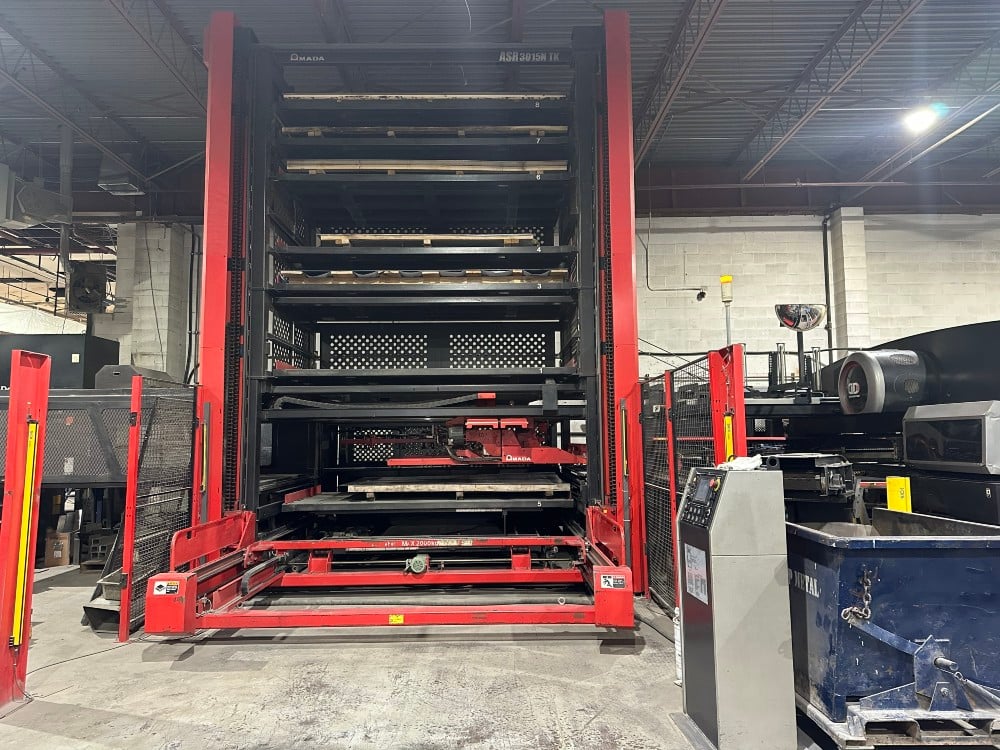

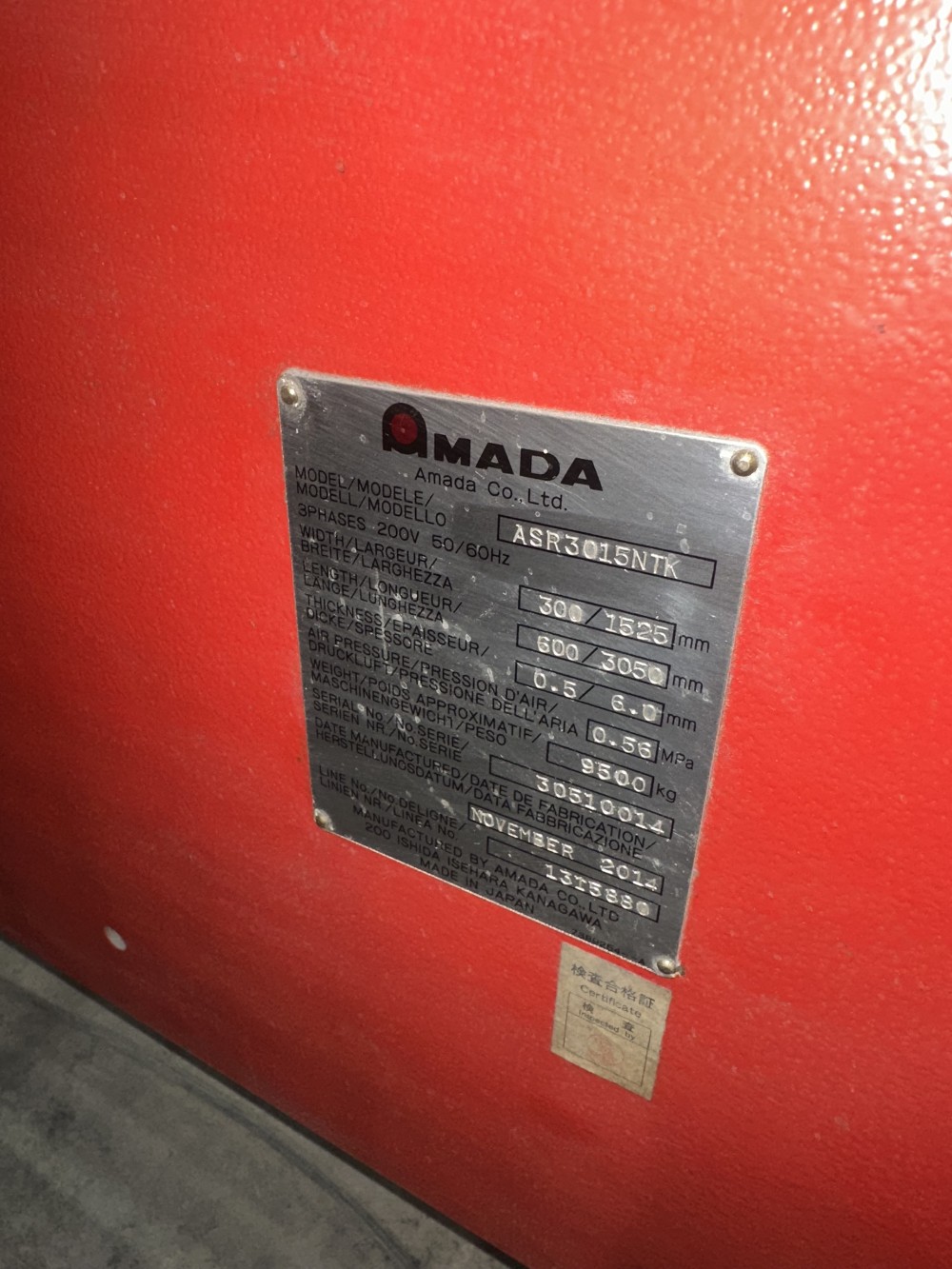

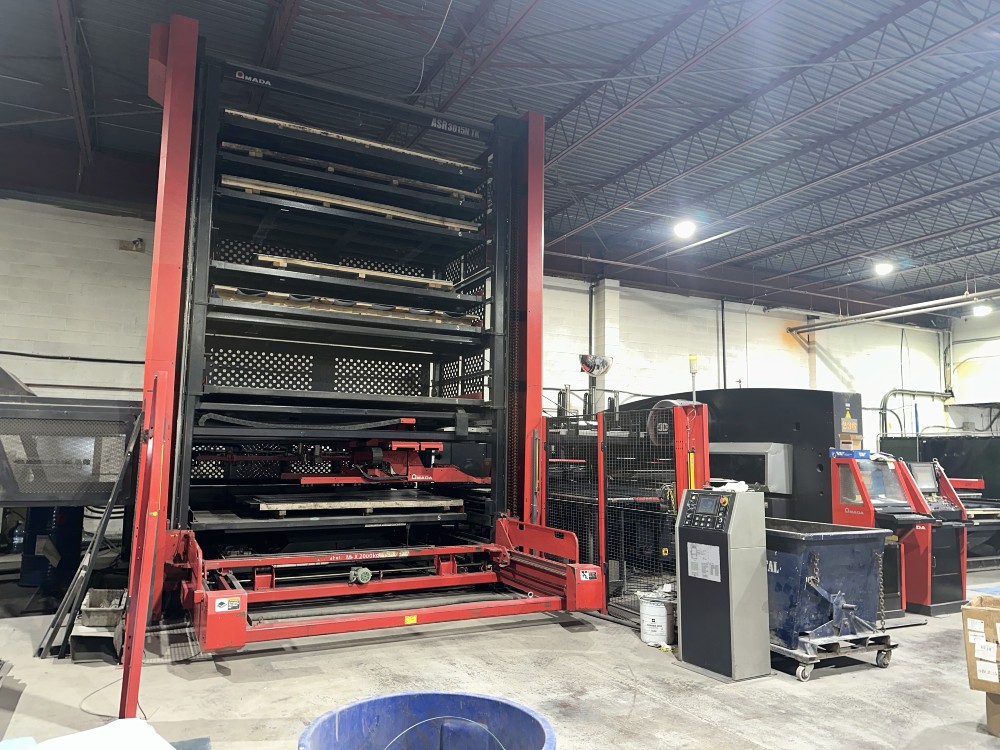

Automation: ASR 3015NTK with Part Stacking (TK)
Configuration: 10 Shelves (Standard: 6 for Raw Material / 4 for Finished Parts/Skeletons).
Max Sheet Size: 60" x 120"

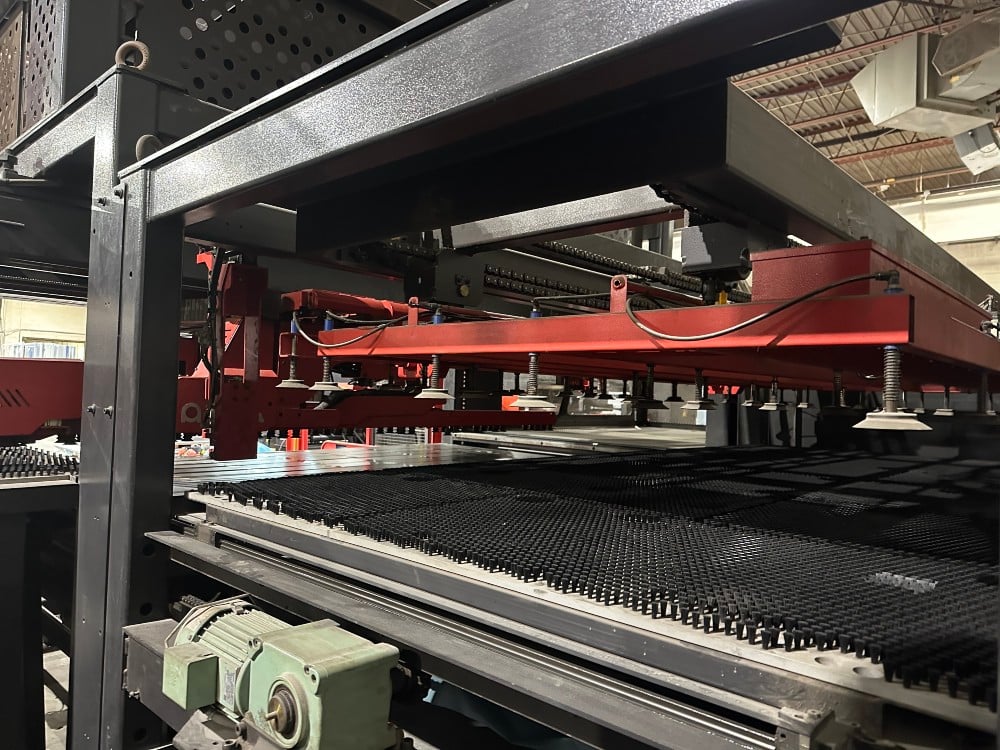

Part Remover (TK): Integrated vacuum pick-up for individual part stacking.
Max Payload: 4,400 lbs (2,000 kg) per pallet.
Condition: Under power, operational, and well-maintained.
Technical Specifications
| Component | Specification |
| Punching Capacity | 33 Tons (Servo-Electric) |
| Laser Power | 4,000W CO2 (Fanuc AF-4000) |
| Max Sheet Size | 60" x 120" (5' x 10') |
| Max Thickness | 1/4" (6.35mm) Mild Steel, Stainless, & Aluminum |
| Turret Configuration | 58-Station "King" Turret |
| Auto-Index Stations | 4 (Two 4-1/2" and Two 1-1/4") |
| Hit Rate (1" Pitch) | 400 HPM |
| High Speed Marking | 1,800 HPM |
| Rapid Traverse (X/Y) | 3,937 IPM / 3,149 IPM |
| CNC Control | AMNC-PC NT (Windows-based) |
THIS MACHINE IS SOLD AS IS.
Functional and Operating - Selling As Is.
Currently used in the production line for milling glass polyester type material.
Rigging not included, and must be performed by a licensed rigger with insurance that meets our requirements.
Feel free to message for inquiry.
