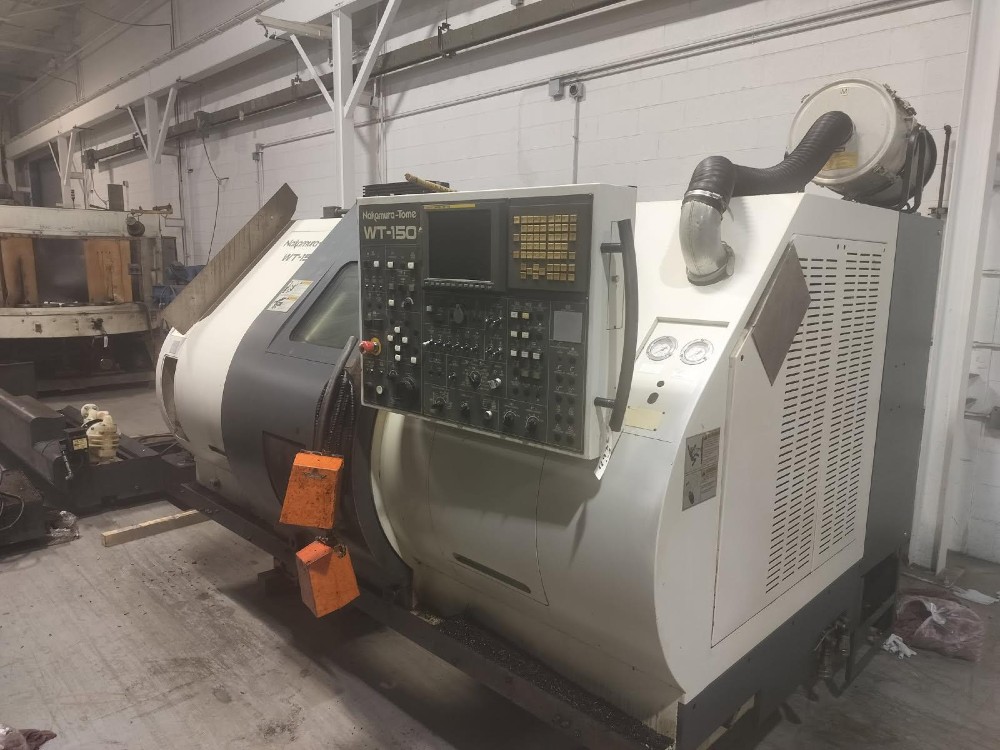

Nakamura -Tome #WT-150S, 2003

2003 Nakamura Tome WT-150S 3 Machines available……..

Condition

Used

Year

2003

Machine control

Fanuc 18i-TB CNC Control

Distance between spindle centers

29.528" Max

Spindle nose(s)

A2-5

Spindle bores

2.48"

Max bar capacity

2.047"

Spindle speeds

5,000 Max RPM

Spindle drive(s)

20 HP Left / 15 HP Right

Spindle index

Full C-Axis (.001 Deg) Left and Right

Max workpiece swing diameter

7.488" Max Turning Diameter

Max turning diameter

7.488"

Max turning length

19.8"

Number of turrets

2 - Upper and Lower

Turret capacity

(2) 12 Station Turrets

Turret 1 travels (x/z)

6.201" / 18.30"

Slide travel y (upper turret)

+/- 1.375"

Turret 2 travels (x/z)

6.59" X / 18.3" Z

Rapid traverse rates

629.9 IPM X / 1,574 IPM Z

B-axis travel (right spindle)

21.65"

Fanuc Series 18i-TB CNC Control, Chip Conveyor, Complete Coolant System with Tank and Pumps. Machine Manuals. Radial Live Tool Holders, 4 Axial Live Tool Holders included.

sub spindle
