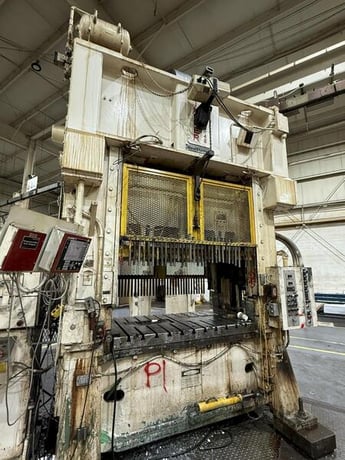

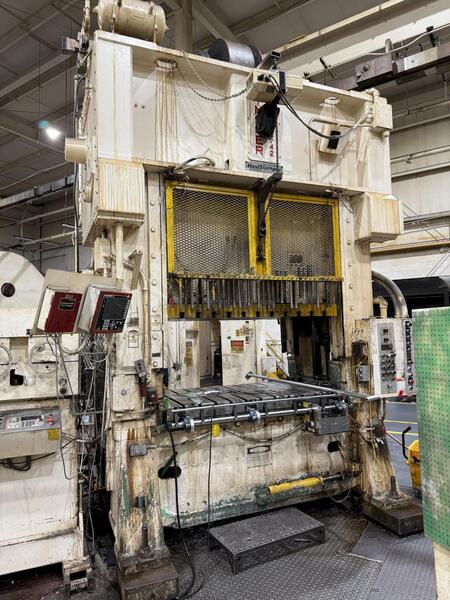

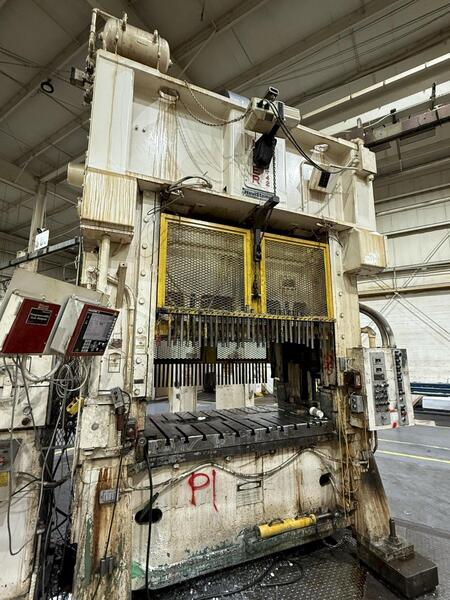

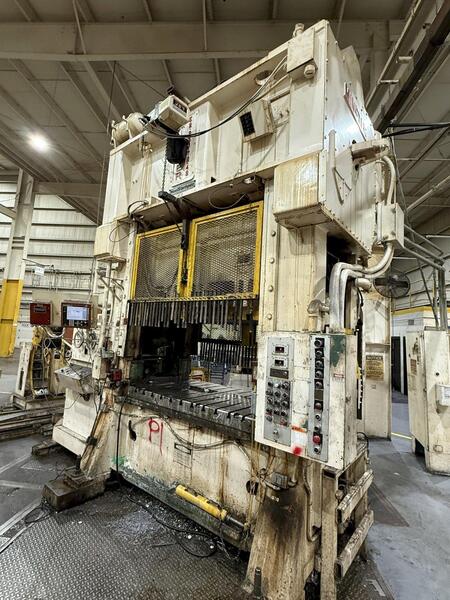

200 Ton, Minster #E2-200-72-42-Hevi-Stamper, Straight Side Double Crank Mechanical Press, 72" x 42" bed & ram, 28" shut height, 10" stroke, 6" adjustment, 30-60 SPM, 30 HP, 1800 RPM

200

10 inches

28 inches

6 inches

72" LR x 42" FB

72" LR x 42" FB

30-60 VSPM

Used 200-ton Minster Straight Side Mechanical Press
Model E2-200-72-42 Hevi-Stamper
200-ton Capacity
8" Stroke
31" Shut Height on Bed
6" Adjustment
72" LR x 42" FB Bed Area
72" LR x 42" FB Slide Area
30-60 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Minster Monitor Flow Lubrication System
T-Slotted Ram and Bolster
Free Standing Console Controls
8-Point Gibs - Brass Lined
Knockouts in Slide
37" Floor to Top of Bolster
74" Distance Between Gibs
30 HP Main Drive Motor - 1800 RPM
25" Wide Windows
Floor Standing

Approximate Weight 64,000 lbs.

This Used 200-ton Minster Hevi-Stamper can be seen underpower in the S&G Press Warehouse.

Click for more 200-ton Stamping Press Options

This used 200-ton Minster Hevi-Stamper Model E2-200-72-42 is a high-performance straight-side mechanical stamping press engineered for demanding progressive and transfer die applications. Known for its robust construction, this 200-ton Minster press delivers the precision required for high-volume metalworking.

With a highly desirable 10" stroke and a variable speed range of 30–60 VSPM, this eccentric shaft press features a 72" x 42" bed area and 8-point brass-lined gibs for maximum stability. Key technical features include an air clutch and brake, Minster Monitor Flow lubrication, and air counterbalances.
