For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Tom,Pete,Bob
616-22...> Show Seller's Phone Number 616-229-2957 Let the seller know you found their listing on Surplus Record!
Description

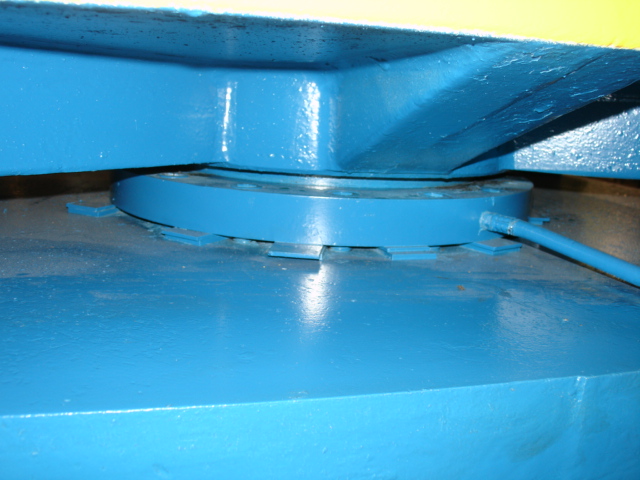

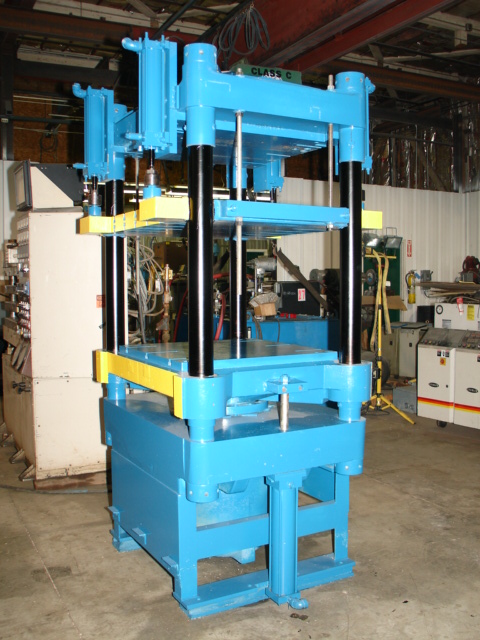

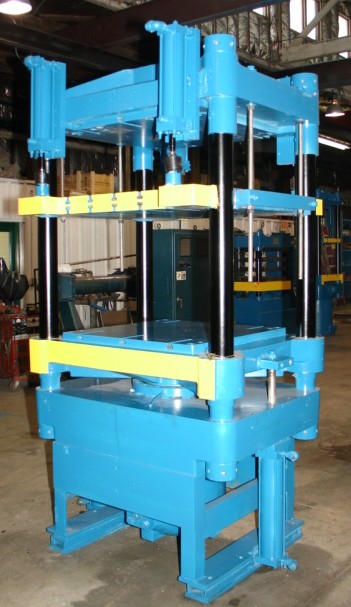

CURRENTLY SET UP WITH 32" X 32" X 1.5" T-SLOTTED PLATES ATTACHED TO SLIDE AND CROWN. NOMINAL BED SIZE WITH PLATES REMOVED WOULD BE 38" X 35.75". FRONT TO BACK BETWEEN THE POSTS IS 26". HAS 3.25" THICK INTERMEDIATE PLATE WITH T-SLOTS. EACH CORNER OF INTERMEDIATE PLATE HAS A 3.25" BORE CYLINDER WITH 12" STROKE. MAIN RAM IS APPROX 13" DIAMETER WITH APPROX 18" STROKE. TWO SIDE CYLINDERS: APPROX 4" BORE AND 1.5" ROD. FULL TONNAGE IS WITH MAIN RAM AND SIDE CYLINDERS COMBINED. MAX DAYLIGHT BETWEEN PLATES (WITH INTERMEDIATE REMOVED) IS 39"; APPROX 42" WITH TOP AND BOTTOM PLATES REMOVED. 44.25" OPERATOR HEIGHT (WITH PLATE). FULLY GUIDED WITH 6.5" BUSHINGS ON 4" DIAMETER POSTS. OVERALL DIMENSIONS: 65" X 60" X 100" TALL. APPROX 15,000 LBS. (ITEM #1637)
Get Your Price from Icon Industries, Inc!
Buyers Who Viewed This Listing Also Viewed …
200 Ton, DongSung, hydraulic shell press, 4-post, 18" stroke, 21" daylight, 31.5" LR x 23.5" front back bed
Category: Hydraulic Presses
Seller: Peterson Machinery Sales
Location: Casa Grande, AZ
Mfr: Dongsung
(1) Used 200 Ton Dongsung 4-Post Hydraulic Press, Capacity.200 tons, Bed Area.31 1/2" L-R x 23 1/2" F-B, Ram Area.6" diameter, Distance Between Posts.19 1/4" L-R x 12" F-B, Stroke.18", Daylight Opening.21", Distance Floor to Bed.27", Tie Rod Diameter.4 3/4", Number of Ram ...more
200 Ton, Pacific #200-D10-36, 18" stroke, 30" open height, 123" x 36" bed, 10' 6" between housing, Allen-Bradley Control, 1978
Category: Hydraulic Presses
Seller: D & H Machinery Inc
Location: Toledo, OH
Mfr: Pacific
Model: 200-D10-36
Year: 1978
200 Ton Pacific Downstroke Self Contained Hydraulic Press, Housing Type - Gib Guided - Dual Cylinder - "T-Slotted" Bed and Slide, Model Number: 200-D-10-36, Bed Area (Nominal): 123" L-R x 36" F-B (T-Slotted F-B), Slide Area (Nominal): 123" L-R x 36" F-B (T-Slotted F-B), Stroke of Gib Guided Slide: 0" - 18" Max. ...more
200 Ton, Pacific #200-D10-36, hydraulic press, 18" stroke, 126" BH, 20" windows, 30 HP, light curtains
Category: Hydraulic Presses
Seller: G-2000
Location: Toledo, OH
Mfr: Pacific
Model: 200-D10-36
Machine, MODEL.: 200D-1036, STROKE.: 18", OPEN HEIGHT.: 30", CLOSED HEIGHT.: 12", BED SIZE.: 123" X 36", RAM SIZE.: 123" X 36", DISTANCE BETWEEN HOUSINGS.: 10'6", SPEEDS.: ADVANCE - 187, 89, 34 IPM, RETURN -- 176, 70 IPM,.: T-SLOTTED RAM & BOLSTER (5"), LITE CURTAINS, ALLEN BRADLEY CONTROLS, 20" WINDOWS, 145 ...more

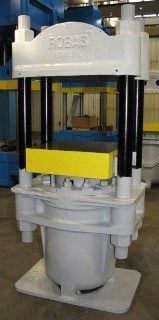

200 Ton, Robas, 24" x 24", upact 4-post, 18" stroke, 19" daylight, 16" ram, 44" work height, #2038, 2039 (2 available)
