Description

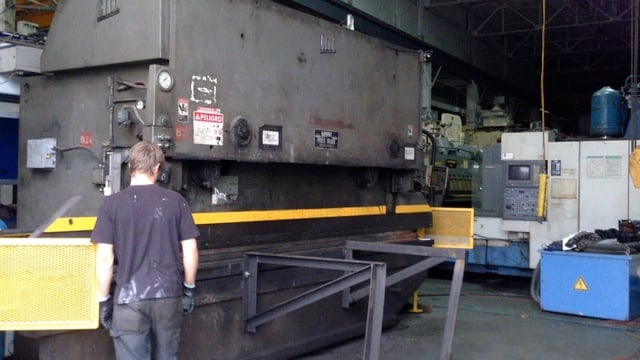

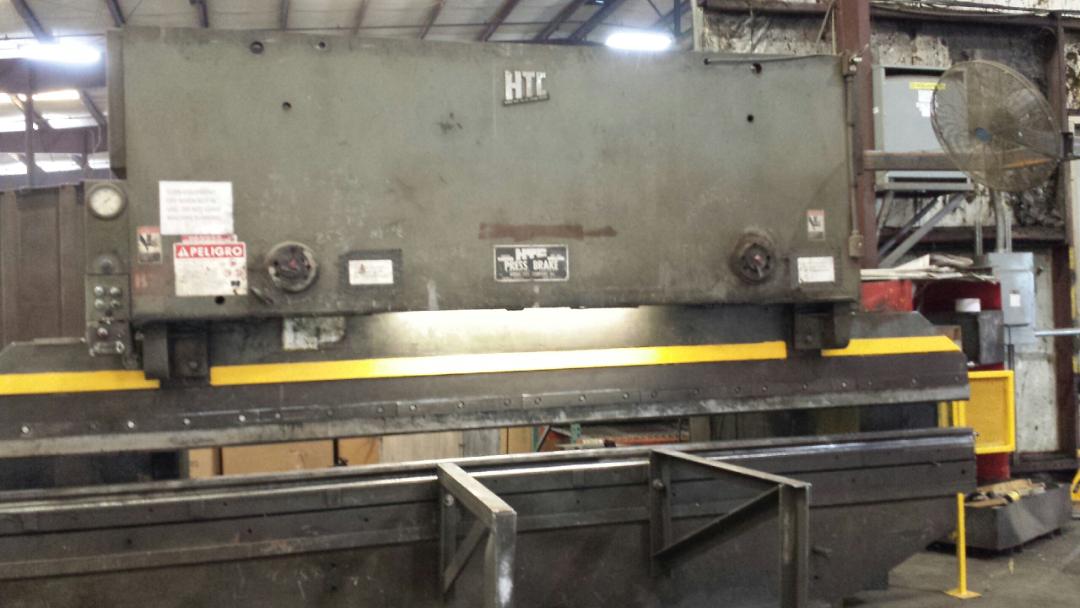

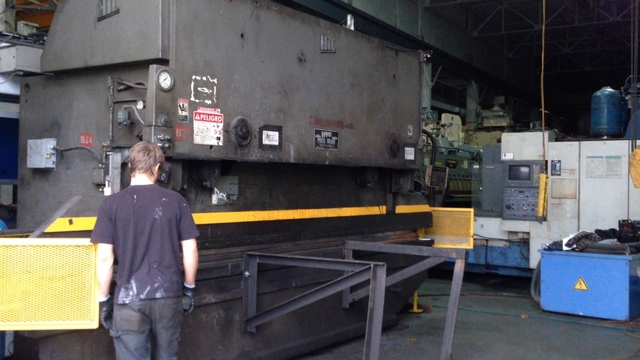

(1)Pre Owned 1971 HTC Hydraulic Press Brake
GENERAL SPECIFICATIONS
Tonnage Capacity: 200 US Tons
Overall Length of Bed & Ram: 16’
Distance Between Housings: 101 1/2”
Stroke: 7"
Open Height: 12 1/2"
Closed Height: 5 1/2"
Speeds
Approach 60 IPM
Form 40
Return 120
Width of Bed: 5 3/8”
Throat Depth: 9"
Main Motor Horsepower 25 480/3/60
EQUIPPED WITH
Sectional Ram Clamps
Electric Foot Switch / Palm Button StationOverall Dimensions Approx. 16’ L-R x’80 F-B x 120”H
Get Your Price from Aleco Machinery Sales!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!
200 Ton, HTC #200-G, Hydraulic Press Brake, 12' overall, 125-1/2" between housing, 5" stroke, 12" open height, 12" throat, 25 HP, 480 V.
Category: Hydraulic Press Brakes
Seller: Aucto
Location: Louisville, KY
Mfr: Htc
Model: 200-G
The HTC Model 200-G is a 12 ft heavy duty hydraulic press brake rated at 200 tons. It has a bed size (LR/FB) of 144 x 24 inches, an open height of 12 inches, 3 inches of ram adjustment, a throat depth of 12 inches, 125-1/2 inches between housings and a stroke of 5 inches. Table height is 37 inches, or 50 inches with ...more
JUST ADDED!
200 Ton, HTC #200-G, hydraulic press brake, 12' overall, 125.5" between housing, 144" x 24" bed, 5" stroke, 12" open height, 12" throat, 25 HP, 480 V.
Category: Hydraulic Press Brakes
Seller: Mohawk Machinery Inc
Location: Cincinnati, OH
Mfr: Htc
Model: 200-G
12 HTC 200-TON 200-GHEAVY-DUTY WIDE BED HYDRAULIC PRESS BRAKE - 24 X 144 Bed & Ram - 5 Stroke - 12 Throat, 12' HTC 200-TON 200-G HEAVY-DUTY HYDRAULIC, WIDE BED PRESS BRAKE, Serial No 119268, Model HTC 200-G, 24 X 144 Wide Bed And Ram, Top Mounted Hydraulic Pump And Tank, Operators Control Stand, CATALOG : ...more
JUST ADDED!
200 Ton, HTC #200-G, hydraulic press brake, 12' overall, 125.5" between housing, 12" throat, 12" open, 3" ram adj., 144" x 24" bed, 25 HP, 480 V., 3 Ph.
Category: Hydraulic Press Brakes
Seller: Machinery Central
Location: Louisville, KY
Mfr: Htc
Model: 200-G
Spec Sheet:, 12' HTC 200 Ton Heavy Duty Press Brake, Model 200-G, 25 Hp, 480 volt three phase, 60 hz, 200 ton capacity, Top mounted hydraulic pump and tank system, Bed size (LR/FB) 144 x 24, Table height 37 (50 with bottom riser blocks), Open height 12, Ram adjustment 3, Rapid Approach Speed: 60 IPM (Inches Per ...more

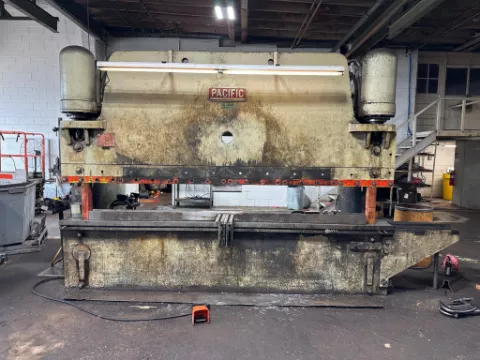

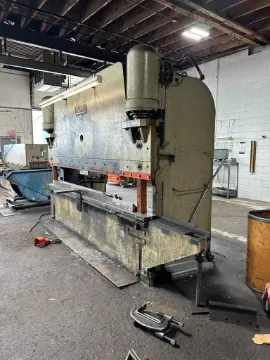

200 Ton, Pacific #200-12, Hydraulic Press Brake, 12' overall, 10' 5" between housing, 12" stroke, 17" open height, 8-1/4" throat, 25 HP, w/ 2' horn
