Description
Used Cleaver Brooks Steam Boiler, 6,900 steam lbs/hr, 6,695,000BTU/hr, 200 HP, MAWP 150 PSI, Fuel Natural Gas/Oil, Built 1989.

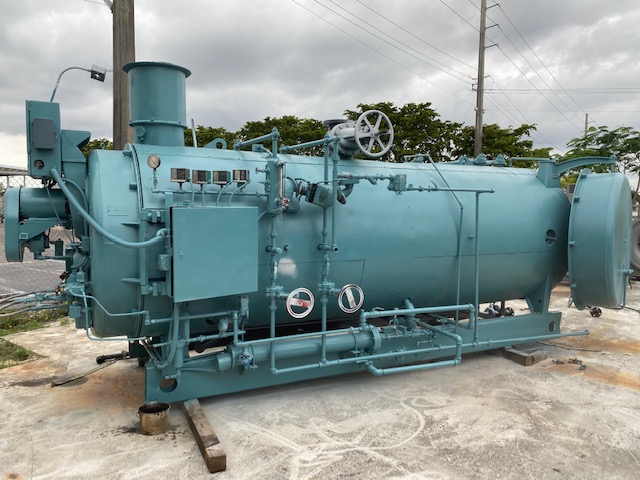

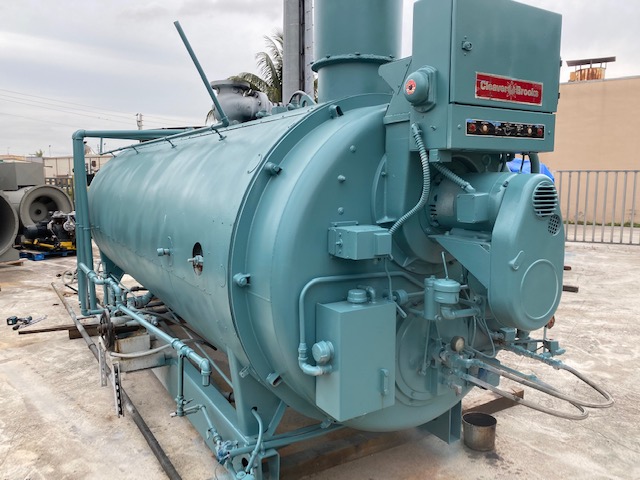

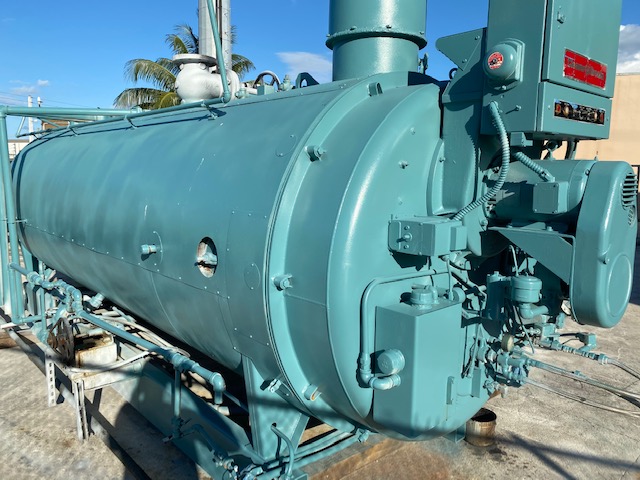

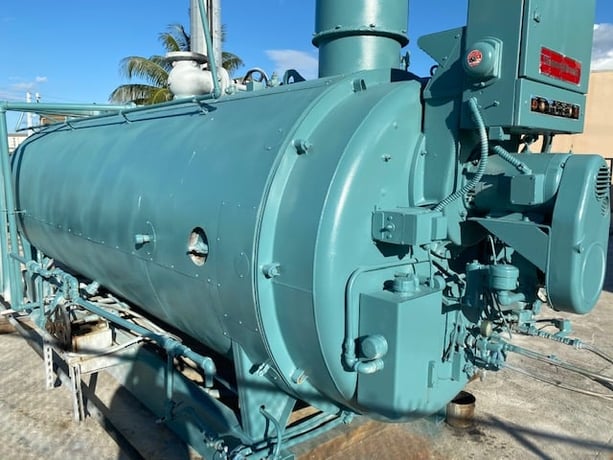

Cleaver Brooks 200 HP 150 PSI High Pressure Steam Boiler
Equipment Description
Manufacturer: Cleaver Brooks
Model: CB 600-200
Boiler Horsepower: 200 HP
Boiler Type: Steam Boiler
Fuel Type: Natural Gas/Oil
Design Pressure or Maximum Allowable Working Pressure: 150 PSI
Heating Capacity: 6,695,000 BTU/hr
Steam Capacity: 6,900 lbs/hr.
Year Built: 1989
Serial No: L-86158
GPH Oil: 56.0

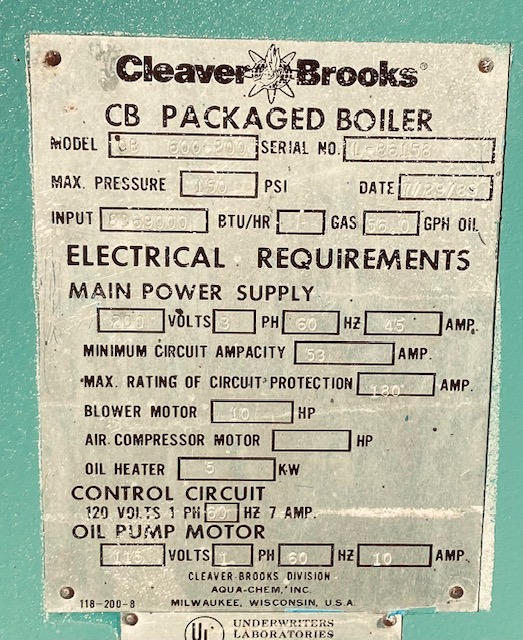

Electrical Requirements
Main Power Supply
Voltage: 208V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 45 AMP
Minimum Circuit Ampacity: 53 AMP
Maximum Rating of Circuit Protection: 180 AMP
Blower Motor
Horsepower: 10 HP
Air Compressor Motor
Horsepower: N/A
Oil Heater: 5 KW
Control Circuit
Volts: 120V
Phase: 1 PH
Hertz: 60 HZ
Ampacity: 7 AMP
Oil Pump Motor
Volts: 115V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 10 AMP
Overall Dimensions
Length: 19.33 ft
Width: 7.08 ft
Height: 7.33 ft
Boiler Weight: Approx. 16,300 lbs.
Location: Miami, FL
Cleaver Brooks 200 HP 150 PSI High Pressure Steam Boiler
Equipment Description
Manufacturer: Cleaver Brooks
Model: CB 600-200
Boiler Horsepower: 200 HP
Boiler Type: Steam Boiler
Fuel Type: Natural Gas/Oil
Design Pressure or Maximum Allowable Working Pressure: 150 PSI
Heating Capacity: 6,695,000 BTU/hr
Steam Capacity: 6,900 lbs/hr.
Year Built: 1989
Serial No: L-86158
GPH Oil: 56.0
Electrical Requirements
Main Power Supply
Voltage: 208V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 45 AMP
Minimum Circuit Ampacity: 53 AMP
Maximum Rating of Circuit Protection: 180 AMP
Blower Motor
Horsepower: 10 HP
Air Compressor Motor
Horsepower: N/A
Oil Heater: 5 KW
Control Circuit
Volts: 120V
Phase: 1 PH
Hertz: 60 HZ
Ampacity: 7 AMP
Oil Pump Motor
Volts: 115V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 10 AMP
Overall Dimensions
Length: 19.33 ft
Width: 7.08 ft
Height: 7.33 ft
Boiler Weight: Approx. 16,300 lbs.
Location: Miami, FL
