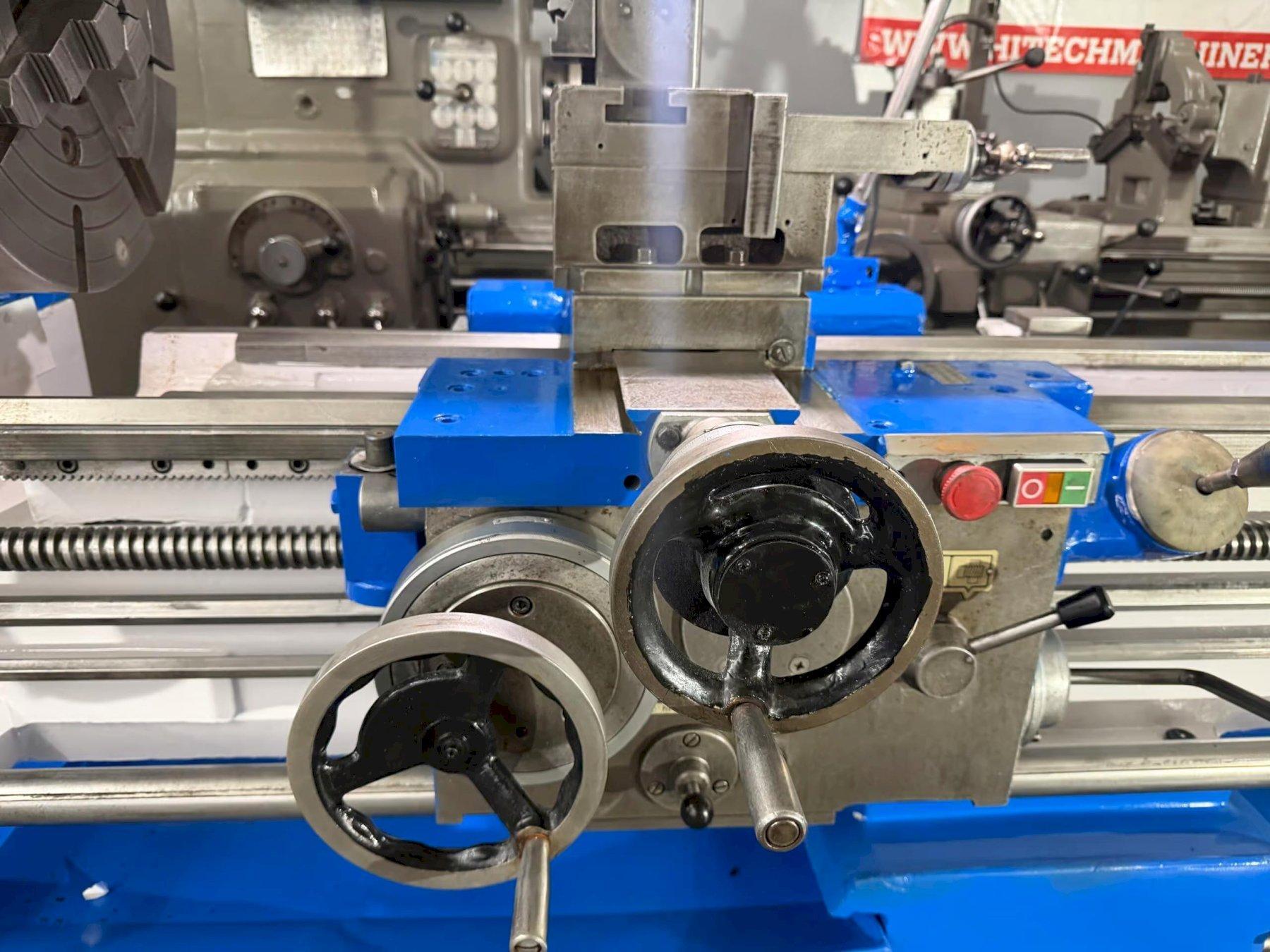

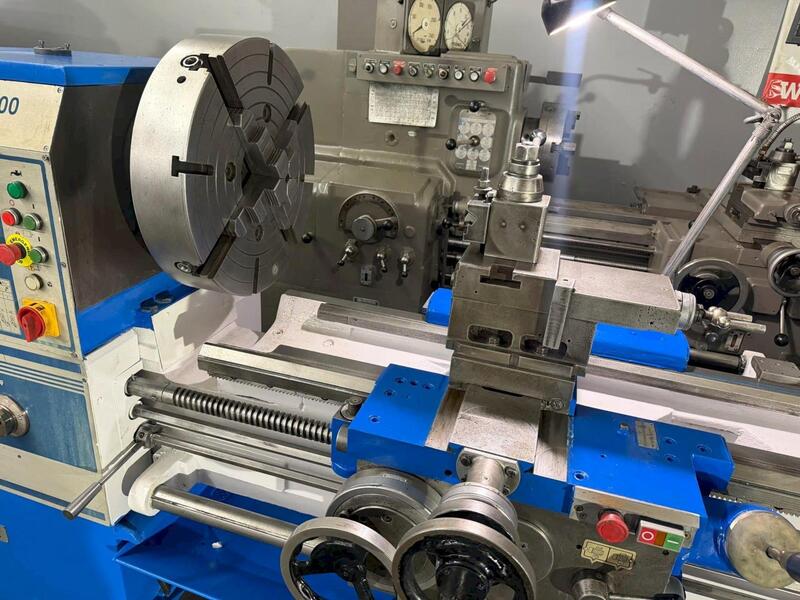

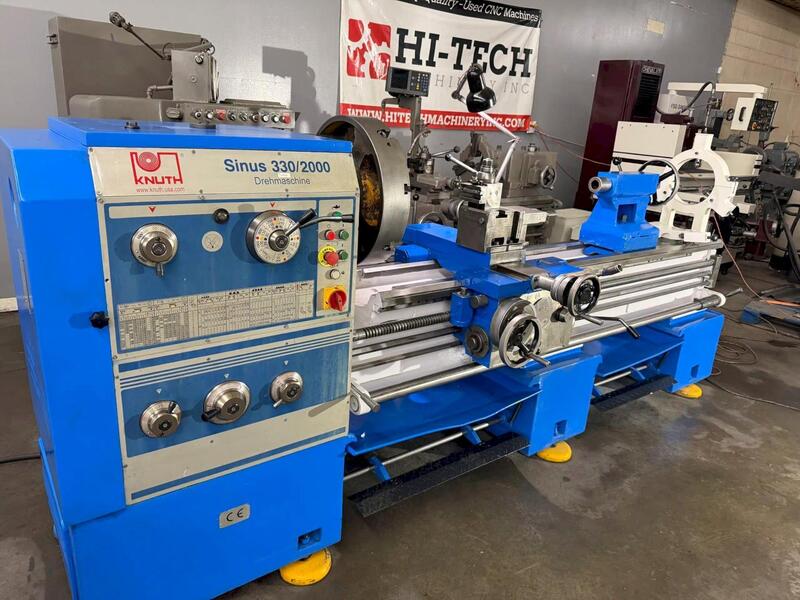

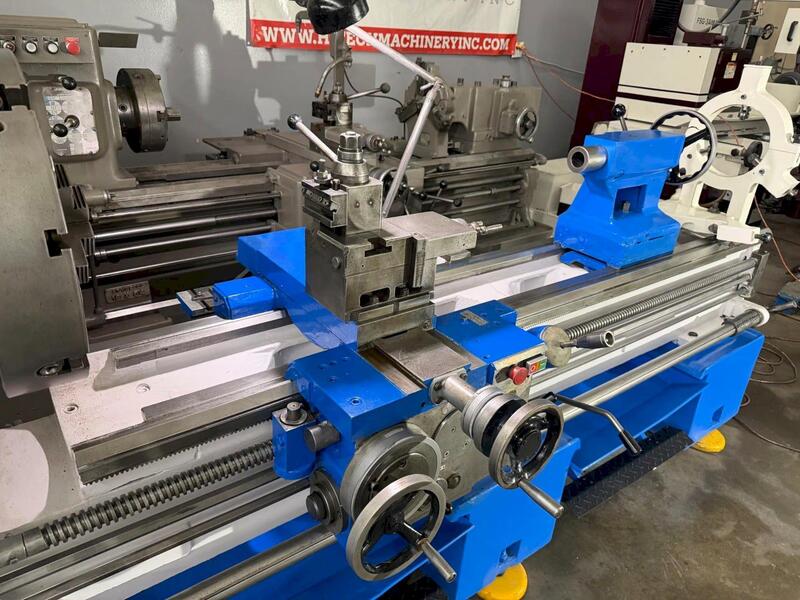

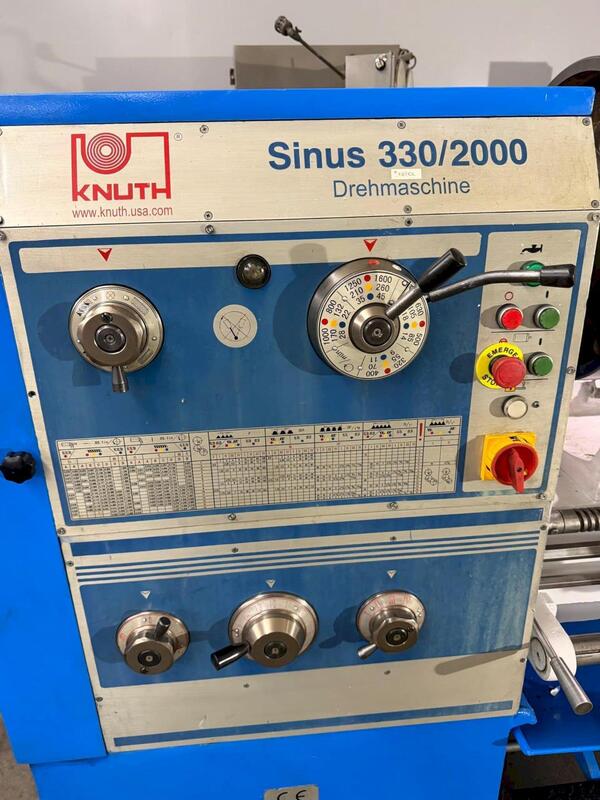

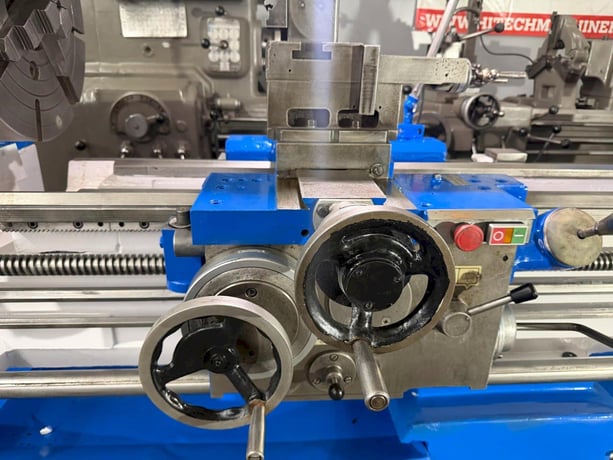

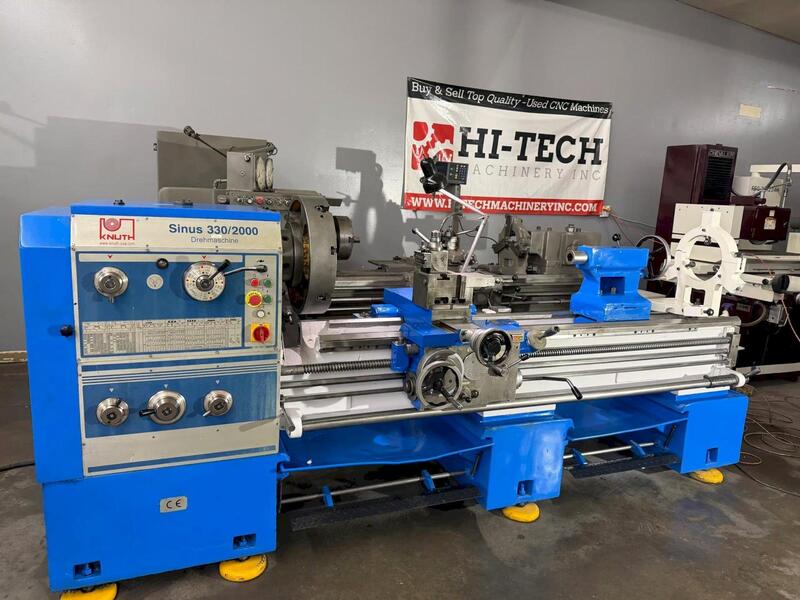

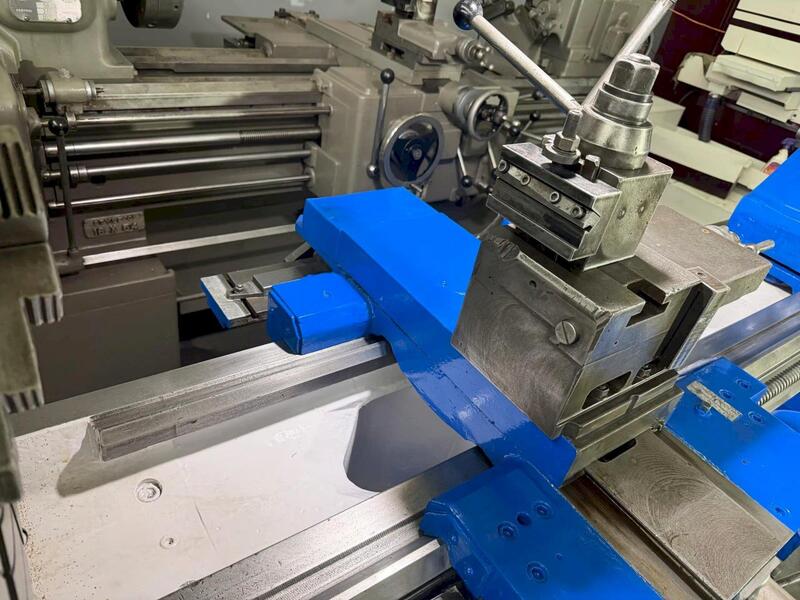

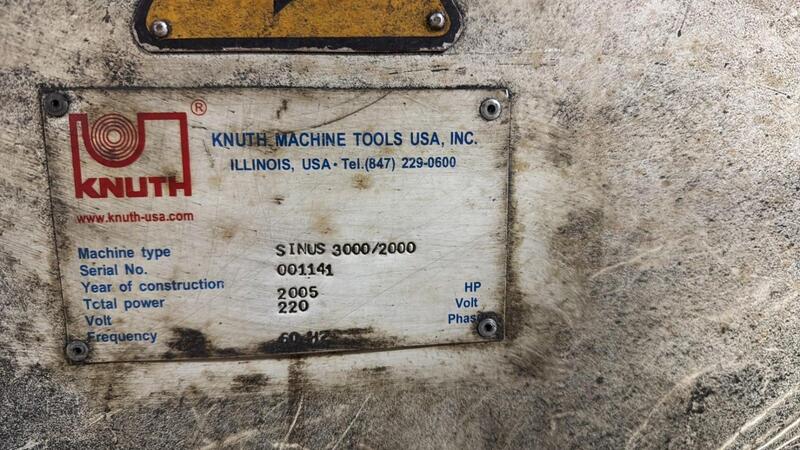

Knuth #SINUS-330/2000, engine lathe, 26" diameter over bed, 79" L max, 16" bed, 10.1 HP, 25-1600 RPM, 4.1" bore, 24.75" faceplate, inch/metric thread, tailstock, 2005

SPECIFICATIONS:
Workpiece Length (Max.): 80”

Turning diameter over bed: 26”

Turning diameter over carriage: 17”

Turning diameter without gap bridge: 35”

Gap bridge length: 13”

Bed width: 16”

Travel X-axis: 14.5”

Travel Z1-axis: 9”

Swing range of top slide: 45°

Spindle speed: 9 rpm – 1600 rpm

Spindle bore: 3-3/8”

Spindle mount: D1-8

Spindle taper: 5 MT

Rapid feed X-axis: 78.74 in/min

Rapid feed Z-axis: 157.48 in/min

Feed X-axis: 0.00087 in/R – 0.02913 in/R

Feed Z-axis: 0.00173 in/R – 0.05827 in/R

Threading metric: 0.45 mm – 120 mm

Threading diametric: 0.88 DP – 160 DP

Threading module: 0.25 mm – 60 mm

Threading Whitworth: (54) 7/16 – 80 TPI

Tailstock quill diameter: 4 in

Tailstock taper: 5 MT

Tailstock quill stroke: 9 in

Tailstock traverse adjustment: ± 125 in

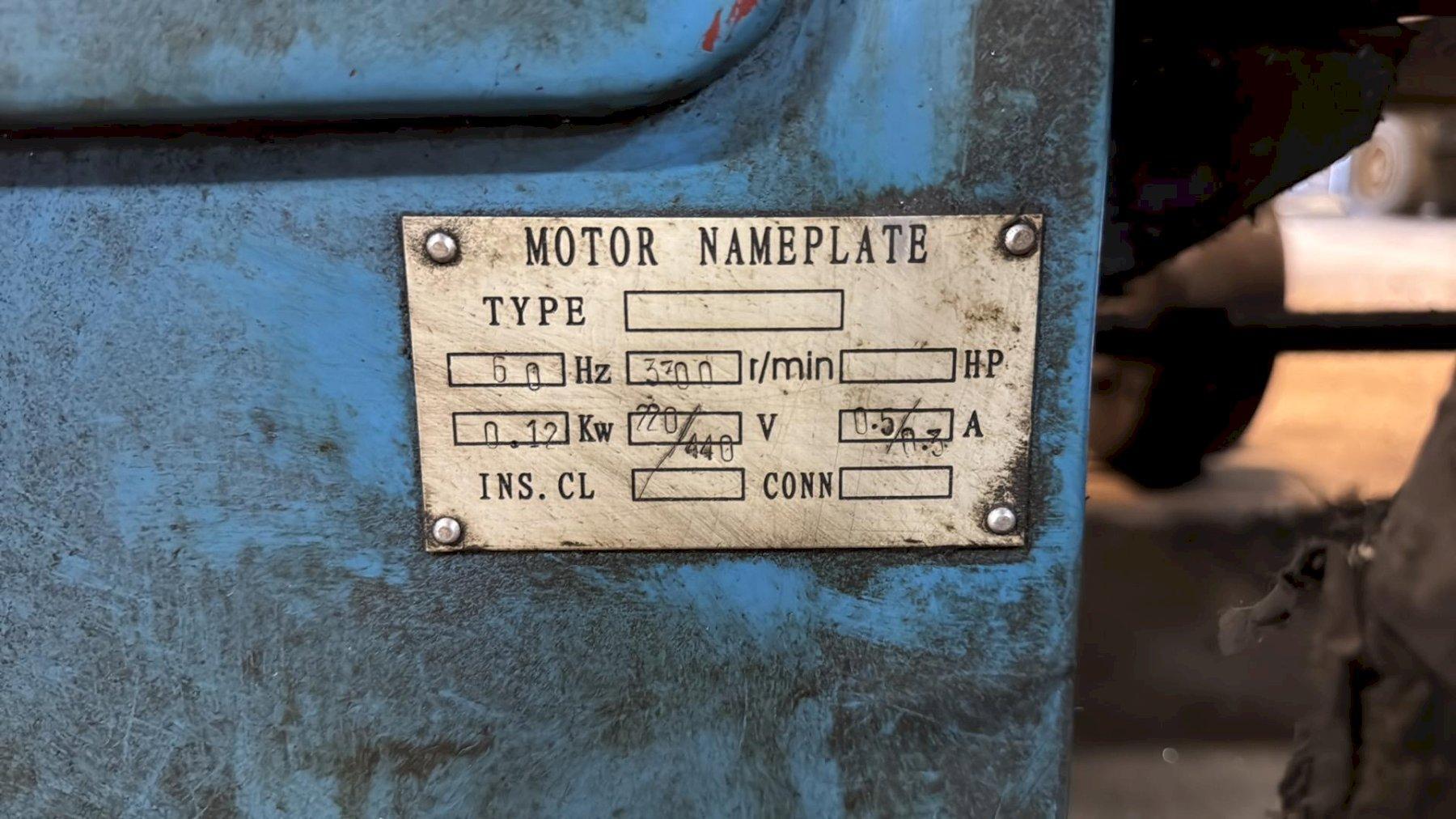

Motor rating main drive: 10.1 Hp

Overall dimensions (L x W x H): 147 in x 49 in x 63 in

Weight: 6380 lbs
Voltage 220/440V, 3PH, Currently wired 220V

Equipped with:

20”4-Jaw Chuck

12″ 3-Jaw Chuck

Quick Change Tool Post

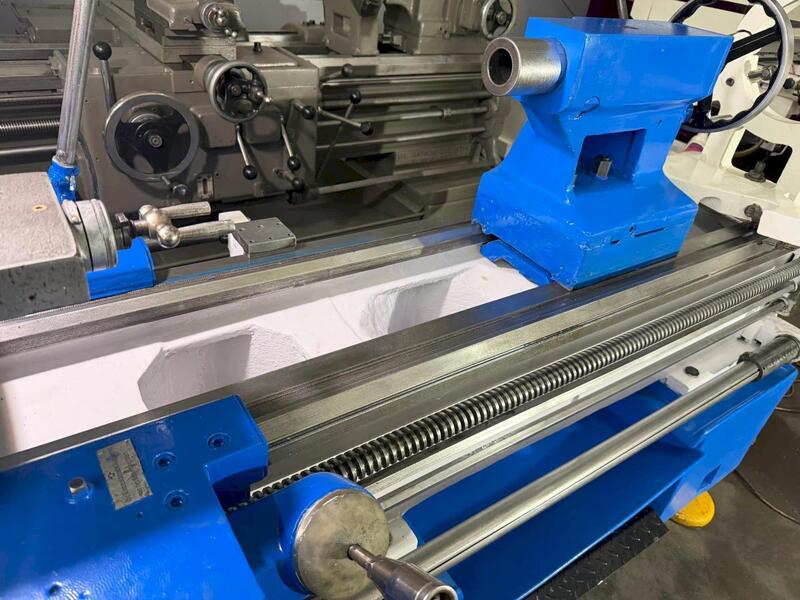

Tailstock

Taper Attachment

Steady Rest

Follow Rest

Inch & Metric Threading

Work Light

Coolant

Rapid Traverse on the Longitudinal and Cross
