For Sale by N & R Machine Sales
Surplus Record Dealer Since 1998
Location: Navasota, TX
Contact Randy Nevels
Phone Number: 800...> Show Phone Number 800-245-3194
Let the seller know you found their listing on Surplus Record!
Description

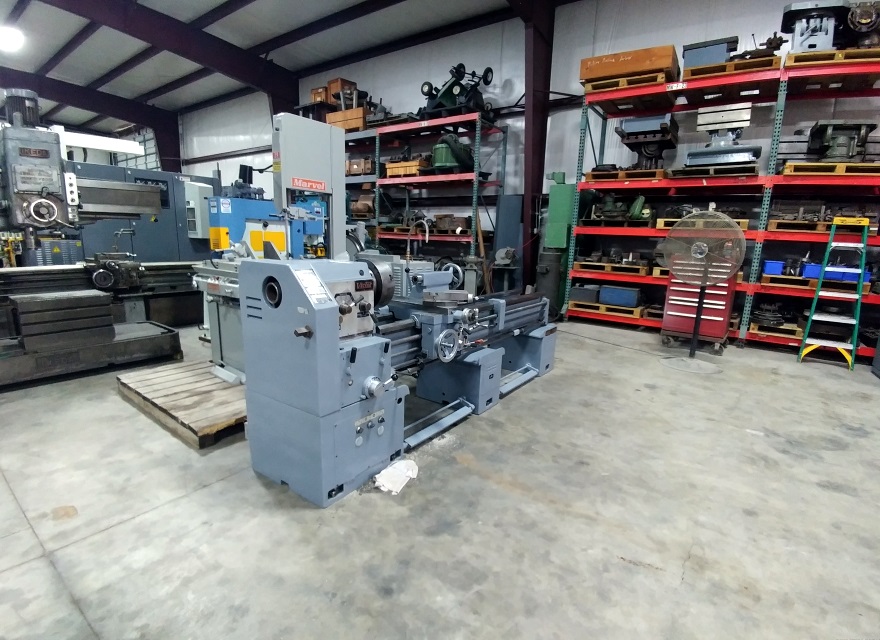

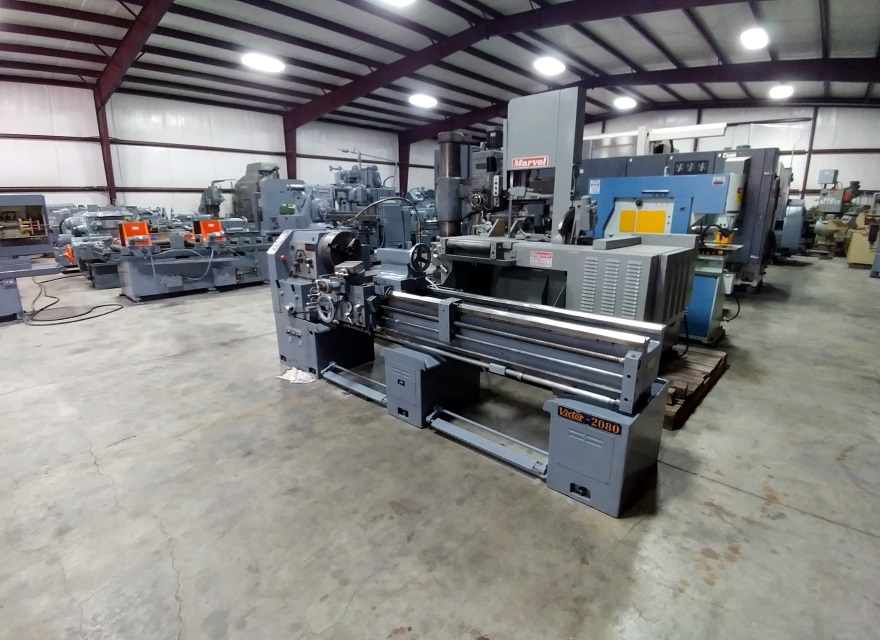

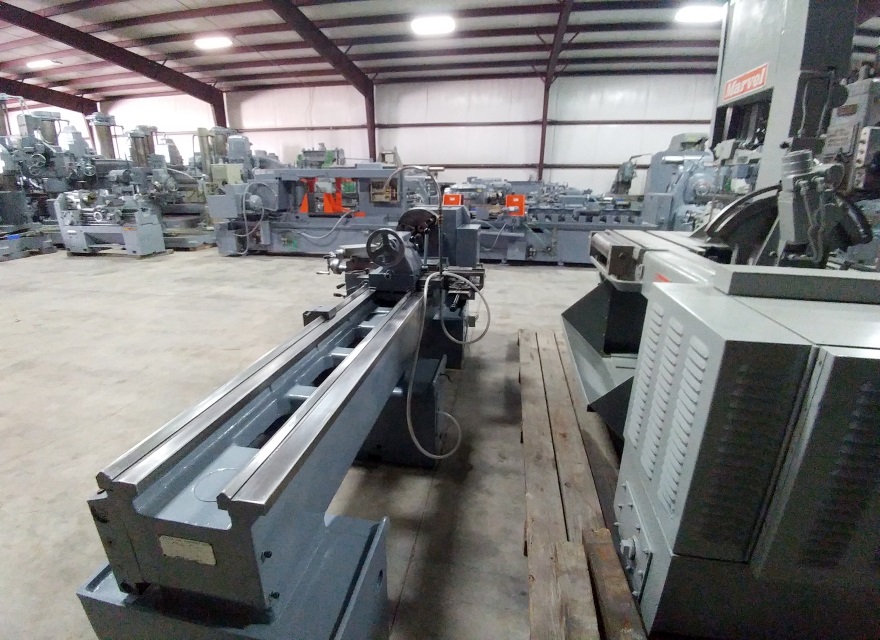

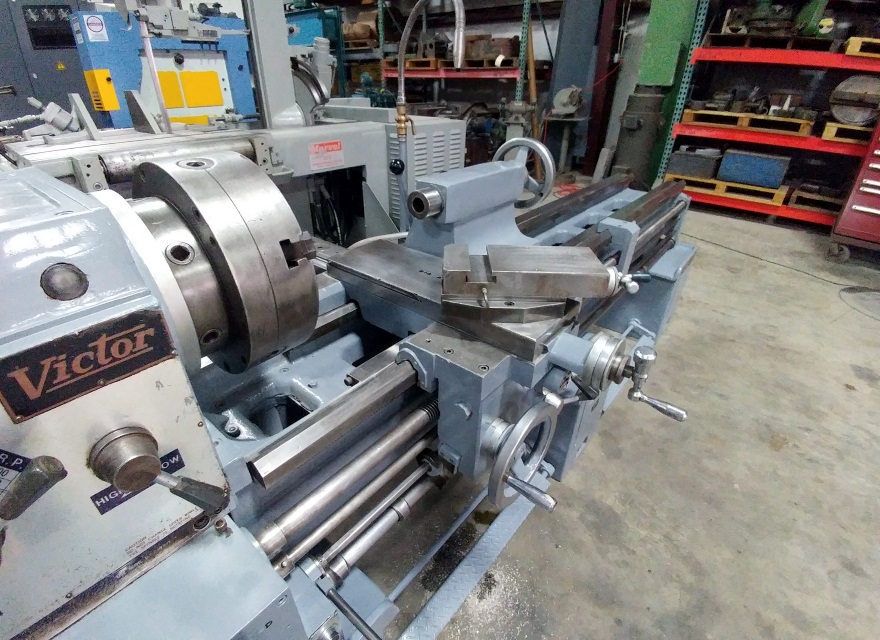

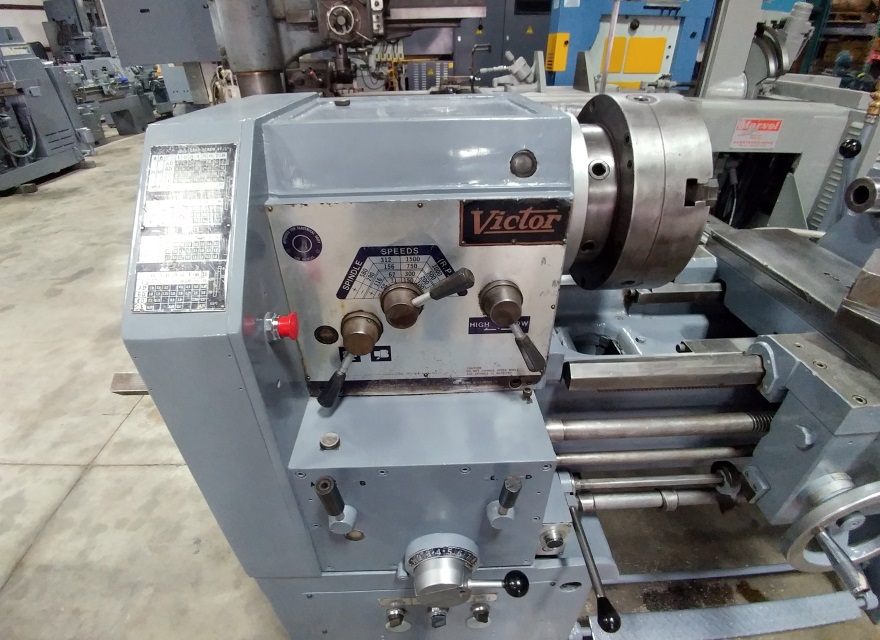

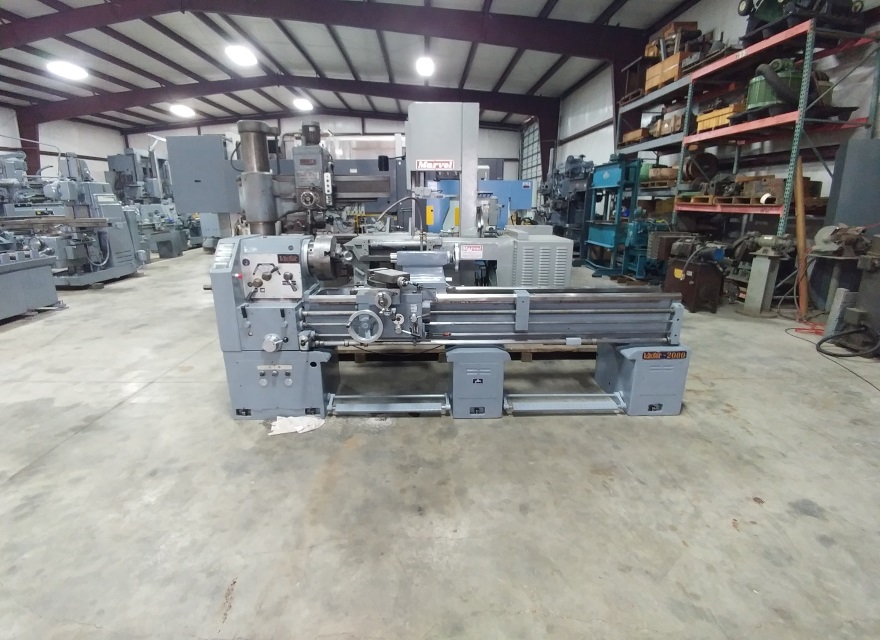

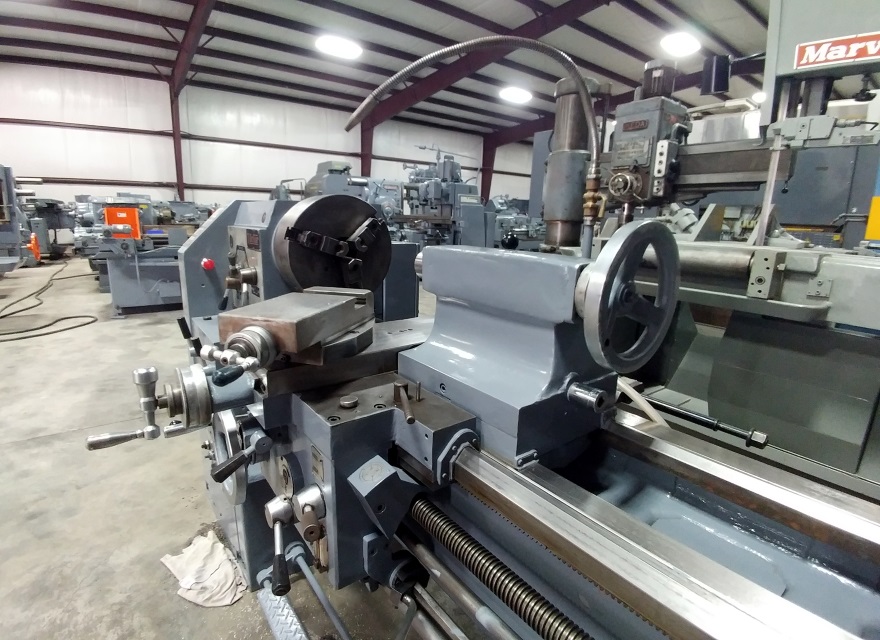

20" X 80" Victor Engine Lathe
Stock Number: L3000208
Victor 20X80
Serial No. 710410
Specification Description
Swing Over Bed Ways 20"
Swing Over Cross Slide 13"
Gap Length 6"
Swing In Gap 26-3/8"
Center Distance 80"
Bed Way Width 15-3/4"
Spindle Thru Hole 3"
Spindle Speeds (12 Steps) 20 To 1,550 Rpm's
Spindle Nose D1-8
Chuck Size 12-4 Jaw
Feeds Cross .0007 To .01935 IPR
Feeds Long .0014 TO .0387 IPR
Threads Inch 2 To 112 TPI
Threads Metric .2 TO 11 MM
Cross Slide Travel 12-1/2"
Compound Travel 10"
Tail Stock Quill Diameter 2-1/2"
Tail Stock Quill Travel 6-5/16"
Tail Stock Taper #5 Morse
Main Motor 10 Hp.
Weight 6,870 Lbs.
Machine Dimension 140" L X 45" W
Machine Height 65"
Taper Attachment Yes
Coolant Pan Yes
Thread Dial Yes
Hardened And Ground Ways Yes
Note: Machine Will Be Cleaned, Painted And
Cycled.
Condition Good
Stock Number: L3000208
Victor 20X80
Serial No. 710410
Specification Description
Swing Over Bed Ways 20"
Swing Over Cross Slide 13"
Gap Length 6"
Swing In Gap 26-3/8"
Center Distance 80"
Bed Way Width 15-3/4"
Spindle Thru Hole 3"
Spindle Speeds (12 Steps) 20 To 1,550 Rpm's
Spindle Nose D1-8
Chuck Size 12-4 Jaw
Feeds Cross .0007 To .01935 IPR
Feeds Long .0014 TO .0387 IPR
Threads Inch 2 To 112 TPI
Threads Metric .2 TO 11 MM
Cross Slide Travel 12-1/2"
Compound Travel 10"
Tail Stock Quill Diameter 2-1/2"
Tail Stock Quill Travel 6-5/16"
Tail Stock Taper #5 Morse
Main Motor 10 Hp.
Weight 6,870 Lbs.
Machine Dimension 140" L X 45" W
Machine Height 65"
Taper Attachment Yes
Coolant Pan Yes
Thread Dial Yes
Hardened And Ground Ways Yes
Note: Machine Will Be Cleaned, Painted And
Cycled.
Condition Good
Get Your Price from N & R Machine Sales!
