For Sale by Sterling Machinery Exchange
Surplus Record Dealer Since 1970
Location: South El Monte, CA
Contact Adam Mattes
Phone Number: 626...> Show Phone Number 626-444-0311
Let the seller know you found their listing on Surplus Record!
$7,950 USD
Description
SPECIFICATION:
| Drilling Capacity, Mild Steel | 1 3/8 |
| Drilling Capacity, Cast Iron | 1 1/2 |
| Tapping Capacity, Mild Steel | 1 1/2 |
| Tapping Capacity, Cast Iron | 1 9/16 |
| Quill Diameter (In.) | - |
| Drills To Center | 28 |
| Morse Taper | 4MT |
| Horse Power | 2 HP |
| Speed Range | 8(112, 160, 245, 358, 532, 762, 1164, 1704) |
| Automatic Feeds | 3(.004, .007, .010) |
| Spindle Travel | 7 |
| Spindle To Table | Min. 1.37", Max. 30.5 |
| Spindle to Base | 48 |

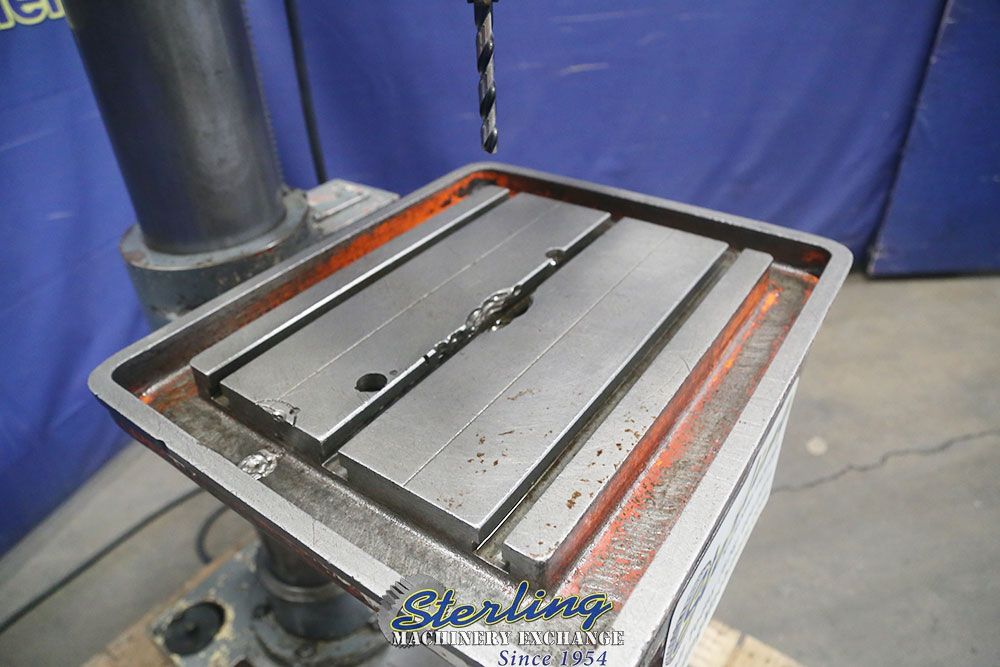

| Table Dimensions | 22x 19 |
| Table T-Slot Size | 1/2 |
| Table Load Capacity | 575 lbs |
| Center Spindle To Front Of Column | 14 |
| Column Diameter | 6.88 |
| Overall Dimensions | 91" X 22" X 37" |
| Hole Making Capability | Small/medium/ Large |
| WEIGHT | 1279 Lbs |
FEATURES:
Power Feed Gear Box fitted With An Electro Magnetic Clutch for Power Feed Engagement and Overload Protection
Oversized Base Is Precision Ground With T-slot For Added Versatility And Stability
Coolant System
Inquire Further with Sterling Machinery Exchange!
