Description

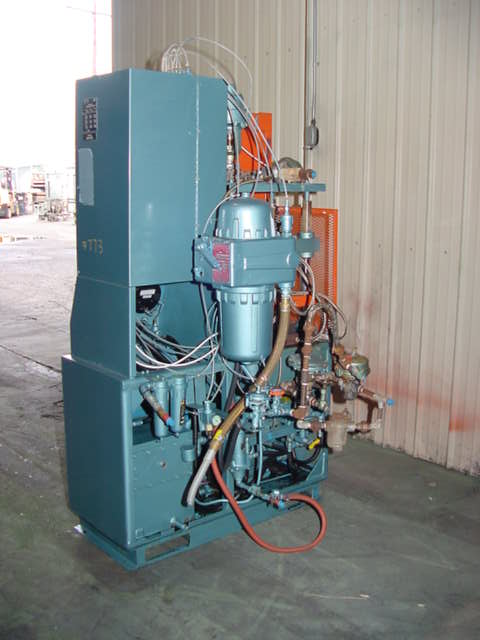

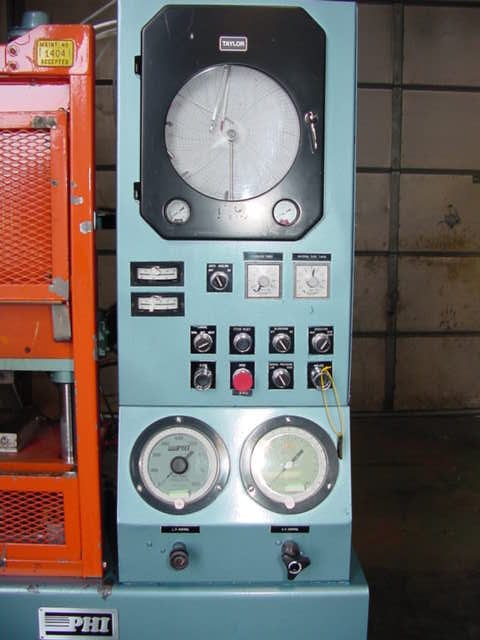

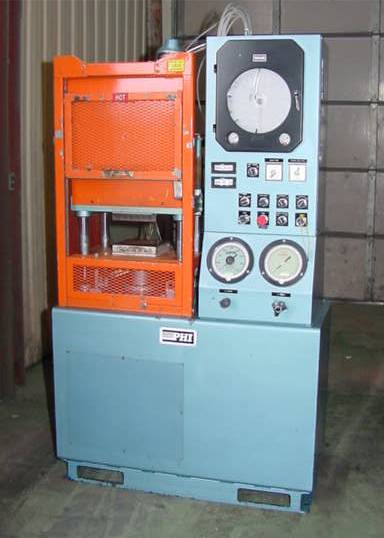

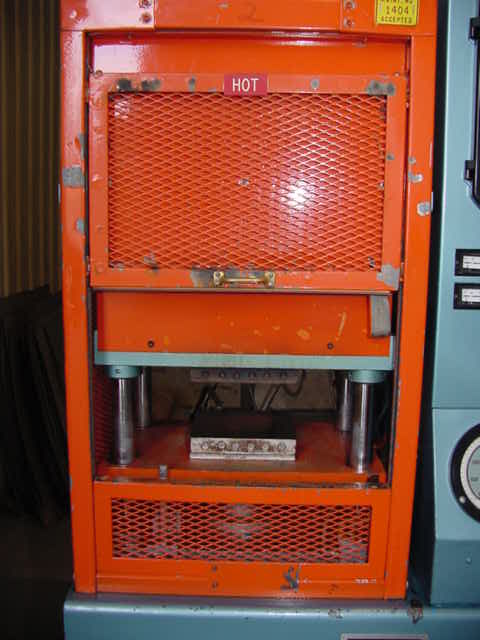

PHI MODEL #SZ0R08085-2CCS-K-MS7-R-X15, SERIAL #81-4-009. NEW IN 1981. DOUBLE ACTING MAIN RAM. 1 \u00be" POST DIAMETER. OVERALL BED SIZE 21" L TO R X 13" F TO B. DISTANCE BETWEEN POSTS IS 16" L TO R X 8" F TO B. 16" X 13" NOMINAL BED SIZE. TWO 8" X 8" STEAM/OIL PLATENS. ADJUSTABLE DAYLIGHT FROM 4" TO 9 \u00bd" WITH PLATENS; 7 \u00be" TO 13 \u00bc" WITHOUT. APPROX. STROKE 5". FULL SURROUND GUIDES ON MOVING BOLSTER. PRESS GUARDED WITH EXPANDED METAL AND LIFT GATE ON FRONT. OPERATOR HEIGHT 41". EXPLOSION PROOF CONTROLS; PNEUMATIC CONTROLS INCLUDING LOW AND HIGH PRESSURE CLAMP CONTROL AND GAUGES. CHART RECORDER. TWO BUTTON CLOSE; BLOW DOWN, COOL/HEAT, MANUAL PRESSURE, LOW/HIGH. MANUAL/SEMI AUTO. CURE TIMERS. 3 HP; 1200 RPM; 480 VOLT; 60 HZ 3 PH EXPLOSION PROOF MOTOR. OVERALL DIMENSIONS: 48" L TO R X 48" F TO B X 84" TALL. APPROX WEIGHT 5000 LBS. (ITEM #773)
