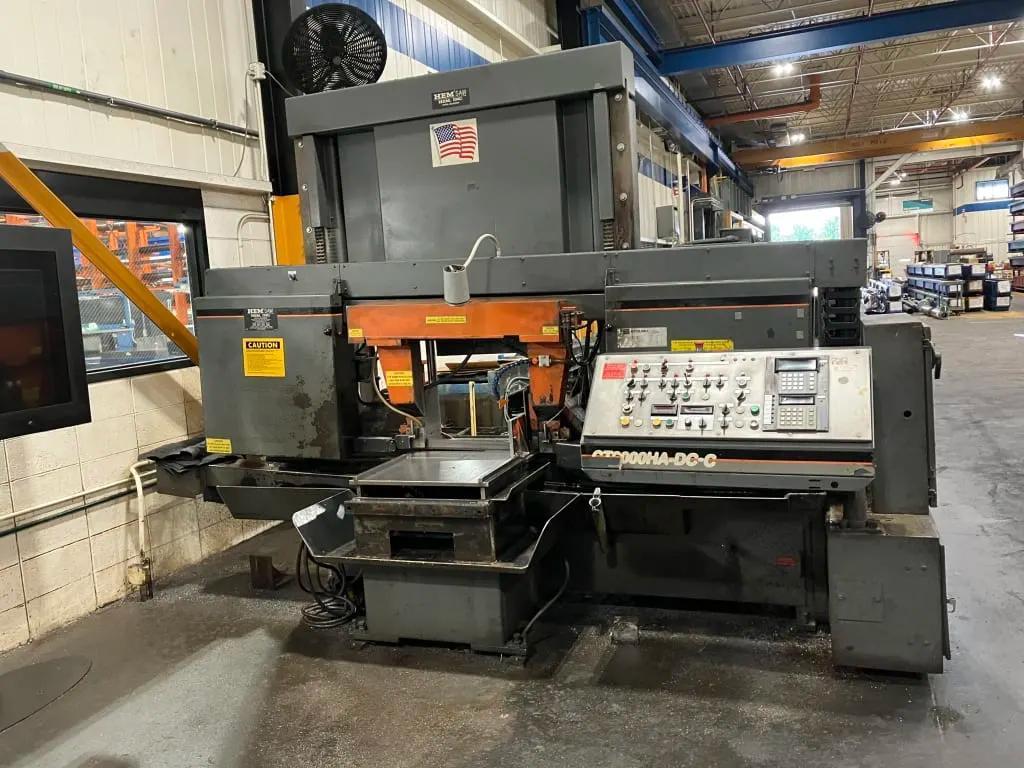

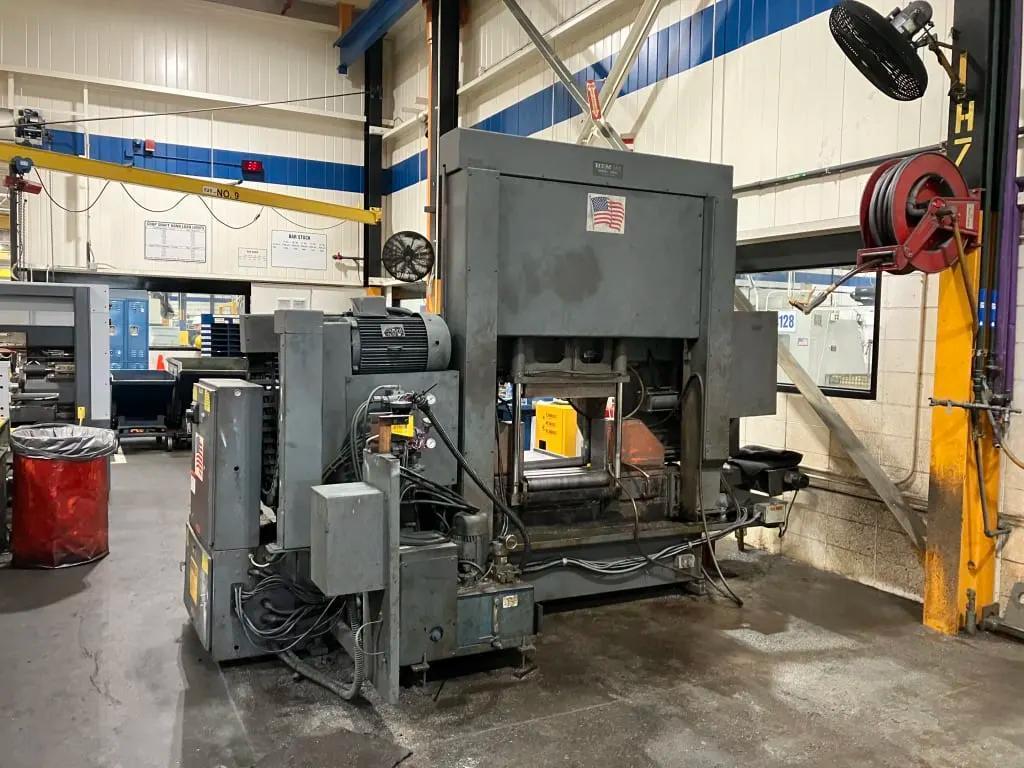

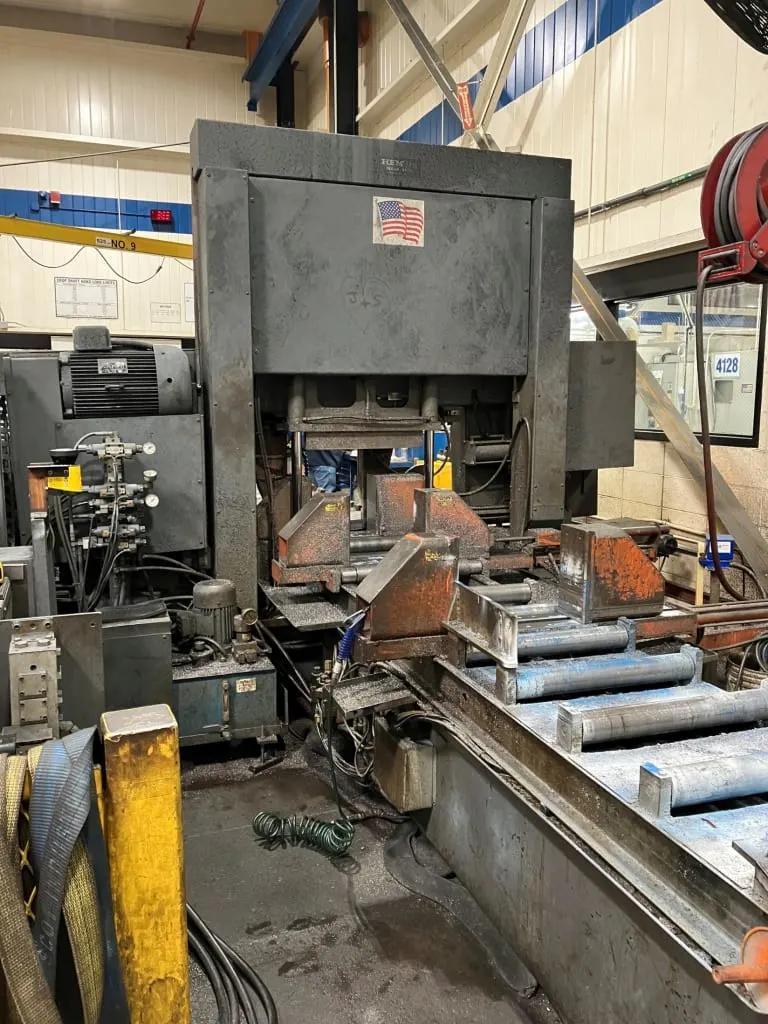

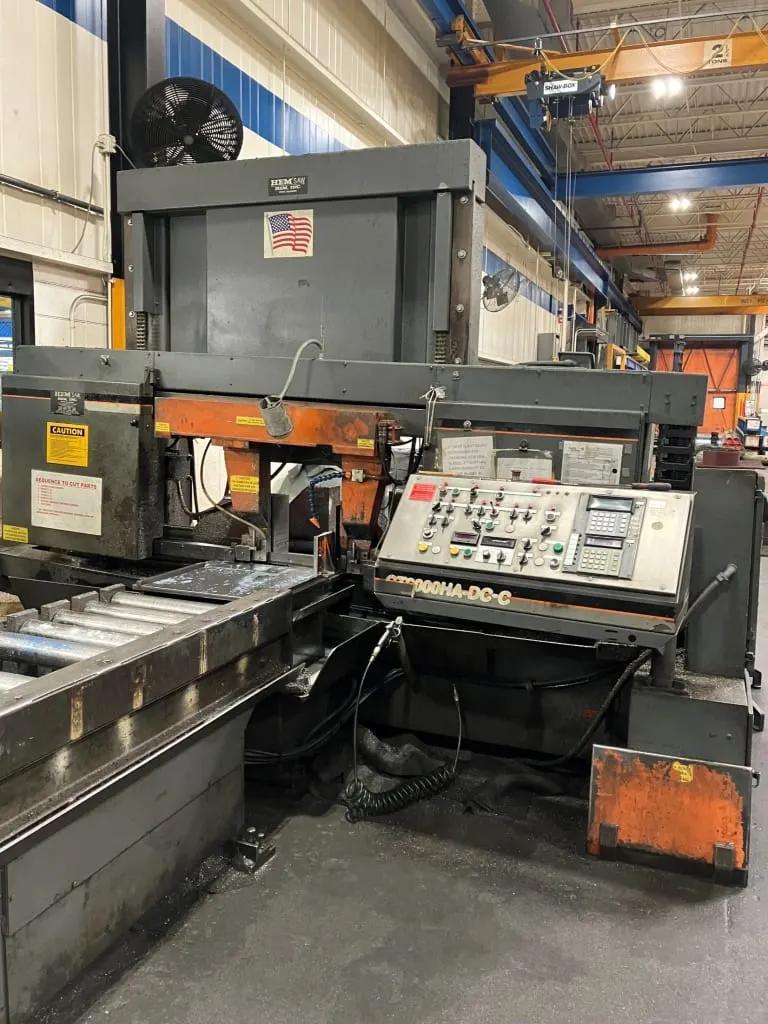

20" Hemsaw #CT2000HA-DC-C, double column band saw, 20" x 22' 2" blade, S/N 1012507,2007

SPECIFICATIONS:
HYDRAULIC MACHINE
ALL FUNCTION CONTROL IN A SWING AWAY CONSOLE
2 DEGREE PERMANENT ARM TILT
FULL STROKING VISES
2" X 22'2" BLADE
20" ROUND X 20" FLAT CAPACITY
20 HP DRIVE MOTOR
2 HP HYDRAULIC SYSTEM
VARIABLE FREQUENCY DRIVE FOR BLADE SPEED
POWERED BLADE TENSION
POWERED GUIDE ARM
0-24" STROKE BAR FEED SYSTEM
COMPUTER CONTROLLED FEED SYSTEM
ROLLER GUIDES - LEAD IN/LEAD OUT
CHIP AUGER SYSTEM
CUT WATCHER SYSTEM
SHADOW LIGHT SYSTEM
3RD VISE ON FEED
MATERIAL JOG
HYDRAULIC COMPUTER CONTROLLED TRAVERSE
24" SOLID DISCHARGE TABLE - PART OF SAW BASE
COOLANT SYSTEM
GUIDE CAP CAMLOCKS
MATERIAL HANDLING:

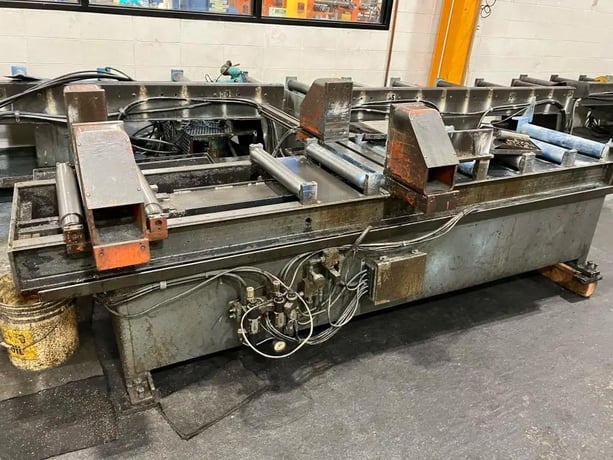

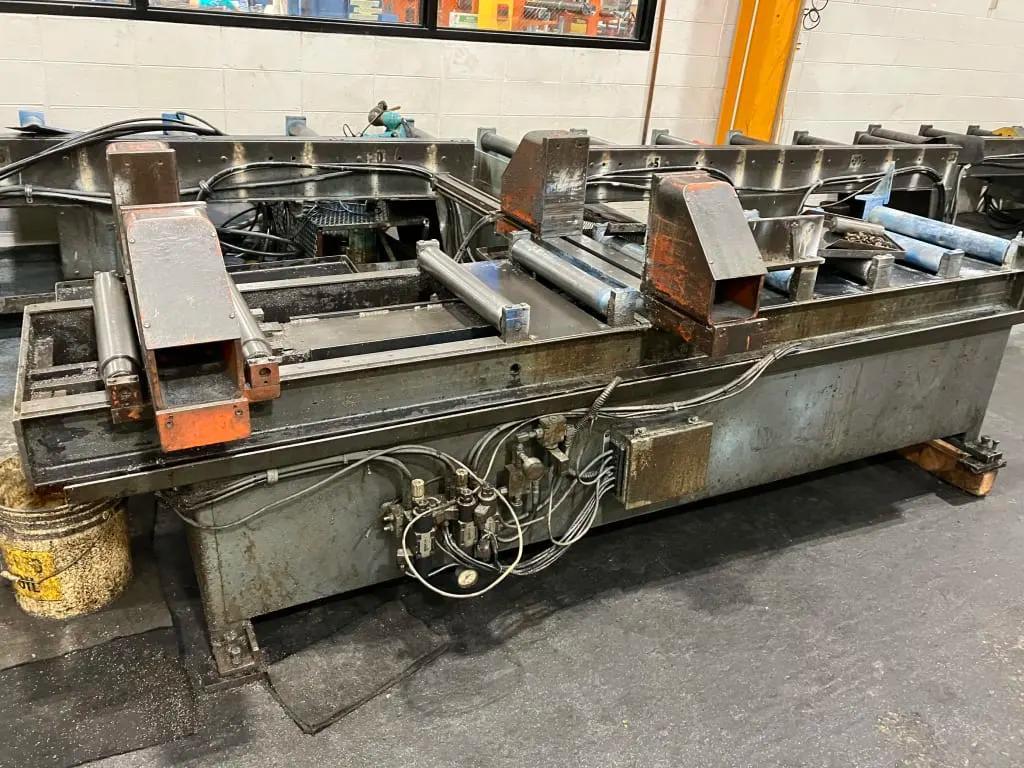

INPUT SIDE: 4 EA. 10' SECTIONS - 24" ROLLER CENTERS - ALL ROLLERS ARE
CLUTCHED POWERED - NON PANNED TABLES - TWO 20' SECTIONS - 40' PROGRAMMABLE
PLATE STOP ON INPUT SIDE - MIRROR IMAGE TO WORK ON INOUT SIDE.
OUTPUT: 10' CLUTCHED POWERED DISCHARGE TABLE EXTENSION
DEDICATED HYDRAULIC SYSTEM
PM PROGRAM INCLUDED - TO BE PERFORMED AT 2,000 HOURS

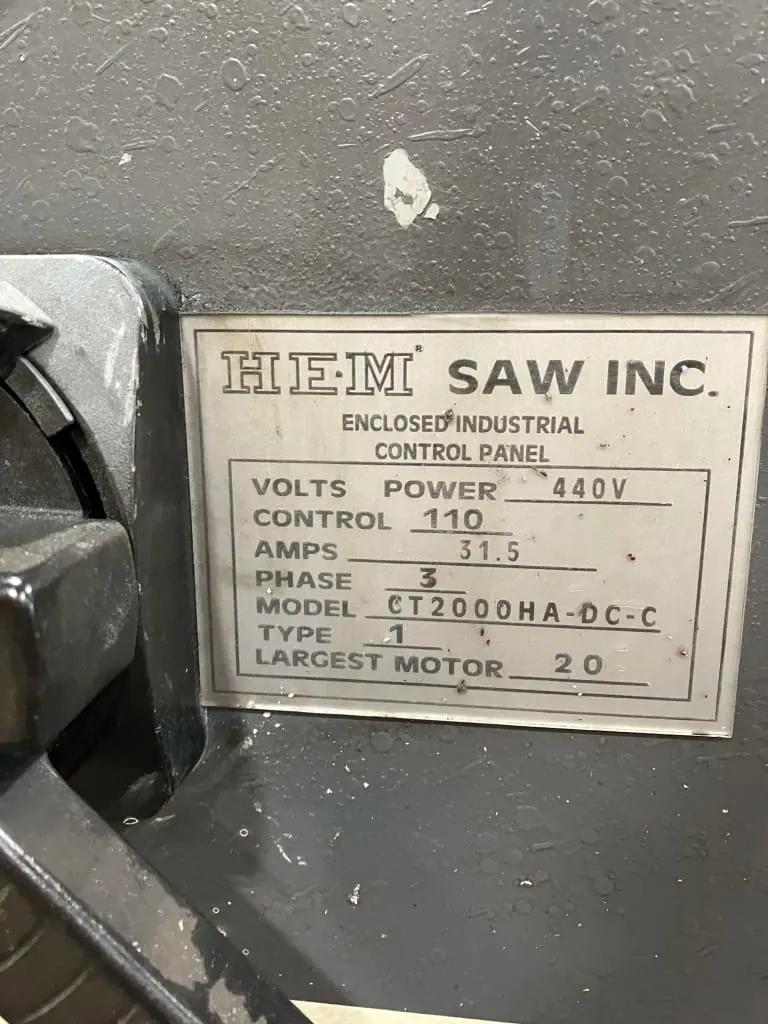

VOLTAGE: VERIFIED AT 440V
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
