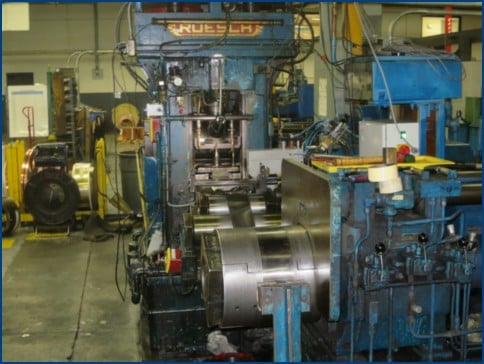

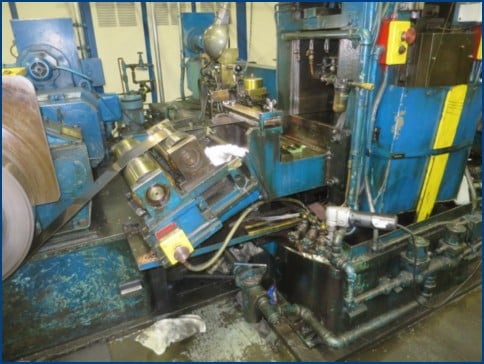

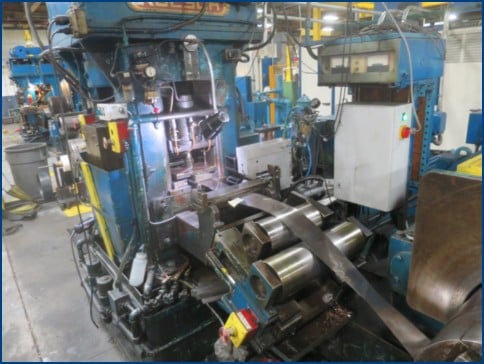

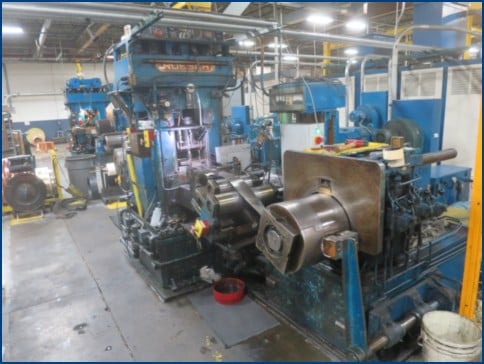

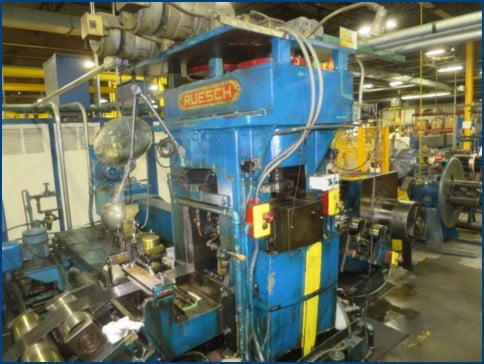

2.5" x 16" 3/4" x 8" Ruesch # N2421-B, 4 Hi Reversing Mill, mechanical adj., 400 FPM line speed, Mandrel Uncoiler, Hydraulic Unit

MANUFACTURER - RUESCH
TYPE - 4HI REVERSING WORK ROLL DRIVEN
MODEL - N2421-B
SERIAL NUMBER - 5754
SCREWDOWN - MECHANICAL BY INDEPENDENT AC MOTORS
WIDTH RANGE - 2" - 8"
WORK ROLLS - 2.75" DIAMETER X 9.5" FACE APPROXIMATELY
BACK-UP ROLLS - 10" DIAMETER X 9.5" FACE APPROXIMATELY
THICKNESS GAUGES - (2) VOLLMER CONTACT GAUGES
MILL SPEED - 200 - 400 FPM
MILL MOTOR - 75 HP RELIANCE 850/1750 RPM 500 VDC WITH MOTOR MOUNTED AC BLOWER
& FILTER
MILL PINION STAND - HORSBURG & SCOTT RATED @ 98 HP @ 1 .0 SERVICE FACTOR RATIO
3.2 TO 1
MILL DEFLECTOR ROLLS - ENTRY/EXIT DEFLECTOR ROLLS ON EACH SIDE WITH FIXED WRAP
ANGLE AND LINE SPEED TACHOMETER
WINDER MOTORS - 25 HP 400/2000 RPM 500 VDC WITH MOTOR MOUNTED ON AC BLOWER &
FILTER
WINDER GEARBOXES - HORSBURG & SCOTT RATED @ 25 HP @ 400 RPM RATIO 21.1 TO 1

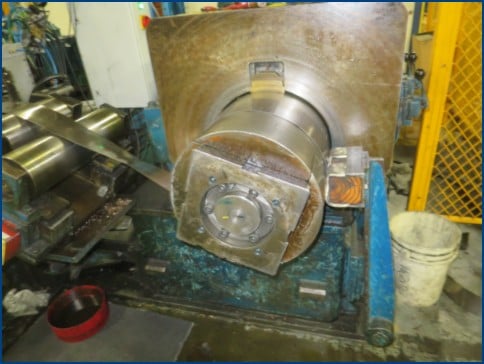

WINDER TYPE - HYDRAULCI COLLAPSIBLE BLOCK 16" DIAMETER
MAXIMUM TENSION - 2000 POUNDS @ 400 FPM AND 4000 POUNDS AT LOWEER 200 FPM MAX
SPEED
WINDER INCLUDES HYDRAULIC PUSHER PLATE & HYDRAULIC HOLD DOWN ROLL
PAYOFF - MANUAL EXPANSION WITH ADJUSTABLE AIR BRAKE FOR BACK TENSION
COOLANT SYSTEM - MILL MOUNTED AC MOTOR & PUMP WITH RESERVOIRS IN MILL BASE AND
WINDER BASES WITH 3 EXTERNAL CARTRIDGE FILTERS.
COOLANT APPLICATION - SPRAYED VIA MILL HEADER WITH NOZZLES DIRECTED AT ROLL
BITE AND BETWEEN THE WORK AND BACK ROLLS PINCH POINT
ELECTRICS - RELIANCE W/ PARKER DC MOTOR POWER MODULES
MILL OPERATORS DESK
SPARE ROLLS AVAILABLE
