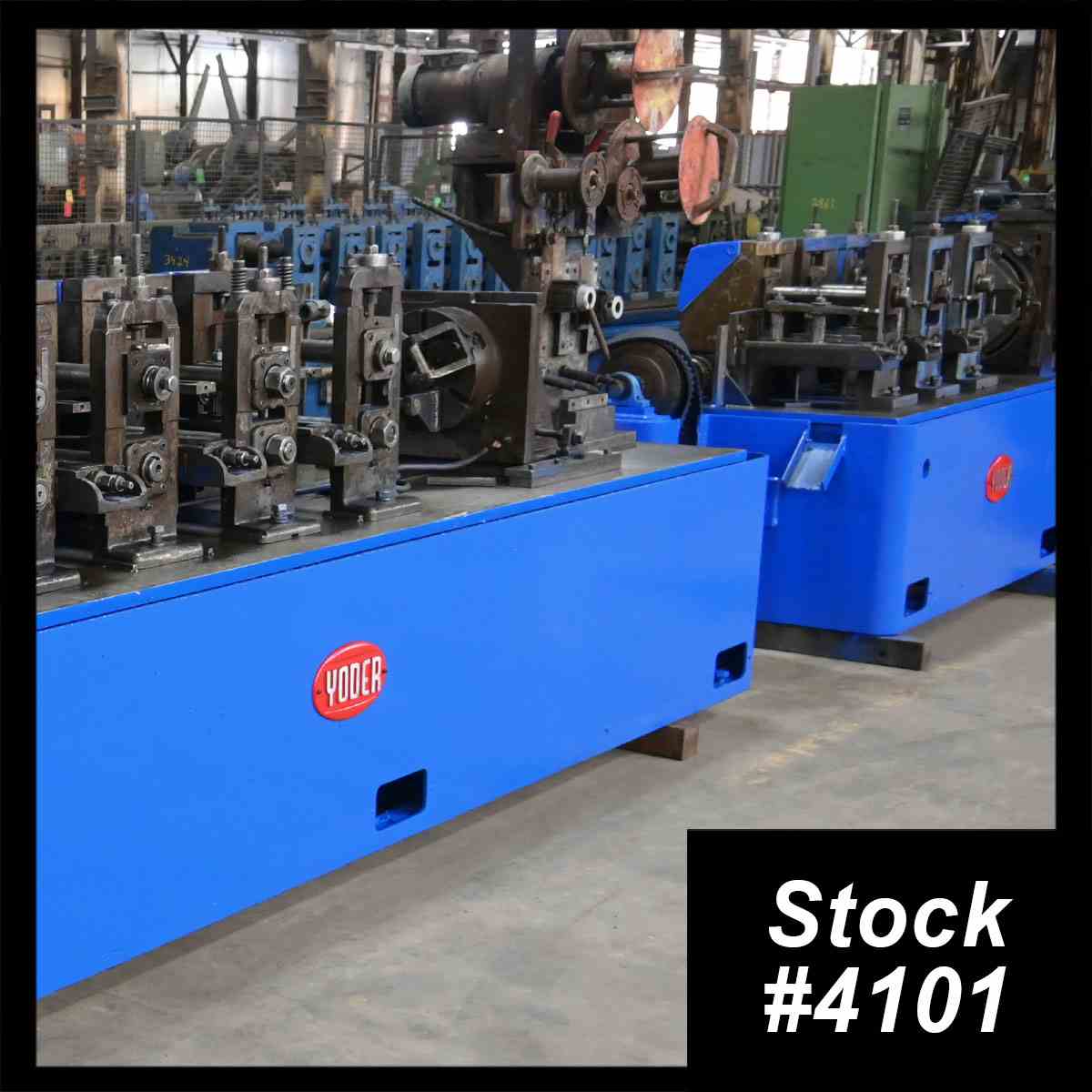

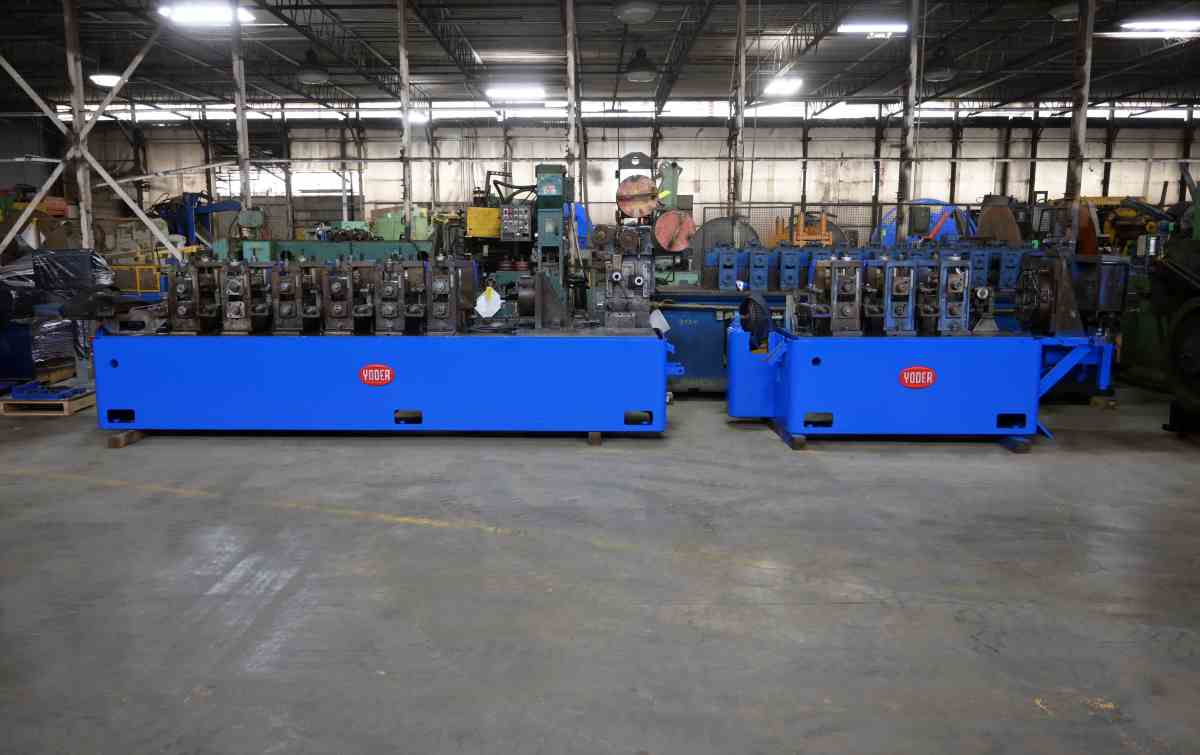

2-1/2" x .095" Yoder #M2, high freq. tube Miller line, forming mill, welding, sizing, MillDrive, coolant, 75 ton cut-off

UTUBE NUMBER: 4101
MANUFACTURER: YODER
MODEL NUMBER: M2

SPECIFICATIONS:
Line Direction: Left to right
Maximum Tube Diameter: 2-1/2″ (63.5 mm)
Minimum Tube Diameter: 1/2″ (12.7 mm)
Maximum Wall Thickness: .095″ (2.41 mm)
Minimum Wall Thickness: .020″ (.508 mm)
Maximum Line Speed: 180 FPM, Maximum Gear In Speed, No Load
Maximum D/T Ratio: 60:1
Minimum D/T Ratio: 10:1
Maximum Material Yield: 50,000 PSI

GEAR BOX DATA:
Spindle Diameter: 2″ (50.8 mm)
Roll Space Forming: 13″ (304 mm)
Roll Space Fin & Size: 13″ (304 mm)
Horizontal Centers: 15″ (381 mm)

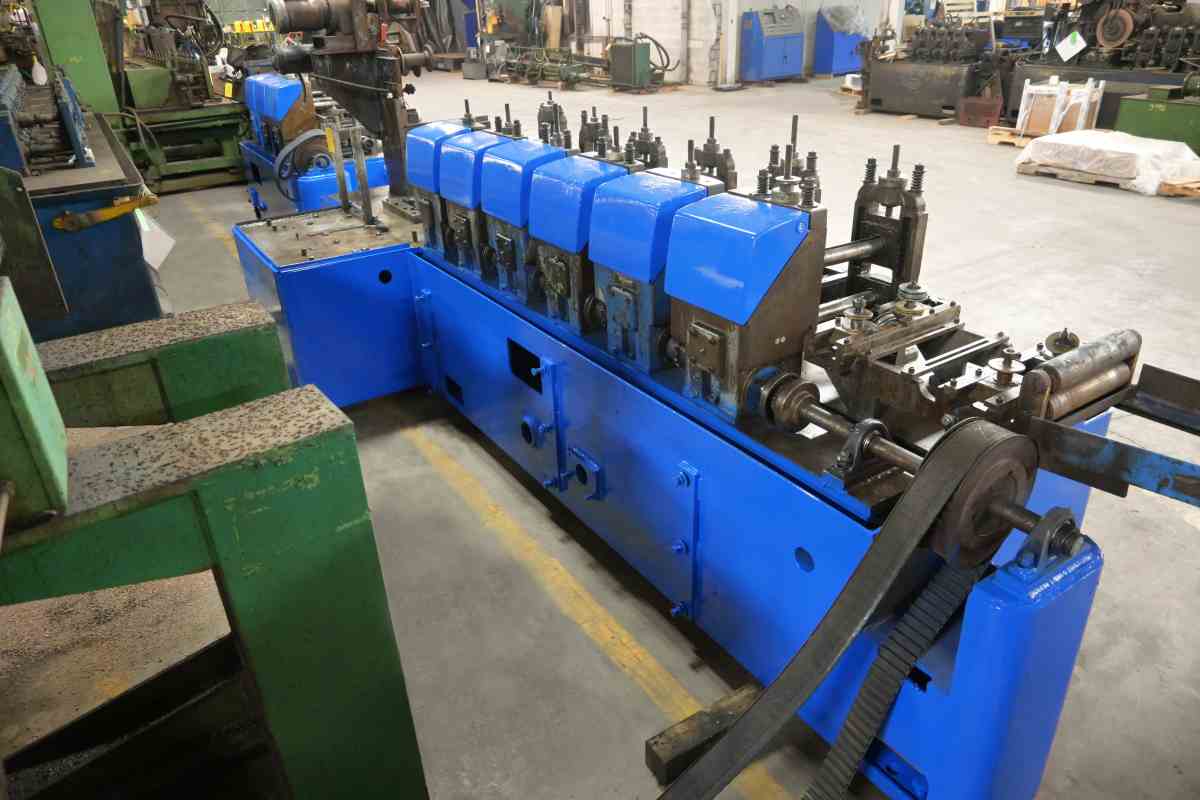

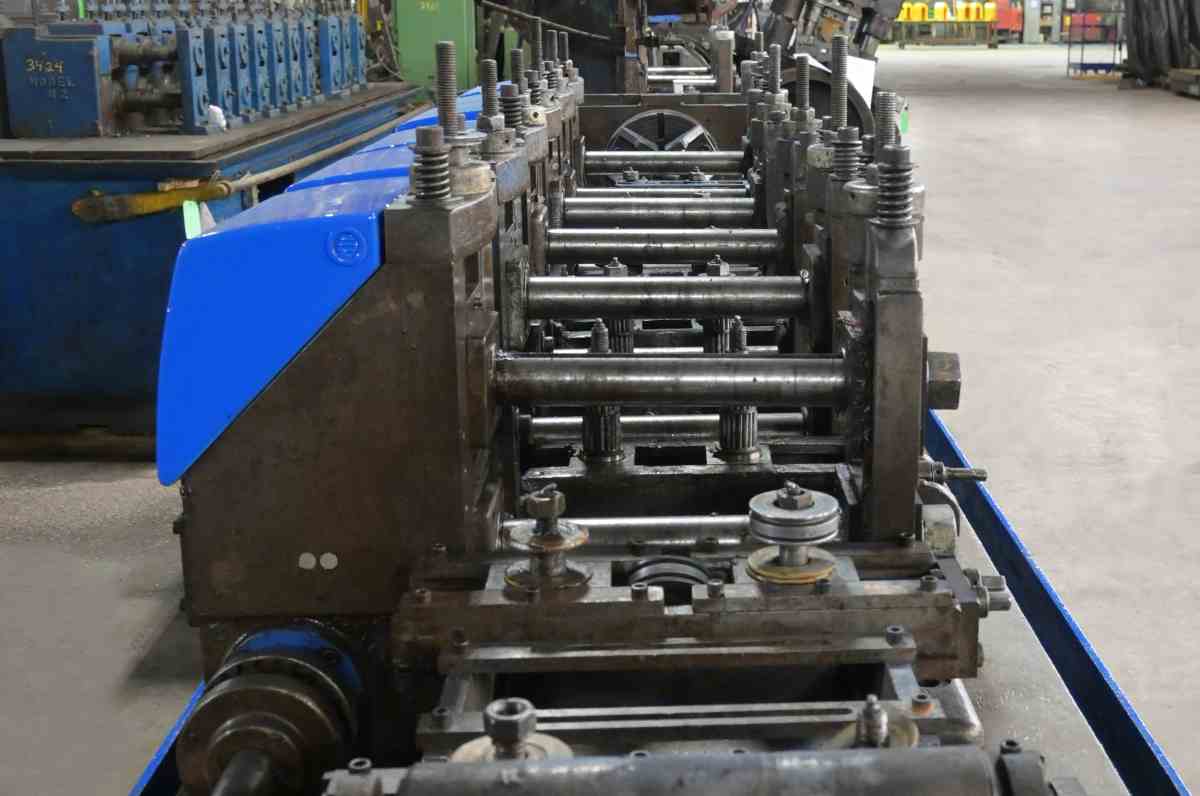

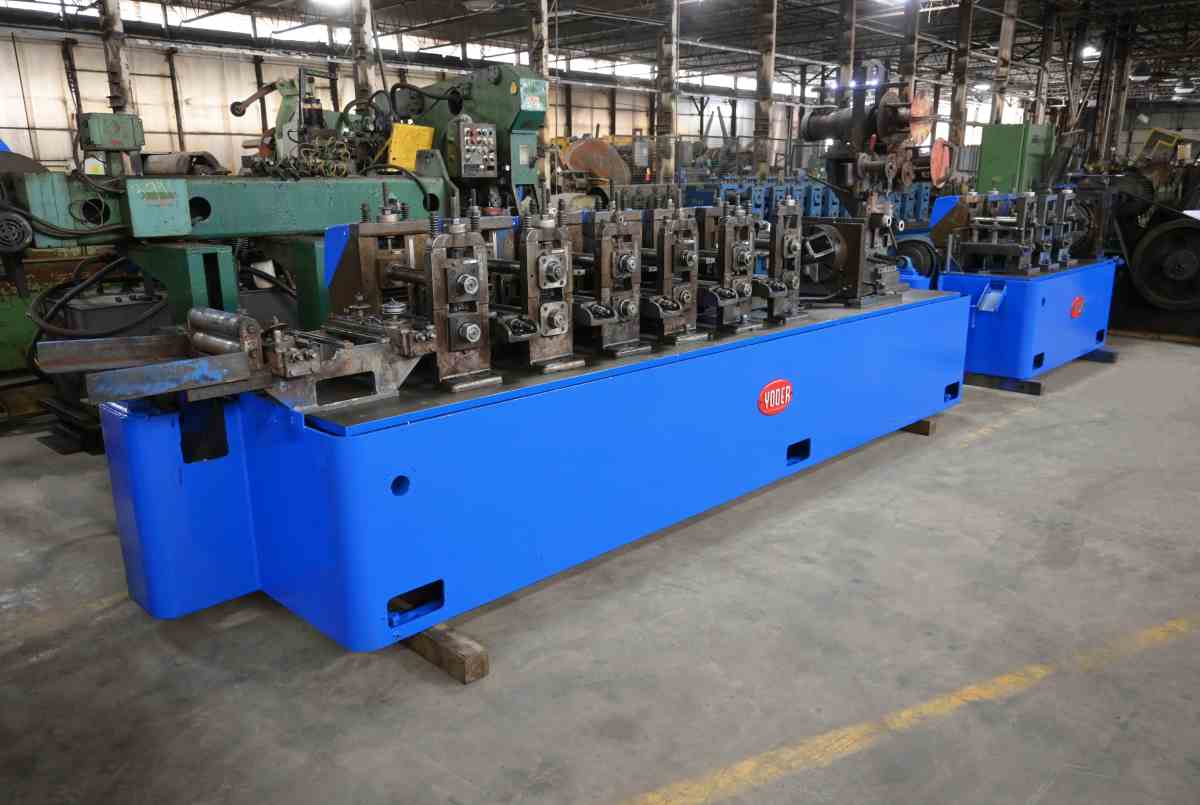

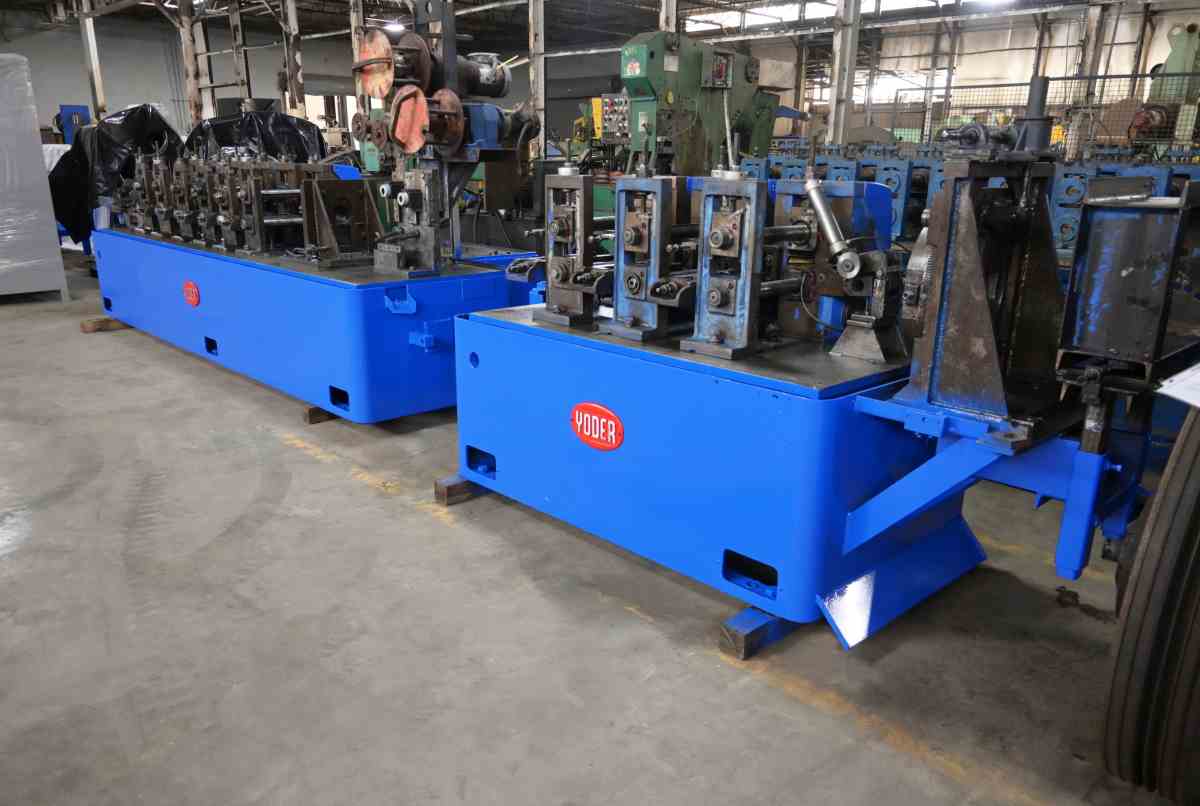

FORMING MILL:
(1) 4-Roll Entry Guide
(3) Driven Breakdown Stands
(5) Idle Side Rolls
(3) Driven Fin Stands

WELDING SECTION:
(1) 3-Roll Weld Pressure Unit
(1) Single Scarfing Unit

SIZING MILL:
(3) Driven Sizing Stands
(3) Idle Side Rolls

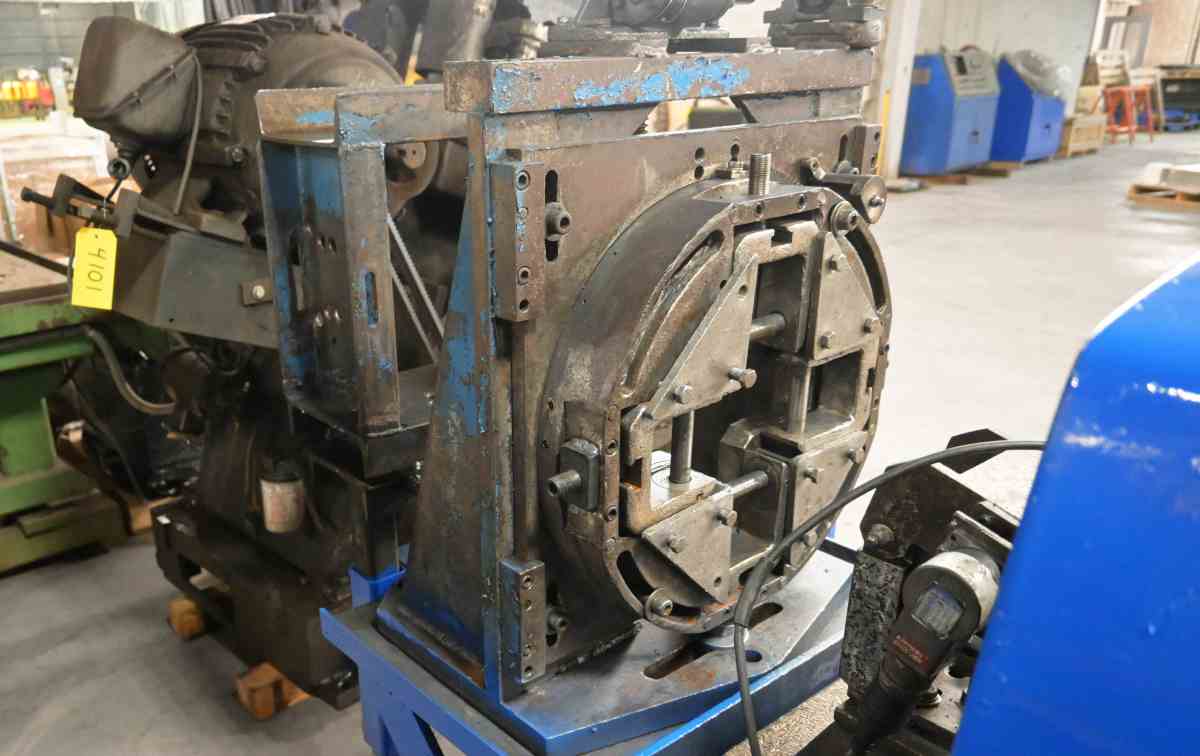

(1) Straightener, Turkshead 4-Roll

MILL DRIVE:
(2) 30 HP DC Motors
(1) UCG Mill Control Panel
(1) UCG Accelerator Control Cabinet

COOLANT SECTION:
Flood-Type

CUT-OFF:

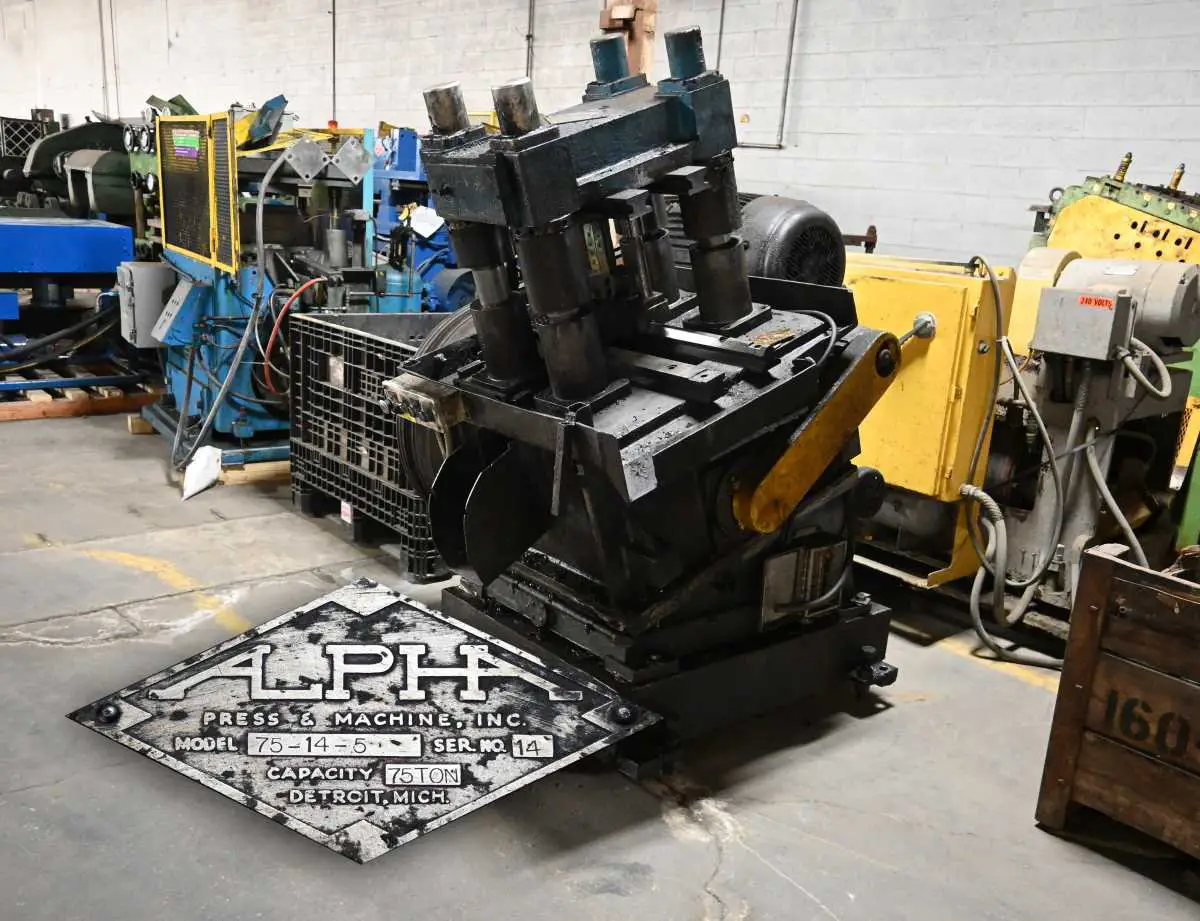

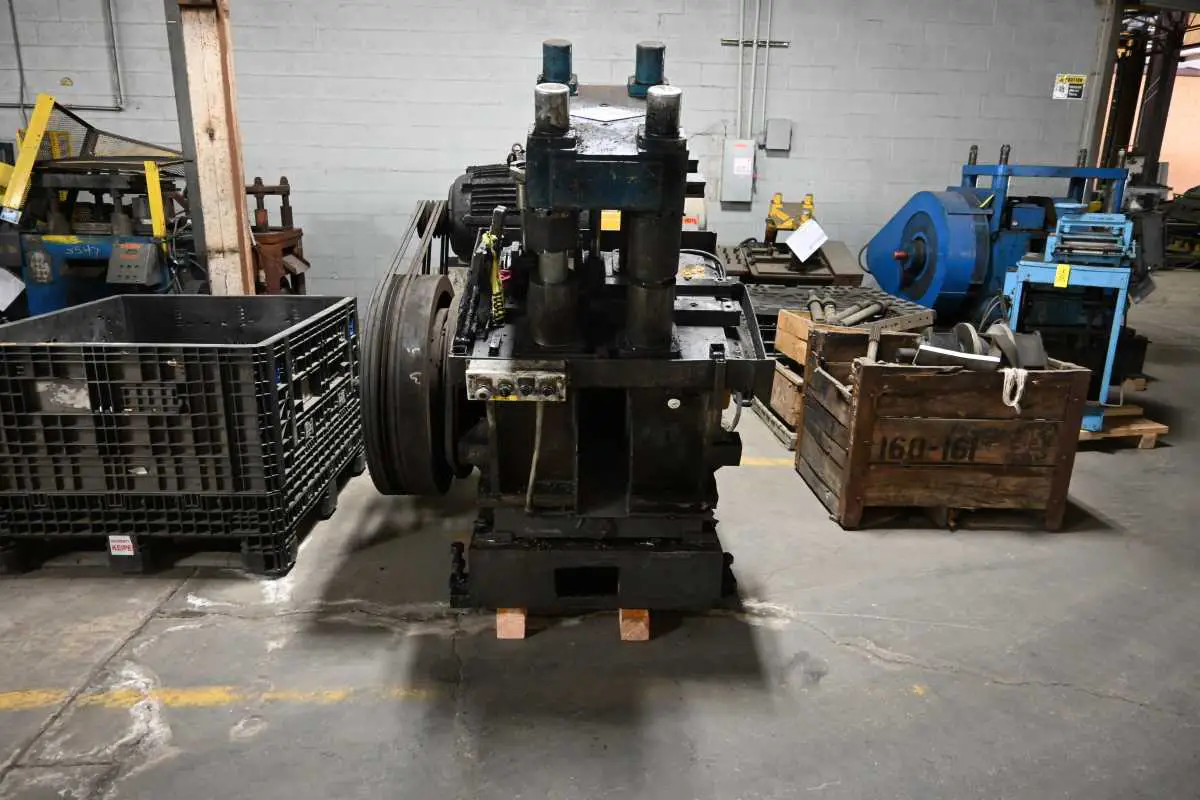

75 Ton ALPHA #75-14-5, 4-Post Press with UTRAK 1 Die Accelerator

WELDER:
300 KW San Feng High-Frequency

INCLUDES:

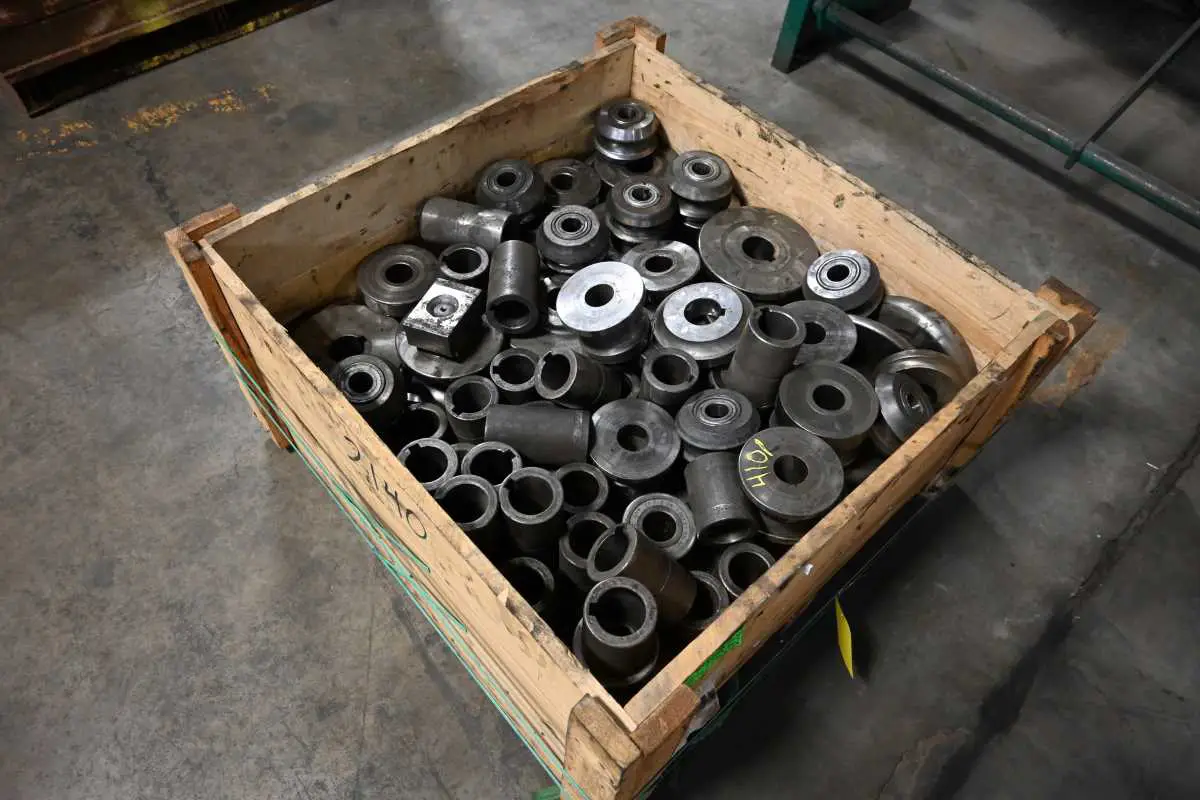

Misc. Tooling for Mill and Cut-Off

LOCATION: Universal Warehouse, Perrysburg, Ohio
