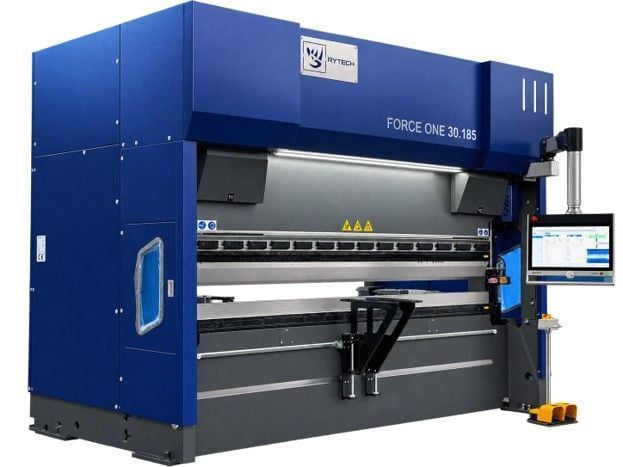

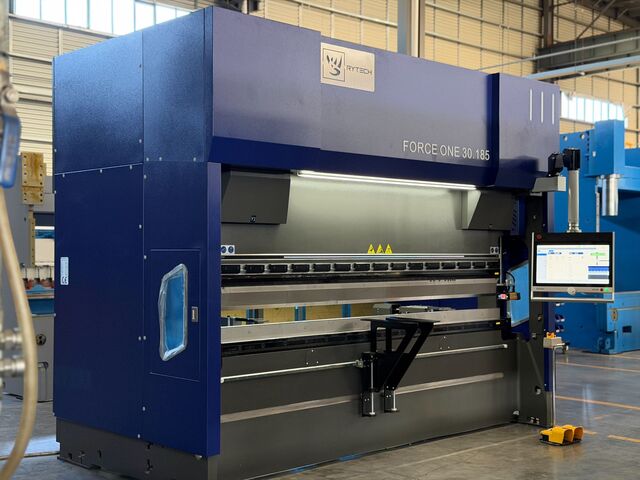

198 Ton, Rytech #Force-One-180-3000, CNC Hydraulic Press Brake, 10' overall, 118.11" working length, 9.84" cylinder stroke, 18.5" dl, 20 HP, Delem 58Tx CNC, 480 Volt, 3PH, 2026

Spec

US Tonnage
198.42
Usable Bending Length
122.05 in
Working Length
118.11 in
Cylinder Stroke
9.84 in
Daylight
18.50 in
Throat
O-Frame / No Restriction
Approach Speed
425.20 IPM
Working Speed
0–28.35 IPM
Return Speed
389.76 IPM
Servo Motor Power
20.12 HP
X-Axis Stroke
23.62 in
R-Axis Stroke
7.87 in
X-Axis Velocity
1,417.32 IPM
R-Axis Velocity
590.55 IPM
Z-Axis Velocity
1,889.76 IPM
Machine Dimensions
167.32 × 86.61 × 120.08 in
Total Weight
29,983 lbs
Electrical
480V / 3PH / 60Hz

Description

The RYTECH FORCE ONE™ hydraulic press brake is engineered to deliver reliable performance,
exceptional accuracy, and outstanding value for today’s fabrication shop. Built with a rigid frame, proven
hydraulic technology, and advanced CNC controls, FORCE ONE combines precision, productivity, and
operator confidence in a machine designed for everyday manufacturing.
Whether producing simple bends or complex formed parts, FORCE ONE provides the performance
fabricators expect with the reliability they demand
Consistent Accuracy Across Every Bend
The Dynamic Crowning System automatically compensates for bed deflection throughout
the bending process, ensuring consistent bend angles from the first part to the last.
Controlled directly through the CNC, it delivers precise, repeatable results while reducing
setup time and operator adjustments
