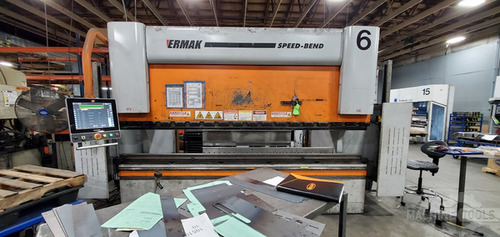

192 Ton, Ermaksan #Speed-Bend-12'X193, Press Brake, 6-Axis, 12' Overall length, 128" Between Housings, 10.8" Stroke, 21.7" Daylight, 16.1" Throat depth, 2013

Spec

Tonnage: 192 T
Type: HYD
Overall Length: 148″
Between Housings: 128″
Stroke: 10.8″
# Axis: 6
Dimensions: 193” x 84.7” x 110.24”
Weight: 24224 lbs
ERMAK SPEED-BEND 3760-175 Tonnage 193 US Tons A Bending Length 148 Inches B Distance Between Housings 128 Inches C Stroke 10.8 Inches D Daylight (Open Height) 21.7 Inches E Throat Depth 16.1 Inches F Table Height 35.4 Inches G Table Width 3.54 Inches Approach Speed 425 in/minute Bending Speed 28 in/minute Return Speed 448 in/minute Back Gauge Travel (X Axis) 31.5 Inches Main Motor 20.1 HP Oil Capacity 79.6 US Gallons L Machine Length 193 Inches W Machine Width 85 Inches H Machine Height 110 Inches Weight 24,420 lbs

Description

Thank you for the opportunity to present to you our Ermaksan Press brake total productivity solution. If your aim is to provide important developments in quality, productivity, aesthetic and security aspects, the Ermak CNC SPEEDBEND is exactly what you are looking for. The CNC SPEEDBEND series is designed to work with a wide variety and where production speed is critical. Syncro systems are provided by synchronized cylinders with proportional valve technology and controlled through high powered CNC control. The ROCK 3D control is used on our SPEEDBEND series. This controller’s easy usage, high capacity and fast processing power, durability and service network all around North America makes it one of today’s most popular. We are very proud to offer this machine to our customer and truly believe that we can not only change your bending culture, but help your company exceed expectations in your forming department.
