Manufacturer: Amada
Model: HFE-M2-1704
Year: 2012
Tons: 191.0
Overall: 13.8
Between Housings: 148.00
Stock # 7612383
For Sale by Machinery Resources Intl
Surplus Record Dealer Since 1996
Sales Dept.
818-51...> Show Seller's Phone Number 818-514-1254 Let the seller know you found their listing on Surplus Record!
Description
Description:

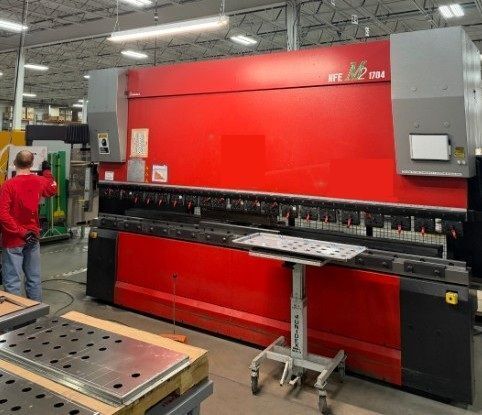

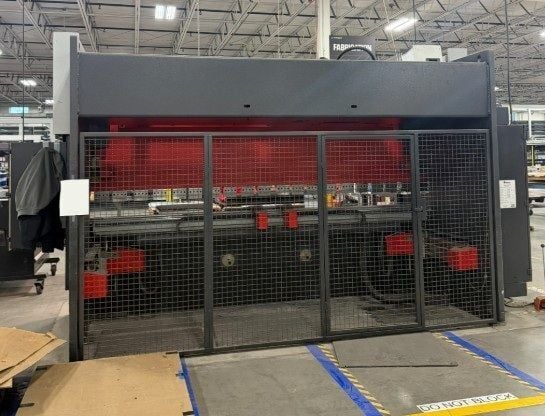

187 TONS, 157" MAX. BENDING LENGTH, 5-AXIS PROGRAMMABLE BACK-GAUGE
Built on the solid foundation of the HFE series, Amadas HFE M2 press brake models include additional production-enhancing features and an innovative touch-screen AB PAD interface. Overall design improvements result in an eco-friendly series that provide maximum performance and ease of use. Equipped with an energy saving drive the inverter on the HFE M2 series reflects Amadas ongoing
commitment to environmental protection. The new drive system uses a frequency inverter that controls the motor pump and ensures efficiency by operating only when necessary. The system continually monitors and self-regulates bending requirements this translates to using 20% less energy, a significant reduction
in maintenance requirements, less oil consumption, lower noise levels, and an increase in reliability.
Specifications:
MIN. TONNAGE: 23.6
WORKING LENGTH: 166"
TABLE WIDTH: 7.09"
WORKING HEIGHT: 37.8"
OPEN HEIGHT: 18.5"
STROKE LENGTH: 7.87"
THROAT DEPTH: 16.5"
DISTANCE BETWEEN FRAMES: 148"
SPEEDS:
- MAX. APPROACH: 3.94 IPS
- MAX. BENDING: 0.39 IPS
- MAX. RETURN: 3.94 IPS
OIL CAPACITY: 19.8 GALLONS
POWER CONSUMPTION: 18 KVA
APPROX. DIMENSIONS: 217.7"(L) x 103.3"(W) x 113.8"(H)
APPROX. WEIGHT: 30,645 LBS
Get Your Price from Machinery Resources Intl!
