19" x 78" Leblond Makino #Regal, Engine Lathe, 12-1/4" swing over cross slide, 3-1/16" spindle bore, 12" 3-jaw chuck, 17" face plate, 10 HP, 1600 RPM, 2-axis Acu-Rite digital read out, 440 Volt, 1992

HERE WE HAVE:

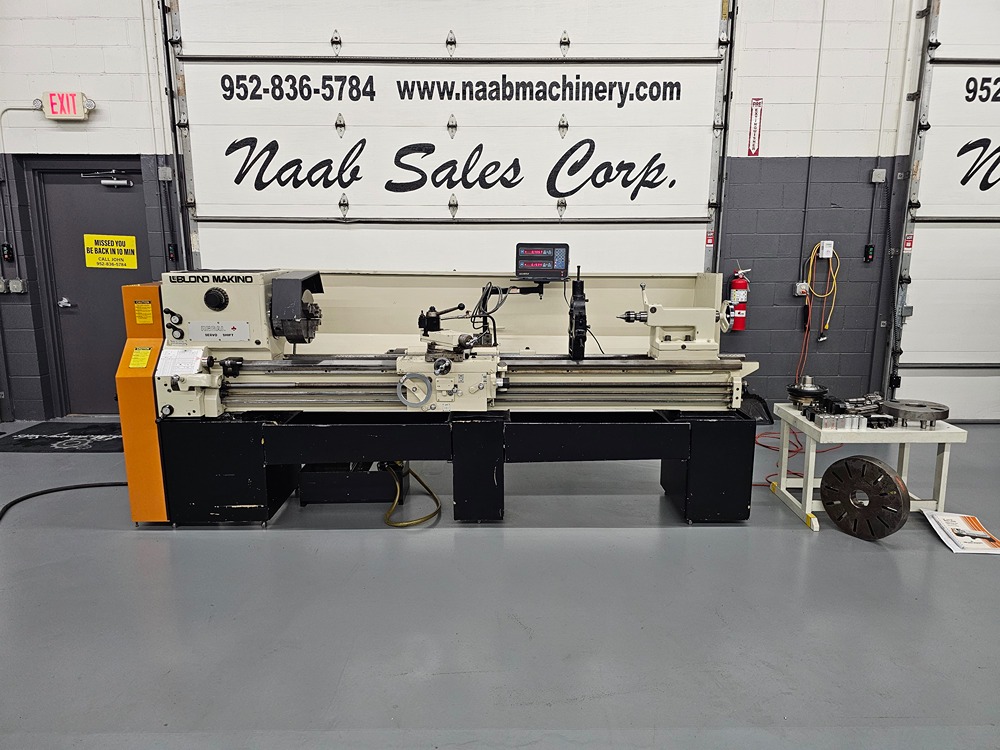

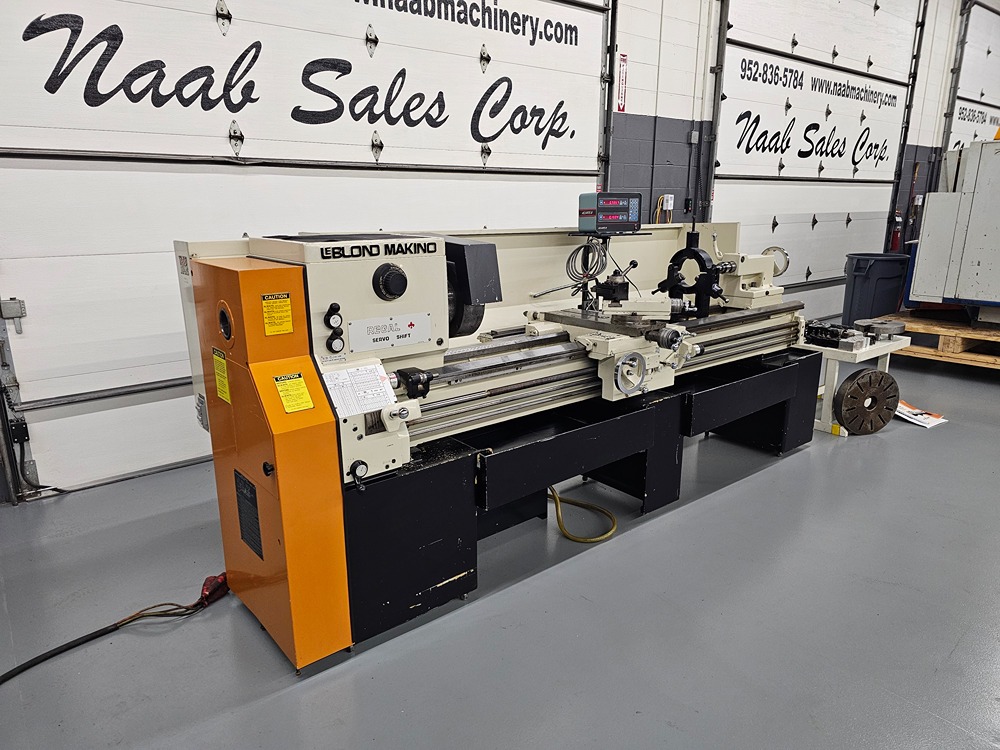

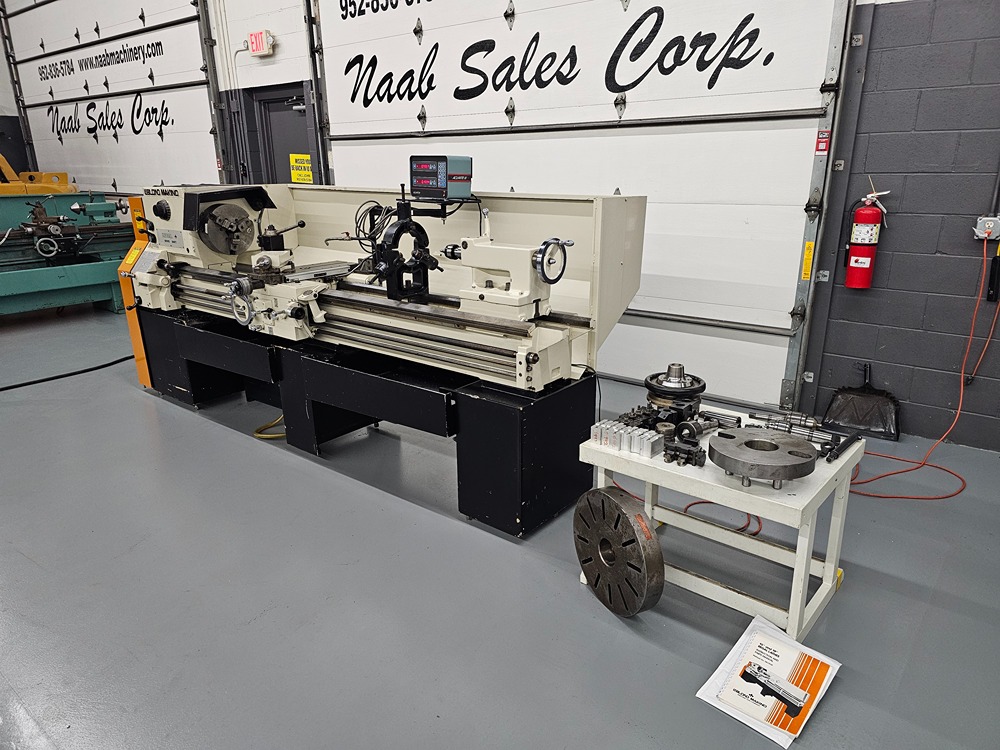

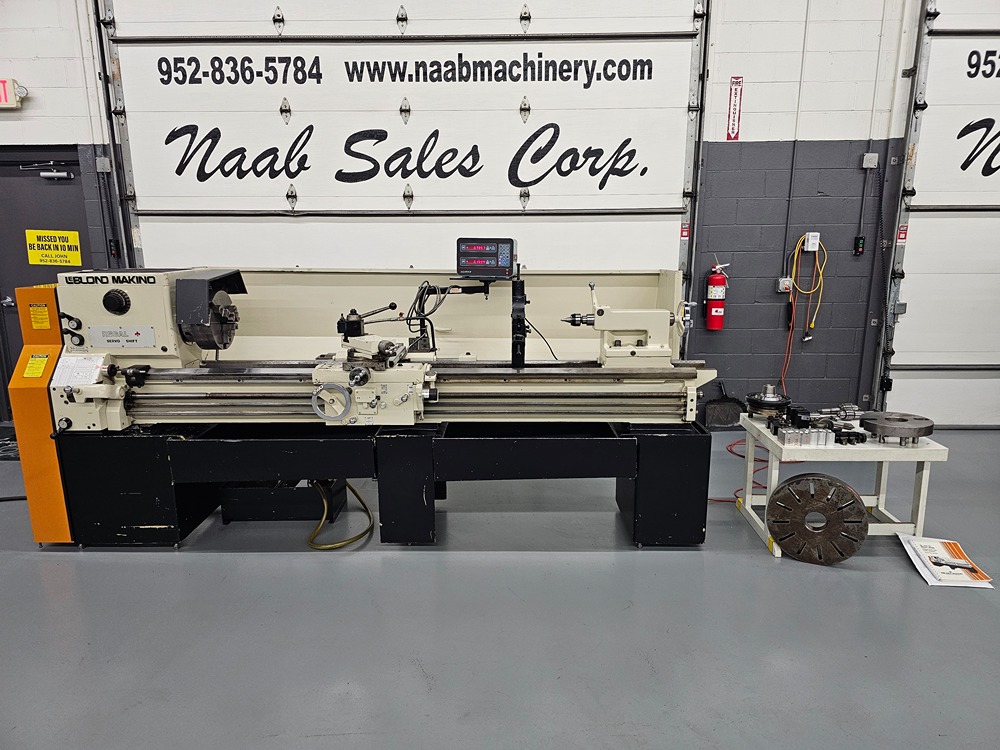

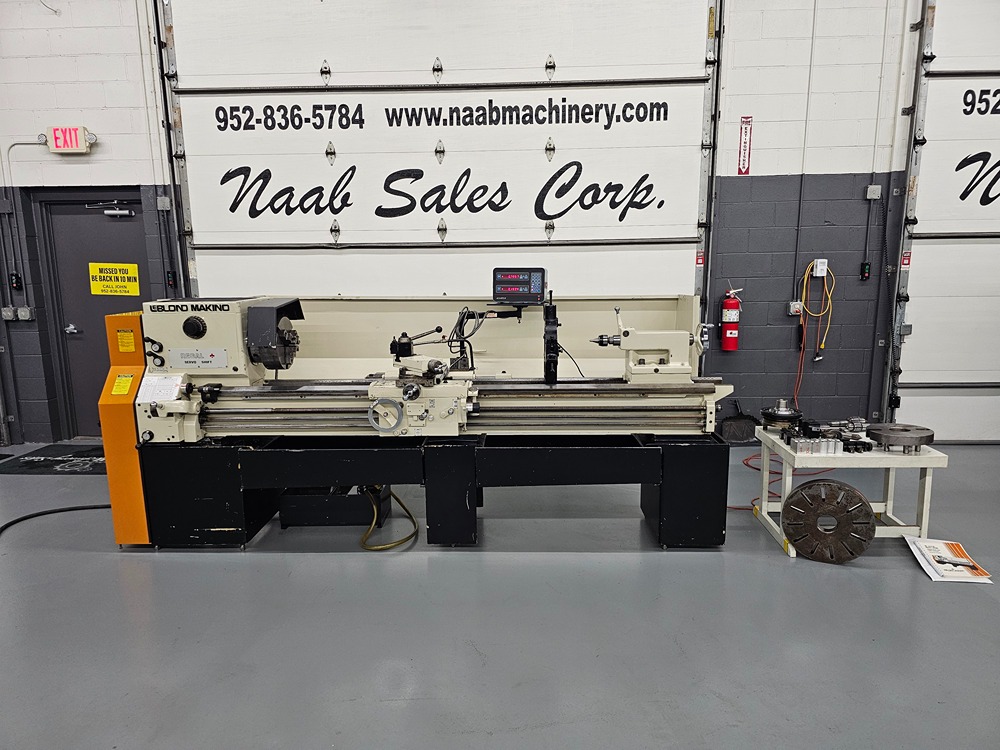

NICE WELL TOOLED 19″ x 78″ LEBLOND MAKINO SERVO-SHIFT ENGINE LATHE, W/ 3-1/16” SPINDLE BORE
2 AXIS ACU-RITE DIGITAL READOUT
MAKE: LEBLOND MAKINO
MODEL: 19″ REGAL, 19X78
SERIAL NUMBER: 15E-484
NEW IN: 1992
SPECIFICATIONS:
HOLE THRU SPINDLE: 3-1/16″
SWING OVER BED: 19-1/4″
SWING OVER CROSS SLIDE: 12-1/4″
DISTANCE BETWEEN CENTERS: 78″
WIDTH OF BED: 14-3/8″
SPINDLE NOSE: D1-8 CAMLOCK
SPINDLE SPEED RANGE: (12) 40-1600 RPM
LONGITUDINAL FEED RANGE: (48) .0018″ – .104″ IPR
CROSS FEEDS HALF THE VALUES OF LONGITUDINAL
THREADING RANGE ENGLISH: (48) 2 – 112 TPI
THREADING RANGE METRIC: (40) 0.25 – 14 mm
TAILSTOCK SPINDLE DIAMETER: 2-7/16″
TAILSTOCK SPINDLE TRAVEL: 7″
TAILSTOCK SPINDLE TAPER: #5 MT
APPROXIMATE WEIGHT: 4,950 LBS
APPROXIMATE DIMENSIONS: 142″L x 50″W x 51″H
POWER REQUIREMENTS: CURENTLY, 440 V 3 PHASE NOTE: WE CAN WIRE TO 220V IF NEEDED

EQUIPPED WITH:
– 2 AXIS ACU-RITE DIGITAL READOUT
– INCH/METRIC THREADING

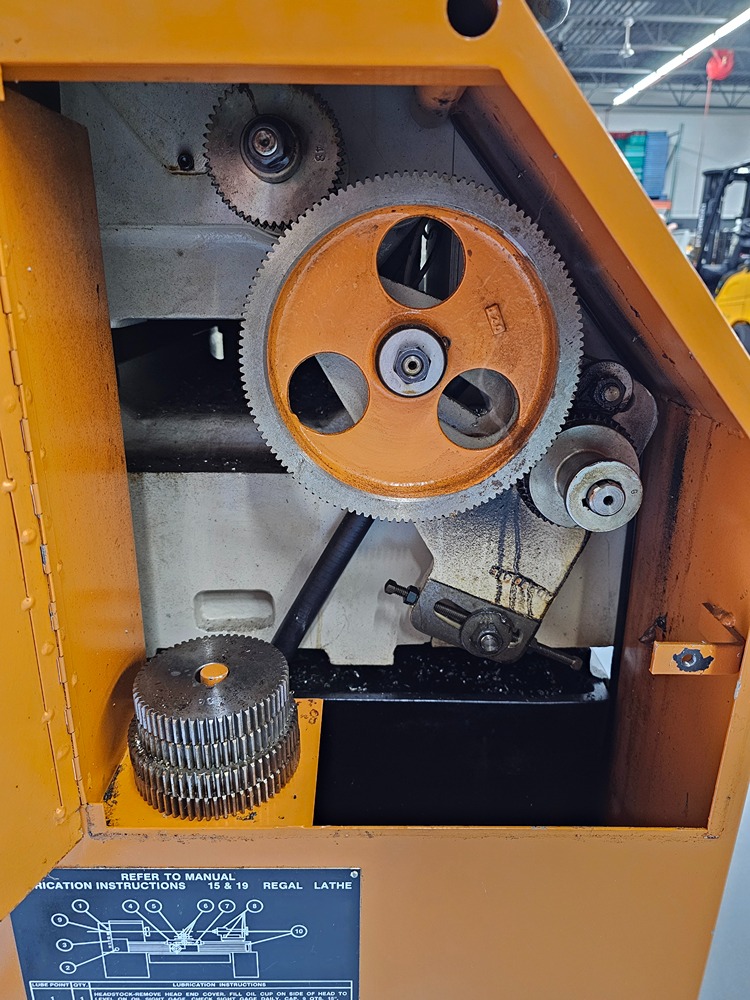

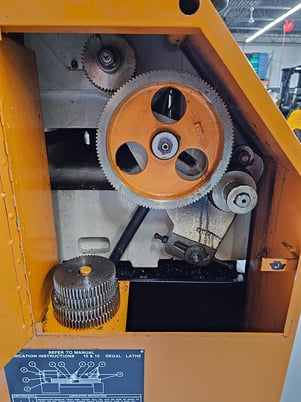

– CHANGE GEARS
– TAPER TURNING ATTACHMENT COMPLETE
– 12″ 3-JAW CUSHMAN CHUCK
– 17″ FACE PLATE W/ D1-8 CAMLOCK BACK
– 12” DOG PLATE
– SJOGREN 5C WHEEL OPERATED COLLET CHUCK W/ D1-8 CAMLOCK BACK
– 6″ ROLLER TYPE STEADY REST
– ALORIS QUICK CHANGE TOOLPOST
– 6 ALORIS QUICK CHANGE HOLDERS CUTTING
– 3 ALORIS QUICK CHANGE HOLDERS BORING
– 1 ALORIS QUICK CHANGE HOLDERS KNURLING
– INCH & METRIC HANDWHEELS
– THREAD DIAL INDICATOR
– ADJUSTABLE CENTER TAIL STOCK
– MICROMETER CARRIAGE STOP
– TWO SPEED HEAVY DUTY TAILSTOCK
– HARDENED & GROUND REPLACEABLE BEDWAYS

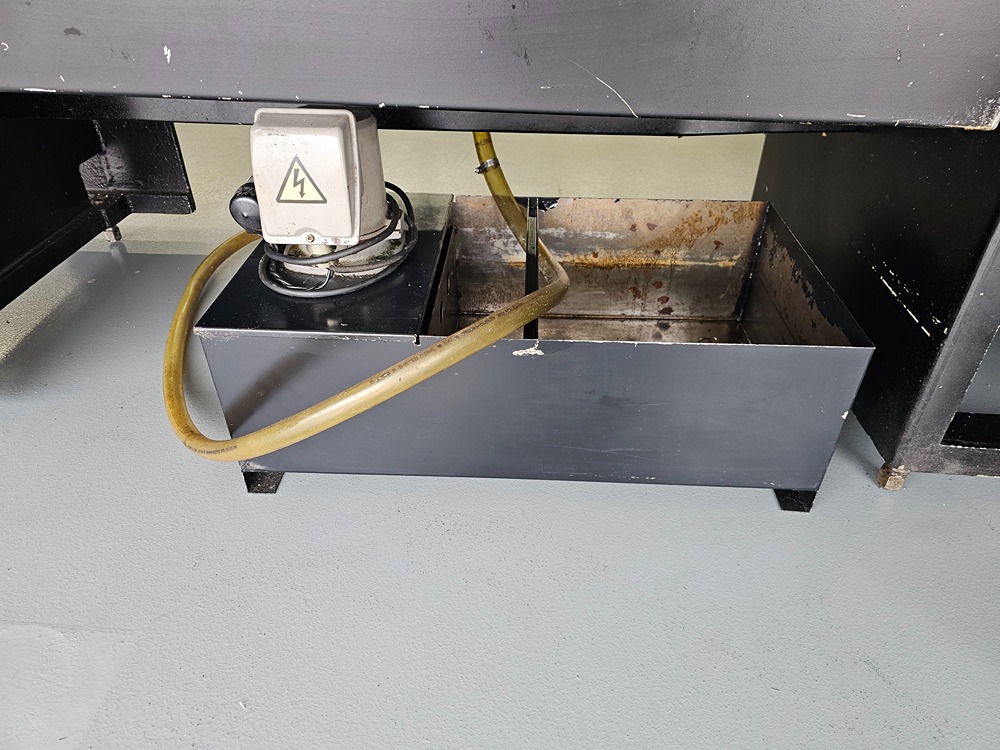

– COOLANT PUMP & TANK

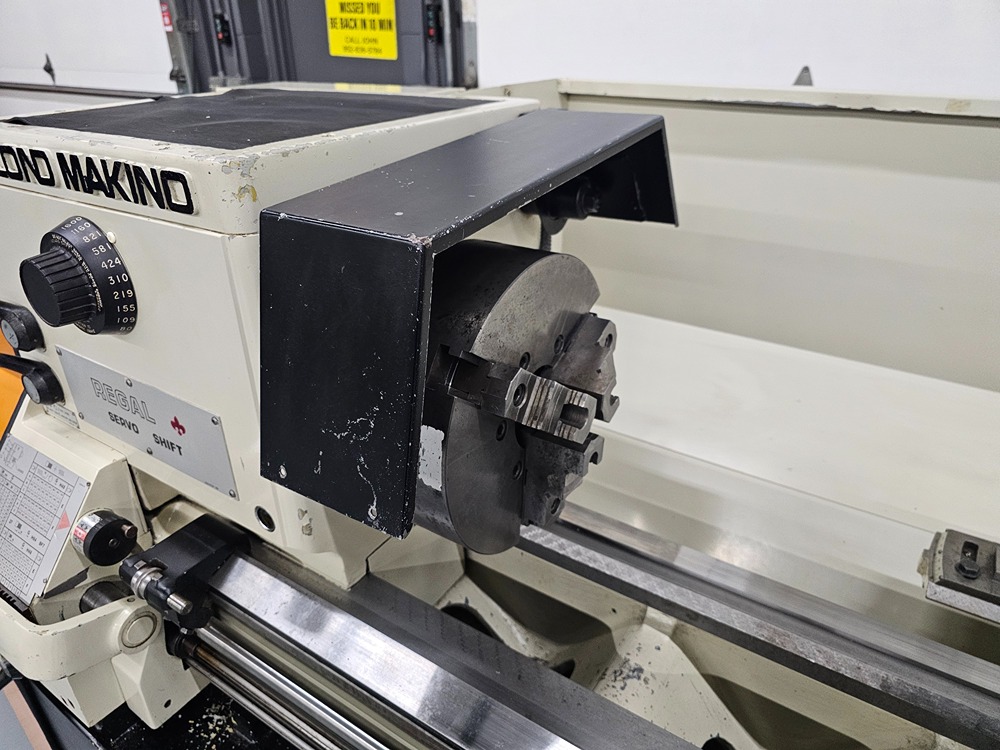

– CHUCK CHIP GUARD W/ LIMIT SWITCH
– TWO REMOVABLE CHIP PANS

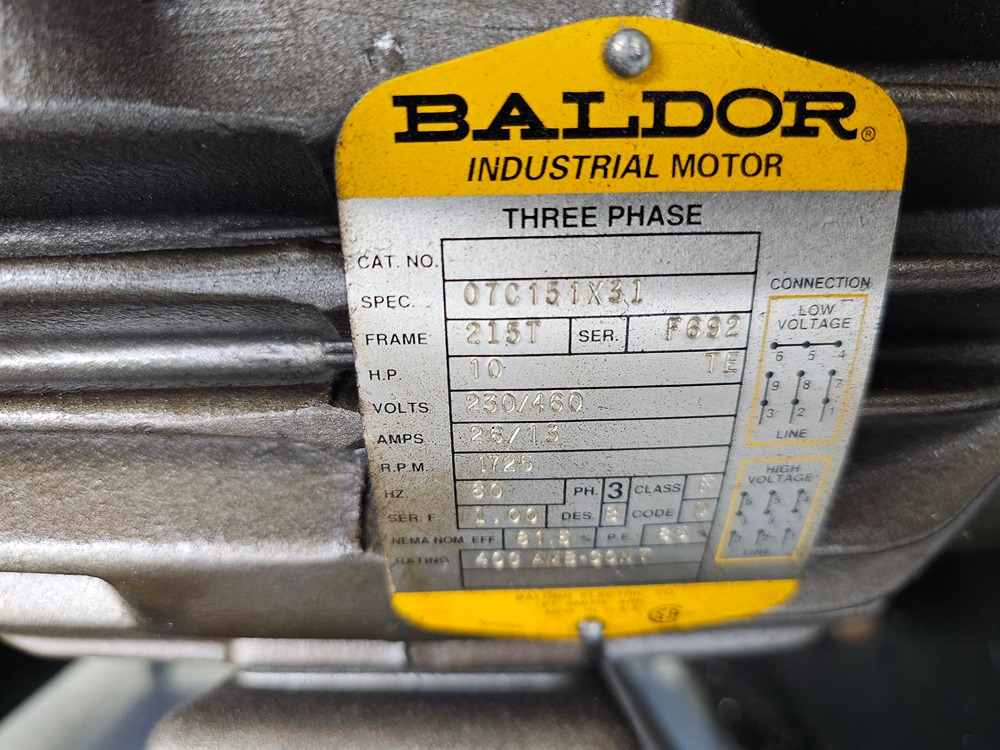

– 10 HORSE POWER MAIN MOTOR 1725 RPM
– APRON SPINDLE CONTROL W/ ELECTRIC BRAKE
– 12 SPEED GEAR & BELT DRIVEN HEADSTOCK
– FEED DRIVE SAFETY CLUTCH
– LEVELING PADS
– MACHINE MANUAL
– ALUMINUM SOFT JAWS

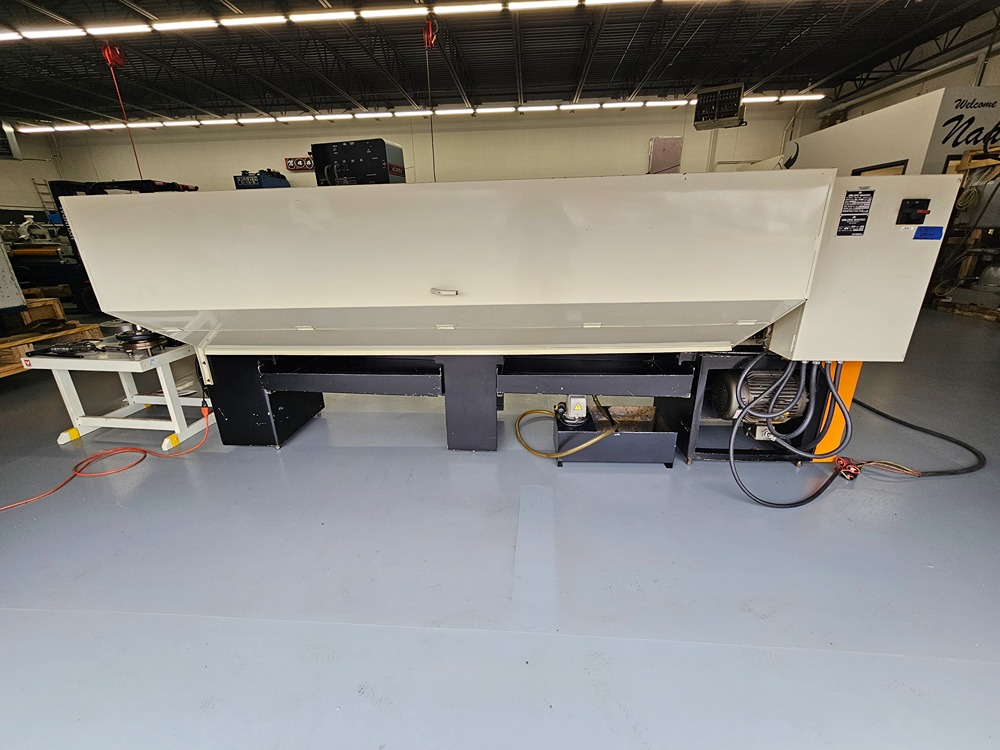

– REAR COOLANT SHEILD ENTIRE LENGTH OF BED
– JACOBS CHUCKS
– LIVE AND DEAD CENTERS
– MORSE TAPER REDUCERS
